I have walked through enough port terminals to recognize the pattern. A procurement manager needs fenders. The budget is tight. Someone suggests a cheaper supplier—same dimensions, same rubber, half the price. Six months later, the fenders are cracking. The panels are corroding. The port is filing warranty claims against a manufacturer who has already moved on.
This scenario repeats itself across the industry because fender systems are too often treated as commodity products rather than engineered safety infrastructure. As an OEM manufacturer at NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we see the consequences of this mindset from the production side. We also understand why the industry's leading voices—PIANC, and major port operators—are now advocating for a fundamentally different approach.
The whole system approach to fender performance is not a marketing slogan. It is an engineering philosophy that recognizes one uncomfortable truth: a fender system is only as strong as its weakest component, its most overlooked design detail, and its least controlled manufacturing process.
The term has gained prominence through Taidun's whitepaper and the updated PIANC WG211 Fender Guidelines 2024 . But what does it actually mean in practice?
A whole system approach considers every stage of a fender's lifecycle as interconnected:
- Application engineering—understanding the berthing conditions, vessel types, and environmental loads
- Detailed design—optimizing not just the rubber element but panels, chains, facing pads, and fastening systems
- Production and quality control—ensuring manufacturing consistency across every batch
- Installation, operations, and maintenance—accounting for accessibility, wear allowances, and long-term serviceability
The failure of one stage compromises the entire system. A perfectly designed fender manufactured with inconsistent rubber compounds will underperform. A high-quality fender installed without regard for maintenance access will fail prematurely.
> *"Taking a whole system approach to fender systems—one that comprises application engineering, detailed fender system design, fender production, sustainability and quality control, and installation, operations and maintenance—will reduce construction costs, downtime and operating expenditure."*
In 2024, PIANC published WG211 Fender Guidelines, replacing the 2002 WG33 guidelines that had shaped fender design for over two decades . This update is not merely incremental—it represents a fundamental shift in how the industry approaches fender selection and verification.
The new guidelines introduce the term "Base Fender Performance" and provide detailed methodology for calculating and applying correction factors—including a new factor for multiple fender system contacts . For ports and terminal operators, this means more accurate fender sizing and better alignment between specified performance and real-world conditions.
Application engineering is the foundation. It requires collecting data on:
- Vessel characteristics: size, hull geometry, approach velocity
- Site conditions: tidal range, wind exposure, current, ice risk
- Operational requirements: berthing frequency, maintenance access, desired service life
The berthing energy calculation is the critical output. But as PIANC WG211 emphasizes, using default berthing velocity curves without site-specific data can lead to oversized or undersized fenders . Recent research confirms that site-specific berthing records should always take precedence when available .
For OEM manufacturers, application engineering input determines what we build. When a client provides accurate site data, we can optimize rubber compounds, panel designs, and chain specifications accordingly. When data is missing, we must make conservative assumptions—which often means larger, more expensive fenders.
The rubber element absorbs energy. But the steel panel distributes that energy across the vessel hull. The chains restrain the fender during compression. The facing pads reduce friction and determine maintenance intervals.
Taidun's whitepaper makes this point explicitly: "all the components, including accessories, in a fender system are equally important" . A high-performance rubber element mounted on an undersized panel will fail. A well-designed panel connected by poor-quality chains will detach.
Front panel design considerations include:
- Contact type: full-face vs. double contact
- Stress analysis: bending, shear, torsion, local buckling
- Connection design: rubber, chain, and fastening interfaces
- Maintenance access: can components be inspected and replaced?
Low-friction facing pads deserve special attention. Their quality and thickness directly impact lifetime maintenance costs. UHMW-PE pads with insufficient thickness will wear through, requiring panel replacement rather than pad replacement—a dramatically more expensive proposition.
This is where OEM manufacturing expertise becomes critical. A fender's published performance curve is a claim. Production quality determines whether that claim is delivered.
Recent testing by Politecnico di Milano revealed that approximately one-third of fenders tested did not meet performance requirements . The failures were not visible from the outside. They originated in the rubber compound and manufacturing process.
Taidun's materials research highlights a manufacturing factor that most buyers never consider: carbon black dispersion . Carbon black is the reinforcing filler in rubber compounds. Its performance depends on how thoroughly it is broken down and distributed through the rubber matrix.
- Poor dispersion = reduced fatigue life, inconsistent performance, premature failure
- Good dispersion = uniform energy absorption, longer service life, predictable behavior
Achieving good dispersion requires advanced mixing equipment and tight process control. A Dispergrader machine can evaluate dispersion quality by measuring particle size and uniformity . This is not standard industry practice—but it should be.
When evaluating an OEM manufacturing partner, the right questions are not just about price and lead time. They are about:
- Mixing equipment: What type of internal mixer is used?
- Dispersion testing: Is carbon black dispersion measured? How?
- Vulcanization control: How is temperature and time controlled?
- Traceability: Can every finished fender be traced to raw material batches?
At NANJING TAIDUN, we provide this documentation as standard. Not because it is required by every client—but because we understand that manufacturing consistency is the foundation of performance consistency.
A fender system that cannot be maintained will not be maintained. This is a design consideration, not an afterthought.
Installation considerations should be integrated into design:
- Accessibility: Can inspectors reach the fender and panel?
- Wear allowances: How much material loss is acceptable before replacement?
- Protective coatings: Are coating systems appropriate for the environment?
Maintenance requirements vary by fender type. PIANC WG211 provides specific guidance:
For pneumatic fenders:
- Check air pressure regularly and adjust as required
- Inspect and clean safety valves annually (minimum)
- Apply grease to swivels as needed
For foam fenders:
- Inspect skin for cuts, gouges, or cracks—repair immediately
- Remove marine growth that affects flotation or stability
A critical but often overlooked issue: rubber hardens over time. This increases reaction forces, potentially exceeding the design capacity of the berth structure or vessel hull. Durometer hardness testing can detect this aging process.
The most instructive case study for OEM manufacturing comes from DP World's Jebel Ali Port in Dubai—the world's largest man-made harbor.
During refurbishment of Quay Four at Terminal 1, DP World wanted to verify rubber quality in fender systems. Their concern was straightforward: how do you know that the fender delivered matches the fender specified?
DP World built Taidun's rubber quality standards into their fender specification. This meant:
- Defined rubber compound parameters in the contract
- Analytical testing (TGA—Thermogravimetric Analysis) built into all specifications
- Random sampling during factory visits—DP World selected fenders while at the Qingdao manufacturing facility

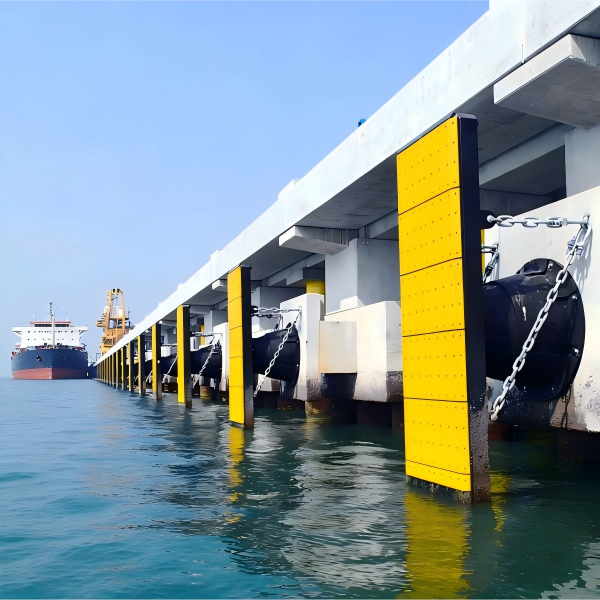

Taidun supplied 60 Super Cone 1300H fenders for the project. The rubber specification ensured that the delivered product matched the specified performance .
The lesson for OEM buyers: If you are sourcing fenders from a manufacturing partner, put quality parameters in the specification. Define the rubber compound properties you require. Require analytical testing. Visit the factory. Random sampling is not distrust—it is smart procurement.
In 2018, Taidun launched the Fender Quality Framework—an online resource hub providing research reports, webinars, and best-practice guidance . The initiative reflects a broader industry shift:
> *"Historically, the industry has undervalued this mission critical equipment, with many often prepared to take a risk on low cost, inferior alternatives. However, decision makers are increasingly giving whole life costs greater precedence."*
Whole life cost is the key phrase. A cheaper fender that fails in 5 years costs more than a quality fender that lasts 15—when you factor in:
- Replacement parts and labor
- Berth downtime during replacement
- Potential vessel damage claims
- Administrative burden of warranty disputes
As an OEM manufacturer serving international brands, wholesalers, and manufacturers, we see the whole system approach from a unique vantage point. Our partners rely on us to deliver consistent, verifiable quality—not just competitive pricing.
1. Documented manufacturing processes: Mixing parameters, dispersion testing, vulcanization control
2. Batch traceability: Every fender linked to raw material certificates
3. Performance verification: Compression testing with documented results
4. Third-party options: Ability to coordinate BV, SGS, ABS, or LR inspection
5. Consistent communication: Early dialogue about specifications, not last-minute changes
As an OEM-focused manufacturer, we structure our operations around partner requirements:
| OEM Partner Need | Our Capability |
|---|---|
| Custom specifications | Rubber compound development per client parameters |
| Quality documentation | Full material traceability and test reports |
| Third-party coordination | BV, SGS, ABS, LR witnessing available |
| Production consistency | Controlled mixing, dispersion testing, batch records |
| Flexible order quantities | From prototype to full production runs |
The whole system approach is not about buying more expensive fenders. It is about understanding where quality is created and where it can be lost.
Quality is created in application engineering—accurate berthing data leads to correctly sized fenders.
Quality is created in detailed design—panels, chains, and pads engineered as an integrated system.
Quality is created in production—consistent rubber compounds, controlled processes, documented batches.
Quality is preserved in installation and maintenance—accessible designs, defined service intervals, trained personnel.
For OEM partners, this means choosing manufacturing partners who understand the entire system, not just the rubber element. It means demanding documentation, traceability, and testing. It means recognizing that the cheapest fender is rarely the most cost-effective.
At NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we build fender systems for partners who understand this distinction. Our role is not to compete on price—it is to deliver consistent quality that protects our partners' reputations and their clients' infrastructure.
Looking for an OEM manufacturing partner who understands the whole system approach?
Contact NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD for confidential discussion of your fender manufacturing requirements:
- Email: service@taidunmarine.com
- Website: www.taidunmarine.com
- Services: OEM rubber fender manufacturing, custom compound development, third-party inspection coordination, full traceability documentation
- Factory visits: Welcome by appointment
1. TU Delft Repository. "Fender System Selection in PIANC WG211." [https://repository.tudelft.nl/record/uuid:7eedfaa9-08b2-4b20-b2bf-8a6dd612d05d]
2. TU Delft Repository. "Recommendations for berthing velocity in PIANC WG211." [https://repository.tudelft.nl/record/uuid:5711c272-d704-4495-836a-3640a2d626e2]
3. PIANC MarCom WG 211. "Inspection and Maintenance Guidance." [https://www.kscoe.or.kr/!/download/?path=/media/51/board/2025/01/31/7._PIANC_MarCom_WG_211.pdf]
A whole system approach means treating every stage of a fender's lifecycle—application engineering, detailed design, production, installation, and maintenance—as interconnected. For OEM manufacturing, this matters because production quality cannot compensate for poor design, and excellent design cannot be delivered through inconsistent manufacturing. OEM partners should evaluate manufacturing partners on their ability to control the entire system, not just the rubber element .
PIANC WG211 introduces several significant changes: partial resistance factors replace the old global safety factor, site-specific berthing velocities are prioritized over generic curves, and a new multiple contact correction factor is included. The guidelines also provide specific testing protocols with pass/fail criteria—a significant improvement over the general guidance in WG33 .
OEM buyers should require: documented rubber mixing parameters, carbon black dispersion testing (Dispergrader or equivalent), batch traceability linking finished fenders to raw material certificates, compression testing with documented results, and options for third-party inspection (BV, SGS, ABS, LR). These measures ensure that published performance curves reflect actual delivered performance .
Carbon black is the reinforcing filler that gives rubber its strength and energy absorption capacity. Poor dispersion leads to reduced fatigue life, inconsistent performance, and premature failure. Achieving good dispersion requires advanced mixing equipment and tight process control. The Dispergrader test can measure dispersion quality by evaluating particle size and uniformity—a practice that should be standard but is not universally adopted.
OEM partners can verify quality through: analytical testing (TGA—Thermogravimetric Analysis) of rubber samples, random sampling during factory visits, third-party witnessing of compression tests, and review of batch documentation. DP World's Jebel Ali project provides a model: they built rubber quality standards into the specification and conducted random TGA testing during factory visits .
Rubber hardening over time is often overlooked. As rubber ages, its hardness increases, which raises reaction forces. This can lead to damage to the berth structure or vessel hull—even if the fender appears visually sound. Durometer hardness testing can compare current hardness against original values to detect aging and determine when replacement is needed .
