For decades, marine fender design has been governed by a fundamental physical trade-off: higher energy absorption requires higher reaction forces. This relationship has shaped port infrastructure decisions worldwide—if you need to protect larger vessels, you must build stronger, more expensive quay structures to withstand the increased loads .
Parallel Motion Fender technology challenges this paradigm. By positioning two Super Cone fenders in a back-to-back configuration, this system achieves what conventional designs cannot: significantly higher energy absorption while maintaining or even reducing reaction forces .
From our perspective as an OEM manufacturing partner, this represents not just an engineering breakthrough, but a fundamental shift in how ports can approach berth design and upgrade projects.

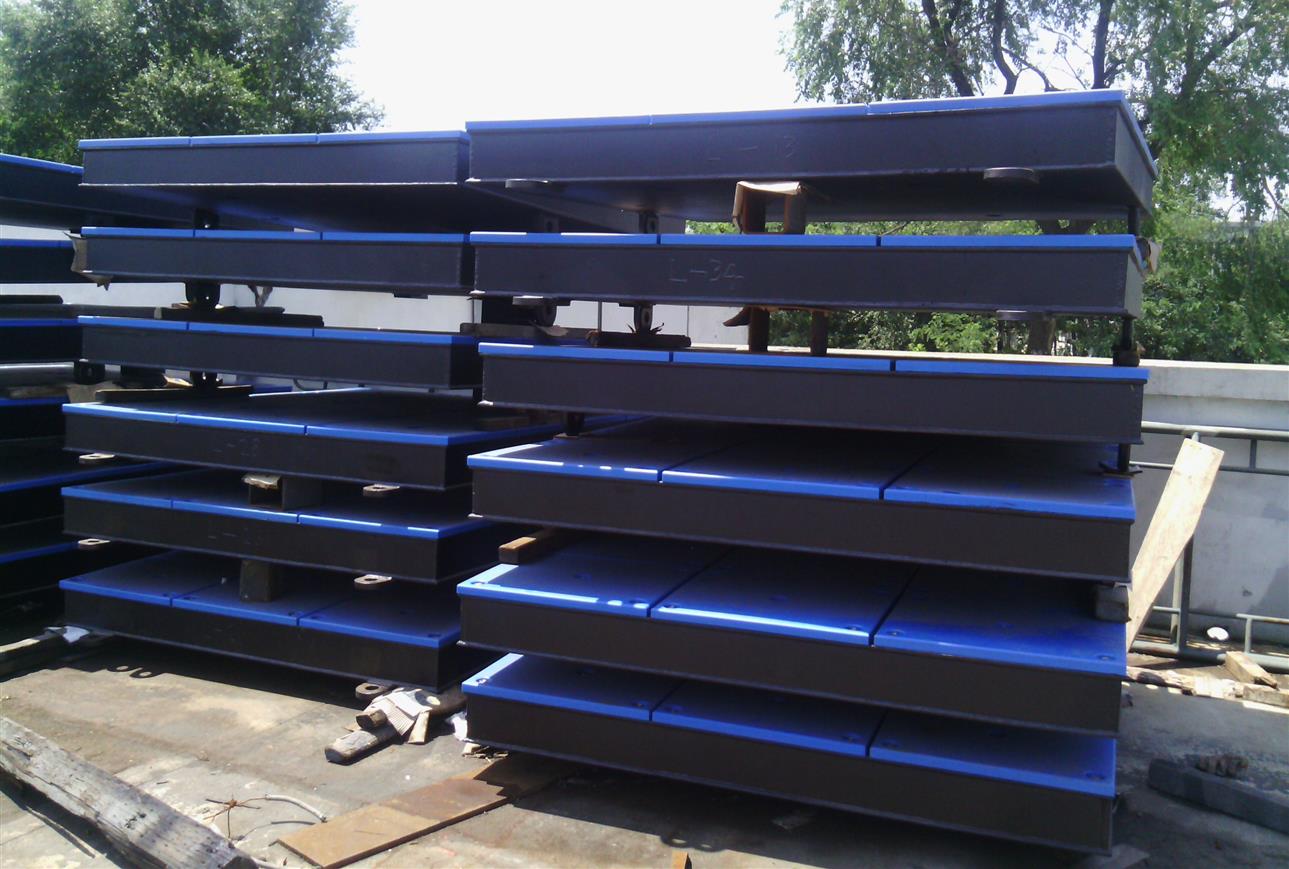

The first critical engineering feature is the vertical panel design. Unlike traditional fender systems where the panel tilts during compression, Parallel Motion Fenders maintain a consistently vertical orientation throughout the berthing process .
Why this matters:
- Consistent hull contact: The panel always meets the vessel's belting at the correct angle
- Predictable performance: No loss of energy absorption due to panel tilt
- Reduced hull pressure: Loads are distributed evenly across the contact area

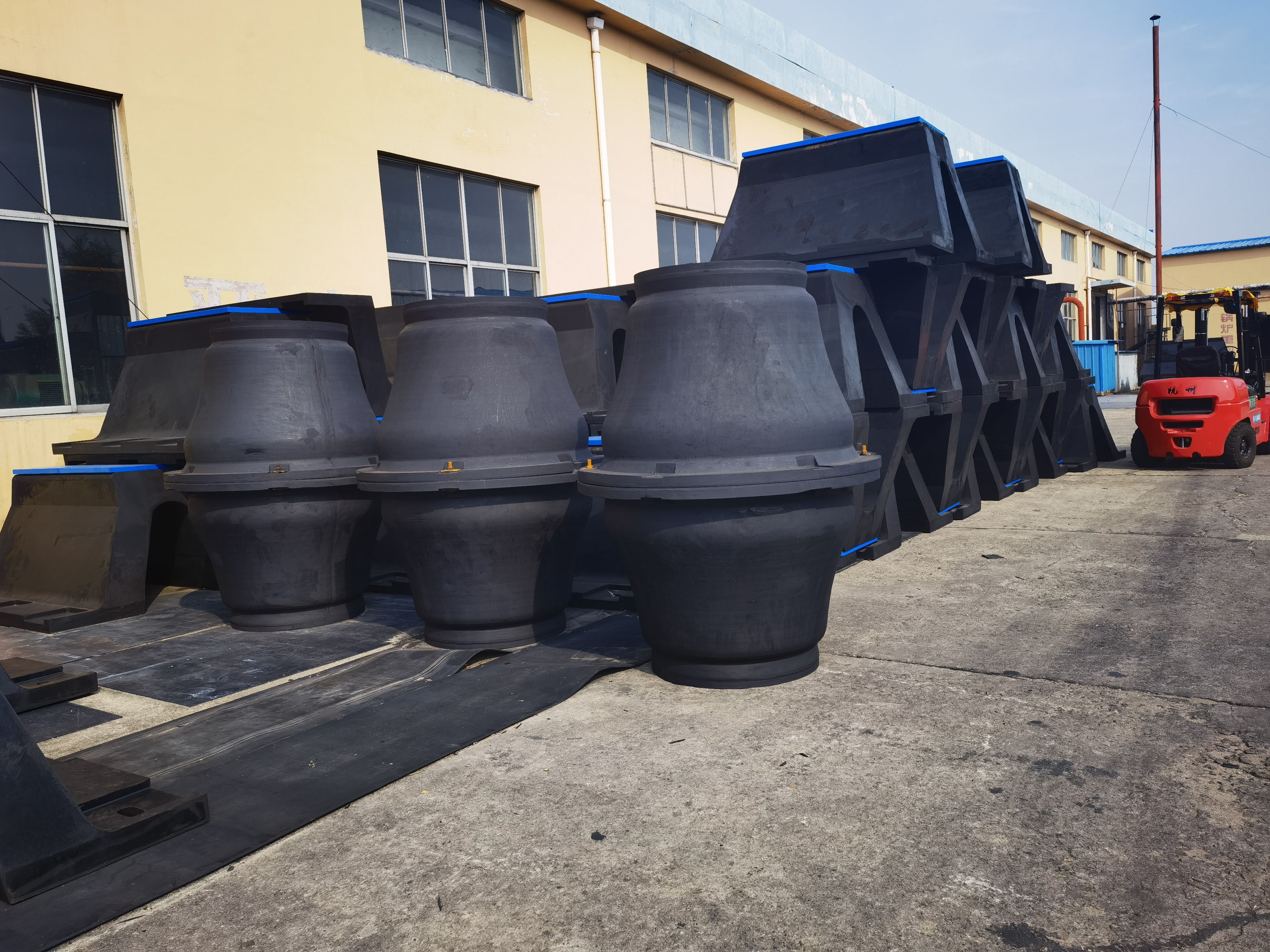

The true innovation lies within the fender system itself. The back-to-back Super Cone arrangement significantly extends deflection travel .
In simple terms: instead of one rubber element absorbing energy over a limited compression distance, two elements work in series, each contributing to energy absorption over an extended range. This means:
- More rubber does more work over a longer distance
- Forces remain controlled because stiffness doesn't need to increase
- Energy absorption capacity doubles compared to a single cone fender of similar size
Laboratory conditions tell one story. Real berthing operations tell another. The following data compares Parallel Motion Fenders (PMF) against conventional systems at standardized conditions and at a 20° berthing angle—a common real-world scenario .
| Fender Type | Energy Absorption (0°) | Energy Absorption (20°) | Reaction Force (20°) | Performance Retention |
|---|---|---|---|---|
| CT1200 (F3.1 & F1.9) | ~2150 kNm | 2186.6 kNm | 1956 kN | 100%+ |
| Super Cone CT1200 (F2.8) | ~2150 kNm | 1612.6 kNm | 3347 kN | 75% |
| Cell Fender SUC1450 (E3.0) | ~2150 kNm | 1403.9 kNm | 3381 kN | 65% |
The data is unambiguous: Conventional fenders lose 25-35% of their energy absorption capacity at just 20° of berthing angle. Parallel Motion Fenders not only maintain full capacity but actually deliver slightly higher energy absorption under angled contact .
The reaction force story is equally compelling. At equivalent energy levels, Parallel Motion generates 1956 kN compared to 3347 kN for conventional Super Cone designs—a 42% reduction in structural loading .
The implications of this performance profile extend far beyond the fender itself.
When reaction forces drop by up to 60%, the entire structural design equation changes :
- Smaller pile sizes: Reduced lateral loads allow lighter foundation systems
- Less concrete: Lower overturning moments mean thinner quay walls
- Simplified reinforcement: Reduced demand on structural detailing
- Cost savings: Civil works can represent 60-70% of total berth construction cost
For existing ports facing the need to accommodate larger vessels, Parallel Motion Fenders offer a path to compliance without structural reinforcement:
- Conventional approach: Strengthen quay, replace fenders, extend construction timeline
- PMF approach: Install high-capacity fenders within existing structural limits
This is particularly valuable for older ports where original design loads may be inadequate for modern vessel sizes, but where full reconstruction is financially or operationally impossible.
Theory and data are essential, but real installations provide the ultimate validation. The Port of Hirtshals Ferry Berth 4 project demonstrates Parallel Motion Fenders in a demanding operational environment .
The port needed a fender solution that would:
- Minimize line load on vessel belting (avoid hull contact)
- Accommodate diverse vessel types from small ferries to Fjord Line's extended catamaran
- Handle high berthing velocities for fast turnaround operations
- Fit within limited installation space to minimize civil works
TAIDUN designed a twin parallel motion fender system with:
- 3.7-meter wide panel for even load distribution
- Back-to-back cone configuration using one hard and one soft rubber compound
- Compact design to minimize civil works and cost
> *"TAIDUN purpose-designed a high-performance twin parallel motion fender, which compresses and adapts to suit each vessel coming into berth – a technology we haven't used in Denmark until now. We are extremely pleased with the company's solution and were thrilled to complete the project on time."*
The system delivers twice the energy absorption of a regular cone fender while maintaining low reaction forces. The mixed rubber compound approach—one hard, one soft—allows the system to adapt to vessels of different sizes, from small ferries to large catamarans .
As an OEM manufacturing partner, we see the quality question from the production floor. The Parallel Motion Fender's performance depends entirely on the consistent quality of its rubber elements.
DP World's Jebel Ali Port set an important industry precedent when they built rubber quality standards directly into their fender specification for the Quay Four refurbishment .
Their approach included:
- Analytical testing (TGA) built into all specifications
- Random sampling at the manufacturing facility
- Verification of rubber compound before shipping
> *"DP World wanted to ensure they could verify the quality of the rubber that would be used in the fender systems for the berths – and as such, built rubber quality parameters into the specification to protect themselves from the risk of poor quality substitutes."*
For brand owners and distributors sourcing fenders from OEM manufacturers, this case establishes a clear expectation: quality must be verifiable, not assumed.
At NANJING TAIDUN, we support this standard through:
- Full material traceability from raw rubber to finished product
- Batch-specific testing documentation
- Third-party inspection coordination (BV, SGS, ABS, etc.)
- Open facility access for client audits and sampling
The release of PIANC WG211 Fender Guidelines 2024 represents the most significant update to fender design practice in over two decades .
| Aspect | PIANC WG33 (2002) | PIANC WG211 (2024) |
|---|---|---|
| Design approach | Global safety factor | Partial factors (load & resistance) |
| Multiple fender contact | Simplified treatment | New correction factor (C_mult) |
| Base performance | Not formally defined | “Base Fender Performance” concept |
| Berthing velocity | Brolsma curves | Higher velocities for large vessels |
| Hull pressure | Limited guidance | Updated sizing methodology |
The new guidelines emphasize that fender selection is not a one-size-fits-all exercise. Key considerations include :
1. Vessel geometry: How multiple fenders interact with the hull
2. Multiple contact scenarios: Energy distribution across partially compressed fenders
3. Partial safety factors: Accounting for manufacturing variability and contact uncertainty
4. Site-specific conditions: Wind, wave, and current effects on berthing velocity
For Parallel Motion Fenders, the WG211 framework actually validates the technology's advantages: the ability to maintain performance at berthing angles directly addresses the "angular factor" (C_ang) that reduces conventional fender capacity .
As an OEM manufacturer serving global brands, we understand the criteria that matter for partners sourcing Parallel Motion Fender systems.
| Capability | Why It Matters |
|---|---|
| Dual rubber compound expertise | Hard and soft compounds must perform as a system |
| Precise dimensional control | Back-to-back cone alignment is critical |
| Factory pre-assembly | Reduces field variables and installation time |
| Full traceability | Every component verifiable to source batch |
| Third-party testing support | BV/SGS/ABS witnessing available |
Every Parallel Motion Fender shipment should include:
- Compression test reports (energy absorption and reaction force curves)
- Material certificates for rubber compounds and steel components
- Dimensional inspection reports
- Third-party inspection certificates (if specified)
- Traceability records connecting finished product to raw material batches
The Parallel Motion Fender represents more than an incremental improvement. It fundamentally changes the design space available to port engineers .
For new construction, it means:
- Lower structural loads without sacrificing protection
- Reduced civil works costs through smaller foundations
- Enhanced safety margins across a wider range of berthing conditions
For existing ports, it means:
- Upgrade paths without major reconstruction
- Extended asset life for aging infrastructure
- Compliance with modern vessel requirements within legacy constraints
For OEM partners, it means:
- A differentiated product that addresses real market pain points
- Quality standards that can be verified and documented
- Alignment with PIANC 2024 design philosophy
Looking for an OEM manufacturing partner for Parallel Motion Fender components?
NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD provides:
- Custom rubber compounding (hard/soft dual systems)
- Precision manufacturing to client specifications
- Full testing and documentation support
- Third-party inspection coordination
Contact us:
- Email: service@taidunmarine.com
- Website: www.taidunmarine.com
- Facility visits: Available for client audits and sampling
1. TU Delft Repository. "Comparison of fender dimensions, PIANC WG211 and PIANC WG33." 2024. [https://repository.tudelft.nl/record/uuid:66c2b0bc-3172-4054-9b15-653cf3cbe892]
2. TU Delft Research Portal. "Fender System Selection in PIANC WG211." 2024. [https://research.tudelft.nl/en/publications/fender-system-selection-in-pianc-wg211/]
3. PIANC MarCom WG 211. "The angular factor (C_ang)." [https://www.kscoe.or.kr/!/download/?path=/media/51/board/2025/01/31/7._PIANC_MarCom_WG_211.pdf]
A Parallel Motion Fender is a specialist marine fender system that uses two Super Cone fenders positioned back-to-back. The key difference from conventional systems is that it increases energy absorption while maintaining or reducing reaction forces . Additionally, the vertical panel design ensures full energy absorption even at berthing angles up to 20°, whereas conventional fenders can lose 25-35% of their capacity under the same conditions.
Parallel Motion Fenders can reduce reaction forces by up to 60% compared to traditional fender systems . In documented testing at equivalent energy levels, PMF generated 1956 kN compared to 3347 kN for conventional Super Cone designs—a 42% reduction . This directly translates to reduced structural loading and potential cost savings in quay construction.
Parallel Motion Fenders are particularly suited for :
- RoRo and fast ferry berths with frequent, rapid turnarounds
- LNG and tanker terminals where reliability is critical
- High tidal zones with extreme vertical movement
- Monopile or "soft" structures with limited reaction force capacity
- Port upgrades where structural reinforcement is impractical
PIANC WG211 (2024) replaces the 2002 WG33 guidelines and introduces partial safety factors instead of a global safety factor, a new multiple fender contact correction factor (C_mult), and updated berthing velocity recommendations . The new framework validates the performance advantages of Parallel Motion Fenders, particularly regarding the angular factor (C_ang) that penalizes conventional fenders at berthing angles .
For OEM-sourced Parallel Motion Fender components, request :
- Batch-specific compression test reports (energy absorption and reaction force curves)
- Material certificates for rubber compounds and steel components
- Dimensional inspection reports
- Third-party inspection certificates (BV/SGS/ABS if specified)
- Full traceability records connecting finished products to raw material batches
- Rubber compound analysis (TGA or equivalent) if quality verification is critical
Yes. This is one of the system's most valuable applications. Because reaction forces are reduced by up to 60%, Parallel Motion Fenders can often be installed on existing structures that would be inadequate for conventional high-capacity fenders . This avoids the need for pile strengthening, concrete reinforcement, or other major civil works—significantly reducing upgrade costs and construction timelines.
