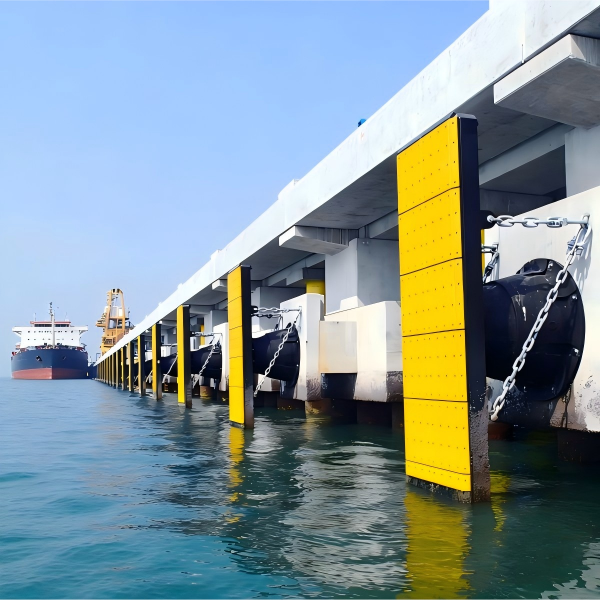

When a 200,000-ton tanker approaches a berth at an angle, the forces acting on your fender system are immense. The rubber body compresses. The chains
tension. But the component that takes the most complex loading—combining compression, bending, and shear—is the steel front plate.
Ask any port engineer who has seen a fender panel fail: the failure mode is rarely pure compression. It is shear failure at the connections, or buckling under combined loading.
In this guide, I will walk you through the marine fender steel front plate shear strength calculation methods that separate robust designs from catastrophic failures. Drawing on industry standards (PIANC, ASTM), structural engineering principles, and our two decades of OEM manufacturing experience at Nanjing Taidun Marine Equipment Engineering Co., Ltd. , you will learn how to size, validate, and specify front plates that last.
Before diving into formulas, we must understand the load environment.
A fender steel front plate is not a simple "pushing" surface. It experiences five distinct load types simultaneously:
| Load Type | Source | Failure Risk |
|---|---|---|
| Compression | Direct vessel impact | Buckling, yielding |
| Bending | Off-center vessel contact | Plastic hinge formation |
| Shear | Vessel traveling along the panel (longitudinal) | Weld failure, bolt shearing |
| Torsion | Angular berthing >5° | Connection failure |
| Tension | Chain pull during rebound | Anchor pull-out |
Among these, shear is the most underestimated .
> *"The steel panel should be resistant to deflection and shearing force."*
> — *Taidun's Marine Rubber Fender Systems, Design Requirements*
When a vessel berths at an angle—or drifts along the quay during mooring—the hull acts like a giant abrasive surface moving across the front plate. This creates significant longitudinal shear forces at the panel connections .
I have inspected panels where the rubber connection bolts were literally sliced off because the design considered only compression, not the shear from a passing ship's belting.
Before calculating shear, you must establish the basic panel dimensions. Every shear calculation flows from the panel's geometry.
The minimum panel size is determined by permissible hull pressure:
> P = ΣR ÷ (A₁ × B₁) ≤ P_y
Where :
| Variable | Definition | Typical Unit |
|---|---|---|
| P | Actual hull pressure applied | kN/m² |
| ΣR | Sum of max reaction force of all fenders | kN |
| A₁ | Valid width of front panel (excluding chamfers) | m |
| B₁ | Valid height of front panel (excluding chamfers) | m |
| P_y | Allowable hull surface pressure (vessel-specific) | kN/m² |
If the vessel owner cannot provide a specific value, use these PIANC-based guidelines :
| Vessel Type | Allowable Hull Pressure (kN/m²) |
|---|---|
| Container (1st-2nd gen) | < 400 |
| Container (3rd gen / Panamax) | < 300 |
| Container (5th-6th gen / Super Post-Panamax) | < 200 |
| Oil Tanker (<60,000 DWT) | < 300 |
| Oil Tanker (>60,000 DWT / VLCC) | < 350 |
| Bulk Carrier | < 200 |
| Gas Carrier (LNG/LPG) | < 200 |
| General Cargo (small) | 400–700 |
| General Cargo (large) | < 400 |
> *"Surface pressure of the selected fender system is less than the allowable hull surface pressure. You can meet the requirements by changing the dimensions of the frontal panel."*
> — *Taidun Marine Fender Selection Guide*
Once the panel size (A₁, B₁) is established, we calculate the structural capacity against shear.
This method applies when the vessel hull contacts the full face of the panel relatively evenly .
The Variables:
| Symbol | Definition |
|---|---|
| R | Reaction force from fender (kN) |
| q | Uniformly distributed load (kN/m) |
| F | Balance force at ends (kN) |
| L | Effective contact length of panel (m) |
| L₁ | Distance to balance force application (m) |
The Calculation Sequence :
Step 1 – Calculate Balance Force (F):
> F = (2R ÷ L) × (0.5L – L₁)
Step 2 – Calculate Distributed Load (q):
> q = (2R × L₁) ÷ L₂
(Note: L₂ represents the distributed load length)
Step 3 – Calculate Maximum Bending Moment (M_max):
> M_max = (R × L₁ × L₂⊃2;) ÷ L⊃2;
Or the simplified form:
> M_max = (R × L₁⊃3;) ÷ L⊃2; + (F × L₁)
Step 4 – Calculate Maximum Shear Force (V_max):
For a uniformly distributed load, the maximum shear occurs at the supports:
> V_max = (q × L) ÷ 2
Step 5 – Check Against Material Limits:
| Check | Formula | Pass Condition |
|---|---|---|
| Shear Stress | τ = V_max ÷ A_web | τ ≤ τ_allowable |
| Bending Stress | σ = M_max ÷ Z | σ ≤ σ_yield ÷ SF |
Where A_web = cross-sectional area of the panel's shear-resisting elements (typically the side plates or stiffeners), and Z = section modulus.
> *"The design of the steel panels should comply with the actual berthing condition. The bearing strength is related to vessel type, berthing method, rubber fender performance, and tidal range."*
> — *Fender Panel Design Source*
Real berthing is rarely perfect. Vessels contact at angles, or the hull curvature creates uneven pressure. This method is more realistic and should be your default for critical applications .
The Variables:
| Symbol | Definition |
|---|---|
| R | Reaction force (kN) |
| Q | Contact load on one segment (kN) |
| F | Balance force (kN) |
| L | Effective contact length (m) |
| L₁, L₂, L₃ | Segment distances (m) |
The Calculation Sequence :
Step 1 – Calculate Contact Load (Q):
> Q = (R × L₁) ÷ (L – 0.5L₃)
Step 2 – Calculate Balance Force (F):
> F = R × (L₂ + 0.5L₃) ÷ (L – 0.5L₃)
Step 3 – Calculate Maximum Bending Moment (M_max):
> M_max = Q × (L₂ + 0.5L₃) = F × L₁
Step 4 – Calculate Maximum Shear (V_max):
For non-uniform loads, the maximum shear is the larger of:
> V_max = Q (at the concentrated load location)
Or
> V_max = F (at the support)
Step 5 – Check Connections:
The shear force at the connection points (where the front plate attaches to the rubber fender or to the backing chains) must be calculated. Each bolt or weld must resist:
> V_per_connection = V_max ÷ N_connections
Where N_connections = number of attachment points.
> *"The steel panel should be resistant to locally impact [and] there should be no deformation during compression process."*
Shear does not fail the middle of a solid plate. It fails connections.
Most fender panels are bolted directly to the rubber fender's embedded steel plate . The bolts must be sized for double shear if the connection uses a clevis, or single shear if bolted through a flange.
Bolt Shear Check:
> τ_bolt = V_per_bolt ÷ A_bolt
Where:
- τ_bolt = shear stress in the bolt (MPa)
- V_per_bolt = shear force per bolt (kN)
- A_bolt = cross-sectional area of the bolt (m²)
Pro Tip from Nanjing Taidun: Never use less than M20 bolts (20mm diameter) for main panel attachments in marine environments. And always specify 316 stainless steel – not 304 – for C5-M corrosion resistance.
The welds joining stiffeners to the back plate are highly stressed in shear during off-angle berthing .
Weld Shear Check (Fillet Weld):
> τ_weld = V_max ÷ (0.707 × a × L_weld)
Where:
- a = weld throat thickness (mm)
- L_weld = total effective weld length (mm)
The edges of the front plate often have lead-in chamfers to prevent snagging the vessel's hull . However, these chamfers remove material from the plate's most critical shear plane.
Nanjing Taidun Recommendation:
- Limit chamfer depth to 10% of plate thickness
- Add full-depth stiffeners behind chamfered edges
- Never chamfer structural corners in high-shear zones
> *"Hull pressures are calculated using the frontal panel area (excluding lead-in chamfers)."*
> — *Taidun MARINE, Fender Panel Design*
Static calculations are a starting point. Real-world berthing is dynamic.
When a vessel contacts at an angle >5°, the effective shear load increases dramatically. PIANC guidelines recommend applying angle adjustment factors ranging from 1.2 (at 5°) to 2.0 (at 15°) for connection design.

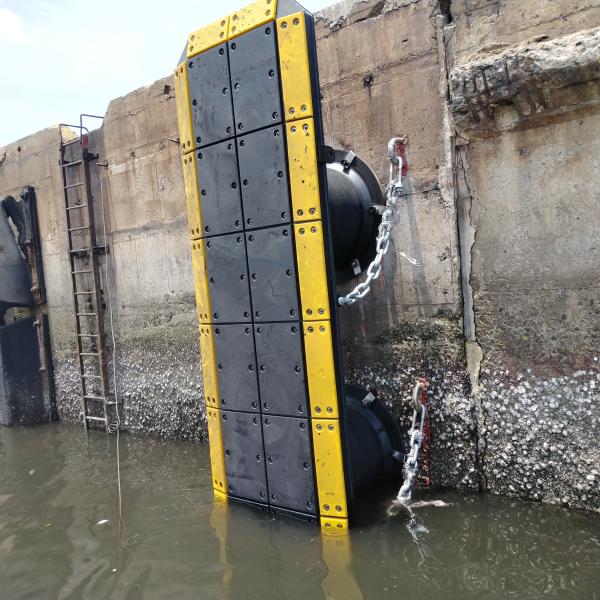

Container vessels and bulk carriers have beltlines – protruding longitudinal stiffeners that concentrate load. If your terminal handles belted vessels:
- Design shear for point loading, not distributed
- Increase connection safety factor to 2.5
- Consider UHMW-PE face pads to distribute shear
> *"When cylindrical fenders are used with large chains or bar fixings through the central bore, hull pressure will be higher – approximately double."*
A terminal with 5 vessel calls per day subjects the front plate connections to ~1,800 shear cycles annually. Over 20 years, that is 36,000 cycles.
Nanjing Taidun Recommendation:
- Design connections for infinite fatigue life (S-N curve per AWS D1.1)
- Use full-penetration welds at all critical attachments
- Avoid sharp corners (stress concentration factor >3.0)
Modern design requires Finite Element Analysis to validate hand calculations .
| Phenomenon | Hand Calculation | FEA |
|---|---|---|
| Stress concentration at bolt holes | Assumes uniform distribution | Shows 2-3x peak stress |
| Local buckling of stiffeners | Estimated with slenderness ratios | Accurately models post-buckling strength |
| Interaction of bending + shear | Combined stress equations | Full 3D stress tensor |
| Corrosion-washered sections | Reduction factors | Precise geometry modeling |
A 2020 study in *Marine Structures* journal confirmed that simplified analytical methods can predict crushing resistance and energy dissipation with good accuracy, but recommended FEA for final validation of complex geometries .
> *"A simplified analytical method was developed to rapidly evaluate the performance of steel fenders under vessel collisions. The crushing resistances and energy dissipation capacities can be predicted well by the proposed method."*
> — *Marine Structures, Vol. 74, 2020*
| Grade | Min. Yield (MPa) | Best Application |
|---|---|---|
| AH36 / DH36 | 355 | Standard marine panels (cost-effective) |
| S355J2+N | 355 | Low-temperature applications |
| Duplex 2205 | 450 | LNG terminals, chemical ports |
| 316L Stainless | 210 | Small panels, high-corrosion zones |
> *"Marine-grade steels like AH36, DH36, or stainless steel variants provide the necessary strength-to-weight ratios and corrosion resistance."*
| Panel Zone | Recommended Thickness |
|---|---|
| Front face plate (exposed both sides) | 12 mm minimum |
| Front face plate (one side exposed) | 9–10 mm |
| Internal stiffeners (not exposed) | 8 mm |
| Connection flanges (bolted to fender) | 16 mm |
*Source: Taidun MARINE Fender Panel Design*
We asked our global OEM clients about front plate shear issues. Here is what they shared:
> *"We lost two panels in one year – both failed at the bolt holes. The shear load from vessels dragging along the panel was never calculated. Now we specify double the bolts and use Finite Element Analysis for every custom panel."*
> — *Port Engineer, Southeast Asia*
> *"Our old panels had zero chamfer reinforcement. The lead-in bevels would crack after 2-3 years. We switched to designs with full-depth stiffeners behind the chamfers – problem solved."*
> — *Maintenance Director, Middle East Terminal*
> *"The difference between 304 and 316 stainless steel became very clear when we pulled bolts from a 5-year-old panel. The 304 bolts had significant pitting; the 316 bolts looked new. We upgraded all specifications."*
> — *Technical Manager, North European Port*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we do not just manufacture rubber fenders – we engineer complete fender systems, including steel front plates, mooring bollards, and all accessories .
Our panel engineering services include:
| Service | Description |
|---|---|
| Full shear calculation | Per PIANC/ASTM methods (uniform or non-uniform load) |
| FEA validation | Stress, fatigue, and buckling analysis |
| Material selection | AH36/DH36/Duplex/316L, with corrosion allowance |
| Connection design | Bolts, welds, and stiffeners sized for calculated shear |
| Third-party certification | ABS, BV, DNV, LR, CCS available |
| UHMW-PE facing | Reduces friction and distributes shear |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get documented calculations, certified materials, and defect-welded fabrication.
The marine fender steel front plate shear strength calculation methods outlined here are not academic exercises – they are the difference between a 15-year service life and a 2-year failure. Respect the shear load. Size your connections accordingly. Validate with FEA when in doubt.
[Contact the Nanjing Taidun Engineering Team] for a free front plate design review. Send us your fender specifications and vessel data, and we will provide shear calculations, FEA validation, and a complete panel quotation.
Q1: What is the primary cause of steel front plate failure in marine fenders?
A: The primary cause is shear failure at connections, not compression of the plate itself. Vessels traveling along the panel create longitudinal shear forces that exceed bolt or weld capacities, especially when the design only considered direct impact .
Q2: How do I calculate the minimum panel size for my fender system?
A: Use the hull pressure formula: P = ΣR ÷ (A₁ × B₁) ≤ P_y. The required area (A₁ × B₁) = ΣR ÷ P_y. For typical VLCC applications with ΣR = 2,000 kN and P_y = 200 kN/m², the minimum panel area is 10 m² .
Q3: When should I use the non-uniform load method instead of uniform?
A: Use the non-uniform method whenever:
- The vessel hull has significant curvature
- Berthing angles exceed 5°
- The berth handles multiple vessel types
- You are designing for beltline contact
Q4: What safety factor should I apply to shear calculations?
A: PIANC guidelines recommend:
- 2.0 for yield strength (normal operating conditions)
- 2.5 for ultimate strength (extreme/accident conditions)
- 3.0 for weld connections in high-fatigue locations
Q5: Can I repair a front plate with cracked welds, or must I replace it?
A: Small weld cracks can be ground out and re-welded, but you must:
- Perform NDT (magnetic particle or dye penetrant) of the entire weld
- Verify no heat-affected zone damage
- Re-calculate shear capacity with reduced section if material is lost.
For bolt hole elongation or plate buckling – replace the panel immediately.
