Marine fenders are the unsung heroes of global port infrastructure—silently absorbing millions of tons of kinetic energy every day while protecting vessel hulls and quay walls from catastrophic damage. Yet for port operators, engineers, and procurement professionals, selecting the right marine fender system is a high-stakes decision with profound operational and financial implications.
This article draws on our experience at NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD. in designing, manufacturing, and delivering complete rubber fender solutions for ports worldwide. We'll explore the evolving regulatory landscape, engineering principles, and real-world case studies that inform modern fender system selection.
For years, the 2002 PIANC WG33 report served as the industry's reference for fender design. However, as vessel sizes have grown dramatically and berthing dynamics have become more complex, the guidelines have been completely overhauled. The new PIANC WG211 report, published in 2023, represents a fundamental shift in how marine fender systems should be designed and specified.
| Aspect | WG33 (2002) | WG211 (2024) |
|---|---|---|
| Approach | Generic, prescriptive | Site-specific, risk-based |
| Input Assumptions | Fixed vessel sizes and impact energies | Variable vessels, berthing speeds, and angles |
| Design Flexibility | Limited | High—adapted to local conditions |
| Stakeholder Involvement | Minimal operator input | Deep operator involvement essential |
| Risk Consideration | Not explicitly addressed | Central to design process |
What does this mean in practice? Port operators must now provide site-specific berthing data, including actual vessel movement logs, berthing speeds, and approach angles. The one-size-fits-all approach is no longer acceptable—each berth deserves a tailored engineering solution based on its unique operational profile.

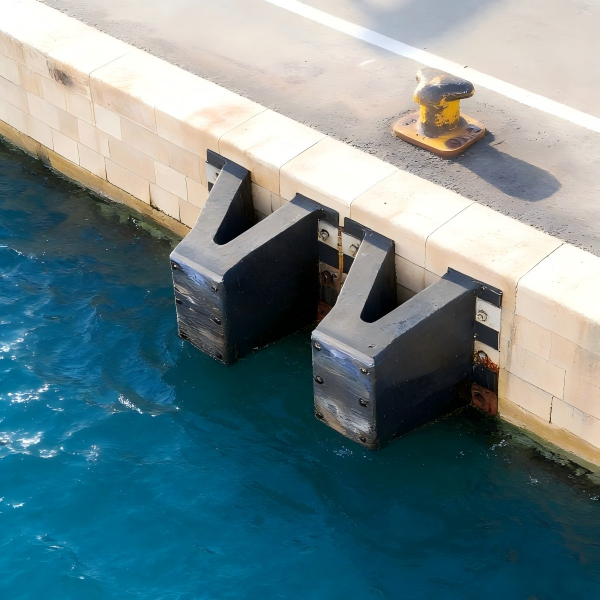

The fundamental purpose of a marine fender is to absorb kinetic energy from a berthing vessel and convert it into controlled deformation of the rubber element. The energy a fender must absorb is calculated using:
E = ½ × m × v⊃2; × Cc × Ce × Cs
Where:
- m = vessel mass (displacement)
- v = berthing velocity
- Cc = berthing configuration coefficient
- Ce = eccentricity coefficient
- Cs = softness coefficient (for hull shape)
The single most important performance metric for any marine fender is the energy absorption to reaction force ratio (E/R). Here's why:
- High E/R ratio means a fender absorbs more energy while transmitting less force to the vessel hull and quay structure
- Low E/R ratio means more impact force is transferred—increasing structural fatigue and potential damage
Modular element fenders demonstrate exceptional E/R performance, which explains their growing popularity for retrofit projects. They achieve high energy absorption with relatively low reaction force while accommodating angular impacts—a critical feature for compact berths where vessels approach at non-ideal angles.

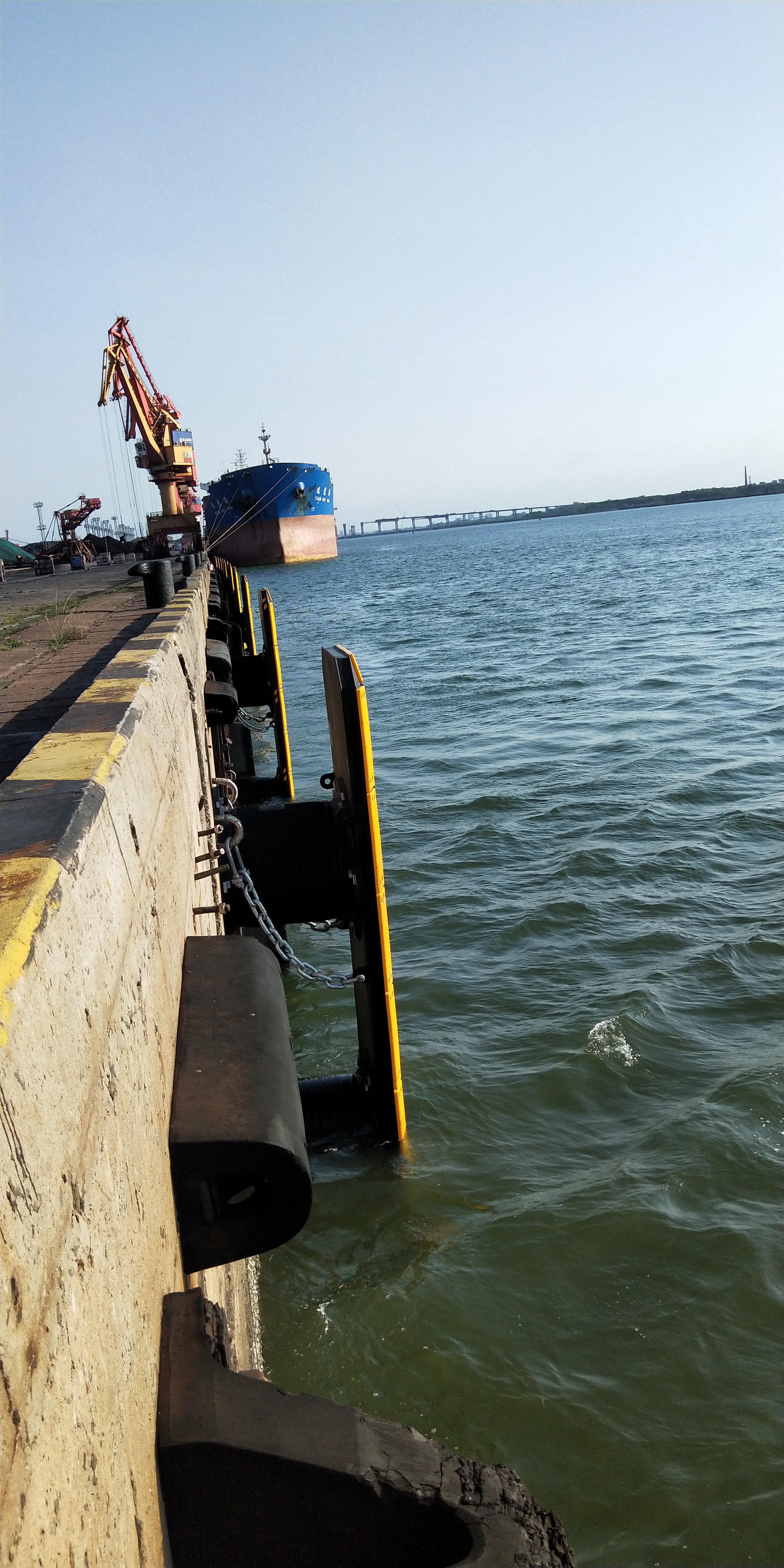

The Port of Sheerness, located at the mouth of the Thames Estuary, offers a compelling example of modern fender engineering in action.
Berth No. 1 faced a critical problem: the existing fender systems had become inadequate for the larger RoRo (Roll-on/Roll-off) vessels now docking at the berth. The jetty had limited mounting space, ruling out larger fender types. Additionally, the project required:
- Minimization of downtime during installation
- Accommodation of vessels with varying hull profiles
- Resistance to shear forces from berthing maneuvers
NANJING TAIDUN designed and delivered 9 sets of Pile Fenders, each featuring a modular element fender (ME 1600×1500 G2.8) with a closed-box steel panel measuring 2200×7650 mm. The modular design was selected specifically for its compact footprint—perfectly suited to the project's space constraints.
| Engineering Feature | Purpose |
|---|---|
| Large steel panel clamped over pile | Distributes loads; lasting stability |
| Shear chains | Resists horizontal forces from berthing maneuvers |
| Chamfers | Prevents hull beltings from snagging on/below the panel |
| Specially engineered pile construction | Driven deep into seabed for stability |
As Marine Construction Magazine noted: The Port of Sheerness continues to build on its proud legacy as a hub for international trade, showcasing how heritage and state-of-the-art fender systems can seamlessly coexist.
The Port of Ngqura—a deep-water port capable of serving Super Post-Panamax container vessels up to 12,500 TEU—faced a different retrofit challenge.
The four container berths were originally equipped with different fender systems from various suppliers. A new requirement from Transnet National Port Authority (TNPA) mandated that all fenders on the berths should be of the same type—requiring replacement of approximately half the existing systems.
Stefanutti Stocks Coastal selected modular element fenders. NANJING TAIDUN delivered 15 sets of Element Fender Systems (H 1000mm × L 1200mm) with steel panels measuring 2800mm × 4000mm. Ten sets were installed, while five remain in stock as spare parts.
Key results:
- Order confirmed: July 2021
- Design and manufacturing: Rapid turnaround
- Arrival on site: February 2022
- Compliance: On schedule with rehabilitation timeline
- Quality verification: TGA testing performed on-site by independent lab
This project demonstrates a critical advantage of modular element fenders: standardization across multiple berths—a significant benefit for port authorities managing large facilities.
Under the new PIANC WG211 framework, testing and documentation are non-negotiable. Port asset owners should expect:
- Independent third-party testing using calibrated equipment to verify manufacturer performance claims
- Full traceability of materials and production processes
- Witnessed testing of critical fender components—not just rubber units, but also steel panels, chains, and mounting hardware
- Mitigates risk of substandard or non-compliant materials
- Prevents changes in production facilities that could cause variability
- Reduces risk of performance deviation due to unverified material sources
- Proper testing prevents premature failure and costly downtime
| Certification | Scope |
|---|---|
| BV / PIANC 2002 | Performance testing and test protocol verification |
| ASTM F2192-05 | Rated Performance Data confirmation |
| ISO 14401:2004 | Quality management |
| CCS Factory Certification | Manufacturing quality assurance |
A word of caution: PIANC certified has been misused by some manufacturers. Under WG211, there is a two-year transition period for the industry to align with the new standards. Verify claims carefully.
Based on our engineering practice at NANJING TAIDUN, here are the essential steps for designing a marine fender system:
Ship information:
- Type (container, bulk carrier, LNG, RoRo, etc.)
- Length, width, draft (minimum and maximum)
- Full-load displacement
Berthing conditions:
- Berthing speed (m/s)—ideally from actual port logs
- Berthing angle (degrees)
Dock conditions:
- Structure type (new or repair dock; steel or concrete)
- Tidal range and water levels
- Available mounting space
Apply the WG211 probabilistic approach using site-specific data. Without actual berthing speed data, speeds may be overestimated, leading to oversized (and more expensive) fenders. WG211 emphasizes site-specific, risk-based design over generic assumptions.
Consider:
- Energy absorption capacity
- Reaction force limits
- Available standoff distance
- Vessel hull profile compatibility
- Maintenance and replacement requirements

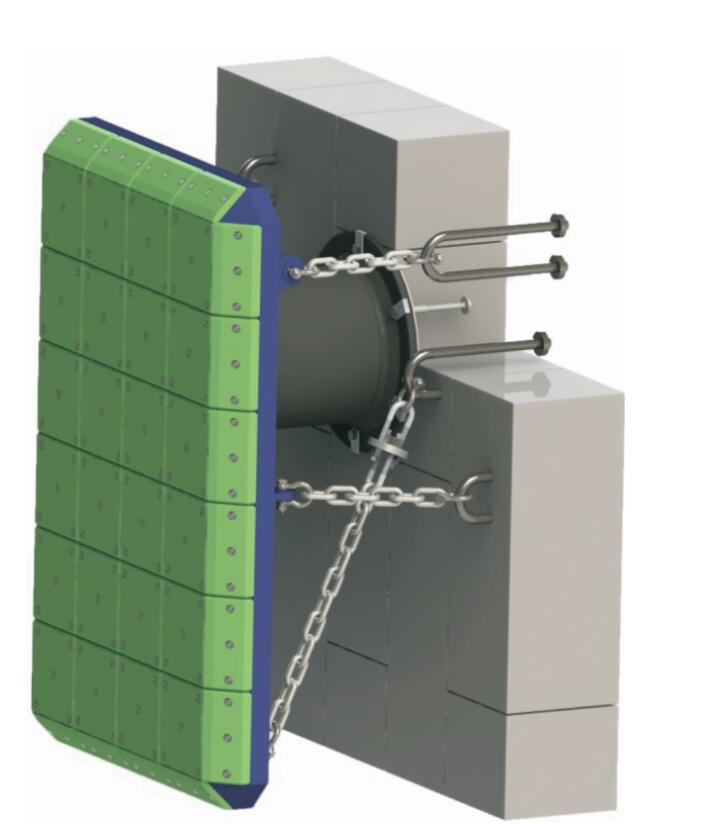

Steel panels, chains, and mounting hardware must be engineered to withstand design loads. At NANJING TAIDUN, we engineer steel panels to resist combinations of bending, shear, and local buckling.
Define testing protocols, warranty terms, and quality assurance requirements. Under WG211, the warranty period must be clearly defined based on expected fender performance and lifecycle.
Energy-to-Reaction Ratio
| Performance Metric | Element Fender Advantage |
|---|---|
| Energy absorption per weight of rubber | High—efficient material utilization |
| Reaction force | Low relative to energy absorbed |
| Angular performance | Good—accommodates off-center impacts |
| Lengthwise shear strength | Strong—critical for pile-mounted systems |
Modular Design Benefits
1. Rapid installation: Individual elements can be mounted vertically, horizontally, or in combination
2. Easy maintenance: Damaged elements can be replaced without dismantling the entire system
3. Flexibility: A single fender type can address multiple berthing geometries
The WG211 guidelines include a dedicated chapter on sustainability of fender systems—a growing priority within PIANC and increasingly required by ports worldwide.
Existing rubber recycling systems are designed for thin rubber products like tyres and conveyor belts. Large marine fenders with steel inserts are difficult to process and grind into reusable material.
- Many ports store old fenders indefinitely due to lack of alternatives
- Some fenders are disposed of via landfill or burned as Tyre-Derived Fuel (TDF)
- Innovation in recycling technology for large-scale rubber products
- Collaboration between designers, manufacturers, and end users to develop sustainable solutions
- Smarter material choices that reduce environmental impact
The future of marine fendering lies in data-driven, risk-based design. The industry is moving away from generic specifications toward site-specific engineering tailored to actual operational conditions. This benefits everyone—port operators get systems that match their real needs, and vessels benefit from safer, more predictable berthing.
When you choose a marine fender supplier, consider:
1. Engineering capabilities: Can they perform site-specific design calculations?
2. Certifications: Do they meet international standards (PIANC, ASTM, ISO)?
3. Track record: Have they delivered similar projects successfully?
4. Testing: Do they offer independent, witnessed testing?
5. Full-service capability: Can they handle design, production, transport, and installation?
At NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD., we provide the complete package—from engineering design through to on-site installation support. Our modular element fender systems have proven their value in challenging retrofit projects from the United Kingdom to South Africa, and our industrial-grade rubber fenders have demonstrated their resilience even during peak typhoon conditions.
- The new PIANC WG211 guidelines represent a fundamental shift toward site-specific, risk-based fender design
- Modular element fenders offer superior E/R ratios and are ideal for compact berths and retrofit projects
- Proper testing and traceability are non-negotiable under the new regulatory framework
- Sustainability is an emerging priority that will shape the future of fender manufacturing and disposal
- The best fender systems start with good data—ship particulars, berthing conditions, and site constraints
Ready to upgrade your port's fender system?
Contact the engineering team at NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD. today. We'll help you navigate the new PIANC WG211 guidelines and design a custom fender solution that protects your infrastructure, your vessels, and your bottom line.
Email: service@taidunmarine.com
Website: www.taidunmarine.com
1. PIANC Working Group 211. (2023). "Guidelines for Design of Fender Systems." International Navigation Association. [https://www.trelleborg.com/ja-jp/marine-and-infrastructure/pianc-wg211-fender-design-guidelines]
2. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026). "Modular Element Rubber Fenders Become Preferred Retrofit Product for Compact Berths." [https://www.taidunmarine.com/modular-element-rubber-fenders-become-preferred-retrofit-product-for-compact-berths.html]
3. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026). "How Nanjing Taidun Rubber Fenders Protected a Major Port During Typhoon Season." [https://www.taidunmarine.com/how-nanjing-taidun-rubber-fenders-protected-a-major-port-during-typhoon-season.html]
4. PIANC WG211 Brisbane Workshop. (2025). "Asset Owner's Role in Fender Testing." [https://pianc.org.au/wp-content/uploads/2025/12/Presentation-Slide-Master-PIANC-Fender-Workshop-30-July-2025-Brisbane.pdf]
5. Gaal, M. (2023). "Introduction to the Upcoming WG211 Report." PIANC Mediterranean Days. [https://www.portdufutur.fr/sites/portdufutur/files/fichiers/2023/12/Jmed2023_27_A3_Marco_GAAL.pdf]
6. Nanjing Taidun Marine Equipment Engineering Co., Ltd. "Product Overview." [https://www.taidunmarine.com/]
7. SunHelm Marine. (2025). "How D Rubber Fenders Solved Repeated Berthing Damage at a Busy Fishing Port." [https://www.sunhelmmarine.com/how-d-rubber-fenders-solved-repeated-berthing-damage-at-a-busy-fishing-port/]
8. Maritime Reporter. (2004). "Fender System Selection Guide." [https://magazines.marinelink.com/Magazines/MaritimeReporter/200410/page/32]
Q1: What is the difference between PIANC WG33 and WG211?
A: WG33 (2002) provided generic, prescriptive fender design guidance. WG211 (2023) represents a complete overhaul, introducing a site-specific, risk-based approach that requires actual berthing data and deeper stakeholder involvement.
Q2: Why are modular element fenders preferred for retrofit projects?
A: Modular element fenders offer a compact footprint, high energy-to-reaction ratios, and the ability to replace individual damaged elements without dismantling the entire system—minimizing downtime during installation.
Q3: What certifications should I look for in a marine fender?
A: Reputable manufacturers should offer BV/PIANC 2002 test protocol verification, ASTM F2192-05 rated performance data, ISO 14401:2004 quality management, and relevant factory certifications.
Q4: How should fender testing be conducted?
A: Under WG211, testing should include independent third-party verification using calibrated equipment. This should be witnessed by the purchaser or their representative to minimize bias and ensure accurate results.
Q5: What is the role of sustainability in fender selection?
A: Sustainability is an emerging priority. Ports increasingly require sustainable design, including lifecycle assessment of materials. However, recycling large rubber fenders remains challenging—innovation in this area is needed.
