For cruise terminals, preventing paint scratches is not simply a cosmetic concern. A scratched hull can lead to expensive repainting, disrupted turnaround schedules, passenger-facing brand damage, and avoidable claims between terminal operators, shipowners, and contractors. Nanjing Taidun Marine Equipment Engineering Co., Ltd. provides OEM marine fender solutions designed for overseas brands, wholesalers, shipbuilders, and marine-equipment manufacturers that need dependable hull-protection products under their own brand.
When comparing a panel fender vs cylindrical rubber fender, the best option for protecting cruise ship painted hulls is usually not determined by energy absorption alone. Cruise vessels have large flare angles, refined exterior coatings, sensitive hull areas, varying tidal conditions, and high expectations for clean berth contact. In many cruise-terminal applications, a properly engineered panel fender system with a low-friction, non-marking face pad provides better paint protection than a bare cylindrical rubber fender. However, cylindrical fenders remain highly practical in specific applications where continuous line contact, simple installation, or vessel-mounted protection is required.
Cruise ships are different from cargo ships, tugs, barges, and workboats. Their painted hulls are often high-visibility assets. A small black mark, abrasion line, or coating defect can be immediately visible to guests, operators, and port authorities.
From our experience as an OEM marine-equipment manufacturer, the main question should be: How does the fender contact the hull during berthing, tidal movement, and moored-vessel motion?
A rubber fender may absorb berthing energy successfully but still create paint-transfer or abrasion problems if its contact surface is not engineered for low friction.
- Direct black-rubber contact against painted steel can leave transfer marks, especially during vertical vessel movement.
- High sliding friction can abrade coatings when a vessel moves with tide, waves, wake, wind, or mooring-line load.
- Excessive local hull pressure can create stress concentrations in sensitive hull areas.
- Improper fender spacing can cause unexpected contact at hull flare, bow sections, or curved shell plating.
- Poorly finished steel panels or damaged pads can introduce sharp edges or rough contact points.
- Incorrect installation elevation can force the vessel to bear against an unsuitable section of the fender system.
- Inadequate maintenance can allow worn pads, loose fasteners, marine growth, or damaged rubber to compromise hull protection.
The latest PIANC fender guidance specifically treats cruise vessels, hull geometry, non-marking fenders, low-friction facings, hull pressure, inspection, and maintenance as dedicated design considerations. This confirms that a cruise-terminal fender system must be engineered as a complete interface—not selected as a standalone rubber product.
| Selection factor | Panel fender system | Cylindrical rubber fender |
|---|---|---|
| Typical configuration | Rubber fender body combined with steel frontal panel, chains, anchors, and low-friction face pads | Hollow or solid cylindrical rubber section, typically installed horizontally, vertically, or on vessel bow/stern |
| Cruise-hull paint protection | Excellent when fitted with UHMW-PE or other non-marking low-friction facing | Moderate to low when painted hull contacts bare black rubber directly |
| Sliding performance | Designed to reduce friction during tidal movement and ship motion | Higher risk of rubber drag, paint transfer, and abrasion without a protective facing |
| Hull-contact area | Broad and engineered; panel dimensions can distribute loads | Narrower line contact, depending on diameter and vessel geometry |
| Energy capacity | Can be designed for high berthing energy using cone, cell, arch, or other fender bodies | Suitable for many general-duty, vessel-mounted, and lower-complexity applications |
| Adaptability to cruise berths | Strong; panel size, pad layout, rubber body, chains, and fixings can be customized | Limited compared with a complete panel system |
| Installation complexity | Higher; requires structural design, anchors, chains, panels, and accurate alignment | Simpler; can be bolted, chained, or mounted through a center bore |
| Maintenance requirement | Requires scheduled inspection of panels, pads, chains, bolts, and rubber elements | Relatively straightforward, but rubber wear and fastening condition still require inspection |
| Best-fit use case | Cruise terminals, passenger berths, RoRo berths, large-vessel berths, high-value painted hulls | Tugboats, workboats, pontoons, smaller berths, general quay protection, vessel-mounted contact zones |
The practical conclusion is straightforward: a panel fender is generally the better cruise-terminal solution when paint protection and controlled sliding behavior are critical. A cylindrical rubber fender is often the better choice where simplicity, resilient line contact, and durable vessel-mounted protection matter more than premium coating preservation.
A panel fender system is not one single product. It is an engineered assembly that usually includes:
- A rubber energy-absorbing fender body, such as a cone, cell, arch, or similar high-performance element.
- A steel frontal panel that spreads reaction forces over a wider contact area.
- Low-friction face pads, commonly made from UHMW-PE, to allow controlled vessel movement.
- Chain systems, brackets, anchors, and connection hardware.
- Corrosion-protection treatment for steel components.
- Design documentation covering reaction force, energy absorption, hull pressure, panel geometry, and fixing loads.
The frontal panel is especially valuable for cruise ship hulls because it creates a larger, smoother, more predictable contact surface. Rather than allowing the hull coating to rub against black rubber, the ship slides over low-friction face pads.
During berthing, a cruise ship may not remain perfectly static after first contact. It can move vertically with tide, rise and fall with passing wakes, shift due to wind, or respond to changes in mooring-line tension.
If bare rubber remains in direct contact with a painted hull, friction can produce:
- Black scuff marks.
- Coating abrasion.
- Localized paint damage.
- Increased resistance to vessel movement.
- Higher forces transferred into the fender system and berth structure.
A well-designed low-friction facing reduces this sliding resistance. PIANC's 2024 guideline includes specific sections on non-marking fenders, hull pressure, fender panels, low-friction resin facings, fastenings, and whole-life considerations—areas that are directly relevant to cruise-ship berth design.

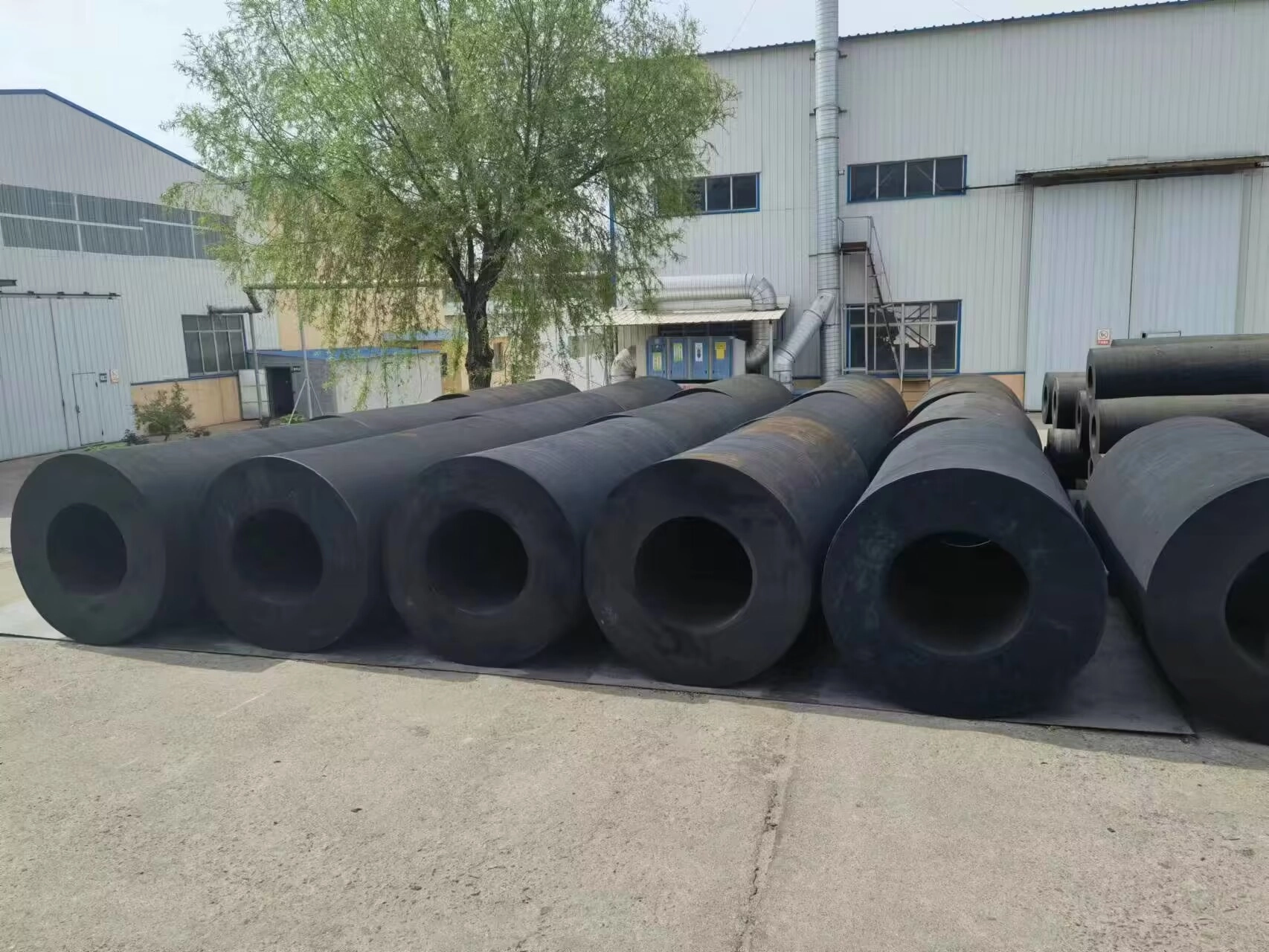

A cylindrical rubber fender is a round, tubular rubber profile. It may be solid or hollow and is commonly manufactured by extrusion, wrapping, or molding methods. Its circular shape allows it to compress under load and provide resilient cushioning.
Cylindrical fenders are widely used because they are durable, economical, versatile, and comparatively easy to install. They are common on quay walls, piers, tugboats, workboats, pontoon systems, and vessel bow or stern areas.
Typical cylindrical fender dimensions vary significantly. Commercial ranges may begin around 100 mm outside diameter and extend to 2,000 mm or more, depending on manufacturing method and application. FenderTec, for example, lists cylindrical sizes from 100 × 50 mm to 2,000 × 1,200 mm and describes chain-through-bore mounting for smaller units and additional groove-and-strap mounting methods for larger units.
- Simple geometry makes them easy to specify and install.
- Continuous contact line works well along quay edges and vessel sides.
- Robust rubber construction resists impact, abrasion, and marine exposure.
- Flexible OEM customization is possible in diameter, length, bore size, hardness, grooves, end treatment, mounting holes, and branding.
- Cost efficiency can be attractive for applications that do not require a full panel system.
- Useful vessel-mounted protection makes them particularly popular for tugboats and workboats.
A standard black cylindrical rubber fender directly contacting a cruise ship's painted hull is not automatically a paint-safe solution. The key limitation is friction. As the vessel moves up and down, the rubber can drag against the coating.
For this reason, cylindrical rubber fenders are more suitable for cruise applications when one or more of the following applies:
- The fender is installed on a support craft, service boat, or tug rather than the cruise terminal.
- The contact zone is outside high-visibility painted areas.
- A protective low-friction cover or facing is incorporated.
- The berth has lower traffic, lower energy, and controlled movement.
- The project requires a simple, continuous edge-protection profile rather than a high-performance cruise-berth system.
For most permanent cruise berths, panel fender systems are the preferred solution because they separate the energy-absorbing rubber body from the vessel-contact surface.
The vessel contacts smooth low-friction pads rather than exposed rubber. This reduces the likelihood of black marks and allows the hull to slide with less resistance during tidal movement.
However, the correct answer depends on the project.
- The berth receives large cruise ships or passenger vessels.
- The ship hull is highly visible and repainting costs are significant.
- The berth experiences substantial tidal range.
- The vessel is expected to move vertically while moored.
- Hull flare, bow geometry, or complex ship shapes require engineered panel positioning.
- The project has defined berthing-energy and reaction-force requirements.
- The terminal owner needs a long-life, maintainable, documented system.
- Low-friction, non-marking contact is a contractual or operational requirement.
- The application is a tugboat, workboat, service craft, pontoon, or small berth.
- Continuous linear protection is required.
- Installation simplicity is a major priority.
- The contact area is not a premium painted passenger-vessel surface.
- Budget constraints rule out a complete panel-and-pad system.
- The fender will be used as supplementary protection rather than the primary cruise-berth interface.
A reliable cruise-ship fender decision cannot be made from a photograph, a nominal diameter, or an energy-absorption value alone. We recommend evaluating the full operating condition before selecting a fender type.
The fender must absorb the vessel's design berthing energy without generating excessive reaction force. Higher energy absorption is not automatically better if the resulting reaction force becomes too high for the berth structure or vessel hull.
PIANC identifies the design process as including calculation of berthing energy, evaluation of required reaction force under moored conditions, selection of an appropriate fender system, and determination of the resulting reaction and friction forces for panel and hull-pressure design.
Cruise ship hull plating and internal framing arrangements must be considered. A narrow contact point can create excessive local pressure even if the overall fender reaction force appears acceptable.
A frontal panel helps distribute loads over a larger area. The panel size, face-pad arrangement, vessel flare, fender spacing, and berth geometry all affect pressure distribution.
For painted hulls, friction is one of the most important performance criteria. The ship may slide against the fender due to tide, loading condition, waves, wake, wind, or mooring movement.
A panel system with low-friction pads is normally superior to direct rubber contact in this situation.
A cruise ship can have a very different freeboard when loaded, light, bunkering, or operating at different tides. Fender elevation must match the actual contact region across the operating envelope.
Poor elevation selection can cause:
- Contact above or below the intended panel.
- Hull contact with panel edges.
- Load concentration on one fender.
- Increased paint-damage risk.
- Unwanted interference with shell doors or hull features.
Cruise vessels often have complex bow flare and curved hull surfaces. A fender arrangement must be checked for single-fender and multi-fender contact conditions. The system should not assume that every fender carries equal load at every berthing angle.
As an OEM supplier, Nanjing Taidun Marine Equipment Engineering Co., Ltd. recommends that brand owners and project buyers request more than a quotation. A strong fender proposal should include a clear technical basis.
1. Design vessel data, including displacement, length, beam, draft range, bow geometry, and operating condition.
2. Berthing information, including approach velocity, berthing angle, tug assistance, wind, current, wave exposure, and tidal range.
3. Energy and reaction-force calculations for the applicable design condition.
4. Fender performance curves showing deflection, energy absorption, and reaction force.
5. Hull-pressure review for the intended cruise ship contact area.
6. Panel drawings that show dimensions, pad arrangement, edge chamfers, steel thickness, and stiffener layout.
7. Low-friction facing specification, including material, fixing method, thickness, and replacement arrangement.
8. Rubber-compound information, including physical-property requirements and aging resistance.
9. Steel corrosion-protection system, especially for panels, chains, brackets, and anchor assemblies.
10. Inspection and testing documentation, including dimensional inspection, rubber compression testing, material testing, welding/NDT requirements where applicable, and traceable quality records.
PIANC's guideline addresses manufacturer qualifications, rubber compounds, curing methods, steel-panel fabrication, low-friction-facing fabrication, accessories, testing procedures, installation, inspection, and maintenance. For a cruise-fender project, these are practical procurement checkpoints—not unnecessary paperwork.
Even the best fender design can become a hull-scratch risk if it is not maintained. Operators should inspect cruise-berth fenders before small defects become major coating claims.
- Inspect face pads for deep wear, cracks, missing sections, and loosened fasteners.
- Check steel panel edges for damage, corrosion, distortion, or sharp protrusions.
- Look for rubber cracking, tearing, permanent deformation, or separation.
- Remove marine growth and debris from contact areas.
- Inspect chains, shackles, bolts, and brackets for corrosion, wear, and abnormal slack.
- Confirm that the fender system returns to its normal position after use.
- Record the vessel, time, berth, weather, tide, and observed contact location.
- Photograph the fender face, hull-contact zone, and panel edges.
- Check for displaced pads, broken bolts, damaged chains, or permanent rubber deformation.
- Review mooring and vessel-motion conditions.
- Repair defects before the next high-value cruise call.
This maintenance approach helps protect not only the vessel's paint but also the terminal's operating continuity and liability position.
Nanjing Taidun Marine Equipment Engineering Co., Ltd. serves international brand owners, wholesalers, shipyards, marine contractors, and equipment manufacturers seeking reliable OEM marine rubber fenders, mooring bollards, and marine anchoring products.
For cruise-hull protection projects, our OEM support can be structured around your commercial identity and technical requirements.
- Custom rubber-fender dimensions, hardness, geometry, mounting details, and packaging.
- Private-label branding, labels, product documentation, and export-ready presentation.
- Panel-fender assemblies with rubber elements, steel frontal panels, chains, anchors, and low-friction face pads.
- Cylindrical rubber fenders for quay walls, tugboats, workboats, floating systems, and special marine applications.
- Technical support for product selection, drawings, manufacturing coordination, inspection requirements, and shipment planning.
- Integration with mooring bollards and anchoring products for broader berth-equipment supply.
Our goal is not to sell a generic black-rubber product. It is to help OEM partners deliver a fender solution that protects the vessel, supports terminal operations, and strengthens the reputation of their own brand.
For a premium cruise berth, choose a panel fender system with engineered rubber elements and non-marking low-friction face pads. This approach offers the strongest defense against hull scratches, black rubber transfer, excessive sliding friction, and concentrated contact pressure.
Cylindrical rubber fenders remain valuable, durable, and cost-effective. They are often the right product for tugs, workboats, continuous quay protection, pontoons, and secondary-contact zones. But where cruise ship paint quality is a primary requirement, bare cylindrical rubber should not be treated as an equivalent substitute for a complete low-friction panel fender system.
Need an OEM panel fender or cylindrical rubber fender solution for a cruise terminal, marine brand, shipyard, or wholesale program? Contact Nanjing Taidun Marine Equipment Engineering Co., Ltd. with your vessel data, berth drawings, tidal range, and target market. Our team can help you develop a branded, technically appropriate marine-fender package.
They can be suitable for selected cruise-related applications, such as tugboat protection, service-vessel contact, pontoon edges, or secondary berthing areas. For a primary cruise terminal berth where painted-hull protection is critical, a panel fender with low-friction non-marking face pads is usually the better solution.
Black rubber does not always damage paint immediately, but direct contact can leave transfer marks or create abrasion during vessel movement. The risk increases when the ship slides vertically or laterally against the rubber due to tide, wake, wind, or mooring loads.
Many panel fender systems use UHMW-PE low-friction face pads. These pads provide a smoother vessel-contact surface and help reduce friction during vertical ship movement. The exact material, thickness, fastening pattern, and pad geometry should be selected for the project.
Start with vessel displacement, approach velocity, berthing angle, tidal range, hull geometry, berth layout, environmental conditions, and structural capacity. Then calculate design berthing energy, reaction force, hull pressure, panel size, fender spacing, and face-pad arrangement.
Yes. An experienced OEM supplier can customize fender dimensions, rubber formulation, hardness, mounting details, labels, packaging, product manuals, technical drawings, and private-label branding. For complete panel systems, customization may also include steel panels, face pads, chains, anchors, and coating systems.
A monthly visual inspection is a practical baseline, with additional inspections after abnormal berthing events, severe weather, vessel contact incidents, or observed hull-marking complaints. The final inspection interval should reflect berth traffic, environmental exposure, and the terminal's maintenance plan.
1. PIANC, *Guidelines for the Design, Manufacturing and Testing of Fender Systems 2024*, MarCom Working Group Report No. 211. This guideline covers cruise-vessel considerations, fender selection, hull pressure, non-marking fenders, low-friction facings, manufacture, testing, installation, and maintenance. [PIANC Fender Guidelines 2024] [izw.baw]
2. PIANC Fender Guidelines 2024, sections addressing fender-system selection, berth design, reaction force, friction force, hull pressure, panel design, and cylindrical fenders. [PIANC Fender Guidelines 2024] [reader.assets.udocz]
3. FenderTec, *Rubber Cylindrical Fenders*. Product information covering common cylindrical-fender sizing, mounting approaches, customization, and tugboat/workboat applications. [Rubber Cylindrical Fenders] [fendertec]
4. Tonly Rubber, *Cylindrical Rubber Fenders: A Guide to Applications and Maintenance*. Industry overview of cylindrical-fender applications, routine inspection, cleaning, installation, and storage practices. [Cylindrical Rubber Fenders Guide] [tonlyfender]
5. PIANC, *Guidelines for the Design, Manufacturing and Testing of Fender Systems 2024*, contents covering rubber compounds, curing, steel panels, low-friction facings, test procedures, inspection, maintenance, sustainability, and specification writing. [PIANC Report No. 211] [izw.baw]
