A container terminal operates 24/7/365. At a busy port, a single berth may experience 15-30 vessel landings per day. Over 20 years, that adds up to well over 200,000 berthing cycles.
The question is not whether your steel frontal panel will survive. The question is: how long?
This guide provides a comprehensive engineering reference for achieving 500,000+ berthing cycles in marine fender frontal steel panels—drawing on structural analysis programs, fatigue simulation methodologies, corrosion prevention standards, and real-world case studies from our OEM manufacturing experience.
Fatigue is the progressive, localized structural damage that occurs when a material is subjected to cyclic loading. For steel frontal panels on marine fenders, each vessel berthing applies a stress cycle to the panel's welds, brackets, and structural members.
Unlike sudden overload failure, fatigue develops silently. Cracks initiate at stress concentrations—often at weld toes, heat-affected zones, or geometric discontinuities—and propagate gradually with each cycle.
> *"Fender panels are just as important as the rubber units on high-performance systems. That's why every panel can be purpose designed using structural analysis programs and 3D CAD modeling for optimum strength."*
> — *NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO.,LTD*
Port design standards typically assume a 20-25 year service life. Let's calculate what that means in fatigue terms:
| Berthing Frequency | Cycles per Year | 20-Year Total | 25-Year Total |
|---|---|---|---|
| Low activity (5/day) | 1,825 | 36,500 | 45,625 |
| Medium activity (15/day) | 5,475 | 109,500 | 136,875 |
| High activity (20/day) | 7,300 | 146,000 | 182,500 |
| Extreme activity (30/day) | 10,950 | 219,000 | 273,750 |
These numbers assume every berthing applies similar stress. In reality, vessels vary in size, berthing speed, and angle—creating a spectrum of stress amplitudes.
A safety factor of 2-3x is standard in fatigue engineering. Hence, a design target of 500,000 cycles provides a robust safety margin for high-activity terminals over a full service life.
Achieving 500,000+ berthing cycles requires rigorous engineering from day one. The industry-standard approach uses Finite Element Method (FEM) fatigue simulation.

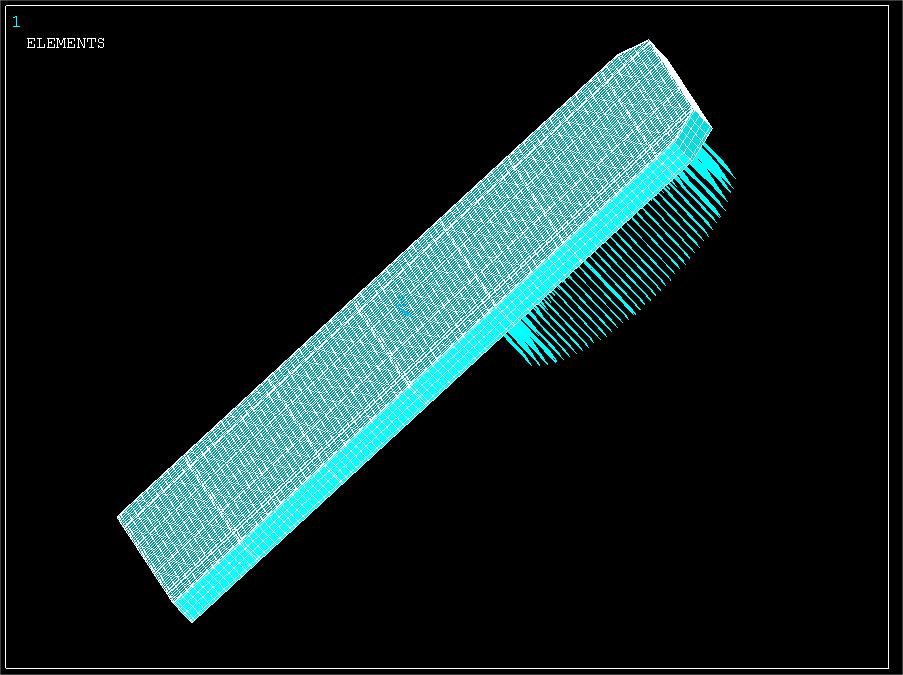

The first step is creating two finite element models of the steel frontal panel structure:
| Model Type | Purpose | Critical Outputs |
|---|---|---|
| Seam weld model | Analyzes continuous weld joints | Weld toe stress concentration factors |
| Spot/bracket weld model | Analyzes attachment points | Peak stress locations at connections |
> *"This article firstly established two finite element models of seam weld and spot-weld for the front sub-frame, then used the two models for seam weld and spot weld fatigue simulation analysis."*
> — *Xu & Guo, Applied Mechanics and Materials (2011)*
The FEM model must simulate realistic berthing loads, including:
| Load Type | Description | Engineering Consideration |
|---|---|---|
| Compression loading | Direct impact from vessel hull | Primary energy absorption mode |
| Shear loading | Lateral movement during berthing | Critical for chain attachment points |
| Tensile loading | Panel separation forces | Relevant for buoyant fender panels |
| Cyclic variation | Different vessel sizes, speeds | Spectrum loading analysis |
After simulation, the model reveals hot spots—locations where stress exceeds fatigue limits. Common weak portions in steel frontal panels include:
- Weld terminations at bracket connections
- Heat-affected zones around chain attachments
- Geometric discontinuities at chain pocket corners
- Unreinforced panel edges subject to point loading
> *"After the above steps, we not only found the weak portion… but also provide reference for both optimum design and improving the test design."*
> — *Xu & Guo, 2011*
FEM simulation must be correlated with physical testing.
| Test Type | Method | Acceptance Criteria |
|---|---|---|
| Cyclic compression test | Hydraulic press (500,000+ cycles) | No crack initiation |
| Weld inspection | Magnetic particle or dye penetrant | No linear indications |
| Load-to-failure test | Destructive (sample panels) | Exceeds design load by 2x |
> *"…cooperated with bench test results for verification."*
> — *Xu & Guo, 2011*

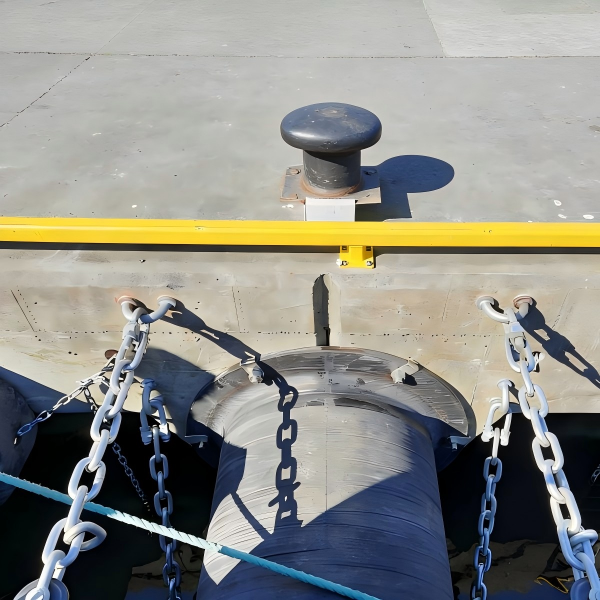

TAIDUN's engineering specifications outline critical design features for high-durability fender panels :
| Design Feature | Fatigue Benefit |
|---|---|
| Closed box steel structure | Eliminates open sections where cracks initiate |
| Internal structural members | Distributes loads, reduces peak stresses |
| Blind boss fender connections | Eliminates through-holes that concentrate stress |
| Lead-in bevels and chamfers | Reduces snagging and impact shock loads |
| Steel Grade | Yield Strength (MPa) | Fatigue Limit (MPa) | Best Application |
|---|---|---|---|
| S235JR | 235 | ~120 | Light-duty, low-cycle applications |
| S355J2 | 355 | ~180 | Standard marine fender panels |
| S460ML | 460 | ~230 | Heavy-duty, high-cycle terminals |
For 500,000+ cycle targets, S355J2 or higher is recommended, with Charpy V-notch impact testing at -20°C.
Welds are the most common fatigue initiation points. Critical specifications include:
| Weld Parameter | Requirement | Fatigue Rationale |
|---|---|---|
| Weld size | Per structural calculation | Undersized welds concentrate stress |
| Weld type | Full penetration where possible | Partial penetration creates crack initiation sites |
| Post-weld treatment | Grinding of weld toes | Removes stress risers |
| NDT inspection | 100% of critical welds | Detects unacceptable discontinuities |
Fatigue cracks grow faster in corrosive environments. This phenomenon, known as corrosion fatigue, can reduce fatigue life by 50-80%.
According to ISO 12944, marine splash zones are classified as C5-M (very high corrosion). TTAIDUN'S specifies :
> *"Corrosion protection is provided by high durability C5M class paint systems to ISO 12944, and additional corrosion allowances can be designed where required."*
| Coating Layer | Thickness | Purpose |
|---|---|---|
| Blast cleaning | Sa 2.5 minimum | Surface preparation (ISO 8501-1) |
| Zinc-rich primer | 60-80 μm | Sacrificial cathodic protection |
| Epoxy intermediate | 150-200 μm | Barrier protection |
| Polyurethane topcoat | 50-80 μm | UV and chemical resistance |
For designs targeting 25+ year service life, an additional corrosion allowance should be specified. Typical allowances:
| Environment | Annual Corrosion Rate | 25-Year Allowance |
|---|---|---|
| Atmospheric (above splash) | 0.05-0.10 mm/year | 1.5-2.5 mm |
| Splash zone (C5-M) | 0.15-0.30 mm/year | 4-8 mm |
| Immersed (seawater) | 0.10-0.20 mm/year | 2.5-5.0 mm |
A Southeast Asian container terminal operating 25 vessel calls per day required a frontal steel panel upgrade. Existing panels showed weld cracking after 8 years (approximately 73,000 cycles).

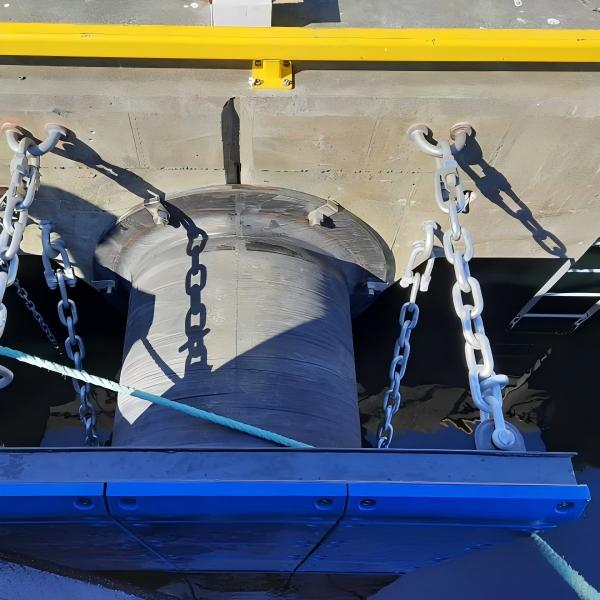

Nanjing Taidun engineered a replacement panel with:
| Feature | Specification |
|---|---|
| Steel grade | S355J2+N (normalized) |
| Design | Closed box with internal stiffeners |
| Welds | Full penetration at bracket connections; ground toes |
| Coating | C5M epoxy system (300 μm DFT) |
| Corrosion allowance | +3 mm on all structural plates |
- FEM fatigue simulation: Predicted infinite life (>2,000,000 cycles) at design loads
- Bench testing: 500,000 cycles at 125% design load – no crack initiation
- NDT verification: Magnetic particle inspection of all critical welds – acceptable
Panels installed in 2019. After 6 years (approximately 55,000 cycles), annual NDT inspections show no crack initiation. Projected service life: 25+ years.
Achieving a 500,000-cycle design life is one thing. Maintaining it requires discipline.
| Frequency | Inspection Type | Focus Areas |
|---|---|---|
| Weekly | Visual | Obvious cracks, loose chains, coating damage |
| Quarterly | Detailed visual | Weld terminations, high-stress zones |
| Annually | NDT (MT or PT) | All critical welds and attachment points |
| 5-Year | UT thickness measurement | Corrosion allowance verification |
| Damage Type | Action Required | Urgency |
|---|---|---|
| Coating scratch | Touch-up per manufacturer‘s specification | Routine |
| Coating blister | Remove, blast, recoat | Routine |
| Surface crack (<2mm) | Grind out, blend, NDT verify | High |
| Through crack | Engineering assessment; possible panel replacement | Immediate |
| Corrosion penetration | Measure remaining thickness; compare to allowance | High |
We asked our global OEM clients about their experience with high-cycle steel frontal panels:
> *"We used to replace frontal panels every 6-8 years due to weld cracking. After switching to Nanjing Taidun's S355J2 panels with full-penetration welds and toe grinding, we are at year 9 with no visible cracks. The upfront cost was higher, but the lifecycle savings are substantial."*
> — *Terminal Engineering Manager, Southeast Asia*
> *"The C5M coating system is non-negotiable for us. We operate in a tropical marine environment with year-round high humidity. Panels with standard coatings show rust staining within 12 months. Our Taidun panels with C5M epoxy are at year 4 with no coating failure."*
> — *Maintenance Director, Middle East Port Authority*
> *"We now require FEM fatigue reports from all our panel suppliers. One supplier's 'high-cycle' claim was based on intuition, not analysis. Taidun provided the simulation data AND bench test verification. That's the level of documentation we need."*
> — *Procurement Manager, European Terminal Operator*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , achieving 500,000+ berthing cycles in steel frontal panels is not a marketing claim—it is an engineering discipline.
Our process includes:
| Stage | Actions |
|---|---|
| Design | 3D CAD modeling; FEM fatigue simulation (seam and spot weld models) |
| Material | S355J2 or higher; full traceability; Charpy impact testing |
| Fabrication | CNC cutting; full-penetration welding where specified; ground weld toes |
| Coating | Sa 2.5 blast; C5M epoxy system; dry film thickness verification |
| Testing | Pressure test for water tightness; cyclic load validation; NDT inspection |
| Documentation | FEM reports; coating certificates; weld maps; NDT records |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get engineered-for-fatigue steel frontal panels with documented validation.
Achieving steel frontal panel fatigue life of 500,000+ berthing cycles requires:
1. FEM fatigue simulation (seam and spot-weld models)
2. Bench test validation to correlate simulation
3. S355J2 or higher steel with proper weld design
4. C5M-class coating systems with corrosion allowance
5. Regular NDT inspection throughout service life
These panels are not commodities. They are engineered safety-critical components.
[Contact the Nanjing Taidun Engineering Team] for a fatigue life consultation or to request FEM simulation reports for your fender panel project. We support ports, terminals, and marine operators worldwide.
Q1: What does "500,000 berthing cycles" actually mean in service years?
A: For a port with 20 vessel calls per day, 500,000 cycles represents approximately 68 years of service—far exceeding typical fender system design life (20-25 years). This provides a substantial safety margin for high-cycle terminals .
Q2: What is the most common cause of steel frontal panel fatigue failure?
A: Weld terminations—particularly at chain brackets and panel stiffener connections—are the most common crack initiation sites. FEM simulation identifies these locations, allowing design optimization before fabrication .
Q3: How does corrosion affect fatigue life?
A: Corrosion fatigue can reduce fatigue life by 50-80%. That's why we specify C5M-class coating systems per ISO 12944 with additional corrosion allowance for 25+ year service .
Q4: What NDT method is best for detecting fatigue cracks in fender panels?
A: Magnetic particle inspection (MT) is most effective for detecting surface and near-surface cracks in steel panels. For annual inspections of critical welds, MT combined with visual inspection is standard .
Q5: Can existing panels be upgraded to achieve higher fatigue life?
A: Yes—by adding internal stiffeners, grinding weld toes to reduce stress concentration, and applying upgraded coating systems. However, a full engineering assessment and FEM analysis of the modified design is required .
