As someone who has spent years working in the marine equipment engineering sector, I've seen what happens when rubber fender systems fail. And more often than not, the root cause traces back to what happened—or didn't happen—before the fenders ever left the factory.
For port infrastructure projects, the margin for error is zero. A compromised marine rubber fender system doesn't just mean equipment failure; it means vessel damage, berthing delays, and potentially millions in liability. That's why at Nanjing Taidun Marine Equipment Engineering Co., Ltd., we treat pre-delivery inspection as a non-negotiable engineering discipline.
Marine rubber fenders operate in one of the most punishing environments imaginable. Saltwater corrosion, UV degradation, extreme temperature fluctuations, and constant mechanical stress demand that these components be flawless from day one .
Yet the reality is this: many rubber fender inspection protocols in the industry remain superficial. Some suppliers treat inspection as a box-ticking exercise rather than a genuine quality assurance process. That's a dangerous gamble.
The stakes: A single underperforming fender at a busy commercial port can lead to hull damage, berthing structure repair costs, and operational downtime that far exceeds the initial cost of the equipment.
When we confirm the design and complete manufacturing of a marine fender system, our responsibility doesn't end there. Before delivery and installation, we conduct a rigorous inspection regimen that goes far beyond what regulatory minimums require.
Here's what that looks like in practice:
Every rubber compound that leaves our facility must demonstrate its performance through measurable, verifiable data. This means testing for:
- Tensile strength and elongation at break—indicators of material resilience
- Hardness (Shore A durometer) —critical for consistent energy absorption
- Compression set—measuring recovery after prolonged deformation
- Ozone and UV resistance—essential for long-term marine exposure
I've seen too many projects where these tests were performed once—on a prototype—and never verified again. We test batch by batch, compound by compound.
One of the most critical metrics for any marine fender system is its energy absorption-to-reaction force ratio (E/R ratio). High energy absorption with low reaction force means better vessel protection with less stress on the quay structure .

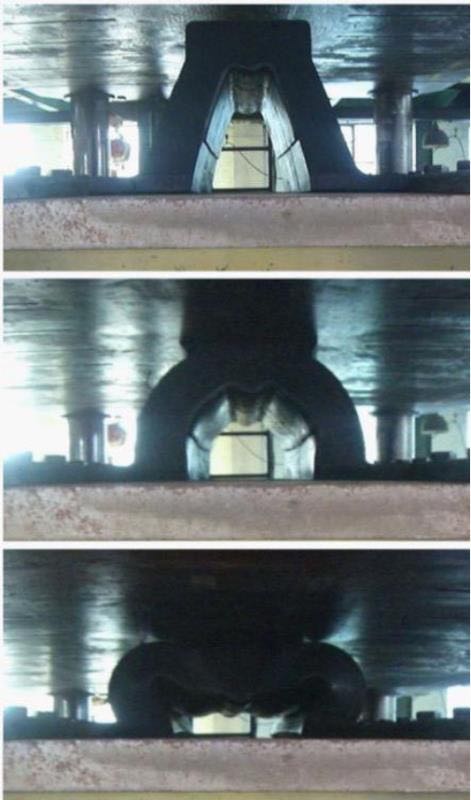

We conduct performance verification testing using calibrated load cells and displacement transducers, simulating the actual berthing conditions the fender will encounter . This isn't just about meeting PIANC 2002 specifications; it's about ensuring real-world performance.
A fender that doesn't match design specifications can fail to make proper contact with the vessel hull, rendering the entire fender system ineffective. We verify:
- Overall dimensions against design drawings
- Mounting plate positioning and alignment
- Steel panel fabrication quality (weld integrity, paint thickness, corrosion protection)
- UHMW-PE pad dimensions and attachment
Insider tip: When we supply a fender system, we pay special attention to the steel panel assembly. A well-designed panel fabricated poorly will fail long before the rubber component does. The panel is what distributes the load to the hull—if it fails, the fender fails .
This is where many suppliers fall short. We provide a comprehensive documentation package that includes:
- Product qualification certificates
- Rubber physical property test reports
- Performance (reaction force and energy absorption) test data
- Third-party inspection reports (when specified by the client)
- Welding procedure specifications (WPS) and welder certifications
- Painting and coating inspection records
- Material traceability records for all components
In my experience, this documentation is invaluable—not just for project handover, but for future maintenance planning and warranty claims.
Here's an industry truth that many don't want to admit: Factory-conducted testing, even when witnessed by a third party, isn't truly independent.
The fender industry has historically relied on manufacturers testing their own products, with witnesses present to observe. But there's a problem with this approach: witnesses have no practical way to independently verify the results. Inspection agencies aren't guaranteeing the validity of the data they're endorsing .
Our approach: When the project budget allows, we recommend engaging an independent testing laboratory. This removes any uncertainty from the results. For the Port of Ngqura project in South Africa, we supplied Element Fender Systems with TGA testing performed on-site by an independent lab—and the client had complete confidence in the data .
A recent project that demonstrates why thorough inspection and quality control matters is our work at the Port of Sheerness in the UK. This historic port, part of the London Medway cluster operated by Peel Ports, faced a significant challenge: its Berth No. 1 fender systems were inadequate for the larger RoRo vessels now docking there. The jetty had limited mounting space, ruling out larger fender types .
The solution we delivered: Nine sets of Pile Fenders, each featuring an Element Fender (ME 1600×1500 G2.8) and a closed-box steel panel measuring 2200×7650 mm .
But the key to project success wasn't just the product design—it was the quality assurance. Every component underwent the full inspection protocol I've described above, from rubber compound verification to steel panel fabrication inspection. Shear chains were tested to resist horizontal forces. The large steel panel was clamped over the pile to distribute loads and ensure lasting stability. Chamfers were added to prevent hull beltings from snagging .
The result? Marine Construction Magazine noted: *"The Port of Sheerness continues to build on its proud legacy as a hub for international trade, showcasing how heritage and state-of-the-art fender systems can seamlessly coexist."*
If you're specifying a marine rubber fender system for a port or terminal project, here are the questions I recommend you ask every potential supplier:
On Materials and Manufacturing:
- Do you manufacture your own rubber compound, or do you buy pre-mixed?
- What process records are retained for material weighing and mixing batches?
- How is compound temperature controlled during the mixing process?
On Inspection and Testing:
- Will performance verification testing be conducted at your facility or by an independent lab?
- What inspection and test plans (ITPs) do you have in place for steel panel fabrication?
- How do you verify the quality of UHMW-PE pads and their resistance to wear?
On Documentation and Compliance:
- Can you provide the full documentation package before delivery?
- What certifications does your facility hold? (ISO 9001, PIANC, BV, LR, CCS, etc.)
- What is your standard warranty period?
A marine rubber fender system is a critical safety component, not a commodity. The choice of supplier and the rigor of their inspection process directly impacts the safety, reliability, and lifespan of your port infrastructure.
At Nanjing Taidun, we've supplied fender systems to over 80 countries, with more than 1000 solutions delivered to port authorities and construction groups worldwide . Our products have passed BV, SGS, LR, CCS, TUV, and GL testing .
But what truly sets a manufacturer apart isn't the certifications on the wall—it's the discipline of the people on the factory floor. It's the insistence on verification when nobody's watching. It's the documentation that proves every component meets its performance specification.
When you're evaluating your next fender system partner, look beyond the price tag. Look at the inspection process. That's where the real quality story is told.
1. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (n.d.). *Modular Element Rubber Fenders Become Preferred Retrofit Product for Compact Berths*. [https://www.taidunmarine.com/modular-element-rubber-fenders-become-preferred-retrofit-product-for-compact-berths.html]
2. BS ISO 17357-1:2014. *Ships and marine technology—Floating pneumatic rubber fenders—Part 1: High pressure*. Intertek Inform. [https://www.intertekinform.com/en-gb/standards/bs-iso-17357-1-2014-277978_saig_bsi_bsi_642117/]
3. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (n.d.). *Company Profile and Product Overview*. [https://www.taidunmarine.com/]
Q1: What is the typical lifespan of a marine rubber fender?
A: Under normal use and with proper maintenance, a high-quality marine rubber fender system can last 20 to 25 years. However, the actual lifespan depends on factors such as environmental conditions, frequency of berthing, and the quality of the original rubber compound. Nanjing Taidun offers a standard 12-month warranty from the date of putting into use, with lifetime after-sales support .
Q2: What certifications should a reliable marine fender supplier have?
A: A credible supplier should hold ISO 9001 certification for quality management, and their fenders should be tested to international standards such as PIANC 2002, ASTM F2192-05, and ISO 17357. Look for third-party approvals from classification societies like BV (Bureau Veritas), LR (Lloyd's Register), CCS, SGS, TUV, and GL. Nanjing Taidun holds all of these certifications .
Q3: How often should rubber fenders be inspected after installation?
A: For tugboat and vessel fenders, inspections are recommended every 6 to 12 months . For fixed dock fender systems, the interval depends on the frequency of vessel traffic but typically ranges from 6 months to 2 years. Regular inspections should include visual checks for surface cracks, hardness testing, and verification of mounting bolt tightness .
Q4: What is the difference between factory testing and independent testing?
A: Factory testing is performed at the manufacturer's facility, often witnessed by a third party or consultant. However, the data is not independently verified, and witnesses cannot easily confirm the results. Independent testing is conducted by an external laboratory that works independently of the manufacturer, providing objective and trustworthy performance data .
Q5: What documentation should I expect with a marine fender system delivery?
A: A complete documentation package should include: product qualification certificates, rubber physical property test reports (tensile strength, hardness, ozone resistance, etc.), performance test data (reaction force and energy absorption curves), welding procedure specifications and welder certifications, painting and coating inspection records, material traceability records, and any third-party inspection reports .
