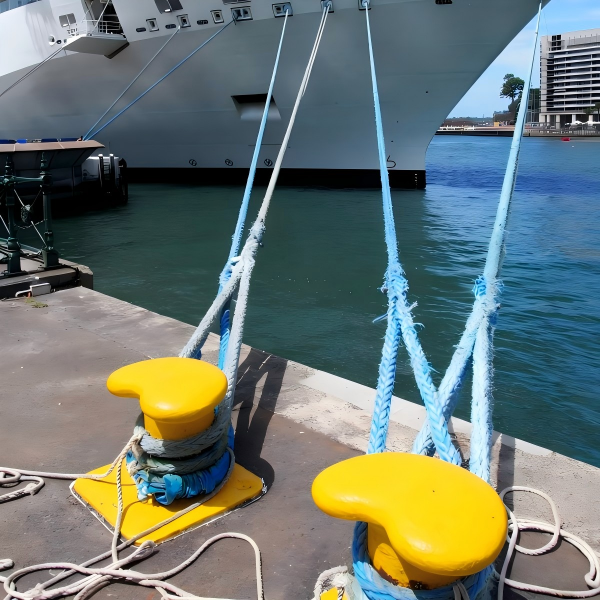

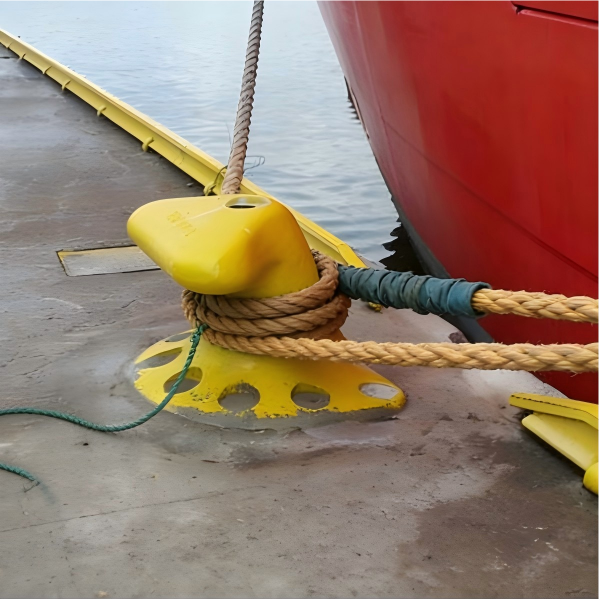

A mooring bollard sits on the quay edge, silently holding vessels against wind, waves, and tides. When it fails, the consequences are dramatic: snapped mooring lines, drifting vessels, structural damage, and potential injuries. The Port of Antwerp, with its 120.6 km of quay walls and over 7,000 mooring bollards, knows this risk firsthand. A single 650 kg steel bollard coming loose can send a ship adrift .
The leading cause of bollard failure? Corrosion.
In this comprehensive guide, I will draw on decades of OEM manufacturing experience at Nanjing Taidun to explain how to maximize the corrosion resistance of marine mooring bollards and achieve a service life exceeding 25 years. You will learn about material selection, protection systems, inspection protocols, and emerging technologies that are transforming bollard maintenance .
Steel is ideal for marine structures because it handles high design loads effectively. However, in a marine environment—exposed to saltwater, oxygen, tidal cycles, and physical impacts—steel readily corrodes .
Bollard failure is rarely sudden. It is the result of years of gradual corrosion: the protective coating chips, saltwater reaches bare metal, rust forms, and the effective cross-section of the steel shrinks. By the time visible rust appears, the bollard's load-bearing capacity may already be compromised.
Understanding where corrosion occurs is essential for targeted protection :
| Zone | Location | Corrosion Risk | Protection Strategy |
|---|---|---|---|
| Atmospheric Zone | Above splash zone, exposed to salt-laden air | Moderate (0.1–1.4 mm over 5 years) | Coatings, regular inspection |
| Splash/Tidal Zone | High-water mark, where waves and floating debris hit | Highest | Heavy-duty coatings, cathodic protection |
| Submerged Zone | Permanently underwater | Moderate (reduced oxygen at depth) | Cathodic protection (sacrificial anodes or ICCP) |
The splash zone is the most vulnerable. This is where protective coatings are most likely to be damaged by vessel contact or floating debris, and where oxygen and moisture are most abundant.
The foundation of any long-lasting mooring bollard is the material from which it is made.
| Material | Corrosion Resistance | Strength | Cost | Best Application |
|---|---|---|---|---|
| Cast Iron | Fair (requires coating) | High compressive, brittle | Low | Low-salinity, moderate-load areas |
| Carbon Steel (Galvanized) | Good (with coating) | Very high | Moderate | General port use, coastal installations |
| 316 Stainless Steel | Excellent | High | High | High-salt environments, premium installations |
| Composite/Concrete | Excellent | Moderate | Varies | Sheltered areas, low-impact zones |
Expert recommendation: For saltwater environments, hot-dip galvanized carbon steel offers the best balance of cost and durability. ASTM A123 specifies 500 hours of salt spray resistance for galvanized coatings—approximately 3x the lifespan of standard painted coatings . For the highest corrosion resistance, 316 stainless steel (ASTM A240) lasts over 1,000 hours in salt spray testing and carries a 10-year warranty against corrosion .
Traditional bollards often use cast iron (grades like HT250, FC25). While cost-effective and durable under compression, cast iron is brittle and prone to cracking under extreme stress . For heavy-duty applications, cast steel (ZG230-450) offers significantly better impact resistance and ductility. Reliance Foundry's T-head bollards use ZG230-450 cast steel, engineered for 20 metric tonnes of holding capacity .
Even the best steel requires protection. There are two principal protection systems for marine steel structures .
Coatings are the first line of defense. Their effectiveness depends on three factors: product quality, surface preparation, and application.
Typical coating lifespan: 10–20 years with proper maintenance .
Common coating types:
| Coating Type | Application | Lifespan | Maintenance |
|---|---|---|---|
| Epoxy paint | Standard protective coating | 5–10 years | Regular touch-ups |
| Polyurethane topcoat | UV and abrasion resistance | 10–15 years | Inspection every 2-3 years |
| Hot-dip galvanizing | Zinc coating (ASTM A123) | 15–25 years | Damage repair with zinc spray |
| Thermal spray aluminum (TSA) | Premium corrosion protection | 20–30 years | Minimal |
For most port bollards, a combination of hot-dip galvanizing followed by an epoxy or polyurethane topcoat provides the best protection. The galvanizing sacrifices itself to protect the underlying steel, while the topcoat provides UV and abrasion resistance .
Coatings alone cannot protect submerged areas indefinitely. Cathodic protection is required for the submerged and tidal zones .
Two types of cathodic protection:
| Type | How It Works | Best For | Limitations |
|---|---|---|---|
| Sacrificial Anodes | Zinc or aluminum blocks corrode instead of the bollard | Small to medium installations | Finite life; requires replacement |
| Impressed Current (ICCP) | DC power drives current through long-life anodes | Large structures, critical assets | Higher initial cost; protects only wetted areas |
Important: Cathodic protection only protects areas that are continuously submerged. The splash zone and atmospheric zone still require coatings .
Even the best-protected bollard requires regular inspection. Based on industry standards and OEM recommendations, here is the complete checklist .
Inspect the bollard body for:
- Dents, cracks, or surface penetration
- Worn-down rims or battered tops
- Deformation indicating overload
Frequency: Monthly for active terminals; quarterly for light-use facilities.
Examine the coating system for:
- Chipped, blistered, or peeling paint
- Rust staining (especially at the base and around bolt holes)
- Corrosion on galvanized surfaces
Action: Strip damaged coating back to bare metal, clean thoroughly, and reapply the protective system according to manufacturer specifications .
Use an ultrasonic thickness gauge to measure the barrel wall thickness. Compare results against the manufacturer's original specifications.
Alert threshold: Any deviation greater than 2 mm should be discussed with your supplier or a qualified marine engineer .
Using a calibrated torque wrench, verify that all anchor bolts are tightened to the manufacturer's specified torque values.
| Bollard Type | Typical Torque Range |
|---|---|
| Small bollards (5–10T) | 200–400 N·m |
| Medium bollards (15–25T) | 400–800 N·m |
| Large bollards (50T+) | 800–1,500 N·m |
No loosening is acceptable. Loose bolts indicate either improper installation or foundation settlement .
Examine each bolt and nut for:
- Red rust (active corrosion)
- Galvanization integrity
- Proper thread engagement
Touch-up procedure: Clean corroded areas with a wire brush, apply zinc-rich cold galvanizing spray, and then apply the specified topcoat .
The grout beneath the bollard distributes loads evenly to the quay wall. Inspect for:
- Cracking or spalling
- Grout loss (visible gaps between flange and grout)
- Water infiltration around the edge
Action: If cracking or loss is detected, remove damaged grout and re-grout with a high-strength, non-shrink marine epoxy grout .
For critical bollards or after major incidents, conduct a proof load test.
Procedure:
1. Apply a test load equal to the bollard's Safe Working Load (SWL)
2. Hold for 5–10 minutes
3. Inspect for deformation, cracking, or movement
4. Document deflection measurements
Frequency: Every 5–10 years for active bollards; after any overload event .
Maintain a maintenance log for each bollard including:
- Installation date and specifications
- Inspection dates and findings
- Repairs and coating touch-ups
- Load test results
- Photographs of any concerning conditions
This documentation is essential for safety compliance and lifecycle cost analysis.
In 2021, the Port of Antwerp launched an innovative project to make its 7,000+ bollards "intelligent" .
The challenge: In windy or stormy conditions, mooring ropes exert enormous forces on bollards. Bollards—with their bolt or anchor connections—are more sensitive than larger mooring masts. A 650 kg steel bollard coming loose can cause a ship to drift or injure personnel .
The solution: Port of Antwerp partnered with Zensor to develop the Bollard Monitor – a system of built-in sensors that measure tension and tension fluctuations on the mounting system every 15 minutes .
Key benefits:
- Real-time load monitoring via wireless connection
- Automatic alerts when bolts exceed safe tension or come loose
- Integration with operational data for predictive maintenance
- Remote visualization on an online dashboard
"Instead of on-site checks, the sensors will automatically and immediately indicate when the bolt connections of bollards are being overloaded. The technical services can view the actual load live via the online platform."*
This represents the future of bollard maintenance: predictive, data-driven, and proactive rather than reactive.
Based on industry data and OEM experience, here is how to achieve over 25 years of service life from your mooring bollards.
| Factor | Recommendation | Impact on Lifespan |
|---|---|---|
| Material selection | Hot-dip galvanized steel or 316 stainless steel | +10–15 years |
| Coating system | Epoxy + polyurethane or thermal spray aluminum | +10–20 years |
| Cathodic protection | Sacrificial anodes for submerged areas | +5–10 years |
| Inspection frequency | Monthly visual; annual detailed | Prevents small issues escalating |
| Damage response | Immediate touch-up of coating damage | Adds years to coating life |
| Load monitoring | Smart sensors or regular load testing | Prevents overloading failures |
| Grout maintenance | Annual grout inspection | Prevents foundation failure |
Typical bollard lifespan with proper protection and maintenance is 15–25 years. With premium materials (316 stainless steel) and rigorous maintenance, 30+ years is achievable .
We asked our global OEM clients about their experience with bollard corrosion and maintenance:
> *"We had cast iron bollards that lasted barely 10 years. The coating failed, the bases rusted, and we were constantly worried about failure. We switched to hot-dip galvanized steel bollards with epoxy topcoat from Nanjing Taidun. We are now at year 12 with no visible corrosion."*
> — *Port Engineer, Southeast Asia*
> *"The smart bollard sensors changed our maintenance program entirely. Instead of inspecting 200 bollards on a schedule, we focus only on the ones that send alerts. We've caught three overload events before they caused damage."*
> — *Maintenance Manager, European Terminal*
> *"The splash zone is brutal on coatings. We use thermal spray aluminum on our most exposed bollards and sacrificial anodes on the submerged steel. It costs more upfront but has paid for itself in reduced maintenance."*
> — *Facilities Director, Middle East Port*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that bollard corrosion resistance is not an afterthought—it is an engineering priority .
Our bollard capabilities include:
| Service | Description |
|---|---|
| Material options | Cast steel (ZG230-450), carbon steel, 316 stainless steel |
| Coating systems | Hot-dip galvanizing (ASTM A123), epoxy, polyurethane, TSA |
| Custom design | T-head, pillar, double-bitt, and Y-type configurations |
| Testing | Proof load testing; third-party inspection available (BV, SGS, LR) |
| Documentation | Material certificates, coating reports, and maintenance guides |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Nanjing Taidun, you get factory-direct pricing, custom engineering, and full certification documentation .
Achieving corrosion resistance of marine mooring bollards and extending service life beyond 25 years requires:
1. The right material – hot-dip galvanized or 316 stainless steel
2. The right protection – coatings + cathodic protection for submerged areas
3. The right inspection – monthly visual checks and annual detailed inspections
4. The right technology – smart sensors for predictive maintenance
5. The right partner – an OEM with proven expertise
Don't wait for a bollard to fail. Start your maintenance program today.
[Contact the Nanjing Taidun Engineering Team] for a free bollard assessment or to request a quote for new installations, replacement bollards, or maintenance supplies. We support ports, terminals, and marine operators worldwide .
Q1: How often should marine mooring bollards be inspected?
A: Visual inspections should be conducted monthly for active terminals. Detailed inspections (including thickness measurement and bolt torque checks) should be performed annually. Load testing is recommended every 5–10 years or after any overload event .
Q2: What is the best material for corrosion resistance in saltwater?
A: 316 stainless steel offers the highest corrosion resistance, with a 10-year warranty against saltwater corrosion. For a balance of cost and durability, hot-dip galvanized carbon steel (ASTM A123) provides excellent protection at a lower price point .
Q3: How long do marine bollards typically last?
A: With proper material selection and maintenance, service life ranges from 15 to 25 years. Premium materials (316 stainless steel) and rigorous maintenance can extend this beyond 30 years .
Q4: What is the most vulnerable part of a mooring bollard?
A: The splash zone—the area around the high-water mark—experiences the most aggressive corrosion. This is where coatings are most likely to be damaged and where oxygen, moisture, and salt are most abundant .
Q5: Can existing bollards be retrofitted with corrosion protection?
A: Yes. Existing bollards can be sandblasted to bare metal, recoated with an appropriate system, and fitted with sacrificial anodes for submerged areas. However, if corrosion has reduced the steel cross-section beyond acceptable limits, replacement is safer .
Q6: What are smart bollards, and are they worth the investment?
A: Smart bollards integrate sensors that monitor bolt tension and load in real time. They automatically alert maintenance teams to overloads or loose bolts. For large terminals with hundreds of bollards, the predictive maintenance savings typically justify the investment .
