Military special wharves are not commercial ports. The vessels they serve—from naval warships and submarines to aircraft carriers and auxiliary support vessels—have unique hull geometries, classified operational requirements, and zero tolerance for equipment failure.
Standard off-the-shelf fendering systems simply do not meet these demands.
I have spent two decades manufacturing OEM rubber fender systems for global military and defense applications. In this guide, I will explain what makes a custom rubber fender solution for military special wharves fundamentally different, the engineering standards that govern naval waterfront design, and how to specify the right system for your defense infrastructure project.
Military vessels differ from commercial ships in several critical ways that directly impact fender selection.
| Characteristic | Military Vessel | Commercial Vessel |
|---|---|---|
| Hull material | High-strength steel, often with sensitive coatings | Standard marine steel |
| Hull shape | Complex, with sonar domes, stabilizers, and appendages | Conventional displacement hull |
| Berthing autonomy | Limited—often no tugs due to stealth requirements | Tug-assisted |
| Operational tempo | Unpredictable, rapid deployment | Scheduled |
| Damage tolerance | Extremely low—mission-critical | Moderate |
Military special wharves operate under unique constraints that commercial ports do not face:
- Restricted access zones – Maintenance and inspection must be coordinated with base security
- Classified vessel movements – Berthing schedules may not be shared with suppliers
- Rapid deployment requirements – Fenders must perform immediately, without lengthy setup
- EMI/RFI considerations – Some fender components must minimize electronic interference
> *"The intent of UFC 4-152-01 is to provide minimum facility planning and design criteria for pier and wharf construction for Department of Defense vessels. These standards have been developed from extensive re-evaluation of facilities."*
> — *Unified Facilities Criteria (UFC) Program*
Not all fenders are suitable for military wharves. Based on operational requirements and vessel types, three primary fender categories are most commonly specified.

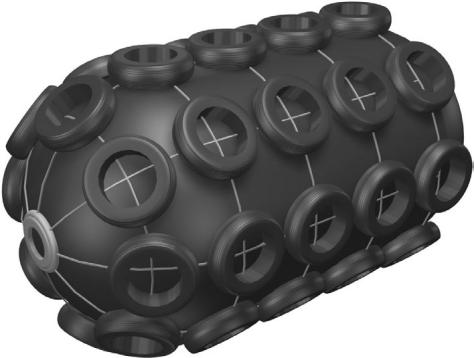

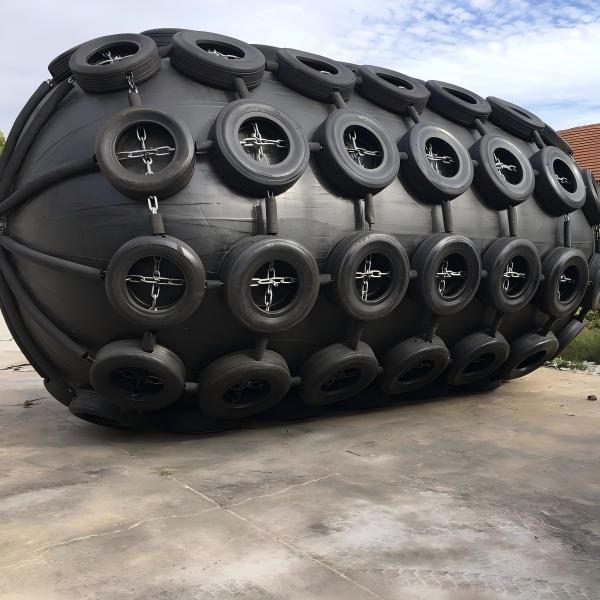

Pneumatic fenders are widely used for large naval vessels, including aircraft carriers, amphibious assault ships, and replenishment oilers.
Why pneumatic works for military applications:
- Low reaction force – Protects sensitive hull coatings and sonar domes
- Floating design – Self-adjusts to tidal variations without manual intervention
- High energy absorption – Handles larger vessels at typical naval berthing speeds
- ISO 17357-1:2014 compliant – Internationally recognized performance standards
Recommended specifications for naval use:
| Vessel Type | Recommended Fender Size (D x L) | Energy Absorption at 60% deflection |
|---|---|---|
| Frigate / Destroyer | 2.0m x 3.5m – 2.5m x 4.0m | 350–525 kN·m |
| Amphibious transport | 2.5m x 5.5m | 680 kN·m |
| Aircraft carrier | 3.3m x 6.5m | 1,890 kN·m |
| Replenishment vessel | 3.0m x 6.0m | 1,031 kN·m |
*Table data based on ISO 17357-1:2014 performance curves for 0.05 MPa internal pressure*
> *"Yokohama Fenders are used worldwide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. More than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations."*
> — *Pneumatic fender industry specification*
Taidun Marine present a unique fendering challenge. Their hulls make contact below the waterline, and their sensitive coatings cannot tolerate high point loads.
The hydropneumatic solution:

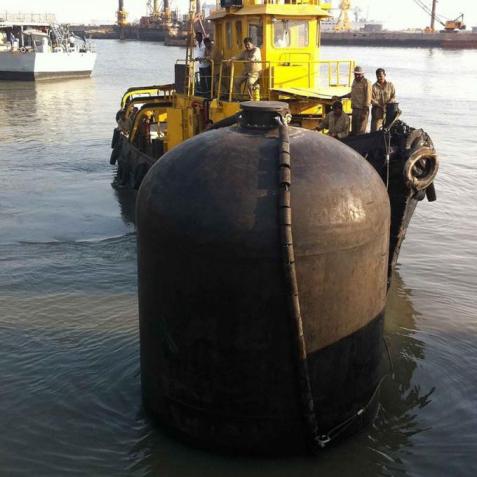

Hydropneumatic fenders are a special version of pneumatic fenders, filled with water and air and fitted with counterweights that hold them upright against submerged hulls.
Key features for submarine applications:
| Feature | Benefit |
|---|---|
| Submerged contact surface | Protects hull below waterline |
| Adjustable air-water ratio | Performance can be tuned to hull curvature |
| Ballast weights | Maintains vertical orientation |
| Counterweight system | Holds fender upright against submerged hulls |
| Low hull pressure | Preserves sensitive submarine coatings |
> *"Hydropneumatic Fenders are designed to be installed vertically, making them ideal for use with submarines or vessels whose impact point is likely to be below the waterline."*
These fenders can be performance 'tuned' by varying the initial pressure, water-to-air ratio, and ballast weights to suit the specific hull curvature of different submarine classes.
For military wharves where maintenance access is restricted or operational tempo is extremely high, foam-filled fenders offer compelling advantages.
Advantages for military use:
- Zero pressure maintenance – No inflation checks required
- Fail-safe design – Continues working even if outer skin is damaged
- Unsinkable – Closed-cell foam core prevents sinking
- No deflation risk – Critical for mission-critical berthing
Trade-offs to consider:
- Higher initial cost (2–3x pneumatic)
- Heavier weight (requires stronger handling equipment)
- Less energy absorption per unit size than pneumatic at lower reaction forces
The Unified Facilities Criteria (UFC) 4-152-01 Design: Piers and Wharves provides the minimum facility planning and design criteria for Department of Defense (DoD) piers and wharves.
What UFC 4-152-01 covers:
- Overall dimensions and clearances
- Live load requirements
- Structural design (including ASCE 61 seismic design)
- Fender systems
- Deck fittings
- Separators
- Access facilities
- Appurtenances
> *"The 2017 revision of UFC 4-152-01 represents a continued tri-service effort to bring uniformity to the criteria for the planning, design, and construction of DoD piers and wharves."*
This UFC superseded MIL-HDBK-1025/1 and represents decades of accumulated waterfront engineering knowledge dating back to the first public shipyards and original naval bases.
For military projects, third-party certification is often mandatory. The following certifications are recognized globally:
| Certification | Issuing Body | Typical Military Acceptance |
|---|---|---|
| ABS | American Bureau of Shipping | U.S. Navy, NATO allies |
| DNV | Det Norske Veritas | NATO, European naval forces |
| LR | Lloyd‘s Register | Commonwealth naval forces |
| BV | Bureau Veritas | French Navy, European naval forces |
| CCS | China Classification Society | PLAN, Asian naval forces |
All certification bodies provide witness testing for military fender projects, ensuring performance validation before delivery.
A seminal research study on effective fender systems for Navy piers and wharves concluded that for berthing ships up to 20,000 tons displacement, the optimal systems are:
| Application | Recommended System |
|---|---|
| Sheltered harbors | Modified retractable system |
| Unsheltered harbors | Standard greenheart pile with rubber bearing block at deck level |
| Dock corners | Raykin (rubber-in-shear) system |
| Large vessels | Resilient floating fenders |
| Exposed harbors | HYNEU or HYFOAM (two rubber bags, inner with air/foam, outer with water) |
This research, while dating to the 1960s, established fundamental principles that continue to influence military fender design today.
A complete custom rubber fender solution for military special wharves must be integrated with appropriate mooring bollards.
Military mooring bollards must meet rigorous standards for:
- Pull-out capacity – Typically 50–200+ tons
- Corrosion resistance – Marine-grade coatings or stainless steel
- Impact resistance – Must withstand sudden loads from naval vessels
- Low profile options – Some installations require retractable or low-profile designs
Common bollard types for military use:
| Bollard Type | Capacity Range | Best Application |
|---|---|---|
| T-Head (Tee) Bollard | 20–100+ tons | Wire rope mooring; suitable for steeper rope angles (+75° to -15°) |
| Double Bitt Bollard | 50–150 tons | Standard naval mooring operations |
| Pillar Bollard | 30–80 tons | Submarine wharves, restricted deck space |
| Quick Release Hook | 50–200 tons | Emergency release requirements |
> *"T-Head mooring bollards, also known as Tee bollards, are specially designed for carrying wire ropes, with a 'T' shaped top that is a simple and efficient shape for securing marine vessels."*
Military vessels, particularly those with composite or sensitive coatings, require low and uniform surface pressure from fendering systems.
Pneumatic fenders provide a distinct advantage here:
> *"The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact. The surface pressure of the Yokohama Fender is equal to the internal air pressure."*
This uniform pressure distribution is critical for:
- Preserving anti-fouling coatings
- Protecting sonar dome integrity
- Preventing localized hull damage
Military vessels often berth without tug assistance, resulting in angled approaches.
> *"Energy absorption does not decrease at inclined compression up to 15 degrees."*
This characteristic is particularly valuable for military wharves where:
- Tug support may be unavailable
- Winds and currents require angled approaches
- Rapid berthing is mission-critical
Military operations do not stop for weather. Fenders must perform in adverse conditions.
> *"The reaction force and deflection do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, fenders safely protect ships and mooring facilities even under rough weather."*
We asked our OEM clients and defense contractors about their experience with custom fender solutions for military wharves:
> *"Standard commercial fenders simply do not work for our submarine berths. The contact point is below the waterline, and conventional fenders either float away or miss the hull entirely. The hydropneumatic design with counterweights solved a problem we had struggled with for years."*
> — *Naval Facilities Engineer, Asia-Pacific Region*
> *"We required fenders that could handle both our frigate fleet and occasional aircraft carrier visits. The pneumatic fenders we installed—custom-sized to our berthing energy calculations—have performed flawlessly for six years with minimal maintenance."*
> — *Port Operations Director, NATO Member Nation*
> *"The ability to have BV and ABS witness testing before shipment gave us confidence that the fenders would perform as specified. We cannot afford 'field adjustments' during a critical deployment window."*
> — *Defense Contractor Procurement Manager, Middle East*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we specialize in custom rubber fender solutions for military special wharves with comprehensive OEM capabilities.
Our military-grade offerings include:
| Capability | Description |
|---|---|
| Custom engineering | Fenders designed to vessel-specific hull geometries and berthing energy calculations |
| Multiple fender types | Pneumatic, foam-filled, hydropneumatic, W-type, roller, and tugboat fenders |
| Mooring bollards | T-head, double bitt, pillar, and quick-release hooks up to 200+ ton capacity |
| Third-party certification | ABS, BV, DNV, LR, CCS witness testing available |
| Documentation | Full traceability, test reports, and certification packages |
| Global delivery | Serving defense contractors and naval facilities in over 80 countries |
Our facility credentials:
- 300,000 m² manufacturing campus
- 20,000 tons annual rubber fender output
- ISO 9001 certified
- PIANC compliant testing protocols
- BV, SGS, LR, CCS, TUV, GL certified products
We serve defense contractors, naval facilities, government agencies, and military OEM suppliers worldwide.
A custom rubber fender solution for military special wharves requires specialized engineering, compliance with UFC 4-152-01 and other military standards, and a supplier with proven defense experience.
Whether you need pneumatic fenders for aircraft carrier berths, hydropneumatic fenders for submarine wharves, or integrated fender and bollard systems for naval facilities—Nanjing Taidun delivers.
[Contact the Nanjing Taidun Defense Engineering Team] for a confidential consultation. Share your berthing energy requirements, vessel classifications, and security protocols. We will provide a custom-engineered solution with full certification documentation.
Q1: What is a hydropneumatic fender and why is it used for submarines?
A: A hydropneumatic fender is filled with both water and air, with counterweights to hold it upright against submerged hulls. It is specifically designed for submarines and vessels whose impact point is below the waterline. Performance can be tuned by adjusting the air-water ratio .
Q2: What military design standards apply to fender systems?
A: The primary standard is UFC 4-152-01 Design: Piers and Wharves, which provides minimum facility planning and design criteria for DoD piers and wharves, including fender systems, deck fittings, and structural design .
Q3: What fender size is recommended for an aircraft carrier berth?
A: For vessels of approximately 200,000 DWT (comparable to large aircraft carriers), recommended fender size is 3.3m diameter x 6.5m length, providing approximately 1,890 kN·m energy absorption at 60% deflection .
Q4: Do military fenders require third-party certification?
A: Most military projects require certification from recognized classification societies such as ABS, BV, DNV, LR, or CCS. Third-party witness testing before shipment is strongly recommended .
Q5: What mooring bollard capacity is typical for naval facilities?
A: Naval mooring bollards typically range from 50 to 200+ tons capacity. T-head bollards are preferred for wire rope applications, while double bitt bollards are common for standard synthetic mooring lines .
