Design Work of the Steel Panels for Marine Rubber Fender: Complete Technical Guide & Best Practices

Design Work of the Steel Panels for Marine Rubber Fender: Complete Technical Guide & Best Practices

In the global marine and port engineering sector, marine rubber fenders serve as the core impact-absorbing component for berthing and mooring operations, protecting vessel hulls, quay walls, and port infrastructure from collision damage. However, the performance, durability, and safety of rubber fender systems are heavily dependent on a critical supporting component: steel panels for marine rubber fender. These steel panels act as the rigid connection interface between rubber fenders and dock or ship structures, evenly distributing impact force, providing stable mounting support, and preventing direct contact between rubber fenders and concrete or steel substrates that would otherwise cause premature wear, deformation, or catastrophic failure.

Poorly designed steel panels rank among the leading causes of rubber fender system malfunctions, shortened service life, and safety hazards in ports and marine facilities worldwide. Common design flaws include uneven force distribution, insufficient structural strength, incompatible mounting dimensions, substandard material selection, and non-compliance with international maritime safety standards—all of which trigger frequent maintenance cycles, inflated replacement costs, and costly operational downtime. For marine engineers, port construction teams, fender manufacturers, and procurement specialists, mastering the full design work of steel panels for marine rubber fender is not just a technical requirement, but a critical investment to build a high-performance, long-lasting, and cost-effective fender system that meets global industry standards.

This comprehensive technical article delivers an in-depth, step-by-step breakdown of the entire design work of steel panels for marine rubber fender, covering material selection, structural design and load calculation, dimensional matching, corrosion protection protocols, processing and manufacturing specifications, installation compatibility, and global industry compliance standards.

1. Core Functions of Steel Panels in Marine Rubber Fender Systems

Before diving into the detailed design workflow, it is critical to define the core functional requirements of steel panels for marine rubber fender, as every design parameter and technical decision revolves around fulfilling these key operational roles. Without a clear grasp of functional priorities, design work will lack direction and fail to meet the rigorous demands of real-world marine berthing operations.

• Impact Force Distribution: As the primary function, steel panels spread concentrated impact and shear forces generated during vessel berthing uniformly across the entire rubber fender surface, eliminating local stress concentration that commonly causes rubber cracking, tearing, or permanent steel panel deformation under heavy loads.

• Stable Mounting & Fixation: Provide a rigid, flat, and stable mounting base for rubber fenders, ensuring secure, long-term installation and preventing displacement, rotation, or full detachment of fenders under repeated heavy impact and constant marine vibration.

• Structural Support & Reinforcement: Reinforce the overall rigidity of the fender assembly, offsetting the natural flexibility of rubber materials and significantly boosting the system’s overall impact resistance and load-bearing capacity for heavy-duty berthing scenarios.

• Corrosion & Wear Protection: Create a physical barrier that isolates rubber fenders from corrosive concrete substrates, saltwater, salt spray, and abrasive marine debris, reducing rubber wear and extending the service life of both the fender and supporting port infrastructure.

• Compatibility & Versatility: Engineered to adapt seamlessly to all common types of marine rubber fenders, including cone, cell, arch, D-type, cylindrical, and drum fenders, as well as diverse installation settings such as quay walls, ship sides, floating docks, and offshore platforms.

2. Key Material Selection Criteria for Marine Rubber Fender Steel Panels

Material selection forms the foundation of effective steel panel design, directly dictating structural strength, corrosion resistance, and operational lifespan in harsh, unforgiving marine environments. Marine settings are defined by high salt spray, persistent humidity, extreme temperature fluctuations, and constant mechanical stress, meaning only specialized marine-grade steel materials meet the strict design requirements for long-term performance.

2.1 Recommended Steel Grades for Different Application Scenarios

Steel grade selection is based on four core factors: berthing load capacity, vessel tonnage, environmental corrosion severity, and project budget, with full adherence to international maritime and steel structure engineering standards.

• Carbon Steel (Standard Grade): Q235B, A36, SS400
Ideal for small to medium-sized ports, inland waterways, private marinas, and low-load berthing scenarios supporting vessels up to 5000 tons. This grade offers exceptional weldability, cost-effectiveness, and ease of processing, but requires a complete, high-quality anti-corrosion treatment to withstand saltwater and salt spray corrosion in coastal environments.

• High-Strength Low-Alloy Steel (HSLA): Q355B, S355JR, A572 Grade 50
Designed for large commercial ports, container terminals, bulk cargo terminals, and high-load berthing operations for vessels between 5000 and 10000 tons. It delivers significantly higher yield strength, tensile strength, and impact toughness than standard carbon steel, with superior fatigue resistance to withstand repeated, frequent impact loads common in busy commercial ports.

• Marine-Grade Weathering Steel: Corten A, Corten B
Perfect for high-corrosion marine environments, offshore terminals, and projects requiring extended service life with minimal maintenance. This material naturally forms a dense, protective patina layer that slows corrosion drastically, reducing long-term maintenance costs and making it ideal for infrastructure with strict durability requirements.

• Stainless Steel (Premium Grade): 316L Stainless Steel
Reserved for ultra-high-corrosion marine environments, offshore oil and gas platforms, and chemical ports. It offers complete resistance to saltwater, acidic, and alkaline corrosives, with unmatched long-term durability, and is used for high-end, low-maintenance projects where zero corrosion-related downtime is non-negotiable.

2.2 Basic Mechanical Property Requirements

All steel materials used for marine rubber fender panels must meet the following minimum mechanical property standards to ensure structural stability and safety under extreme berthing loads and harsh environmental conditions:

• Yield Strength (ReL): ≥ 235MPa for carbon steel, ≥ 355MPa for high-strength low-alloy steel

• Tensile Strength (Rm): 375-500MPa for carbon steel, 490-650MPa for high-strength low-alloy steel

• Elongation (A): ≥ 21% to ensure material toughness and resistance to brittle fracture

• Impact Toughness (AKV): ≥ 34J at -20℃, a mandatory requirement for panels deployed in cold climate and arctic marine environments

3. Structural Design & Load Calculation of Steel Panels

Structural design stands as the core of the entire design workflow, requiring precise load calculation, rational selection of structural form, and meticulous dimensional design to guarantee the steel panel can withstand all design berthing loads without deformation, cracking, or failure over its service life.

3.1 Determination of Design Loads

Steel panel design must be rooted in actual, site-specific berthing loads, calculated strictly in accordance with PIANC (World Association for Waterborne Transport Infrastructure) guidelines and national maritime engineering codes. The four key design loads to consider are:

• Berthing Impact Load: The horizontal impact force generated by vessel berthing velocity, deadweight tonnage, and displacement; this is the core load used for structural strength and thickness design.

• Mooring Horizontal Load: Lateral forces exerted by wind, waves, and tidal currents during vessel mooring, a critical factor for long-term structural stability.

• Vertical Load: Combined self-weight of the fender system and additional loads imposed during installation, routine maintenance, and emergency inspections.

• Fatigue Load: Cyclic repeated loads from constant vessel berthing operations, requiring formal fatigue strength checking to ensure long-term durability in high-traffic port settings.

3.2 Common Structural Forms of Steel Panels

Steel panel structural design is fully matched to the type and size of the supporting marine rubber fender, with two mainstream, industry-proven designs used globally:

3.2.1 Flat Solid Steel Panel

A single-piece flat steel plate with uniform thickness, optimized for small to medium-sized rubber fenders (D-type, arch, cylindrical fenders) and low-load berthing scenarios. It features a simplified structure, straightforward processing and installation, and a budget-friendly cost point. Standard thickness ranges from 10-20mm for typical applications, with optional rear reinforcing ribs available to enhance rigidity for moderate load increases.

3.2.2 Profiled Steel Panel with Reinforcing Ribs

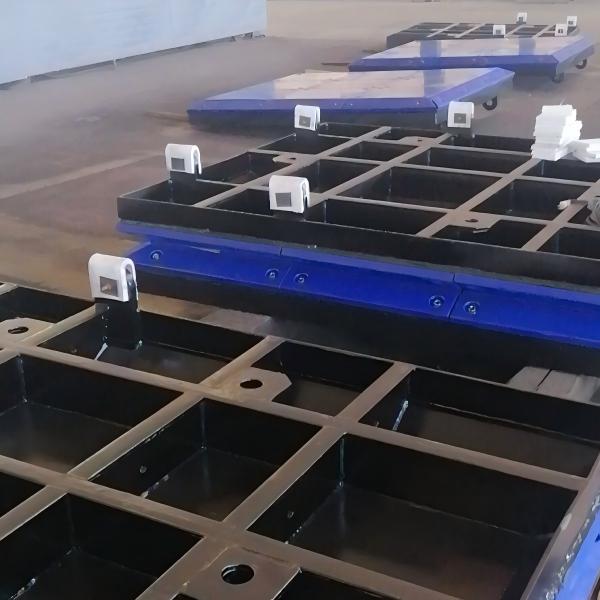

Constructed from a front face plate and welded vertical and horizontal reinforcing ribs, this design is intended for large and extra-large rubber fenders (cone, cell, drum fenders) and high-load commercial terminals. Reinforcing ribs (I-beam, channel steel, square steel) drastically improve panel rigidity and load-bearing capacity, allowing for thinner face plates and reduced overall weight while maintaining maximum structural strength—this is the most widely adopted design for large-scale international port projects.

3.3 Dimensional Design Matching

Dimensional accuracy is non-negotiable for installation compatibility, uniform force distribution, and long-term performance, with strict design specifications for panel size, thickness, and mounting hole positioning:

• Panel Size: Panel length and width should exceed the rubber fender’s contact surface by 50-100mm to ensure full coverage and even force distribution, with a maximum overhang limit of 150mm to avoid unnecessary material waste and installation interference.

• Thickness Design: Calculated based on maximum design berthing load and selected steel material strength, ranging from 10mm for small fenders to 50mm for large, high-load fenders. Ribbed profiled panels typically use 12-20mm face plates paired with 10-16mm thick reinforcing ribs for balanced strength and weight.

• Mounting Hole Design:
Hole diameter: 1.2-1.5 times the diameter of matching marine-grade fasteners (316 stainless steel or hot-dip galvanized bolts)

• Hole position: Symmetrically distributed, perfectly aligned with rubber fender mounting holes and quay wall embedded parts, with a tight tolerance of ±1mm to ensure seamless, gap-free installation

• Edge distance: Minimum distance from hole center to panel edge of 2 times the hole diameter, preventing edge cracking and structural failure under heavy load

4. Corrosion Protection Design (Critical for Marine Environments)

Marine salt spray, persistent moisture, and seawater corrosion pose the greatest threat to steel panel longevity, making corrosion protection design the single most important factor determining service life. Inadequate anti-corrosion treatment will lead to rapid rusting, thickness reduction, and structural failure within just 2-3 years in coastal environments. All corrosion protection designs must comply withISO 12944 (corrosion protection class for steel structures) and international marine engineering standards.

4.1 Standard Corrosion Protection Systems

1. Hot-Dip Galvanizing (Most Common & Cost-Effective)
Recommended for carbon steel and HSLA steel panels. The process involves sandblasting the panel to Sa 2.5 grade surface roughness, followed by hot-dip galvanizing with a minimum zinc layer thickness of 85μm. This system delivers exceptional saltwater corrosion resistance, with a service life of 15-20 years in standard coastal environments, fully meeting ISO 1461 standards.

2. Organic Coating System
A three-layer system consisting of epoxy zinc-rich primer (80-100μm) + epoxy intermediate paint (100-120μm) + polyurethane topcoat (60-80μm), with a total minimum coating thickness of 240μm. Ideal for oversized panels that cannot be hot-dip galvanized due to size limitations, offering excellent weather resistance and customizable color options (yellow/orange for high visibility in low-light ports).

3. Weathering Steel + Light Passivation Coating
For Corten steel panels, only a thin protective passivation coating is required. The material naturally develops a self-protective rust patina over time, reducing corrosion rate and minimizing long-term maintenance requirements and costs.

4.2 Special Corrosion Protection Requirements

• All welded joints must be polished smooth and coated with zinc-rich repair paint to fix galvanized layer damage caused during the welding process

• All cut edges and drilled holes must be fully sealed with anti-corrosion paint to block rust ingress and prevent localized corrosion

• For ultra-high-corrosion offshore or tropical coastal areas, add an extra layer of anti-corrosion tape or UHMW-PE protective pad on the panel contact surface for enhanced protection

5. Processing & Manufacturing Design Specifications

To uphold design accuracy and structural quality, all processing and manufacturing steps must follow strict technical specifications, with design documents clearly outlining every manufacturing requirement to avoid deviations and defects.

• Cutting Process: CNC flame cutting or plasma cutting for precision and consistency, with a cutting tolerance of ±2mm; no burrs, cracks, or irregular edges are permitted

• Welding Process: Automatic submerged arc welding or manual arc welding with low-hydrogen electrodes; welds must be full, uniform, and free of pores, cracks, incomplete fusion, or undercut. Large high-load panels require ultrasonic testing (UT) to verify weld quality and structural integrity

• Surface Treatment: Full sandblasting prior to anti-corrosion treatment to remove all rust, oil, oxide scale, and contaminants, achieving a minimum Sa 2.5 grade surface roughness for optimal coating adhesion

• Flatness Control: Overall flatness tolerance of ≤ 3mm/m; no warping, bending, or deformation allowed, and any deformed panels must be fully straightened before anti-corrosion treatment and delivery

6. Compliance & Certification Requirements for Steel Panel Design

For international port and marine projects, steel panels for marine rubber fender must meet globally recognized maritime safety and quality certifications to ensure regulatory compliance, market access, and project approval. All design work must proactively incorporate these certification requirements to avoid delays and compliance failures.

• PIANC Guidelines for Marine Fender Systems (global industry benchmark)

• ISO 9001 Quality Management System certification

• Maritime Classification Certifications: ABS, BV, CCS, DNV, LR (mandatory for large commercial and international port projects)

• ISO 12944 Corrosion Protection Standards for steel structures

• National Steel Structure Engineering Codes: GB 50017 (China), AWS D1.1 (United States)

7. Common Design Mistakes & Avoidance Strategies

Countless marine projects face fender system failures and costly downtime due to easily avoidable steel panel design flaws. Below are the most prevalent mistakes and targeted, actionable solutions to eliminate them:

• Mistake 1: Insufficient structural strength → Solution: Conduct precise load calculations per PIANC standards, and add reinforcing ribs for all high-load and heavy-duty berthing scenarios

• Mistake 2: Incompatible mounting dimensions → Solution: Precisely measure rubber fender and quay wall embedded part dimensions, and use CNC processing for mounting holes to guarantee perfect alignment

• Mistake 3: Inadequate corrosion protection → Solution: Select a corrosion protection system matched to the specific marine corrosion grade, and strictly enforce coating thickness and galvanizing quality controls during manufacturing

• Mistake 4: Ignoring fatigue resistance → Solution: Use high-strength low-alloy steel and smooth structural transitions to reduce stress concentration, mandatory for high-frequency berthing ports and busy commercial terminals
