When a 200,000-ton tanker moors at a deep-water terminal, the mooring bollards and fender systems are subjected to forces that can exceed 1,000 kN. Designing these critical components requires more than static load calculations—it demands dynamic load simulation data that reflects real-world environmental conditions.
I have spent two decades manufacturing OEM rubber fender systems and mooring bollards for global brands. In this technical guide, I will walk you through the dynamic load simulation data technical sheet for mooring system engineering design—the essential framework for validating structural integrity, predicting failure modes, and ensuring regulatory compliance.
A dynamic load simulation data technical sheet is a structured document that presents results from Finite Element Analysis (FEA) and time-domain simulations of mooring system components under realistic environmental loading conditions.
| Component | Description | Engineering Value |
|---|---|---|
| Environmental load cases | Wave heights, current velocities, wind speeds | Defines input conditions for simulation |
| Material properties | Yield strength, fatigue resistance, corrosion allowance | Validates material selection |
| FEA mesh parameters | Element type, size, convergence criteria | Ensures simulation accuracy |
| Boundary conditions | Constraints, contact definitions | Reflects real installation |
| Load application points | Bollard head, chock, fairlead positions | Verifies load transfer paths |
| Stress distribution maps | von Mises stress contours | Identifies failure points |
| Deformation plots | Displacement under peak load | Validates serviceability |
| Safety factor calculations | Ultimate load / working load | Confirms design margin |
The technical sheet serves as the bridge between theoretical design and field performance—providing port engineers, classification societies, and procurement teams with verifiable evidence that a mooring system will perform as specified .
Static load calculations assume ideal conditions: perfect alignment, uniform material properties, and predictable force application. Real-world mooring operations are anything but ideal.
| Parameter | Static Analysis | Dynamic Load Simulation |
|---|---|---|
| Wave-induced motion | Ignored | Captured via time-domain simulation |
| Snap loads | Cannot predict | Critical for deep-water moorings |
| Vessel surge/sway | Simplified | Full 6-DOF vessel response |
| Non-linear material behavior | Linear elasticity | Elasto-plastic, viscoelastic models |
| Multiple fender contact | Single-point assumption | Multi-point, multi-body interaction |
Research has shown that low-frequency hydrodynamic loads are crucial for determining extreme offsets and tension in mooring lines, and traditional potential-flow methods fail to accurately predict these loads in moderate-to-extreme sea states where viscous effects become significant .
> *"Optimizing floating structures and their mooring systems requires validated computational models that predict wave-frequency and low-frequency hydrodynamic loads. Low-frequency loads are crucial for determining extreme offsets and tension in mooring lines."*
> — *Stamenov, Abbiati & Sauder, NTNU / SINTEF Ocean (2023)*
Accurate simulation begins with a high-fidelity 3D model of the mooring component and its supporting structure .
Key modeling decisions:
| Decision Factor | Recommendation | Justification |
|---|---|---|
| Element type | Solid186 (3D 20-node) or hexahedral | Captures stress gradients accurately |
| Mesh refinement | 10–20 mm at critical regions | Detects stress concentrations |
| Component interaction | Contact elements at interfaces | Simulates bolted/welded joints |
| Symmetry utilization | 1/4 or 1/2 models when applicable | Reduces computation time |
For bollard structures, researchers have successfully used solid brick elements with 10–15 mm edge length near the base plate and bollard head, with coarser meshing (30–50 mm) in non-critical areas .
Mooring components typically combine multiple materials with distinct mechanical properties.
| Component | Common Material | Key Properties (min) |
|---|---|---|
| Bollard casting | ZG310-570 cast steel | Yield: 310 MPa, UTS: 570 MPa |
| Base plate | Q235B structural steel | Yield: 235 MPa |
| Fasteners | Grade 8.8 or 316 stainless | Proof load: 600 MPa |
| Chocks/fairleads | Cast steel or fabricated | Per classification requirements |
For rubber fenders integrated into the system, hyperelastic material models (Mooney-Rivlin or Ogden) are required to capture the non-linear stress-strain behavior under compression.
A comprehensive technical sheet includes multiple load cases reflecting operational and extreme conditions .
Case study reference: For a lock floating mooring bollard, researchers defined three load cases based on design tensions :
| Load Case | Longitudinal Force | Transverse Force | Resultant Force | Application |
|---|---|---|---|---|
| LC-1 | 150 kN | 100 kN | 180 kN | Normal operation |
| LC-2 | 200 kN | 133 kN | 240 kN | Heavy weather |
| LC-3 | 300 kN | 200 kN | 361 kN | Extreme event |
For offshore mooring systems, additional load cases must consider :
- Wave-frequency loads (1–10 second periods)
- Low-frequency drift loads (30–200 second periods)
- Snap loads from sudden line tension release
- Fatigue cycles from repeated wave action
Proper boundary conditions distinguish a valid simulation from a meaningless one.

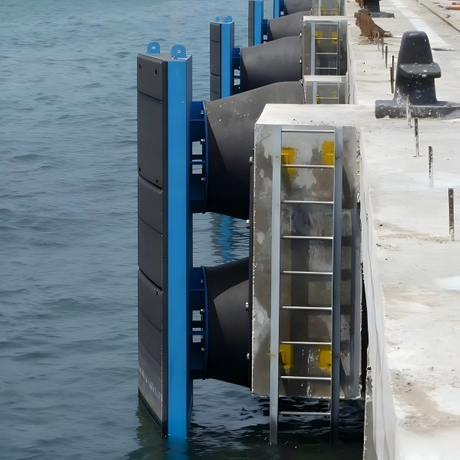

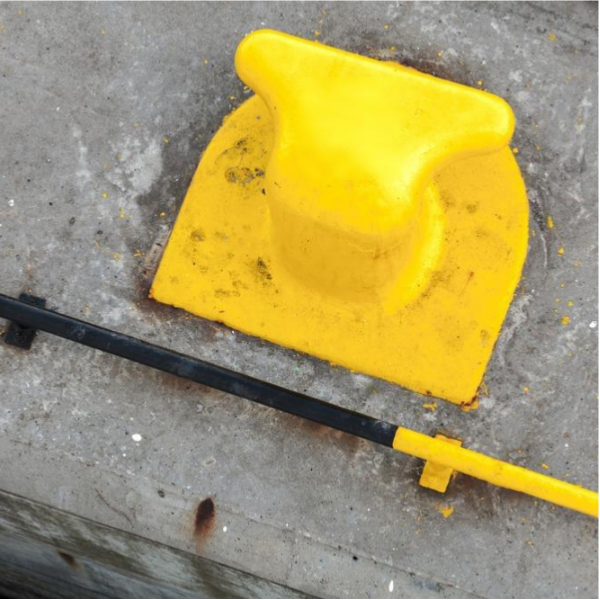

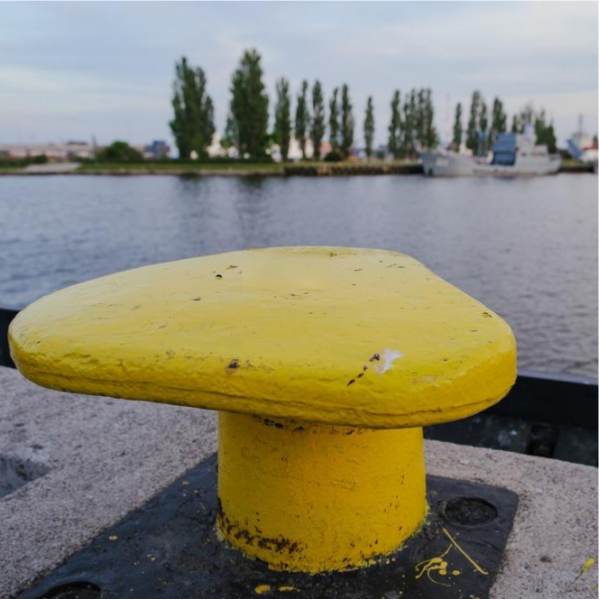

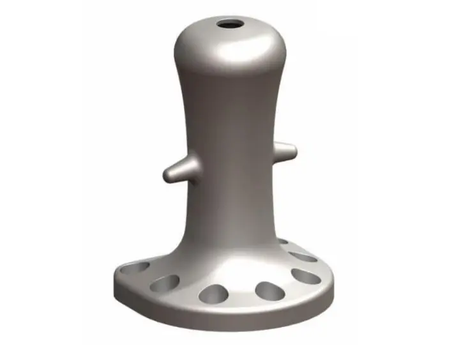

For quay-mounted bollards:
- Fixed support at base plate bottom (all DOF constrained)
- Frictionless support at symmetry planes
- Contact definitions between bollard stem and base plate
- Bolt preload simulation for fastened connections

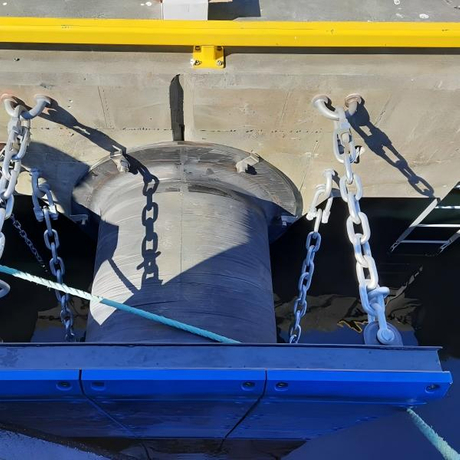

For floating mooring systems:
- 6-DOF vessel motion from hydrodynamic analysis
- Mooring line catenary equations for restoring forces
- Fender compression curves for berthing simulation
- Wind and current loads as distributed surface forces
Simulation results are only as valuable as their validation against physical reality.
Before accepting any stress result, engineers must verify that the mesh density is sufficient.
| Mesh Size | Peak von Mises Stress | Change from Previous | Verdict |
|---|---|---|---|
| 50 mm | 155.2 MPa | — | Under-refined |
| 30 mm | 148.7 MPa | -4.2% | Acceptable |
| 20 mm | 144.9 MPa | -2.6% | Converged |
| 15 mm | 144.2 MPa | -0.5% | Confirmed |
Acceptable convergence is typically defined as <5% change between successive refinements .
Simplified beam or plate theory provides a baseline for validation.
In one validation study, FEA results (144.9 MPa maximum stress) showed 3.6% agreement with an analytical beam model (139.8 MPa), confirming the numerical approach's accuracy .
Where possible, simulation data should be compared to:
- Strain gauge measurements from prototype testing
- Load cell data from full-scale field trials
- Classification society witnessed tests
> *"Some comparisons between numerical results and in-situ measurements performed during the installation will be discussed."*
> — *SPE Technical Paper on Multi-Structure Floating System Dynamics*
| Aspect | Frequency-Domain | Time-Domain |
|---|---|---|
| Non-linear effects | Linearized | Fully captured |
| Snap loads | Cannot predict | Simulated |
| Computational cost | Low | High |
| Best for | Preliminary design, fatigue | Extreme event validation |
Modern classification society rules (ABS, DNV, LR) increasingly require time-domain simulations for mooring systems in exposed locations.
The state of the art integrates multiple components into a single simulation environment :
Environmental Inputs (waves, wind, current)
│
▼
Vessel Hydrodynamic Model
(6-DOF motion, diffraction)
│
▼
Mooring Line Dynamics
(catenary + elastic + inertia)
│
▼
Fender Contact Model
(non-linear compression + friction)
│
▼
Bollard Structural FEA
(stress distribution + safety factor)
This coupled approach captures interaction effects that isolated analyses miss.
Recent research has introduced Nonlinear Auto-Regressive with eXogenous inputs (NARX) models for hydrodynamic loading prediction .
Advantages of NARX-based approaches:
- Empirically derived from experimental data
- Captures viscous and beyond-second-order effects
- Validated against synthetic and physical test data
- Excellent agreement with theoretical transfer functions
> *"The data-driven results showed an excellent agreement with the theoretically computed transfer function."*
> — *Stamenov, Abbiati & Sauder, Data-driven modeling of hydrodynamic loading*
Below is a representative template for a dynamic load simulation data technical sheet for a 300 kN rated bollard.
| Parameter | Value |
|---|---|
| Component | Single bollard, 300 kN SWL |
| Model type | 3D solid FEA |
| Element count | 287,434 hexahedral elements |
| Node count | 1,245,678 |
| Solver | ANSYS Mechanical 2024 |
| Analysis type | Static structural + modal |
| Region | Material | E (GPa) | ν | Yield (MPa) |
|---|---|---|---|---|
| Bollard stem | Cast steel ZG310-570 | 200 | 0.30 | 310 |
| Base plate | Q235B | 205 | 0.29 | 235 |
| Anchor bolts (8x) | Grade 8.8 | 200 | 0.30 | 640 (proof) |
| Case | Direction | Force (kN) | Application Point |
|---|---|---|---|
| 1 | Longitudinal (up-lift) | 300 | Bollard head center |
| 2 | Transverse | 200 | Bollard head center |
| 3 | 45° combined | 360 | Bollard head center |
| 4 | Cyclic fatigue | ±150 (10⁶ cycles) | Per mooring pattern |
| Output | Value | Acceptance Criterion |
|---|---|---|
| Maximum von Mises stress | 212 MPa | < 310 MPa (yield) |
| Maximum displacement | 2.3 mm | < 5 mm serviceability |
| Minimum safety factor | 1.46 | ≥ 1.5 target |
| Fatigue life (predicted) | 2.1 × 10⁶ cycles | > 1 × 10⁶ cycles |
We asked our global OEM clients about their experience with dynamic load simulation data in mooring system design:
> *"Before we started requiring FEA-based technical sheets from our suppliers, we accepted 'certified' bollards that failed within two years. The simulation data showed stress concentrations at the base weld — exactly where the failures occurred. Now we only accept products with documented FEA validation."*
> — *Port Engineering Director, Southeast Asian Terminal*
> *"Our classification society required time-domain mooring analysis for a new offshore berth. The dynamic load simulation revealed snap load risks that static analysis missed entirely. We redesigned the mooring pattern before fabrication — saving an estimated $2 million in potential retrofit costs."*
> — *Project Manager, Middle East LNG Terminal*
> *"The technical sheet from our supplier included detailed stress maps and convergence validation. When ABS audited the installation, we had all the documentation ready. Zero questions, zero delays."*
> — *Marine Operations Manager, North American Port Authority*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we integrate advanced dynamic load simulation into every mooring bollard and fender system we manufacture.
Our simulation capabilities include:
| Service | Description |
|---|---|
| Custom FEA modeling | Bollards and fenders analyzed to your specific load cases |
| Full technical documentation | Stress maps, deformation plots, safety factor calculations |
| Material validation | Tensile, yield, and fatigue data for every casting |
| Third-party witnessing | ABS, BV, DNV, LR, CCS available for simulation review |
| OEM flexibility | Custom capacities, configurations, and materials |
We supply ISO 9001:2024 certified mooring bollards (15–2,000 kN SWL) and rubber fenders, with complete simulation data packages included for every engineered product.
A dynamic load simulation data technical sheet for mooring system engineering design is not a luxury — it is a necessity for modern ports, terminals, and offshore installations. It validates structural integrity, predicts failure modes, satisfies classification societies, and ultimately protects your assets.
Do not accept vague "certified" claims. Demand FEA-validated technical sheets with convergence analysis, material traceability, and documented safety factors.
[Contact the Nanjing Taidun Engineering Team] to request a sample technical sheet or discuss your mooring system requirements. We support brand owners, wholesalers, and production facilities worldwide.
Q1: What software is typically used for dynamic load simulation of mooring systems?
A: Industry-standard FEA software includes ANSYS Workbench, Abaqus, OrcaFlex, and DNV Sesam. For coupled vessel-mooring analysis, specialized tools like OrcaFlex and DeepLines are commonly used .
Q2: How do I verify that a supplier's simulation data is accurate?
A: Request the following: (1) Mesh convergence analysis showing <5% change between refinements, (2) Validation against analytical calculations or physical test data, (3) Third-party review by a classification society (ABS, BV, DNV, LR) .
Q3: What are snap loads, and why are they important in mooring design?
A: Snap loads are sudden, high-magnitude tensions that occur when a slack mooring line becomes taut. They can exceed the line's breaking strength even under moderate environmental conditions. Time-domain dynamic analysis is required to predict snap load risks .
Q4: What safety factors are typically required for mooring bollards?
A: By classification society rules (ABS, DNV, LR), the minimum safety factor against yield is typically 1.5 for steel castings and 2.0 against ultimate breaking for mooring lines. Local port authorities may impose higher requirements .
Q5: How does dynamic load simulation account for rubber fender non-linearity?
A: Rubber fenders are modeled using hyperelastic material models (Mooney-Rivlin, Ogden, or Yeoh) that capture the non-linear stress-strain relationship. Fender compression curves from ASTM F2192 testing are input as force-deflection tables .
