Introduction: Why Choosing the Right Marine Fender Frontal Steel Panel Matters

In modern port infrastructure, marine fender systems play a critical role in protecting both vessels and berthing structures from impact damage. While much attention is given to the rubber element of the fender, the marine fender frontal steel panel is equally important. Acting as the first line of defense, this steel plate absorbs and redistributes berthing energy, shields the rubber from abrasion, and ensures structural integrity over years of operation.

Choosing the wrong panel—whether due to incorrect material, poor sizing, or incompatible design—can lead to premature failure, costly downtime, and even safety hazards. In this comprehensive guide, we break down every factor you need to consider to make the best purchasing decision for your port.

1. Understand the Role of the Frontal Steel Panel in Marine Fenders

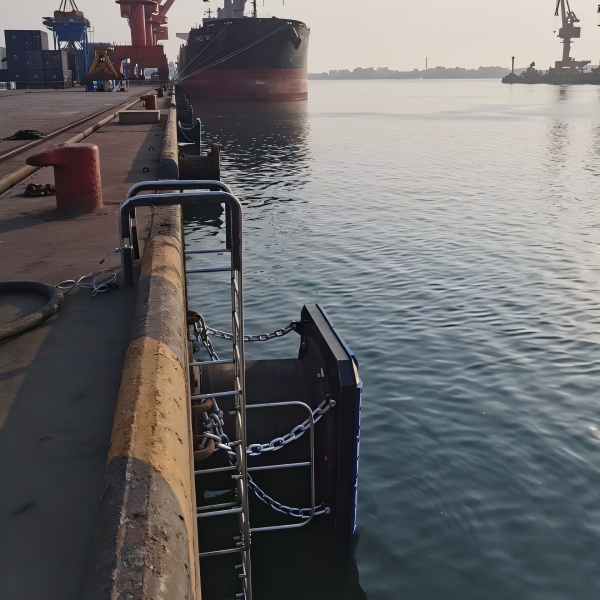

The frontal steel panel is mounted directly onto the contact face of a rubber or composite marine fender. Its main functions include:

①Force Distribution: Spreads the impact load across the entire fender surface, reducing peak pressure on any single point.

②Wear Protection: Acts as a shield against chafing from vessel hulls, ropes, and debris.

③Structural Support: Prevents deformation of softer fender materials under heavy loads.

④Attachment Point: Serves as a base for chains, lashing rods, or bolt connections to the berthing structure.

Without a properly selected steel panel, even the highest-quality rubber fender will fail prematurely.

2. Material Grade: Strength Meets Corrosion Resistance

The steel grade determines how well the panel stands up to mechanical stress and corrosive marine environments. Common choices include:

①Q235 / SS400: Economical option for light-duty applications; suitable for smaller vessels and inland ports.

②Q345B / A572 Gr.50: Medium to heavy-duty use; offers higher tensile strength and better impact resistance.

③S355J2+N / ASTM A588: Premium-grade steel with enhanced toughness and corrosion resistance; ideal for major seaports and offshore installations.

④Pro Tip: Always check the chemical composition and yield strength certificates. For ports operating in high-humidity or tropical saltwater environments, opt for steel with a higher corrosion resistance rating.

3. Thickness & Dimensions: Matching Energy Absorption Requirements

The size of the marine fender frontal steel panel must be calculated based on:

Vessel Type & Size: Larger vessels generate more berthing energy.

Approach Speed & Angle: Faster or oblique approaches increase impact force.

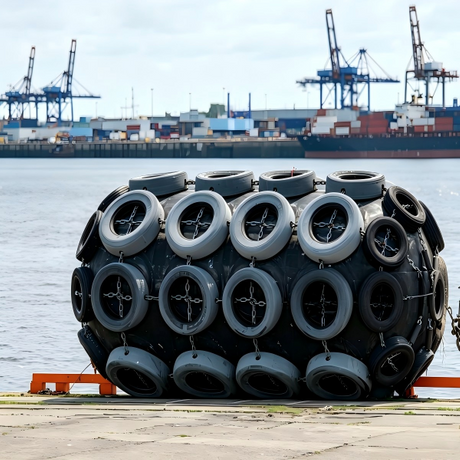

Fender Type & Energy Rating: Pneumatic, foam-filled, and solid rubber fenders have different load distribution characteristics.

General Rule of Thumb:

①Small craft & yachts: 6–10 mm thick panel

②Cargo & container ships: 12–20 mm thick panel

③Large tankers & bulk carriers: 20–30 mm thick panel

Panels should extend slightly beyond the rubber edges to avoid edge shearing. Custom cutting ensures a perfect fit, reducing stress concentration points.

4. Surface Treatment: Preventing Rust and Extending Lifespan

Saltwater, UV radiation, and humidity accelerate corrosion. Surface treatment is non-negotiable for long-term performance:

Hot-Dip Galvanizing: Zinc coating provides sacrificial protection; ideal for heavy-duty applications.

Epoxy Powder Coating: Adds chemical resistance and aesthetic appeal; available in multiple colors.

Marine-Grade Paint Systems: Multi-layer polyurethane paints offer excellent adhesion and flexibility.

Inspection Tip:Check coating thickness with a magnetic gauge. Minimum recommended DFT (Dry Film Thickness) is 80–120 microns for galvanizing and 150+ microns for epoxy systems.



5. Compatibility with Fender Types and Mounting Systems

Not all steel panels fit all fender models. Compatibility considerations include:

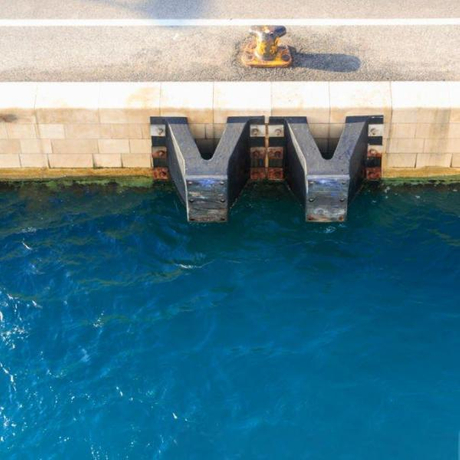

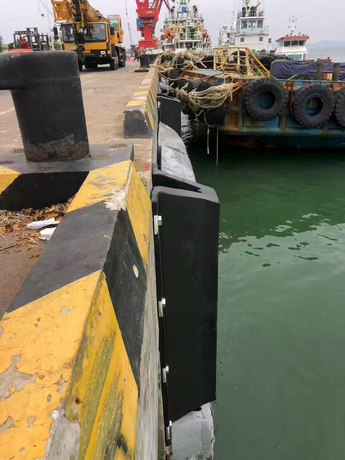

Fender Shape: Cylindrical, square, arch, or cell fenders each require different panel designs.

Mounting Method: Bolt-on, chain-supported, or pin-connected systems require specific hole patterns.

Regulatory Standards: Panels should meet PIANC WG33, OCIMF, and ISO 17357 guidelines for port fendering.

Work with manufacturers who can provide CAD drawings and test reports to verify fitment before shipping.

6. Load Capacity & Safety Margins

Your port’s design berthing energy must be calculated using vessel mass, velocity, and angle data. The frontal steel panel should have a safety margin of at least 15–25% above the calculated maximum load. This prevents plastic deformation or catastrophic failure during extreme events.

Engineering Support: Reputable suppliers offer free berthing energy analysis to help you choose the correct panel thickness and reinforcement configuration.

7. Supplier Reliability: Certifications, Lead Time, and After-Sales Service

When sourcing marine fender frontal steel panels, prioritize suppliers who:

①Hold ISO 9001 and ISO 14001 certifications.

②Provide material test certificates (MTC) and third-party inspection reports.

③Offer short lead times and global logistics support.

④Have a track record of supplying ports, shipyards, and offshore projects.

⑤After-sales services like installation supervision, spare part availability, and maintenance advice add long-term value.



Conclusion: Making the Smart Investment for Your Port

Choosing the right marine fender frontal steel panel is not just a procurement task—it’s a strategic decision impacting safety, operational efficiency, and cost savings. By focusing on material grade, dimensions, surface treatment, compatibility, and supplier reliability, you ensure your port remains protected for decades.
