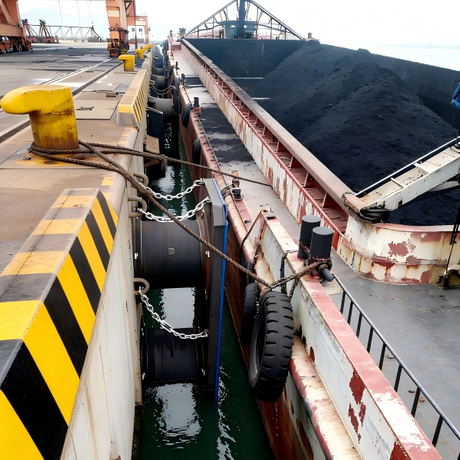

Rubber fenders are critical marine protective components installed on docks, wharves, ship hulls, and offshore structures, designed to absorb kinetic energy from berthing ships and reduce reaction force to protect both vessels and shore facilities from collision damage. Reaction force and energy absorption performance are the two core technical indicators that determine the safety, durability, and suitability of rubber fenders for specific marine applications. For manufacturers, engineering teams, port operators, and procurement specialists, conducting a standardized, accurate rubber fender reaction force and energy absorption performance test is essential to verify product compliance, ensure operational safety, and meet international marine engineering standards.

This complete guide follows globally recognized standards including ASTM F2192-05(2022), ISO 17357-1:2014, and PIANC guidelines, covering every step of the test process, equipment requirements, sample preparation, data collection, result calculation, and compliance verification. By following this protocol, you can obtain reliable, repeatable test data that supports product certification, project bidding, and quality control, while boosting trust with global buyers and driving targeted inquiries.

Key Definitions: Reaction Force & Energy Absorption for Rubber Fenders

Before starting the test, it’s vital to clarify the two core performance metrics to ensure accurate data interpretation and reporting:

• Reaction Force (RF): The counter force exerted by a rubber fender when compressed under external berthing pressure, measured in kilonewtons (kN). Excessively high reaction force can damage ship hulls and dock structures, so this value must stay within the design and standard-specified range.

• Energy Absorption (EA): The total kinetic energy absorbed by the rubber fender during compression deformation, measured in kilonewton-meters (kN·m). This metric reflects the fender’s shock-absorbing capacity; higher qualified energy absorption means better protection performance for berthing operations.

These two indicators are closely linked to compression deflection, and a complete performance curve (deflection vs. reaction force, deflection vs. energy absorption) is required to fully evaluate fender performance.

Pre-Test Preparation: Equipment, Samples & Environmental Control

Standardized pre-test preparation is the foundation of accurate test results. Non-compliant equipment or improper sample handling will lead to distorted data and invalid test reports.

1. Required Test Equipment

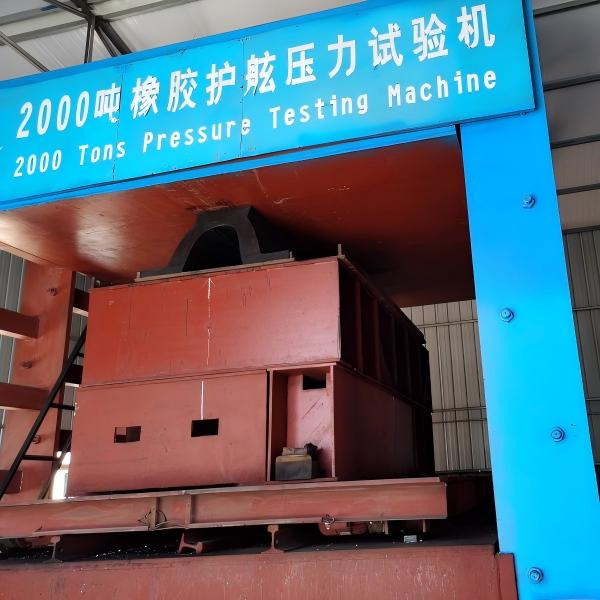

• Hydraulic Compression Testing Machine: With sufficient load capacity matching the fender’s rated performance, equipped with a flat, rigid compression plate to ensure vertical, uniform compression (no angular deviation for standard parallel tests).

• Calibrated Load Cell: High-precision load sensor with an accuracy tolerance within ±1%, traceable to national or international measurement standards, calibrated within 12 months prior to testing.

• Linear Displacement Transducer (LDT): Used to measure real-time compression deflection, accurate to 1mm, capable of continuous data recording throughout the compression process.

• Data Acquisition System: Real-time collector for reaction force and deflection data, capable of generating automatic performance curves and storing complete test data for later analysis.

• Temperature Control Device: Maintains test environment at 23±5°C (standard temperature per ASTM/ISO), critical for solid rubber fenders (pneumatic fenders have adjusted temperature requirements).

• Measuring Tools: Vernier calipers, tape measures, and thickness gauges to verify fender dimensions meet design specifications before testing.

2. Rubber Fender Sample Preparation

• Use full-size finished fenders for formal performance testing (scale models are only allowed for pneumatic fender auxiliary testing with strict extrapolation rules).

• Conduct pre-test visual inspection: no cracks, bubbles, deformation, or material defects on the fender surface; dimensional deviations within standard allowable ranges.

• Break-In Process (Solid Rubber Fenders): Compress the sample to rated deflection 3-5 times at a speed of 2-8 cm/min, then unload and let it recover for at least 1 hour to eliminate internal stress and ensure stable performance. Pneumatic fenders skip break-in but require preset standard internal air pressure.

• Temperature Stabilization: Place the sample in a constant-temperature environment (23±5°C) for at least 10 hours (longer for thick rubber sections) to ensure consistent material properties during testing.

3. Environmental & Safety Requirements

Test in a dust-free, vibration-free environment; avoid direct sunlight and extreme temperature fluctuations. Set up safety barriers around the testing machine to prevent accidents during high-load compression, and ensure all operators follow marine engineering test safety protocols.

Step-by-Step Rubber Fender Performance Test Procedure

This procedure applies to all common rubber fender types: solid rubber fenders (cell, cone, arch, D-type), pneumatic floating fenders, and foam-filled rubber fenders, fully compliant with ASTM F2192 and ISO 17357 standards.

Step 1: Sample Installation & Equipment Calibration Check

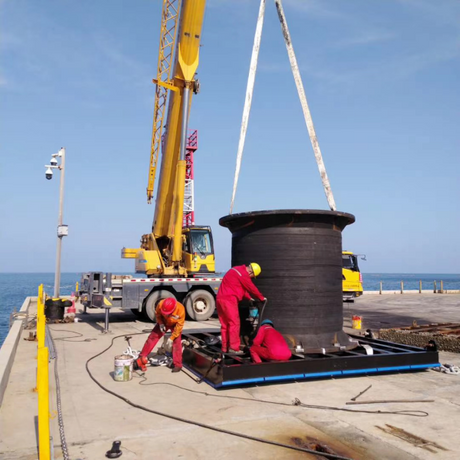

Place the rubber fender vertically in the center of the compression testing machine’s base plate, ensuring the compression plate is parallel to the fender’s contact surface (0° contact angle for standard tests). Recheck the calibration status of the load cell and displacement transducer, and zero the data acquisition system to eliminate baseline errors.

Step 2: Set Compression Parameters

Set standard compression speed: 2-8 cm/min (constant speed for Method B) or initial speed of 0.15 m/s (decreasing speed for Method A), per ASTM F2192. Set the target compression to the fender’s rated deflection (usually 60-65% of the fender’s height, per product design and standard requirements).

Step 3: Conduct Compression Test & Data Collection

Start the testing machine for slow, uniform compression; the data acquisition system automatically records real-time reaction force and deflection values at short intervals. Stop compression immediately once reaching the rated deflection, then hold for 3-5 seconds before slowly unloading to complete one test cycle.

For formal performance reports, conduct 3 repeated test cycles; discard the first cycle data (break-in auxiliary) and use the average of the second and third cycles as the final test result to ensure data repeatability.

Step 4: Angular Compression Test (Optional, for Special Applications)

For ship-to-ship berthing or angled dock applications, conduct angular compression tests (3°, 5°, 10°, 15° angles) to simulate real working conditions. Record reaction force and energy absorption data under different angles and include it in the test report for targeted engineering design.

Step 5: Post-Test Sample Inspection

After completing all compression cycles, unload the sample and let it recover for 24 hours. Inspect for permanent deformation, cracks, or material damage; qualified rubber fenders should have no obvious permanent deformation and fully recover to the original size.

Data Calculation & Performance Evaluation

1. Energy Absorption Calculation

Energy absorption is calculated by integrating the reaction force-deflection curve (the area under the curve), using the data acquisition system’s built-in algorithm or professional engineering software. The formula for approximate calculation is:

Where EA= Energy Absorption (kN·m), F= Reaction Force (kN), D= Rated Deflection (m).

2. Standard Compliance Evaluation

Compare test results with rated performance values (RPD) and standard requirements:

• Energy Absorption: ≥90% of the guaranteed rated value

• Reaction Force: ≤110% of the rated maximum value

• No permanent deformation or performance failure after testing

3. Temperature & Speed Correction

If test temperature or speed deviates from standard conditions, apply temperature and velocity correction factors (per ASTM F2192) to adjust test data, ensuring results match real marine operating conditions.

Critical Precautions for Rubber Fender Reaction Force & Energy Absorption Testing

Even with standard procedures in place, overlooking key operational details can lead to inaccurate test data, invalid certification reports, or safety incidents. These non-negotiable precautions align with global marine testing norms and help eliminate common testing errors, ensuring full compliance and reliable results for every test cycle.

• Strict Equipment Calibration Management: Never use uncalibrated or expired load cells, displacement transducers, or data acquisition systems. All measuring equipment must have valid calibration certificates traceable to international metrology standards, and pre-test calibration checks must be documented in full for audit and certification purposes. Even minor calibration drift can cause reaction force deviations exceeding standard tolerance ranges.

• Avoid Uneven Compression & Angular Misalignment: For standard parallel compression tests, any tilt of the compression plate or off-center sample placement will create uneven stress distribution on the rubber fender, leading to abnormally high reaction force readings and unreliable energy absorption data. Use a level tool to verify plate parallelism before each test, especially for large-scale cell and cone fenders.

• Control Compression Speed Consistently: Fluctuating compression speed is a top cause of inconsistent test results. Maintain a constant speed within the 2-8 cm/min range for standard static testing; sudden acceleration or deceleration will alter rubber material deformation characteristics and skew performance curves. Document the exact speed used in test reports for result reproducibility.

• Handle Pneumatic & Foam-Filled Fenders Differently: Pneumatic fenders require strict internal air pressure control per design specifications before testing—over or under inflation will completely invalidate performance data. Foam-filled fenders need extended temperature stabilization time and no pre-test break-in compression to avoid damaging the internal foam core.

• Record Full Test Context Data: Beyond reaction force and deflection values, document test temperature, humidity, compression speed, sample batch number, and equipment model in the test report. This contextual data is mandatory for international certification, project bidding, and resolving post-delivery technical inquiries from global buyers.

• Safety Protocols for High-Load Testing: Never stand directly in front of or beside the compression machine during high-load testing, especially for heavy-duty industrial fenders with high reaction force ratings. Install reinforced safety barriers and emergency stop devices, and ensure only trained, certified operators conduct the test to prevent workplace accidents.
