A D fender may look simple—just a rubber extrusion with a D-shaped cross-section, bolted to a dock wall. But if you have ever seen a D fender torn off its mounting, with bolts sheared and the concrete anchor cracked, you know that proper installation is anything but simple.
D fenders are the workhorses of small to medium vessel berthing. They protect fishing harbors, ferry terminals, tug landings, and cargo berths worldwide. Yet because they appear straightforward, installers often take shortcuts—with costly consequences.
I have spent two decades manufacturing OEM rubber fender systems for global brands. In this guide, I will walk you through exactly how to replace and install D fenders correctly, safely, and durably—drawing from manufacturer specifications, industry standards, and real-world field experience .

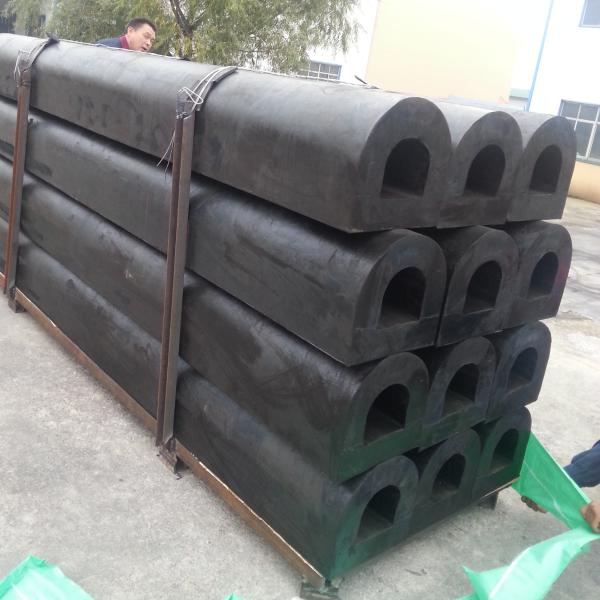

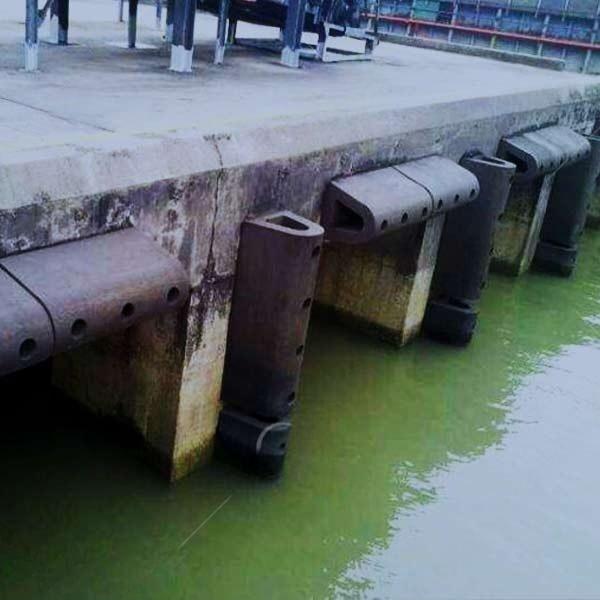

A D fender is an extruded rubber profile with a D-shaped cross-section. The flat side mounts flush against the dock wall, while the curved side faces outward to absorb vessel impact .
D fenders are versatile and cost-effective, making them ideal for :
| Application | Why D Fenders Work Well |
|---|---|
| Fishing harbors | Small vessels; low to moderate impact energy |
| Ferry terminals | Frequent berthing cycles; easy replacement |
| Tug landings | Abrasion resistance; simple mounting |
| Small cargo berths | Cost-effective protection |
| Lock gates and canal walls | Continuous protection along edges |
| Marina finger piers | Compact size fits tight spaces |
Knowing how to replace and install D fenders starts with recognizing when replacement is necessary. According to industry maintenance guidelines, inspect D fenders regularly for :
| Damage Type | Action |
|---|---|
| Cracks or cuts through the rubber | Replace immediately |
| Surface cracking (ozone/UV damage) | Monitor; replace if deep |
| Loose or missing mounting bolts | Tighten or replace hardware |
| Corroded bolt heads or washers | Replace with marine-grade stainless |
| Deformation or compression set | Replace if no longer resilient |
| Anchor point concrete damage | Repair before reinstallation |
> *"The main damage to the fender is corners, cracks and surface scratches. The main reason for this damage is the excessive friction between the rubber fender and the ship."*
Before diving into the installation steps for how to replace and install D fenders, gather all necessary tools and materials. Proper preparation prevents on-site delays and safety incidents.
This is one of the most common and damaging mistakes in D fender installation.
> *"Pass plastic woven bags, cloth bags, or hemp rope through the mounting holes on the d fender, and tighten the fender for lifting, not allowed to use wire rope or other hard metal chains for lifting."*
Why this matters: Wire rope and metal chains can:
- Cut into the rubber, creating stress points that lead to premature cracking
- Damage the mounting holes, compromising bolt alignment
- Scratch or gouge the fender surface, allowing water intrusion
Always use soft slings – plastic woven bags, cloth bags, or hemp rope – when lifting D fenders into position .
Before installing new D fenders, inspect the dock wall mounting surface :
| Inspection Item | Required Condition |
|---|---|
| Concrete cracks | No cracks; repair any found before installation |
| Embedded anchors | Secure, uncorroded, properly positioned |
| Surface flatness | ≤5mm per 2m |
| Cleanliness | Free of marine growth, oil, loose debris |
> *"Check the concrete structure area where the fender system is installed for any crack appearance. If crack exists, contact the relevant department immediately for treatment."*
The following procedure is generic for the assembly and installation of D fenders. Actual fender design may vary, but these steps provide a reliable framework .
Action: Lift the D fender toward the accurate location where the anchors are on the dock .
Procedure:
1. Thread soft slings (plastic bags, cloth bags, or hemp rope) through the mounting holes
2. Tighten the slings securely around the fender
3. Use a crane or forklift to lift the fender into position
4. Align the fender mounting holes with the embedded anchors on the dock wall
Critical Checkpoint: Verify horizontal alignment using a laser level. Even minor misalignment will cause uneven wear and premature failure.
Action: Corresponding to the embedded location in the dock, press the plate pinch on the D fender, insert the washer into the mounting hole, and then tighten with the bolt .
Procedure:
1. Insert marine-grade 316 stainless steel bolts through the fender mounting holes
2. Add flat washers between the bolt head and the rubber surface
3. Thread nuts onto bolts from the back side of the dock structure (if accessible)
4. For blind anchors, use appropriate anchor bolts with washers
Bolt Specification Checklist:
| Component | Requirement |
|---|---|
| Bolt material | 316 stainless steel (marine grade) |
| Washers | Flat washers under bolt heads and nuts |
| Anti-seize | Apply to threads to prevent galling |
| Bolt size | Per fender manufacturer specification |
Action: Tighten all bolts .
Proper Procedure:
1. Hand-tighten all bolts initially to seat the fender against the dock wall
2. Use a calibrated torque wrench – never an impact gun without torque control
3. Tighten bolts in a crisscross pattern (alternating ends) to ensure even pressure
4. Follow manufacturer's specified torque values (typically 50-80 Nm for M12-M16 bolts)
Common Mistakes to Avoid:
| Mistake | Consequence |
|---|---|
| Over-tightening | Compresses rubber excessively; causes bolt pull-through |
| Under-tightening | Loose fender; movement during impact; accelerated wear |
| Uneven tightening | Fender twists; uneven energy absorption |
| No torque wrench | Inconsistent tension across bolts |
Action: Clean up the installation traces, and smudge that may appear in the process, and finally complete the rubber fender assembly installation .
Post-Installation Checklist:
- [ ] All bolts tightened to specification
- [ ] Fender sits flush against dock wall (no gaps)
- [ ] No visible damage to rubber from lifting or handling
- [ ] Bolt heads and washers properly seated
- [ ] Marine sealant applied around bolt heads (if specified)
- [ ] Work area cleaned of debris and tools
Before returning the berth to full operation, conduct these verification tests:
| Test | Method | Acceptance |
|---|---|---|
| Visual alignment | Sight along fender length | No bowing or twisting |
| Bolt torque verification | Re-check torque after 24 hours | No loosening |
| Light impact test | Gentle vessel contact | Fender compresses evenly; no shifting |
When replacing D fenders in confined areas (lock gates, existing berths with limited access):
1. Measure the exact length needed – D fenders can be made-to-measure
2. Consider sectional installation if full-length access is impossible
3. Use temporary support brackets to hold the fender during bolting
When mounting D fenders to steel dock structures rather than concrete:
1. Sandblast steel to Sa 2.5 grade (near-white metal finish)
2. Apply epoxy primer within 4 hours of blasting
3. Use galvanized or stainless steel backing plates behind the mounting surface
4. Weld nuts to the back side of the steel plate for easier bolt access
Once you have mastered how to replace and install D fenders, proper maintenance ensures they last their full service life .
| Frequency | Inspection Tasks |
|---|---|
| After first 3 berthings | Check all bolts for loosening; re-torque if needed |
| Monthly | Visual inspection for cracks, cuts, or loose hardware |
| Quarterly | Full bolt torque check; clean marine growth |
| Annually | Anti-corrosion treatment for mounting hardware |
> *"After the fender system is installed and put into service, inspection shall be carried out each time after berthing of the first three ships and then monthly inspections are to be conducted."*
| Component | What to Look For |
|---|---|
| Rubber body | Cracks, cuts, abrasion, ozone cracking |
| Mounting bolts | Looseness, corrosion, missing washers |
| Dock wall | Cracks around anchor points |
| Fender alignment | Sagging, twisting, or gaps |
| Failure Mode | Cause | Prevention |
|---|---|---|
| Torn mounting holes | Over-tightening; impact beyond rating | Use torque wrench; select correct size |
| Sheared bolts | Excessive berthing angle or speed | Monitor vessel approach; upgrade fender size |
| Surface cracking | UV/ozone exposure | Use UV-stabilized compounds; apply protectant |
| Concrete anchor failure | Undersized anchors; poor concrete quality | Specify proper anchor depth; test pull-out strength |
| Uneven wear | Misalignment during installation | Use laser level during positioning |
We asked our global OEM clients about their D fender installation challenges. Here is what they shared:
> *"The biggest mistake we see is installers using wire rope to lift D fenders. The wire cuts into the rubber, and six months later, cracks appear exactly where the rope was. We now specify soft slings in every installation contract."*
> — Port Engineer, Southeast Asia
> *"We switched from carbon steel to 316 stainless bolts after seeing rust failure in under two years. The cost difference is minimal compared to the labor of replacement."*
> — Maintenance Manager, European Fishing Port
> *"Torque specs seemed like overkill for a simple D fender. But after we had a fender tear away from its mounting during a storm, we realized under-tightening was the cause. Now we use a torque wrench on every bolt."*
> — Facility Operator, North American Marina
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that knowing how to replace and install D fenders is only half the equation. The other half is having high-quality fenders and hardware to install.
Our D fender OEM capabilities include:
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get factory-direct pricing, custom engineering, and full installation documentation.
Mastering how to replace and install D fenders comes down to five critical rules:
1. Lift with soft slings only – never wire rope or metal chains
2. Use 316 stainless steel hardware – carbon steel corrodes rapidly in saltwater
3. Tighten with a calibrated torque wrench – no impact guns without torque control
4. Follow a crisscross tightening pattern – ensures even pressure distribution
5. Inspect after first three berthings – re-torque as rubber settles
D fenders may be simple in design, but proper installation requires attention to detail. Cut corners, and you will pay for it in premature failure and unplanned downtime.
[Contact the Nanjing Taidun Engineering Team] for a free D fender quote, installation consultation, or to request custom extrusions for your specific dock configuration.
Q1: What is the correct lifting method for D fenders during installation?
A: Always use soft slings– plastic woven bags, cloth bags, or hemp rope passed through the mounting holes. Never use wire rope or hard metal chains, as they cut into the rubber and cause premature cracking .
Q2: What type of bolts should be used for D fender installation in saltwater?
A: Use 316 stainless steel bolts exclusively. Carbon steel bolts will corrode rapidly in marine environments, leading to bolt failure and fender detachment within 1-2 years.
Q3: How often should D fenders be inspected after installation?
A: Inspect after the first three berthings, then monthly thereafter. Monthly inspections should check for loose bolts, rubber cracks, and concrete anchor condition .
Q4: Can D fenders be repaired, or must they be replaced when damaged?
A: Minor surface abrasion can be left alone. Deep cuts, cracks through the rubber, or torn mounting holes require replacement. D fenders are not typically repaired in the field .
Q5: What are the common causes of D fender failure?
A: The most common causes are excessive berthing speed or angle(kinetic energy exceeds rating), improper lifting during installation(wire rope damage), corroded hardware, and misalignment during mounting .
