How to Select the Right Mooring Bollard: A Comprehensive Guide for Port Operators and Marine Engineers

How to Select the Right Mooring Bollard: A Comprehensive Guide for Port Operators and Marine Engineers



Article Overview

This article provides a comprehensive guide to selecting the right mooring bollard for marine terminals, ports, and industrial berths. Covering key selection criteria including load capacity, bollard type, material selection, foundation requirements, corrosion protection, and compliance with international standards such as PIANC, ISO 3911, and classification society requirements, this content helps port engineers, terminal operators, marine contractors, and procurement professionals make informed decisions that optimize safety, durability, and lifecycle value. The article also addresses application-specific considerations for container terminals, bulk cargo facilities, LNG terminals, Ro-Ro berths, and small craft harbors.



Introduction

Mooring bollards are among the most fundamental components of any marine terminal. These seemingly simple structures bear the immense forces generated by vessels during berthing, mooring, and while alongside. A poorly selected or inadequately specified bollard can lead to catastrophic failures, resulting in vessel damage, infrastructure destruction, environmental incidents, and serious injury or loss of life.

With so many variables to consider—load capacity, bollard type, material, foundation design, corrosion protection, and compliance standards—selecting the right mooring bollard can be a complex undertaking. This guide provides a systematic approach to bollard selection, helping you navigate the technical considerations and make decisions that ensure safe, reliable, and cost-effective mooring operations for decades to come.



Understanding Mooring Bollard Fundamentals

Before diving into selection criteria, it is essential to understand what mooring bollards are and how they function.

1,What Is a Mooring Bollard?

A mooring bollard is a fixed structure on a dock, quay, or pier designed to secure mooring lines from vessels. Bollards provide attachment points for lines that keep vessels positioned alongside the berth, resisting forces from wind, current, waves, and vessel movement.

2,Key Terminology

- **Safe Working Load (SWL):** The maximum load a bollard is designed to handle under normal operating conditions. This is the rated capacity used for operational planning.

- **Ultimate Strength (US):** The maximum load a bollard can withstand before catastrophic failure. This is typically 3 to 5 times the SWL, depending on the safety coefficient applied.

- **Safety Coefficient (Safety Factor):** The ratio between ultimate strength and safe working load. Industry standards typically require a minimum safety coefficient of 3.0.

- **Proof Load:** The test load applied during factory or field testing to verify structural integrity, typically 1.5 to 2.0 times the SWL.

Step 1: Determine Required Load Capacity

The most critical factor in bollard selection is determining the required load capacity. Undersizing a bollard creates a safety hazard; oversizing adds unnecessary cost.

Factors Influencing Load Requirements

1. **Vessel Size and Type:** Larger vessels generate higher mooring forces. A bollard serving a 300,000 DWT tanker requires far greater capacity than one serving a small fishing boat.

2. **Mooring Line Configuration:** The number of lines, their angles, and the arrangement affect the loads applied to each bollard.

3. **Environmental Conditions:** Wind speed, current velocity, wave height, and exposure to open water all influence mooring forces.

4. **Berth Configuration:** The layout of the berth, including dolphin structures and breasting dolphins, affects load distribution.

5. **Operational Factors:** Frequency of vessel calls, typical vessel sizes, and mooring practices influence actual loads.

Typical Load Ranges by Application

Application	Typical Bollard Capacity Range
Small craft harbors, marinas	50-150 kN
Fishing ports, small cargo terminals	150-500 kN
General cargo terminals	500-1,000 kN
Container terminals	1,000-2,000 kN
Bulk terminals	1,000-2,500 kN
LNG/LPG terminals	2,000-3,500 kN
Very Large Crude Carriers (VLCC)	2,500-5,000 kN

Calculation Methods

For preliminary sizing, the following simplified approach can be used:

**Required Bollard Capacity = (Mooring Line Breaking Strength) × (Number of Lines per Bollard)**

Where the mooring line breaking strength is typically 5 to 8 times the expected working load for the vessel.

For precise calculations, refer to PIANC guidelines or consult with a marine engineer who can perform detailed mooring analysis considering vessel characteristics, environmental conditions, and berth geometry.

Step 2: Select the Appropriate Bollard Type

Mooring bollards come in several configurations, each suited to specific applications.

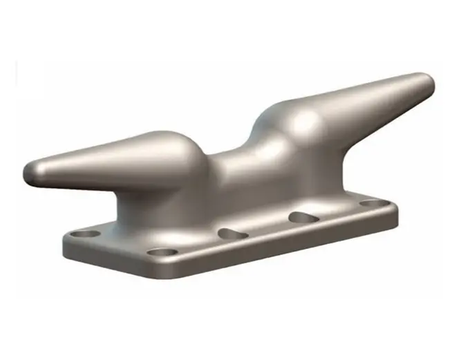

①Standard Double-Horn Bollards

The most common type, featuring two horns (or barrels) that allow multiple lines to be secured in different directions.

- **Advantages:** Versatile, accommodates multiple lines, widely available

- **Applications:** General cargo terminals, container terminals, bulk terminals

- **Typical Capacity Range:** 150 -2,500 kN

②Single-Horn Bollards

A simplified version with one horn, suitable for applications where lines approach from a single direction.

- **Advantages:** Compact, lower cost

- **Applications:** Small craft harbors, secondary positions, river terminals

- **Typical Capacity Range:** 50 -500 kN

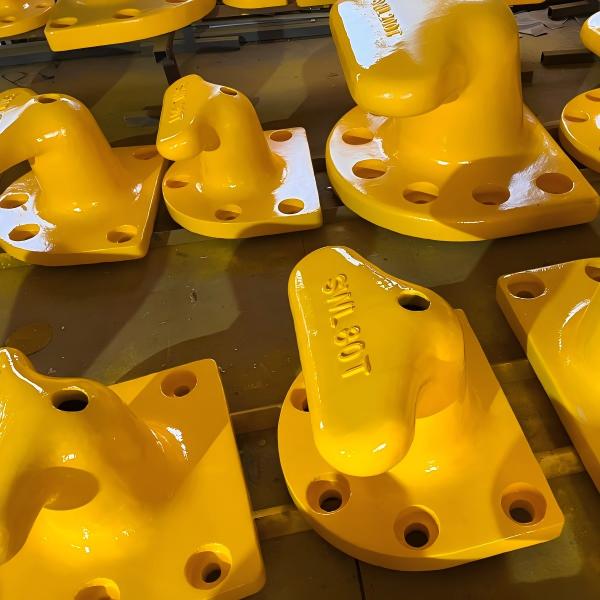

③Pedestal Bollards

Bollards with integral base plates designed for mounting on concrete or steel structures.

- **Advantages:** Complete assembly, simplified installation

- **Applications:** Most commercial terminals

- **Typical Capacity Range:** 150 -5,000 kN

④Quick-Release Bollards (Quick Release Hooks)

Specialized bollards with mechanical release mechanisms that allow rapid line release under load.

- **Advantages:** Safety for emergency release, reduced manpower requirements

- **Applications:** LNG terminals, tanker berths, facilities requiring emergency release capability

- **Typical Capacity Range:** 500 -5,000 kN

⑤Pillar Bollards

Tall, cylindrical bollards that provide multiple attachment points along the height.

- **Advantages:** Accommodates vertical movement from tides, multiple line attachment options

- **Applications:** High-tidal range locations, lock chambers

- **Typical Capacity Range:** 100 – 1,000 kN

Step 3: Choose the Right Material

Material selection affects strength, durability, corrosion resistance, and cost.

①Cast Steel

Cast steel bollards offer excellent strength and ductility, making them the preferred choice for most commercial applications.

- **Advantages:** High strength, good ductility (provides warning before failure), weldable for repair

- **Disadvantages:** Higher cost than cast iron, requires skilled foundry work

- **Standards:** Typically manufactured to ASTM A27, A148, or equivalent

- **Best For:** Most commercial terminals, high-load applications

②Cast Iron

Traditional cast iron bollards remain common in smaller applications and older installations.

- **Advantages:** Lower cost, good castability, reasonable corrosion resistance

- **Disadvantages:** Brittle behavior (sudden failure without warning), lower tensile strength

- **Standards:** Typically manufactured to ASTM A48 or A536

- **Best For:** Small craft harbors, low-load applications, replacement of existing cast iron bollards

③Fabricated Steel

Welded steel bollards fabricated from structural steel plates offer design flexibility.

- **Advantages:** Customizable, consistent material properties, repairable

- **Disadvantages:** Requires careful weld quality control, corrosion protection critical

- **Standards:** Typically fabricated from ASTM A36, A572, or equivalent

- **Best For:** Special applications, high-capacity bollards, custom configurations

④Ductile Iron

Ductile iron offers a balance between cast iron’s castability and steel’s ductility.

- **Advantages:** Higher strength than gray cast iron, improved ductility, good corrosion resistance

- **Disadvantages:** Moderate cost

- **Standards:** ASTM A536

- **Best For:** General cargo terminals, medium-load applications

⑤Stainless Steel

For aggressive corrosive environments, stainless steel bollards provide maximum corrosion resistance.

- **Advantages:** Excellent corrosion resistance, low maintenance, long service life

- **Disadvantages:** High cost, specialized fabrication

- **Grades:** Typically 304 or 316 stainless steel

- **Best For:** LNG terminals, corrosive environments, facilities where coating maintenance is impractical

Step 4: Consider Foundation Requirements

A mooring bollard is only as strong as its foundation. The foundation must be designed to transfer loads from the bollard to the supporting structure without failure.

Foundation Types

1. **Cast-in-Place Concrete:** Bollard anchor bolts are embedded during concrete placement. This provides the strongest connection but requires precise positioning during construction.

2. **Post-Installed Anchors:** Anchor bolts are installed into hardened concrete using epoxy or mechanical anchors. Suitable for retrofit applications but may have lower capacity than cast-in-place.

3. **Steel Structure Mounting:** Bollards mounted on steel piles or steel substructures require careful design of the connection details.

4. **Block Foundation:** For standalone bollards (e.g., on dolphins), a reinforced concrete block provides the necessary mass and strength.

Critical Foundation Parameters

- **Concrete Strength:** Minimum 30-40 MPa for most applications

- **Anchor Bolt Size and Grade:** Must be designed with appropriate safety coefficients

- **Edge Distance:** Sufficient distance from concrete edges to prevent blowout failure

- **Reinforcement:** Adequate reinforcement to resist tension and shear loads

Coordination with Structural Engineer

Bollard selection must be coordinated with the structural engineer responsible for the berth structure. The engineer must verify that the existing or proposed foundation can accommodate the loads from the selected bollard.

Step 5: Specify Corrosion Protection

Marine environments are among the most corrosive in the world. Proper corrosion protection is essential to achieve the design service life.

Coating Systems

1. **Epoxy Coatings:** High-build epoxy systems provide excellent corrosion protection. Typically applied in two or three coats with total thickness of 200-400 microns.

2. **Polyurethane Topcoats:** Often applied over epoxy for UV resistance and appearance.

3. **Thermal Sprayed Coatings:** Zinc or aluminum applied by thermal spray provides superior corrosion protection for steel bollards.

4. **Hot-Dip Galvanizing:** Provides cathodic protection for steel bollards. Common for smaller bollards and anchor hardware.

Material-Based Corrosion Protection

- **Stainless Steel:** Eliminates coating requirements but at higher initial cost

- **Cathodic Protection:** For submerged or splash zone applications, sacrificial anodes may be specified

Coating Specifications

Specify coating requirements clearly, including:

- Surface preparation (typically Sa 2.5 or SSPC-SP10)

- Coating system (primer, intermediate, topcoat)

- Dry film thickness

- Testing requirements (adhesion, thickness, holiday detection)

Step 6: Ensure Compliance with Standards

Compliance with recognized international standards ensures quality, safety, and acceptance by port authorities and classification societies.

Key Standards

Standard	Scope
ISO 3911	International standard for marine mooring bollards
PIANC Guidelines	Comprehensive guidance for mooring system design
ASTM A27 / A148	Cast steel specifications
ASTM A48 / A536	Cast iron and ductile iron specifications
Lloyd’s Register	Classification society requirements for marine bollards
DNV	Classification society requirements
ABS	American Bureau of Shipping requirements

Documentation Requirements

Ensure the manufacturer provides:

- Material test certificates

- Dimensional inspection reports

- Proof load test certificates (if applicable)

- Coating inspection reports

- Welding procedure specifications and welder qualifications (for fabricated bollards)

Step 7: Verify Testing Requirements

Testing verifies that bollards meet specified capacity requirements.

Factory Testing

- **Proof Load Testing:** Application of 1.5 to 2.0 times SWL to verify structural integrity without permanent deformation

- **Material Testing:** Tensile testing, chemical analysis, hardness testing

- **NDE:** Magnetic particle or ultrasonic testing of castings and welds

Field Testing

- **Commissioning Tests:** Verification that installed bollards meet design requirements

- **Periodic Testing:** Regular testing to verify in-service capacity remains acceptable (typically every 5-10 years)

Testing Standards

Specify testing in accordance with recognized standards such as:

- ISO 3911 testing requirements

- Classification society test protocols

- Project-specific test requirements

Step 8: Consider Installation Requirements

Proper installation is essential to achieve the intended performance.

Installation Considerations

- **Alignment:** Bollards must be positioned correctly relative to vessel mooring points

- **Elevation:** Height above waterline must accommodate vessel freeboard and tidal variations

- **Spacing:** Adequate spacing between bollards for maneuvering and line handling

- **Access:** Safe working access for mooring crews

Installation Process

1. **Foundation Preparation:** Ensure concrete or steel structure is ready for bollard placement

2. **Anchor Bolt Placement:** Position anchor bolts accurately using templates

3. **Grouting:** Use epoxy grout or non-shrink cementitious grout to fill gaps between base plate and foundation

4. **Torquing:** Apply specified torque to anchor nuts

5. **Inspection:** Verify installation against approved drawings

Step 9: Plan for Maintenance and Inspection

Even the best-selected bollard requires regular maintenance to ensure continued safe operation.

Inspection Schedule

- **Annual Visual Inspection:** Check for corrosion, deformation, cracking, loose hardware, and foundation condition

- **Periodic Proof Testing:** Every 5-10 years, depending on application and operating conditions

- **Post-Event Inspection:** After any overload event, impact, or extreme weather

Maintenance Activities

- **Coating Repair:** Promptly repair any coating damage to prevent corrosion

- **Hardware Tightening:** Verify anchor nut torque periodically

- **Corrosion Treatment:** Address corrosion issues before they compromise structural integrity

Replacement Criteria

Consider replacement when:

- Visible cracking or deformation is present

- Corrosion has reduced cross-section significantly

- Proof testing indicates capacity below required levels

- Foundation deterioration is evident

Application-Specific Selection Guide

Different terminal types have specific bollard requirements.

①Container Terminals

- **Capacity:** 1,000-2,000 kN

- **Type:** Double-horn pedestal bollards

- **Material:** Cast steel or fabricated steel

- **Spacing:** Typically 15-25 meters apart

- **Special Considerations:** Frequent vessel calls, large vessel sizes, high throughput

②Bulk Terminals

- **Capacity:** 1,000-2,500 kN

- **Type:** Double-horn pedestal bollards

- **Material:** Cast steel

- **Special Considerations:** Large vessels, heavy mooring loads

③LNG Terminals

- **Capacity:** 2,000-3,500 kN

- **Type:** Quick-release hooks or high-capacity bollards

- **Material:** Stainless steel or heavily coated steel

- **Special Considerations:** Emergency release capability, rigorous safety requirements, classification society approval

④Ro-Ro and Ferry Terminals

- **Capacity:** 500-1,500 kN

- **Type:** Double-horn bollards or pillar bollards

- **Material:** Cast steel or fabricated steel

- **Special Considerations:** Frequent vessel calls, varying water levels

⑤Small Craft Harbors

- **Capacity:** 50 -200 kN

- **Type:** Single-horn or double-horn bollards

- **Material:** Cast iron or cast steel

- **Special Considerations:** Lower cost, aesthetic considerations



Common Selection Mistakes to Avoid

Mistake	Consequence	How to Avoid
Undersizing capacity	Safety hazard, risk of failure	Perform proper load calculation; add margin for future vessel growth
Ignoring foundation capacity	Foundation failure despite adequate bollard	Coordinate with structural engineer; verify foundation capacity
Inadequate corrosion protection	Premature deterioration, reduced service life	Specify appropriate coating system for environment; consider stainless steel for critical applications
Non-compliant materials	Rejection by port authority, safety concerns	Specify materials meeting recognized standards; require material test certificates
Inadequate testing	Unknown actual capacity	Specify proof load testing;require test certificates
Poor installation planning	Installation delays, alignment issues	Coordinate installation sequence; use templates for anchor bolts



Checklist for Bollard Selection

Use this checklist to ensure all critical factors are considered:



- [ ] Required load capacity determined (SWL and ultimate strength)

- [ ] Appropriate bollard type selected for application

- [ ] Material selected based on strength requirements and environmental conditions

- [ ] Foundation capacity verified by structural engineer

- [ ] Corrosion protection system specified

- [ ] Compliance with applicable standards confirmed

- [ ] Testing requirements specified (factory and field)

- [ ] Installation requirements and access considered

- [ ] Maintenance and inspection plan developed

- [ ] Budget and lifecycle costs evaluated



Conclusion

Selecting the right mooring bollard is a critical decision that affects the safety, reliability, and efficiency of marine terminal operations. By following a systematic approach—determining load requirements, selecting appropriate type and material, verifying foundation capacity, specifying corrosion protection, ensuring standard compliance, and planning for testing and maintenance—you can make informed choices that deliver safe, durable, and cost-effective mooring systems.

For complex applications, large-scale projects, or situations with unusual conditions, consulting with experienced marine engineers and bollard manufacturers can provide valuable expertise and ensure that all factors are properly addressed. The right bollard selection today will provide reliable service for decades to come.

For assistance with mooring bollard selection, specification, or procurement, contact experienced marine equipment specialists who can evaluate your specific requirements and provide tailored recommendations.
