Installation Best Practices for Marine Rubber Fender Steel Panels

Installation Best Practices for Marine Rubber Fender Steel Panels

Marine rubber fender steel panels serve as the critical protective backbone for ports, docks, quays, ship hulls and offshore structures, specially engineered to absorb heavy berthing impact, resist harsh saltwater corrosion, and prevent costly collision damage. However, even the highest-grade steel-reinforced rubber fender panels will fail to deliver peak performance, long service life or reliable operational safety if installed incorrectly. Industry data shows that poor installation accounts for over 60% of premature fender failures, including loose mounting, steel-rubber delamination, uneven impact pressure distribution, bolt breakage and structural warping—all of which trigger unplanned port downtime, inflated maintenance costs and severe berthing safety hazards for vessels and personnel alike.

1. Pre-Installation Preparation: The Foundation of Successful Installation

Thorough pre-installation planning eliminates on-site errors, costly delays and workplace safety risks, making it the single most critical phase of marine rubber fender steel panel installation. Rushing this preparatory stage almost always leads to expensive rework, compromised panel performance and shortened lifespan, so every installation team must complete the following core tasks in full before any lifting, positioning or mounting work begins.

1.1 Full Product & Hardware Quality Inspection

Start with a full, detailed inspection of every marine rubber fender steel panel, along with all matching stainless steel bolts, flat washers, lock washers, nuts and mounting accessories, to rule out shipping damage, manufacturing defects or material flaws. Carefully check the steel backing plate or face plate for chipped hot-dip galvanized coating, surface rust spots, dents or bending; examine the rubber core thoroughly for cracks, tears, uneven hardness or weak bonding with the steel component (a key red flag for future delamination). Double-verify that panel dimensions, pre-drilled hole spacing and overall thickness match approved engineering drawings and original order specifications. Discard any damaged panels or defective hardware immediately—using compromised parts will void product warranties and guarantee early, avoidable failure.

1.2 Mounting Surface Preparation

Thoroughly clean and prepare the designated mounting surface—whether a concrete dock wall, quay face, ship hull or jetty edge—to ensure a tight, stable and long-lasting fit. Remove all debris, salt deposits, marine growth such as barnacles and algae, loose concrete particles, surface rust and old adhesive residue completely. For concrete dock surfaces, repair any cracks, uneven sections or structurally weakened areas with high-strength marine-grade concrete; for steel ship hulls, sand away all surface rust, touch up damaged anti-corrosion coating and reinforce thin or unsupported plating with an additional steel backing plate. The finished mounting surface must be flat, fully level and structurally sound to support the weight of the steel panel and distribute berthing impact evenly across the entire surface.

1.3 Tools, Equipment & Safety Preparation

Gather all required professional tools and certified equipment ahead of time: a calibrated torque wrench (mandatory for accurate bolt tightening), industrial lifting gear such as a crane or forklift for large, heavy panels, marine-grade polyurethane sealant, precision level, measuring tape, permanent marker, grinding tool and full personal protective equipment (PPE) including safety helmets, cut-resistant gloves, safety harnesses and non-slip marine boots. Confirm all lifting equipment is professionally certified, recently inspected and in good working order to prevent workplace accidents. Review detailed installation blueprints as a team, mark precise mounting positions and hole locations on the prepared surface, and ensure clear, unobstructed access to the installation area to streamline workflow and avoid delays.

1.4 Team Briefing & Compliance Check

Conduct a full safety and operational briefing for all installation team members, clearly outlining individual roles, step-by-step workflow and emergency response protocols. Ensure every team member understands and adheres to ISO 17357 international marine fender standards and local maritime safety regulations for on-water installation work. Confirm weather conditions are fully suitable for installation—avoid all work during heavy rain, strong winds, rough seas or stormy conditions, as these factors compromise both worker safety and installation quality, leading to misalignment or unstable mounting.

2. Step-by-Step Installation for Dock-Mounted Marine Rubber Fender Steel Panels

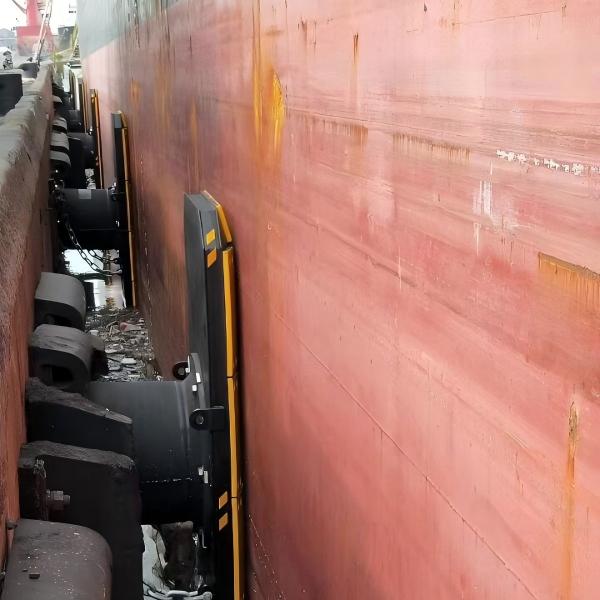

Dock-mounted marine rubber fender steel panels are the most widely used configuration, designed for commercial ports, container terminals, tanker docks, public marinas and general berthing facilities. Follow this precise, industry-standard step-by-step process for secure, durable and long-lasting installation:

1. Lifting & Precise Positioning: Use certified, properly rated lifting equipment to carefully lift the steel panel into its designated position, aligning the pre-drilled mounting holes perfectly with the pre-marked anchor points on the dock wall. Use a precision level to confirm the panel is perfectly vertical and horizontal—even minor misalignment causes uneven impact distribution, accelerated wear and premature panel failure. For oversized, heavy panels, use temporary support brackets to hold the panel securely in place during the bolting process to prevent shifting.

2. Corrosion-Resistant Hardware Installation: Insert only marine-grade 316 stainless steel bolts (the gold standard for saltwater corrosion resistance) through the steel panel mounting holes and dock anchor points. Add flat washers and lock washers between the steel panel surface and bolt head to prevent friction damage to the steel coating and stop fasteners from loosening due to constant berthing vibration. Thread nuts onto the bolts from the backside of the dock structure—never use standard carbon steel hardware, as it will rust and degrade rapidly in saltwater environments, leading to structural failure.

3. Calibrated Torque Tightening (Make-or-Break Step): Use a fully calibrated torque wrench to tighten bolts to the exact manufacturer’s recommended torque specification (typically 80-120 Nm, varying by panel size and bolt diameter). Over-tightening will crack the rubber core or warp the steel backing plate, while under-tightening leads to loose panels, shifting and full detachment. Always tighten bolts in a crisscross pattern to ensure even pressure distribution across the entire panel surface, avoiding concentrated stress on any single area.

4. Waterproof Gap Sealing: Apply high-quality marine-grade polyurethane sealant evenly around all outer edges of the steel panel and the mounting surface junction to block saltwater intrusion, the primary cause of steel corrosion and hardware rust. Seal all bolt holes completely to prevent water penetration and internal corrosion, which weakens fasteners over time.

5. Initial Stability Test: Gently push and apply light pressure to the panel to test for movement, shifting or visible gaps between the panel and dock surface. Adjust positioning or re-tighten loose bolts as needed before finalizing the installation and moving to the next panel.

3. Step-by-Step Installation for Ship-Mounted Marine Rubber Fender Steel Panels

Ship-mounted marine rubber fender steel panels require extra precision and reinforced installation, as they must withstand constant vessel movement, wave action and open-sea conditions while protecting delicate ship hulls. Follow these specialized, marine-approved steps for secure hull mounting:

6. Hull Reinforcement First: Only install panels over reinforced, load-bearing hull framing—never mount directly to thin, unsupported hull plating. Add an internal steel backing plate inside the hull to distribute panel weight and berthing impact evenly, preventing hull deformation, dents or structural damage.

7. Dual-Security Mounting Method: Use a combination of heavy-duty, water-resistant marine adhesive and 316 stainless steel bolts for maximum holding strength. Apply a uniform layer of adhesive to the back of the steel panel, press it firmly against the prepared hull surface, then insert and torque-tighten bolts to the manufacturer’s specification. This dual mounting method prevents panel detachment during rough seas, high-speed travel or heavy impact.

8. Watertight Hull Sealing: Seal all panel edges and bolt holes with marine-grade hull-specific sealant to maintain full watertight integrity of the vessel and prevent corrosion on the hull surface around the panel.

4. Post-Installation Inspection & Commissioning

Once all installation work is complete, conduct a comprehensive post-installation inspection to verify quality, compliance and safety before putting the panels into active berthing service. This step ensures all defects are caught early and validates product warranty coverage:

• Inspect every bolt for accurate torque, re-tighten any loose fasteners and confirm no hardware is missing, damaged or incorrectly installed.

• Check the full steel-rubber bond line for signs of separation or delamination, and inspect the rubber core for compression, cracks or damage sustained during installation.

• Verify perfect panel alignment, level positioning and full, gap-free contact with the mounting surface—no unevenness or gaps are acceptable for long-term performance.

• Perform a controlled light impact test to confirm the panel absorbs force properly without shifting, moving or sustaining damage.

• Document the full inspection, record all torque values, and take on-site photos for project records, warranty validation and future maintenance reference.

5. Pro Tips for Long-Term Performance & Maintenance

To maximize the lifespan of installed marine rubber fender steel panels and sustain optimal performance year-round, follow these professional maintenance tips:

• Schedule a follow-up torque inspection and bolt retightening after 30 days of initial use, as rubber may settle slightly after absorbing regular berthing impact.

• Clean panels quarterly to remove salt deposits and marine growth, and avoid high-pressure washers that can chip or damage the protective steel anti-corrosion coating.

• Conduct a full performance inspection every 6 months, focusing on checking for steel corrosion, rubber cracking, and loose or damaged hardware.

• Touch up chipped or scratched steel coating immediately to stop rust from spreading and compromising the panel’s structural integrity.

• Never exceed the panel’s rated impact capacity, as overloading causes permanent structural damage and automatically voids product warranties.
