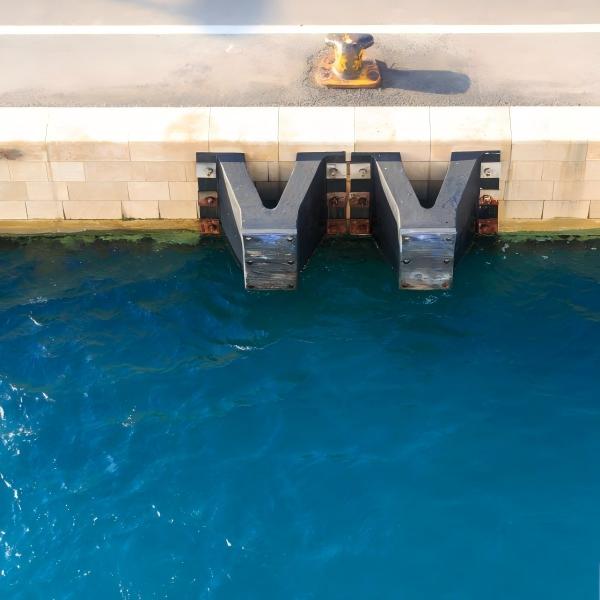

Introduction: Installation is Half the Battle—Do It Right

Purchasing a high-performance ARCH fender is a significant investment in your waterfront infrastructure. However, up to 50% of premature fender failures can be traced back to improper installation or neglected maintenance.

A correctly installed and well-maintained ARCH fender doesn't just protect your assets; it pays for itself over a dramatically extended service life. This definitive 2026 guide provides port managers, marina operators, and project engineers with professional, actionable steps to ensure your fender system delivers decades of reliable performance.



Part 1: Pre-Installation – The Foundation for Success

Do not rush to mount the fender. These preparatory steps are critical.

1.1 Site & Structure Audit:

Dock Face Condition: Ensure the mounting surface is structurally sound, flat, and clean. Repair any concrete spalling or steel corrosion before installation.

Alignment & Clearance: Verify the fender line is straight and offers consistent clearance along the vessel's hull. Check for obstructions (pipes, cleats) that may cause snagging.

Access for Installation & Future Inspection: Is there adequate space for tools and personnel? Plan for future maintenance access.

1.2 Verify Materials & Hardware:

Match Hardware to Environment: In saltwater, specify 316-grade stainless steel or hot-dip galvanized steel for all bolts, shackles, chains, and back plates. For freshwater, 304 stainless may suffice.

Hardware Kit Inspection: Confirm all parts (nuts, washers, backing plates) are present, sized correctly, and free of defects before lifting equipment is mobilized.



Part 2: Professional Installation – A Step-by-Step Guide

Follow this sequence to ensure a secure, functional, and safe installation.

2.1 Positioning & Lifting:

Use soft slings or spreader bars to lift the fender. Never lift using the mounting loops or bolts alone. Avoid dragging the fender against abrasive surfaces.

Position the fender so its center line aligns with the primary expected point of vessel contact.

2.2 Mounting Method Execution:

①Bolt-Through Method (to Panel):

Pre-drill holes in the mounting panel according to the manufacturer's template.

Insert bolts from the fender side through the panel.

On the rear of the panel, use a large, flat washer and a locking nut (e.g., nylon-insert lock nut). Torque to the specified value—overtightening can distort the fender and create stress points.

②Chain Suspension Method:

Attach grade-80 or higher welded chain links to the fender's lifting/mounting lugs using properly rated shackles.

Connect the chain to heavy-duty pad eyes or piles. Ensure the chain is long enough to allow full design deflection but short enough to prevent excessive swinging.

Critical:Use master links and ensure all shackle pins are secured with mouse wire or safety pins.

2.3 Final Pre-Commissioning Checks:

Torque Verification: After 24-48 hours, re-check the torque on all nuts, as rubber can compress.

Clearance Check: Manually push/pull the fender to ensure it moves freely and does not contact any part of the dock at rest.

Documentation: Take photos of the installed system and record the installation date for your maintenance log.



Part 3: The Proactive Maintenance Regimen – Your Lifespan Insurance

Maintenance is not "fixing what's broken"; it's preventing failure.

3.1 Inspection Frequency & Checklist:

Monthly (Visual): Look for obvious cuts, abrasions, or debris lodged in the fender.

Quarterly (Detailed): Check for hairline cracks, surface chalking (UV degradation), and wear patterns. Inspect all metal hardware for corrosion, cracks, or deformation.

Annually (Comprehensive): Conduct the quarterly check with a technician. Measure deflection under a known, gentle load (if safe) to check for permanent set. Verify mounting integrity.

3.2 Common Issues & Early Diagnosis:

Symptom	Potential Cause	Immediate Action
Uneven Wear on One Side	Misalignment, prevailing current/wind	Check alignment and vessel approach procedures
Deep Cuts/Gouges	Impact with sharp vessel protrusions (thruster guards, weld seams)	Inspect visiting vessels; consider adding a protective wear pad
Surface Crazing/Checking	Normal aging; accelerated by ozone/UV exposure.	Note progression. If deep, consult manufacturer
Hardware Corrosion	Incorrect material grade for environment	Replace with higher-grade material to prevent catastrophic failure
Fender "Sagging" or Permanent Set	Over-deflection beyond rated capacity	Critical: Review berthing energy calculations. Fender may need replacement



Part 4: Repair, Refurbishment & End-of-Life Decisions

4.1 When to Repair vs. Replace:

Minor Repairs (<2" deep cuts, small punctures): Can often be professionally vulcanized in the field or in a workshop, restoring integrity.

Major Damage (Large tears, exposed internal piles, significant permanent set): Replacement is usually more cost-effective and safer. The structural integrity is compromised.

4.2 Maximizing Value: Refurbishment Programs:

Ask your supplier about fender refurbishment services. This can include: peeling off the worn outer layer, applying new rubber, and re-certifying the fender for a fraction of the cost of new—a sustainable and budget-friendly option.

Conclusion: Protect Your Investment, Secure Your Operation

An ARCH fender is a durable workhorse, but its performance is directly tied to the care it receives. A systematic approach to installation and maintenance is the single most effective way to avoid downtime, prevent collateral damage, and maximize your return on investment.
