Introduction: The Stakes of Fender Selection in European Ports
For port operators, terminal engineers, and procurement specialists across Europe, the selection of a marine fender system is far more consequential than a routine equipment purchase. A fender is not merely a rubber buffer between vessel and quay; it is the critical interface that protects billions of euros worth of port infrastructure and ships from catastrophic impact damage. In the European market, where ports like Rotterdam, Antwerp-Bruges, Hamburg, and Marseille handle some of the world's largest container vessels, LNG carriers, and cruise ships, the margin for error is zero.
Yet, navigating the technical landscape of fender selection has become increasingly complex. Two primary frameworks dominate the conversation: the ISO 17357 series (International Organization for Standardization) and the PIANC Guidelines (World Association for Waterborne Transport Infrastructure). While both aim to ensure safety and reliability, they represent fundamentally different philosophies—one prescriptive and product-focused, the other performance-based and application-driven.
For European buyers, understanding the distinction between these standards is not merely an academic exercise. It directly impacts procurement compliance, operational safety, total cost of ownership, and legal liability. Furthermore, with the European Union's stringent regulatory environment—particularly the REACH Regulation (EC 1907/2006) governing chemical substances—fender selection has expanded beyond mechanical performance to include environmental and human health considerations.
Part I: Understanding the Two Pillars of Fender Standards
The ISO 17357 series comprises three parts, each addressing a specific type of marine fender:
| Part | Title | Scope |
|---|---|---|
| ISO 17357-1:2014 | High-pressure floating pneumatic rubber fenders | Covers floating pneumatic fenders used in ship-to-ship (STS) and ship-to-quay applications |
| ISO 17357-2:2014 | Low-pressure floating pneumatic rubber fenders | Addresses low-pressure versions typically used for lighter applications |
| ISO 17357-3:2018 | Foam-filled fenders | Specifies requirements for foam-filled fenders, including closed-cell polyurethane foam core with polyurea or polyurethane skin |
Originally developed by the Japanese Industrial Standards (JIS) committee and later adopted as an international standard, ISO 17357 is fundamentally a product specification standard. Its primary purpose is to establish uniform requirements for the manufacturing, testing, and performance verification of fenders as discrete products.
Key characteristics of ISO 17357:
- Prescriptive parameters: Specifies exact dimensions, material properties (rubber compound hardness, tensile strength, elongation at break), and manufacturing tolerances
- Standardized testing protocols: Mandates specific test methods, including compression tests, adhesion tests, and accelerated aging tests
- Product-focused certification: A fender that meets ISO 17357 requirements is certified as compliant regardless of the specific application
For a European port operator, specifying "ISO 17357-1 compliant pneumatic fenders" ensures that the products delivered will meet a baseline of manufacturing quality and dimensional consistency. However, it does not guarantee that those fenders are optimally designed for the specific berthing conditions of a given terminal.
The PIANC (World Association for Waterborne Transport Infrastructure) , founded in 1885 and headquartered in Brussels, is a global non-profit organization that develops technical guidance for the waterborne transportation sector. Its Working Group 145 (previously WG 33 and WG 96) produced the definitive guidelines for fender system design, most notably:
- PIANC WG 145 (2021): *Guidelines for the Design of Fender Systems*
- PIANC WG 33 (2002): *Guidelines for the Design of Fender Systems* (predecessor)
- PIANC WG 96 (2009): *Inspection, Maintenance and Repair of Fender Systems*
Unlike ISO 17357, PIANC guidelines are not product standards—they are engineering design guidelines. They do not tell manufacturers how to build a fender; rather, they tell engineers how to select and configure fender systems based on site-specific conditions.
Key characteristics of PIANC guidelines:
- Performance-based: Focuses on berthing energy calculations, reaction forces, and system deflection
- Application-specific: Accounts for vessel characteristics (displacement, berthing velocity, approach angle), tidal variations, and quay structure rigidity
- Holistic system approach: Treats the fender as one component of a larger system that includes chains, anchors, wharf structure, and vessel hull
- Risk-informed: Incorporates probability factors for berthing velocity and approach angle based on operational risk assessments
For European port operators, PIANC represents the gold standard of engineering practice. Major infrastructure projects—particularly those receiving EU funding or involving public port authorities—routinely require PIANC-based design submissions.
Part II: Comparative Analysis—Philosophical and Technical Divergence
The most fundamental distinction between ISO 17357 and PIANC lies in their scope of application.
ISO 17357 asks: *"Does this individual fender meet the specified manufacturing and testing criteria?"*
PIANC asks: *"Will this fender system, installed at this specific berth, safely absorb the berthing energy of the vessels calling at this terminal over its operational lifetime?"*
Consider an analogy: ISO 17357 is like certifying that an airbag meets manufacturing specifications—correct dimensions, proper explosive charge, reliable deployment mechanism. PIANC is like engineering the entire vehicle safety system—determining where the airbag should be placed, how it interacts with the seatbelt and crumple zone, and whether it adequately protects occupants in a crash specific to that vehicle model.
This philosophical divergence has practical consequences. A fender that passes ISO 17357 testing in a factory setting may still be unsuitable for a terminal with extreme tidal ranges, high berthing velocities, or unusual quay structures. Conversely, a fender that does not perfectly align with ISO dimensional specifications may nevertheless be the optimal solution for a particular application when evaluated through the PIANC lens.
The accurate calculation of berthing energy—the kinetic energy that must be absorbed by the fender system during vessel impact—is the cornerstone of fender design. Here, the two frameworks differ significantly.
ISO 17357's approach:
ISO 17357 does not prescribe how to calculate berthing energy; it simply requires that the fender's rated energy absorption capacity be verified through compression testing. The standard provides tables correlating fender size (e.g., 1000mm diameter pneumatic fender) with nominal energy absorption values (e.g., 1000 kN·m at 60% deflection).
However, these nominal values assume ideal conditions: perpendicular berthing, nominal berthing velocity, and standard vessel displacement. They do not account for:
- Vessel hull curvature
- Angle of approach
- Tidal position relative to fender stack
- Quay structure flexibility
PIANC's approach:
PIANC WG 145 provides a comprehensive methodology for calculating design berthing energy (E_d) :
Ed=Ce×Cm×Cs×Cc×（m×v2 ）/2
Where:
( Ce ) = eccentricity factor (accounts for vessel rotation)
( Cm ) = mass factor (accounts for hydrodynamic added mass)
( Cs ) = softness factor (accounts for hull/fender interaction)
( Cc ) = configuration factor (accounts for multiple fender units sharing load)
( m ) = vessel displacement (tonnes)
( v ） = berthing velocity (m/s)
PIANC further incorporates probability-based velocity factors, recognizing that berthing velocity follows a statistical distribution rather than a single deterministic value. For terminals with well-trained pilots and modern tug assistance, a lower velocity factor may be applied; for exposed terminals with challenging conditions, higher factors are mandated.
Implications for European port operators:
For a standard container terminal in a sheltered location like Rotterdam's Maasvlakte, the difference between ISO nominal values and PIANC-calculated requirements may be modest. However, for an exposed LNG terminal in the Bay of Biscay or a ferry port with high-frequency operations, PIANC's probabilistic approach often yields significantly higher design energy requirements than ISO's nominal tables would suggest.
A well-designed fender system must balance two competing parameters:
- Reaction force (R): The force transmitted from the fender to the quay structure during compression
- Deflection (δ): The amount the fender compresses under load
The ratio of reaction force to energy absorption defines the fender's efficiency. All else being equal, a fender that absorbs high energy with low reaction force is preferable, as it reduces stress on both the vessel hull and the wharf structure.
ISO 17357 specifies minimum and maximum reaction force values for each fender size, based on factory compression tests. However, these values are derived from tests conducted on isolated fenders under idealized conditions.

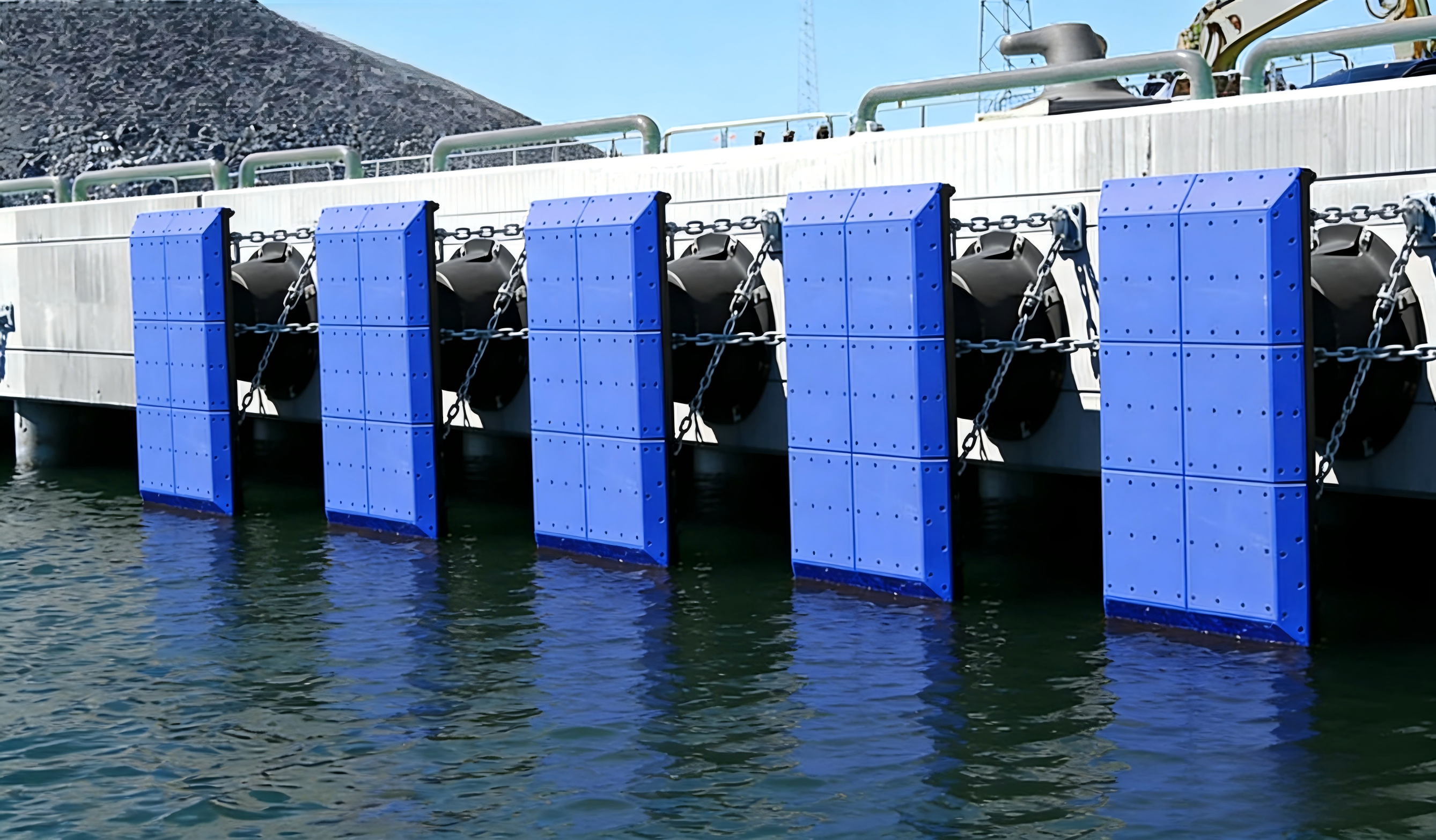

PIANC requires engineers to evaluate the complete system curve—the relationship between reaction force and deflection for the specific installation, accounting for:
- Multiple fender interaction: When fenders are installed in a row (as on a container berth), the load distribution across units depends on the rigidity of the wharf face and the vessel's hull profile
- Chain and anchoring systems: The tension in mooring chains and the performance of reaction-absorbing anchors affect the effective reaction force at the wharf
- Hull curvature: For vessels with pronounced bow flare or bulbous bows, the point of contact may be concentrated, increasing localized reaction forces
A common pitfall in European projects has been the specification of ISO-compliant fenders without PIANC-based system analysis, resulting in installations where individual fenders met product standards but the overall system exhibited excessive reaction forces, leading to wharf spalling or vessel hull damage.
Part III: The European Regulatory Context—Beyond Mechanical Standards
For any marine fender system entering the European market, REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) compliance is not optional—it is a legal requirement. Regulation (EC) No 1907/2006 governs the manufacture, import, and use of chemical substances within the EU.
Fender manufacturers often overlook that rubber compounds contain numerous chemical substances that may be subject to REACH restrictions:
- Plasticizers (phthalates) used in rubber compounding
- Vulcanization accelerators (including certain benzothiazoles)
- Antioxidants (some of which are classified as SVHC—Substances of Very High Concern)
- Heavy metals (lead, cadmium) historically used in some rubber formulations
What REACH compliance means for fender procurement:
1. SVHC disclosure: Suppliers must disclose whether any substances on the REACH Candidate List are present above 0.1% weight by weight
2. Restricted substances: Annex XVII of REACH lists substances with usage restrictions—fenders containing prohibited substances cannot be legally placed on the EU market
3. Chemical safety assessment: For certain substances, a chemical safety assessment is required
European port authorities, particularly in Germany (HPA Hamburg), the Netherlands (Rijkswaterstaat), and Scandinavia, now routinely require REACH compliance declarations and material safety data sheets (MSDS) as part of fender procurement documentation.
Marine fenders are increasingly falling under the scope of the Construction Products Regulation (EU) No 305/2011 (CPR) . While fenders have historically been treated as marine equipment, their integration into quay structures—which are construction works—has led to evolving interpretations.
For a fender system installed as part of a permanent quay structure, the CPR may require:
- Declaration of Performance (DoP) from the manufacturer
- CE marking indicating conformity with harmonized technical specifications
- Notified Body involvement for certain performance characteristics (e.g., reaction force declaration, durability testing)
European port operators should verify with their suppliers whether the proposed fender system carries CE marking and, if so, which performance characteristics are declared. The absence of CE marking may not preclude use, but it shifts the burden of verification to the design engineer.
European port authorities often impose requirements that exceed international standards. Notable examples include:
| Port Authority | Specific Requirements |
|---|---|
| HPA Hamburg | Mandates PIANC WG 145 design submissions; requires third-party witnessing of all performance tests; enforces strict REACH compliance with annual reporting |
| Port of Rotterdam | Requires fender suppliers to be listed on the “Port of Rotterdam Approved Suppliers” registry; mandates full-scale compression testing for all fender types; imposes environmental criteria including low-PAH (polycyclic aromatic hydrocarbons) rubber compounds |
| Port of Antwerp-Bruges | Requires detailed fender installation documentation with torque verification; mandates stainless steel or hot-dip galvanized (minimum 120μm) chain components; requires fender replacement plans for long-term maintenance |
Part IV: Procurement Implications—What European Buyers Should Ask
For European port operators, terminal engineers, and procurement professionals, the following checklist provides a structured approach to fender evaluation that integrates ISO, PIANC, and regulatory considerations.
On ISO 17357 Compliance:
- "Is your fender certified as compliant with the relevant part of ISO 17357? Please provide the third-party test report from an accredited laboratory (e.g., SGS, BV, TÜV)."
- "Was the compression test conducted at 60% deflection in accordance with ISO 17357-1, Clause 8? What was the measured reaction force at 60% deflection compared to the nominal value?"
On PIANC-Based Design:
- "Has the fender system been designed in accordance with PIANC WG 145? Please provide the design basis memorandum including berthing energy calculations with C_e, C_m, C_s, and C_c factors."
- "What design berthing velocity was assumed? Was this validated against operational data from similar terminals?"
- "How does the fender system accommodate tidal variations? What is the effective service range of the fender?"
On Regulatory Compliance:
- "Is the rubber compound fully REACH-compliant? Please provide the REACH compliance declaration and identify any SVHCs present above 0.1%."
- "Does the fender system carry CE marking under the CPR? If so, provide the Declaration of Performance."
- "Has the fender been tested for PAH content? What is the total PAH concentration?"
On Quality Assurance:
- "Where is the fender manufactured? What quality management systems (ISO 9001, ISO 14001) are in place?"
- "Can you provide witnessed test reports from a recognized third-party inspection agency?"
European buyers should exercise caution when encountering:
- Vague ISO claims: "ISO standard" without specifying which part (e.g., ISO 17357-1:2014 vs. obsolete versions)
- No third-party testing: In-house test reports without accredited laboratory witnessing
- REACH evasion: "Our product is REACH compliant" without supporting documentation or SVHC disclosure
- PIANC ignorance: Inability to explain the basis for berthing energy calculations
- No reference installations: Lack of verifiable references in European ports with similar conditions
Part V: The Case for Integrated Specification
The most technically sound approach for European fender procurement is to specify both ISO 17357 compliance and PIANC WG 145 design:
- ISO 17357 provides assurance that the manufactured products meet consistent quality standards and have undergone standardized testing
- PIANC WG 145 ensures that the selected products are appropriately sized and configured for the specific site conditions
This dual-specification approach is increasingly standard practice in major European port projects. For example, the recent expansion of the Port of Rotterdam's Prinses Amaliahaven specified:
> *"Pneumatic fenders shall conform to ISO 17357-1:2014. Fender system design, including berthing energy calculation and reaction force distribution, shall be in accordance with PIANC WG 145 (2021). Supplier shall provide third-party witnessed test reports for all performance characteristics."*
European ports have learned from costly failures. In one documented case at a North Sea ferry terminal, fenders specified only to ISO 17357 without PIANC-based analysis failed within 18 months. The failure mode was not product defect—the fenders met all ISO manufacturing requirements—but systemic under-design: the berthing velocities experienced by high-frequency ferries exceeded the nominal values assumed in the ISO tables, and the tidal range resulted in fender contact at unfavorable points on the vessel hull.
The consequences included:
- Quay structure damage: €2.1 million in repairs
- Operational downtime: 14 days of reduced berth availability
- Vessel hull repairs: €350,000 per affected vessel
- Increased insurance premiums: 22% increase following the incident
This case illustrates that "cheaper" ISO-only procurement ultimately proved far more expensive than a properly engineered PIANC-based system would have been.
Conclusion: Elevating Procurement Practice
For European port operators, the choice between ISO 17357 and PIANC guidelines is not a binary decision—it is an integration challenge. The most reliable fender systems emerge from a procurement approach that:
1. Requires ISO 17357 certification as the baseline for product quality
2. Mandates PIANC WG 145 design methodology for site-specific engineering
3. Enforces REACH and CE compliance for regulatory alignment
4. Demands third-party testing and witness for verification
5. Selects suppliers with verifiable European reference installations
As a supplier serving the European market, adherence to this integrated standard is not merely a competitive advantage—it is a prerequisite. European port authorities, terminal operators, and consulting engineers have become increasingly sophisticated in their technical evaluations. The era of competing solely on price has given way to a new paradigm where technical documentation, compliance verification, and engineering partnership determine supplier selection.
For procurement professionals, the message is equally clear: specifying ISO compliance alone leaves critical gaps in system performance, regulatory alignment, and risk management. The investment in PIANC-based design and comprehensive compliance verification delivers returns measured not only in reduced lifecycle costs but also in the avoidance of catastrophic failures and operational disruptions.
In the demanding environment of European ports—where vessels are larger, schedules are tighter, and regulatory scrutiny is greater than ever—the question is no longer whether to follow ISO or PIANC. The question is whether the supplier and procurement team have the technical capability to integrate both into a specification that protects the interests of all stakeholders.
References and Further Reading
1. ISO 17357-1:2014, *Ships and marine technology — High-pressure floating pneumatic rubber fenders*
2. ISO 17357-3:2018, *Ships and marine technology — Foam-filled fenders*
3. PIANC WG 145 (2021), *Guidelines for the Design of Fender Systems*
4. Regulation (EC) No 1907/2006 of the European Parliament and of the Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)
5. Regulation (EU) No 305/2011, *Construction Products Regulation*
6. Port of Rotterdam, *Technical Specifications for Marine Fendering Systems*, 2023 Edition
7. HPA Hamburg, *Fender System Design Requirements for Port Infrastructure*, 2022
