When a 300,000-ton VLCC approaches an LNG terminal, the marine fender steel frontal panel is the only thing standing between safe berthing and catastrophic hull damage.
I have spent two decades manufacturing OEM rubber fender systems and mooring bollards for global brands. In my experience, the single most overlooked—and most critical—component of any fender system is the steel frontal panel.
This guide explains everything you need to know about marine fender steel frontal panels, from design fundamentals to corrosion protection. And yes—we offer free technical consultation to help you get it right the first time.

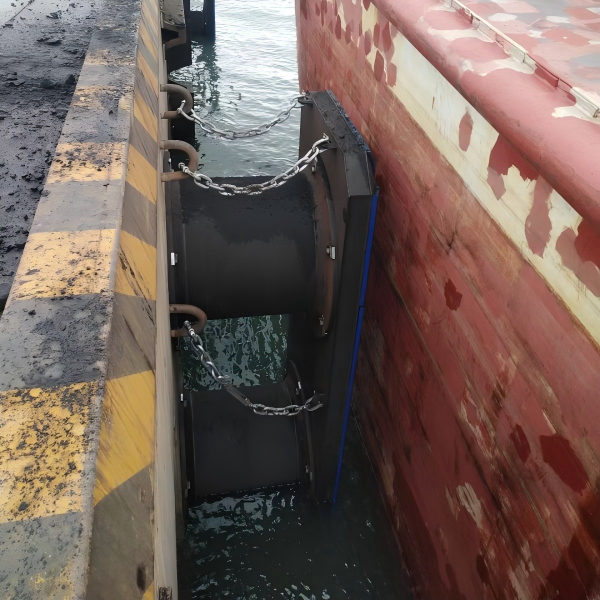

A marine fender steel frontal panel is the steel interface mounted between the rubber fender unit and the vessel's hull. Its primary function is to distribute reaction forces from the fender across a wider area of the ship's hull, preventing point loading that could damage either the vessel or the fender system.
| Component | Function | Material |
|---|---|---|
| Frontal panel | Primary contact surface; distributes impact loads | Carbon steel / Marine-grade steel |
| Backing structure | Transfers loads to rubber fender units | H-beam steel / Stiffeners |
| UHMW-PE face pads | Reduces friction; protects hull paintwork | Ultra-high molecular weight polyethylene |
| Corrosion protection | Prevents rust in marine environment | Epoxy coating / Hot-dip galvanizing / Zinc anodes |
> *"The frontal panel is an important part of the fender system. A good fender system should ensure optimal synergy within each structure."*
Why this matters: A poorly designed frontal panel can transfer excessive pressure to the vessel hull, causing dents, paint damage, or even structural compromise. A well-designed panel protects both your fenders and your vessels.
No two berths are identical. Vessel types vary. Tidal ranges differ. Environmental conditions change.
That's why free technical consultation is not a luxury—it's a necessity. Generic, off-the-shelf frontal panels rarely deliver optimal performance.
| Consultation Area | What We Analyze |
|---|---|
| Vessel profile | Ship types, sizes, berthing frequencies, approach angles |
| Berthing energy | Kinetic energy calculations based on vessel mass and velocity |
| Hull pressure limits | PIANC guidelines for vessel-specific allowable pressure |
| Tidal range | Floating vs. fixed panel requirements |
| Environmental factors | Saltwater, UV, temperature extremes, marine growth |
| Corrosion protection | Optimal coating or galvanization strategy |
> *"The design for frontal frame shall be considered quay structure type, berthing vessel, hydrologic condition and fender arrangement etc.—the fixed standard specification is not applicable."*
The most important function of a frontal panel is keeping hull pressure below allowable limits. PIANC provides specific guidance on maximum hull pressure by vessel type.
The Hull Pressure Formula:
> P = ΣR / (A1 × B1) ≤ PP
Where:
- ΣR = Combined reaction forces of all rubber fenders (kN)
- A1 = Valid panel width excluding lead-in chamfers (m)
- B1 = Valid panel height excluding lead-in chamfers (m)
- PP = Permissible hull pressure (kN/m²)
| Vessel Type | Allowable Hull Pressure (kN/m²) |
|---|---|
| Container vessels (1st & 2nd generation) | < 400 |
| Container vessels (3rd generation / Panamax) | < 300 |
| Container vessels (5th & 6th generation / Super Post-Panamax) | < 200 |
| Oil tankers (< 60,000 DWT) | < 300 |
| Oil tankers (> 60,000 DWT) | < 350 |
| VLCC (Very Large Crude Carriers) | < 350 |
| Gas carriers (LNG/LPG) | < 200 |
| Bulk carriers | < 200 |
| General cargo vessels (< 20,000 DWT) | 400–700 |
| General cargo vessels (> 20,000 DWT) | < 400 |
Important note: These are maximum allowable pressures. Your frontal panel design must ensure actual pressure stays well below these limits—typically by 20-30% for a safety margin.
Based on industry standards for marine fender steel frontal panels, recommended minimum thicknesses are:
| Panel Location | Recommended Thickness |
|---|---|
| Plates exposed on two surfaces | 12 mm minimum |
| Plates exposed on one surface | 9–10 mm |
| Internal members (not exposed) | 8 mm |
Why thickness matters: Thinner steel may save upfront cost but will corrode faster and may deform under impact. Thicker steel adds weight and cost but extends service life significantly.
Frontal panels come in two primary configurations:
| Feature | Open Type | Closed Type (Recommended) |
|---|---|---|
| Construction | Steel pad + H-beam + cross steel | Fully sealed box structure |
| Strength | Moderate | Superior |
| Corrosion resistance | Moderate (water ingress possible) | Excellent (watertight) |
| Maintenance | Higher (internal corrosion risk) | Lower |
| Service life | 10–15 years | 20–25 years |
| Cost | Lower | Higher |
> *"We recommend the closed configuration due to its superior strength, excellent corrosion resistance, and prolonged service life."*

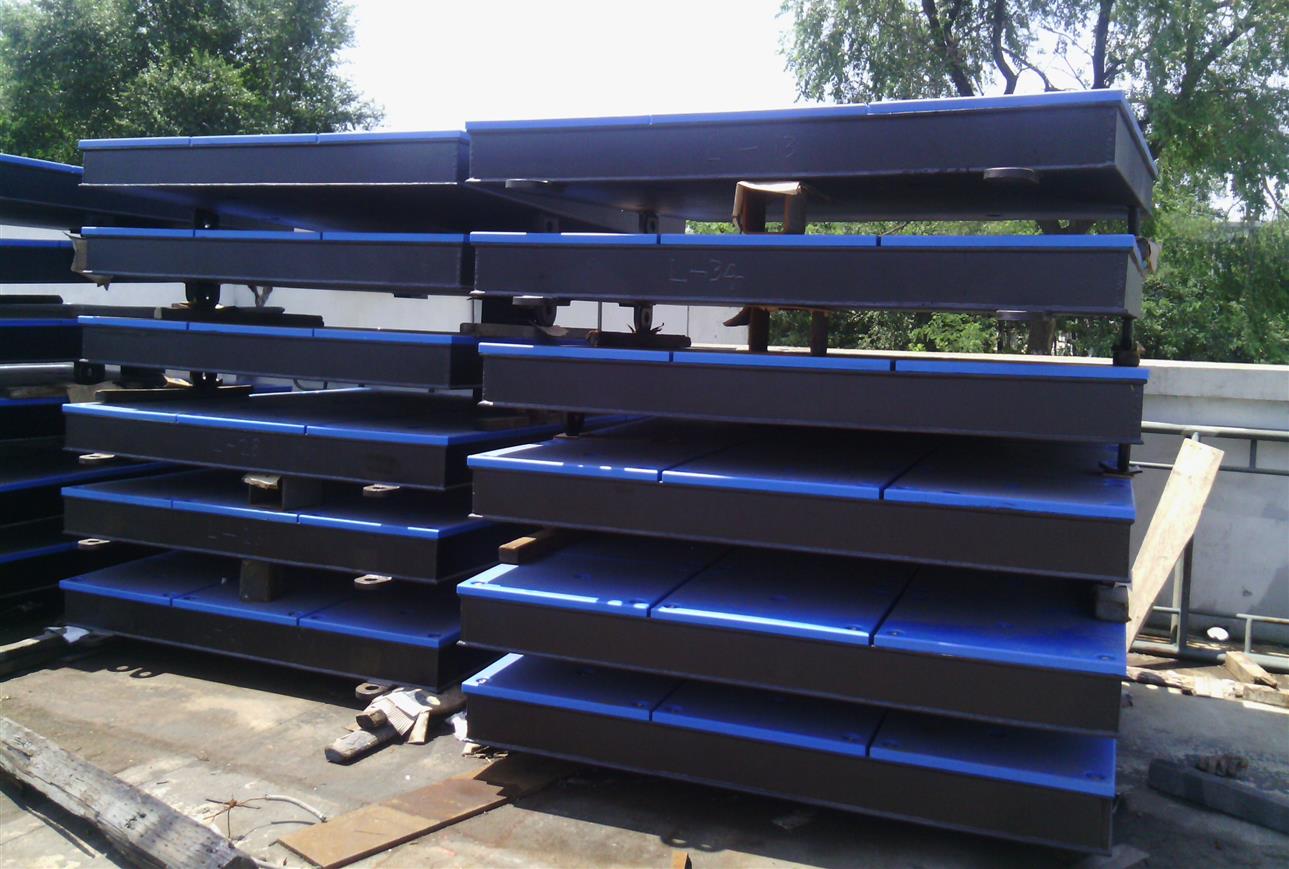

Frontal panels are typically fitted with UHMW-PE (Ultra-High Molecular Weight Polyethylene) face pads. These serve multiple critical functions:
| Benefit | How It Works |
|---|---|
| Reduces friction | Low coefficient of friction allows vessels to slide safely during berthing |
| Protects hull paint | Soft polymer surface prevents abrasion |
| Extends panel life | Wear surface is replaceable; steel underneath stays protected |
| Improves safety | Reduces shear forces on fender system |
| Visual guidance | Bright colors (yellow, blue) help captains identify berthing points |
> *"UHMW-PE face pads reduce the coefficient of friction during berthing, protecting both the hull and the fender system itself."*
Marine environments are exceptionally corrosive. Without proper protection, a steel frontal panel can rust through in 3–5 years. With proper protection, it can last 20+ years.
Here are the four main corrosion protection methods for marine fender steel frontal panels:
| Method | Process | Durability | Cost | Best For |
|---|---|---|---|---|
| Black paint coating | Simple barrier coating | Low (1–3 years) | Low | Temporary installations, low-budget projects |
| Epoxy coating | Chemical-resistant multi-coat system | High (5–10 years) | Medium | Most commercial ports; excellent barrier protection |
| Hot-dip galvanizing | Zinc coating via molten zinc bath | Very high (15–20 years) | High | Harsh environments; long-life applications |
| Zinc anode protection | Sacrificial anodes + coating | Very high (ongoing replacement) | Medium-High | High-corrosion zones; used WITH coating |
For most commercial port applications, we recommend a combination approach:
1. Hot-dip galvanizing of the entire steel structure
2. Epoxy topcoat for additional barrier protection
3. Zinc anodes attached to the panel bottom for cathodic protection
> *"Regardless of corrosion protection method used, it effectively protects steel frontal panels. Terminal operators can choose the most suitable solution based on cost, environment, and service life requirements."*
For high-corrosion locations like the Thames Estuary, glass flake paint systems provide exceptional resistance to abrasion and chemical corrosion.
> *"A high-spec, multi-coat marine finish with glass flake was chosen for its exceptional resistance to abrasion and chemical corrosion."*
Modern marine fender steel frontal panel design relies on Finite Element Analysis (FEA) to verify structural integrity before manufacturing.
| Simulation | What It Tests |
|---|---|
| Stress distribution | Identifies high-stress concentration points |
| Deformation under load | Predicts panel bending during impact |
| Fatigue life | Estimates longevity under repeated berthing |
| Weld integrity | Verifies connection points |
> *"We use ANSYS finite element analysis to design our marine fender systems, simulating stress distribution and deformation under various operating conditions to ensure the fenders remain stable, durable, and perform at their best."*
Our commitment: Every marine fender steel frontal panel we manufacture is designed using FEA to ensure optimal performance. When you request a free technical consultation, we provide preliminary FEA results as part of the proposal.
| Parameter | Specification |
|---|---|
| Location | Canvey Island, Thames Estuary |
| Application | Deepwater jetty for liquid bulk terminal |
| Vessel types | Large tankers |
| Panel dimensions | 2,400mm x 8,450mm (massive contact area) |
| Face pads | 50mm thick, 1,000-grade UHMW-PE |
| Corrosion protection | Glass flake paint system |
| Fender type | Parallel Motion Torsion Arm + CT1400 Cone Fenders |
Key engineering highlight: The torsion arm mechanism ensures that the 8.4-meter-high frontal panels remain vertical throughout the entire compression stroke—preventing tilting or twisting even during angular berthing. This maximizes energy absorption and eliminates localized high-pressure points on vessel hulls.
Project outcome: Delivered on schedule, minimal maintenance required despite high-frequency use and corrosive estuary environment.
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we don't just manufacture marine fender steel frontal panels. We manufacture complete berthing and mooring solutions, including:

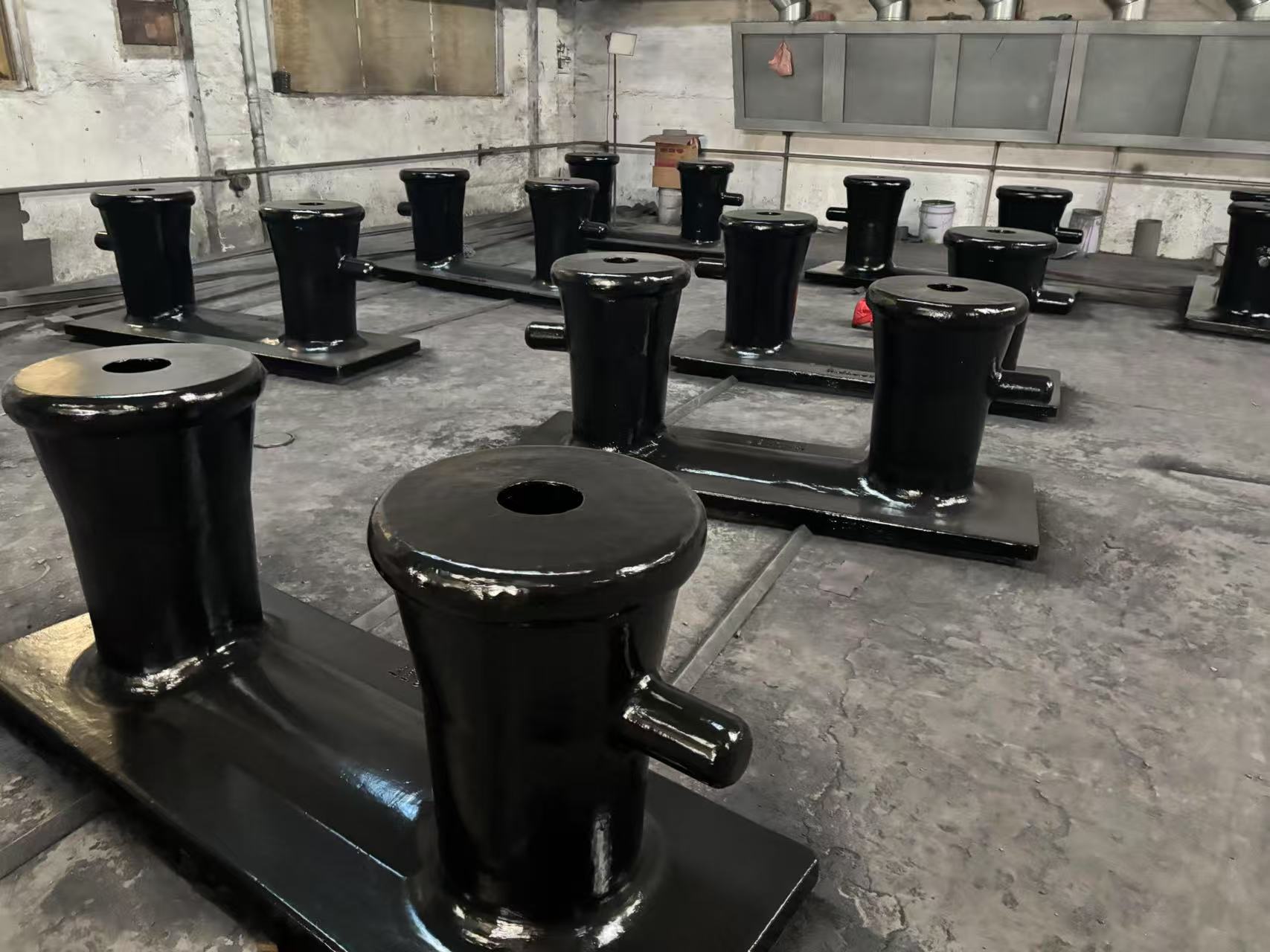

Our Mooring Bollard Product Range:
| Bollard Type | Capacity | Applications |
|---|---|---|
| T-Head bollards | 10–300 tons | General cargo, container terminals |
| Double bitt bollards | 10–200 tons | Tanker terminals, bulk berths |
| Single bitt bollards | 10–150 tons | Small craft, fishing harbors |
| Pillar bollards | 5–50 tons | Marinas, light-duty berths |
| Quick release hooks | Custom | STS transfer, offshore platforms |
All our bollards are manufactured to ISO 9001:2015 standards, with third-party inspection available from ABS, BV, DNV, LR, or CCS.
> *"Our ISO 9001 certified manufacturing facilities possess more than 50,000㎡ of floor space with annual output production capabilities of more than 12,000 tons of marine fenders and 6,000 tons of mooring bollards."*
We asked our global OEM clients about their experience with marine fender steel frontal panels. Here is what they shared:
> *"Before we standardized on closed-type frontal panels, we were replacing open-type panels every 5-6 years due to internal corrosion. The closed design has been in place for 8 years now with zero corrosion issues. The higher upfront cost paid for itself within 3 years."*
> — *Port Engineer, Southeast Asian Container Terminal*
> *"The UHMW-PE face pads are worth every penny. Our old steel-only panels were scratching hulls and requiring frequent repainting of our fleet. The polymer pads eliminated that problem completely."*
> — *Fleet Manager, European Shipping Line*
> *"We learned the hard way that not all coatings are equal. One supplier used standard industrial paint instead of marine epoxy. Within 18 months, the panels were showing rust. Now we specify hot-dip galvanizing with epoxy topcoat—and we require test certificates."*
> — *Procurement Manager, Middle East Port Authority*
When you contact Nanjing Taidun for a free technical consultation on marine fender steel frontal panels, you receive:
| Deliverable | Description |
|---|---|
| Needs assessment | Analysis of your vessel types, berthing patterns, and environmental conditions |
| Hull pressure calculation | PIANC-compliant calculation to determine required panel area |
| Preliminary design | Panel configuration, steel thickness, and structural layout |
| Corrosion protection recommendation | Optimal coating/galvanizing strategy for your environment |
| Budget estimate | No-obligation cost estimate for manufacturing and delivery |
| FEA verification | Structural analysis results upon request |
Our commitment: We respond to all technical consultation requests within 24 hours.
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture marine fender steel frontal panels that meet the highest international standards.
Our capabilities include:
| Service | Description |
|---|---|
| Custom engineering | Panels designed to your exact vessel profiles and berthing conditions |
| Material selection | Marine-grade steel (AH36, DH36) or stainless steel options |
| Corrosion protection | Hot-dip galvanizing, epoxy coating, or zinc anode systems |
| Face pads | UHMW-PE in custom colors (yellow, blue, black, or custom) |
| Third-party certification | ABS, BV, DNV, LR, CCS inspection available |
| Global delivery | Serving brand owners, wholesalers, and production facilities in over 80 countries |
We supply complete berthing solutions: marine fenders, steel frontal panels, UHMW-PE face pads, mooring bollards, and all mounting hardware.
A properly designed marine fender steel frontal panel is the difference between a 5-year maintenance headache and a 20-year reliable asset.
Don't guess. Don't settle for generic designs. Get a free technical consultation from engineers who understand the complexities of hull pressure, corrosion protection, and structural integration.
[Contact the Nanjing Taidun Engineering Team] today for your free technical consultation on marine fender steel frontal panels. Send us your vessel specifications, berthing data, and environmental conditions—we will respond with a preliminary design within 24 hours.
We support ports, terminals, shipyards, and marine operators worldwide.
Q1: What is the function of a marine fender steel frontal panel?
A: The frontal panel distributes impact forces from the rubber fender across a larger area of the vessel's hull, preventing point loading that could damage the ship's structure. It also provides a replaceable wear surface (UHMW-PE pads) and protects the rubber fender from direct hull contact.
Q2: What is the difference between open and closed frontal panel designs?
A: Open-type panels have exposed internal structures that can trap water and accelerate corrosion. Closed-type panels are fully sealed, watertight steel boxes that offer superior strength, corrosion resistance, and service life (20+ years vs. 10-15 years).
Q3: What corrosion protection method is best for marine frontal panels?
A: For maximum service life, we recommend hot-dip galvanizing + epoxy topcoat + zinc anodes. For less demanding environments, epoxy coating alone may suffice. Standard black paint is only suitable for temporary installations.
Q4: How is hull pressure calculated for frontal panel design?
A: Using the formula P = ΣR / (A1 × B1), where ΣR is the combined reaction force of all fenders, and A1 × B1 is the effective panel area. The result must stay below PIANC guidelines for the specific vessel type (e.g., <200 kN/m² for LNG carriers, <350 kN/m² for VLCCs).
Q5: Why are UHMW-PE face pads recommended?
A: UHMW-PE (ultra-high molecular weight polyethylene) reduces friction between the panel and vessel hull, protecting hull paint and reducing shear forces on the fender system. It is highly wear-resistant and comes in high-visibility colors for safer berthing.
Q6: How long should a marine fender steel frontal panel last?
A: With proper design (closed-type construction) and corrosion protection (hot-dip galvanizing + epoxy coating), a frontal panel can last 20–25 years. Poorly protected panels may fail in 3–5 years due to corrosion.
Q7: Do you offer free technical consultation for frontal panel design?
A: Yes. Contact our engineering team with your vessel specifications, berthing data, and environmental conditions. We will provide a preliminary design recommendation—completely free of charge—within 24 hours.
