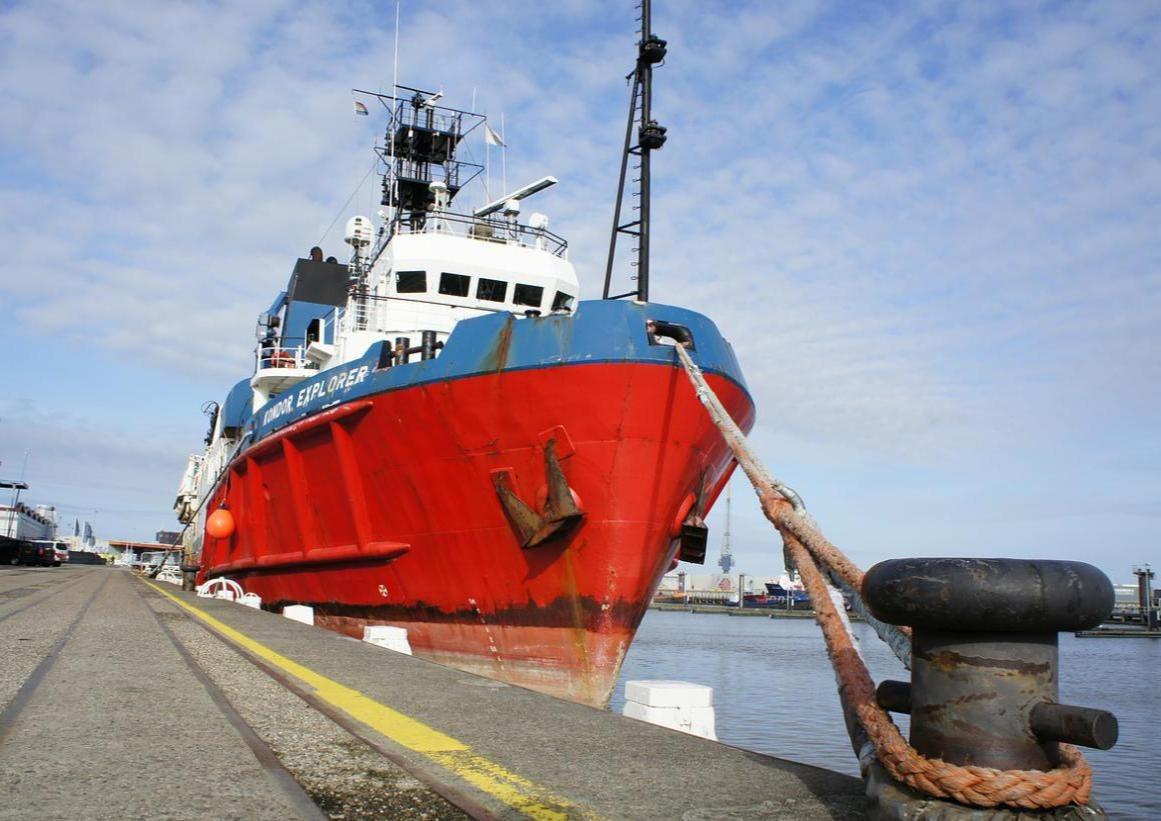

When a 200,000-ton tanker is secured to a dock, the only thing standing between the vessel and disaster is a seemingly simple piece of steel—the mooring bollard. Yet every year, ports around the world experience mooring failures because bollards were not properly inspected or maintained.
The question is not whether your bollards are strong enough. The question is: do you have documented proof?
I have spent decades manufacturing OEM marine equipment, including mooring bollards and rubber fender systems, for global brands. In this guide, I will walk you through the mooring bollard quality inspection standards you must know—covering international standards, inspection protocols, non-destructive testing methods, and a practical field checklist.

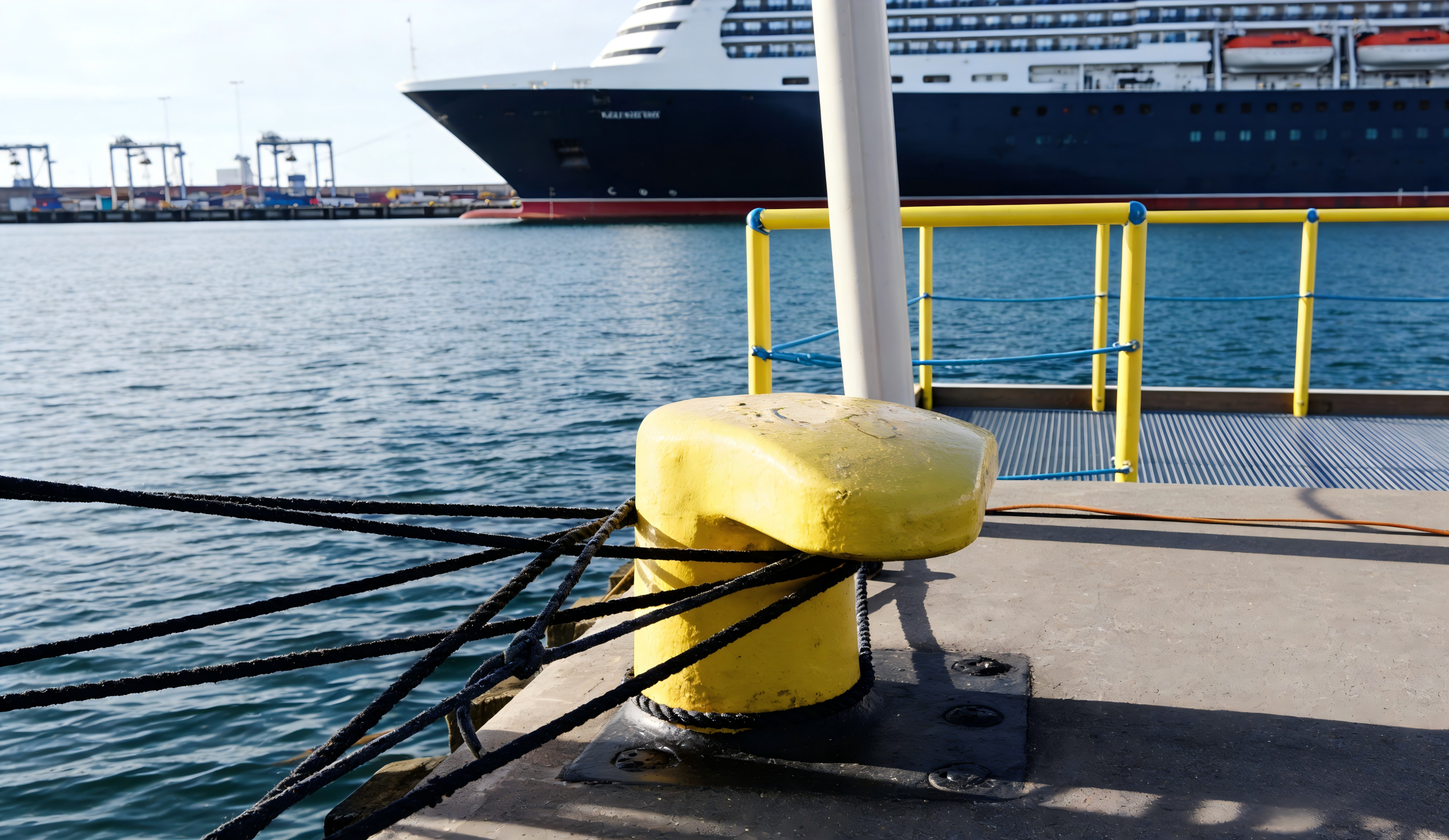

Mooring bollards may appear simple—just welded steel posts firmly anchored into concrete. But they operate under extreme conditions:
- Constant cyclical loading from tidal changes and vessel movement
- Corrosive marine environments (saltwater, humidity, chemical exposure)
- Shock loads from sudden vessel movements
- Aging infrastructure—many ports operate with bollards decades old
> *"All ports are aging, and a current safe working load assessment of the mooring bollard is critical to protect people/assets and to confirm mooring berthing plans."*
Without regular inspection and verification, a bollard's Safe Working Load (SWL) rating becomes an assumption—not a certainty. And assumptions, in marine operations, lead to accidents.
Understanding the mooring bollard quality inspection standards you must know starts with the governing documents that define design, manufacturing, and testing requirements.
ISO 13795:2020 is the primary international standard for welded steel bollards installed on sea-going vessels .
| Specification | Detail |
|---|---|
| Full title | Ships and marine technology — Ship‘s mooring and towing fittings — Welded steel bollards for sea-going vessels |
| Publication date | August 28, 2020 |
| Current status | Under periodical review (as of July 2025) |
| Supersedes | ISO 13795:2012 |
| Scope | Specifies types, nominal sizes, dimensions, materials, construction, manufacturing, and marking requirements |
For cruciform (cross-shaped) bollards, ISO 13797:2020 provides the governing framework .
Key provisions:
- Defines SWL (Safe Working Load) with updated language
- Requires surfaces in contact with ropes to be free from roughness or irregularities
- Mandates external anti-corrosion protective finish
- Includes construction requirements not present in the 2012 version
A new standard for double cruciform bollards is currently under development .
| Status | Detail |
|---|---|
| Current stage | 20.99 – WD approved for registration as CD |
| Date | November 11, 2025 |
| Committee | ISO/TC 8/SC 4 – Outfitting and deck machinery |
| Size range | Nominal size 70 to 500 |
| Scope | Materials, construction, manufacturing requirements |
For operations in or sourcing from China, GB/T 554-2023 is the current national standard for welded steel bollards for sea-going vessels .
| Specification | Detail |
|---|---|
| Effective date | December 1, 2023 |
| Supersedes | GB/T 554-2008 |
| Page count | 18 pages |
| Classification | U21 (Ship fittings) |
| Adopted from | ISO 13795:2020 (NEQ – not equivalent) |
Referenced standards within GB/T 554-2023:
- GB/T 699-2015 (Carbon structural steels)
- GB/T 700-2006 (Carbon steel plates)
- GB/T 712-2011 (Shipbuilding steel)
- GB/T 8162-2018 (Structural steel tubes)
- GB/T 8923.1-2011 (Rust grades and surface preparation)
- IMO MSC/Circ.1175 (Guidance on shipboard towing and mooring equipment)
Based on industry best practices and international standards, here is the 8-step inspection protocol every port should follow .
| What to Check | Red Flags |
|---|---|
| Dents and deformation | Any visible distortion of barrel shape |
| Cracks | Surface cracks, especially near weld lines |
| Surface penetration | Deep gouges or erosion |
| Worn-down rims | Reduced diameter from rope abrasion |
| Battered tops | Flattened or mushroomed top surfaces |
> *"Inspect for dents, cracks, surface penetration, worn-down rims or battered tops."*
Marine corrosion is relentless. Inspect for:
— Chipped or peeling paint exposing bare metal
— Rust staining on galvanized surfaces
— White rust on galvanized coatings (indicates coating consumption)
Action: Strip and re-coat as necessary. For galvanized surfaces, touch up with zinc-coated spray .
Corrosion does not always manifest visibly. Internal wall thinning is a silent threat.
- Compare current barrel thickness against manufacturer specifications
- Action threshold: Any deviation exceeding 2 mm should trigger a discussion with your supplier
- Use ultrasonic thickness gauges for accurate measurement
The bollard is only as secure as its anchor bolts.
- Use a calibrated torque wrench to verify bolt tightness
- Loose anchor bolts compromise the entire mooring system
- Compare measured torque against specified values from installation records
- Verify galvanization is intact on exposed bolt threads
- Check for rust bleeding around bolt heads
- Look for signs of crevice corrosion at nut-to-base contact points
The grout bed transfers loads from the bollard base to the concrete foundation.
| Condition | Action |
|---|---|
| Intact grout | No action |
| Surface cracking | Monitor |
| Grout loss or spalling | Regrout immediately |
Why this matters: Grout deterioration allows bollard movement under load, which accelerates anchor bolt fatigue and foundation damage.
Load testing is the only way to verify actual SWL capacity—not just visual condition.
- Perform pull tests at 110% of the working load
- Monitor displacement during testing
- Record permanent deformation after load removal
> *"Periodic load testing—pull tests at 110% of working load—is an essential part of verifying safety."*
All inspection findings must be documented:
- Inspection dates and personnel
- Measurement results (torque values, thickness readings)
- Photographs of any defects
- Repair actions taken
- Next inspection due dates
> *"Keep records of all inspections, measurements, maintenance activities, and torque values—ideal for spotting trends and preparing warranty claims."*
Visual inspection alone is insufficient for verifying structural integrity. Advanced NDT methods provide deeper insight.
The Washington Public Ports Association recognizes BollardScan as an advanced inspection method for mooring bollards, cleats, and quick release hooks .
What BollardScan establishes:
| Parameter | What It Detects |
|---|---|
| System frequency | Dynamic response characteristics |
| Anchoring hardware integrity | Loose or broken anchoring, including location |
| Displacement measurements | Movement under load |
| Material stiffness values | Degradation of structural properties |
| SWL confirmation | System capacity verification |
> *"BollardScan establishes anchoring hardware integrity—detection and location of loose/broken anchoring."*
Key credentials:
- Approved by Lloyd's Register
- Provides insurance on all qualified bollards
- Over 20,000 bollards inspected
For verifying SWL ratings, portable hydraulic load testing systems offer a practical solution.
As documented in a 2013 ASCE paper, a portable loading system was designed to:
- Apply 50 to 100 ton line pulls
- Test from 0 to 30 degrees to the horizontal
- Use combined horizontal and vertical load components simultaneously
Case study results: 37 bollards tested successfully. The frame and jack system proved reusable for additional tests as requested by the port owner .
A 2016 ASCE paper documented load testing at U.S. Navy facilities on five different types of bollards and foundations .
Key lessons from the study:
| Challenge | Solution |
|---|---|
| Different bollard types requiring varied approaches | Custom test setups per bollard type |
| Foundation variability affecting test methodology | Pre-test berthing analysis |
| Testing in active naval facility | Coordinated scheduling with operations |
Industry conclusion: There is growing recognition of the need for standard testing procedures for mooring fittings. The paper's authors called for:
- Adoption of standardized testing protocols
- Improvements in how testing is conducted
- Better documentation of lessons learned
Quality inspection starts with proper installation. The arrangement of bollards on vessels follows specific engineering guidelines .
Key installation requirements:
| Requirement | Specification |
|---|---|
| Orientation | Same as cable traction direction |
| Distance to fairleads | ≥6× bollard diameter (large ships) or ≥10× (small ships) |
| Typical spacing | 1.5–2.5 meters |
| Clearance around bollard | No obstacles within 1 meter |
| Distance from gunwale | ≥1.5× bollard diameter |
> *"There shall be no obstacles within 1m around the bollard."*
These spacing requirements ensure:
- Sufficient deck area for auxiliary cable handling
- Proper rope angles to prevent chafing
- Safe access for mooring crews
We asked our global clients about their bollard inspection practices. Here is what they shared:
> *"We used to do visual inspections only. Then we had a bollard fail during a routine mooring—fortunately no injuries. Now we do annual torque checks and load testing every three years. The peace of mind is worth the cost."*
> *— Port Engineer, Southeast Asia*
> *"The GB/T 554-2023 update caught us off guard. Our older bollards didn't meet the new material specifications. We're now in the process of upgrading our entire inventory."*
> *— Marine Superintendent, Chinese Port Authority*
> *"We brought in a third-party NDT firm to do vibration testing on our 20-year-old bollards. We expected to replace half of them. Only three failed. The testing saved us millions in unnecessary replacement costs."*
> *— Facilities Manager, European Terminal*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture mooring bollards that meet the highest international standards .
Our bollard capabilities include:
| Service | Description |
|---|---|
| ISO compliance | ISO 13795:2020, ISO 13797:2020 |
| GB/T compliance | GB/T 554-2023 certified |
| Material certification | Mill certificates for all steel grades |
| NDT inspection | Ultrasonic, magnetic particle, dye penetrant |
| Load testing | Verification at 110% of SWL |
| Third-party inspection | BV, SGS, ABS, LR, CCS available |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Nanjing Taidun, you get documented quality—not just promises.
Understanding the mooring bollard quality inspection standards you must know is not optional—it is a safety and liability imperative. From ISO 13795:2020 to GB/T 554-2023, from visual checks to vibration testing, a comprehensive inspection program protects your people, your vessels, and your port.
Your inspection checklist summary:
1. ✅ Visual damage assessment
2. ✅ Paint and corrosion review
3. ✅ Thickness measurement
4. ✅ Anchor bolt torque verification
5. ✅ Bolt corrosion inspection
6. ✅ Grout condition check
7. ✅ Periodic load testing (110% SWL)
8. ✅ Complete documentation
[Contact the Nanjing Taidun Engineering Team] for a free bollard specification consultation or to request certified mooring bollards that meet international quality standards.
Q1: What is the most current international standard for mooring bollards?
A: ISO 13795:2020 is the current standard for welded steel bollards for sea-going vessels. A new standard for double cruciform bollards (ISO/WD 25419) is under development .
Q2: How often should mooring bollards be inspected?
A: Visual checks should be performed monthly. Comprehensive inspections—including torque verification, thickness measurement, and grout inspection—should be conducted every 6–12 months. Load testing is recommended every 3–5 years or after any major overloading event .
Q3: What is BollardScan and is it approved by classification societies?
A: BollardScan is a vibration testing (dynamic modal analysis) method for inspecting mooring bollards. It is approved by Lloyd's Register and has been used on over 20,000 bollards worldwide .
Q4: What load should be used for bollard pull testing?
A: Industry best practice is to test at 110% of the Safe Working Load (SWL). This verifies the bollard's capacity with a safety margin .
Q5: What changed in the latest GB/T 554-2023 standard?
A: GB/T 554-2023, effective December 1, 2023, replaced the 2008 version. It references updated material standards (GB/T 699, GB/T 700, GB/T 712) and IMO MSC/Circ.1175. The standard aligns conceptually with ISO 13795:2020 while maintaining some national distinctions .
