Open Type vs. Closed Type Marine Fender Frontal Steel Panel: A Detailed Comparison for Optimal Port Safety

Open Type vs. Closed Type Marine Fender Frontal Steel Panel: A Detailed Comparison for Optimal Port Safety



When selecting marine fender systems for your port, terminal, or docking facility, the choice of the frontal steel panel is a critical decision that impacts performance, durability, and total cost of ownership. Two primary designs dominate the market: the open type marine fender frontal steel panel and the closed type marine fender frontal steel panel. Understanding their key differences and respective advantages is essential for engineers, port operators, and procurement specialists.

This comprehensive guide breaks down the design, functionality, and ideal applications of each type to help you make an informed decision for your marine infrastructure project.



Core Design & Structural Difference

The fundamental difference lies in the construction of the steel face that directly contacts the vessel's hull.

1,What is a Closed Type Frontal Steel Panel?

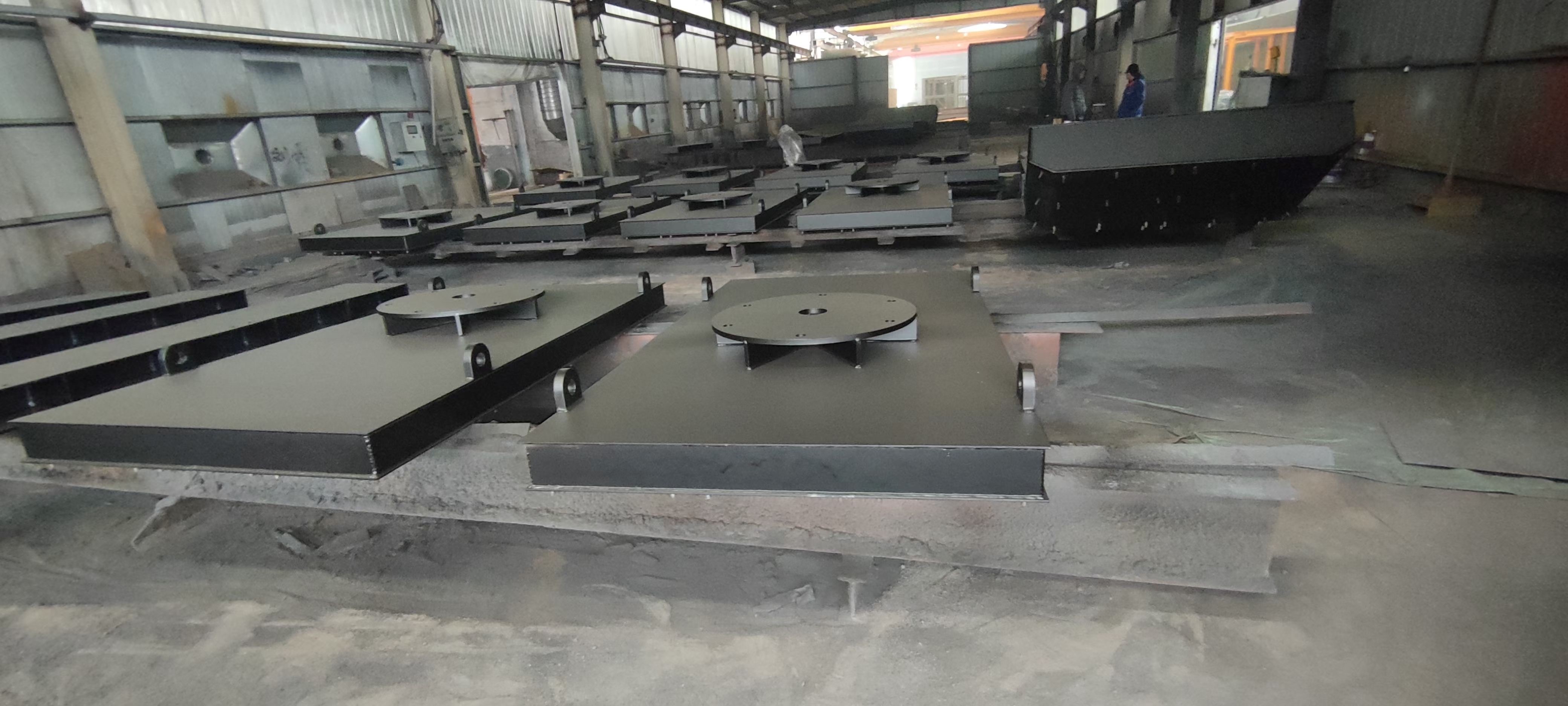

A closed type panel,also known as a box-type or solid panel,is constructed from steel plates welded into a sealed,hollow box structure.The interior is typically empty or may contain lightweight baffles.This design creates a continuous,unbroken surface that presents a smooth face to the ship.

Key Visual Identifier:No visible openings; it looks like a solid steel plate from the front.

2,What is an Open Type Frontal Steel Panel?

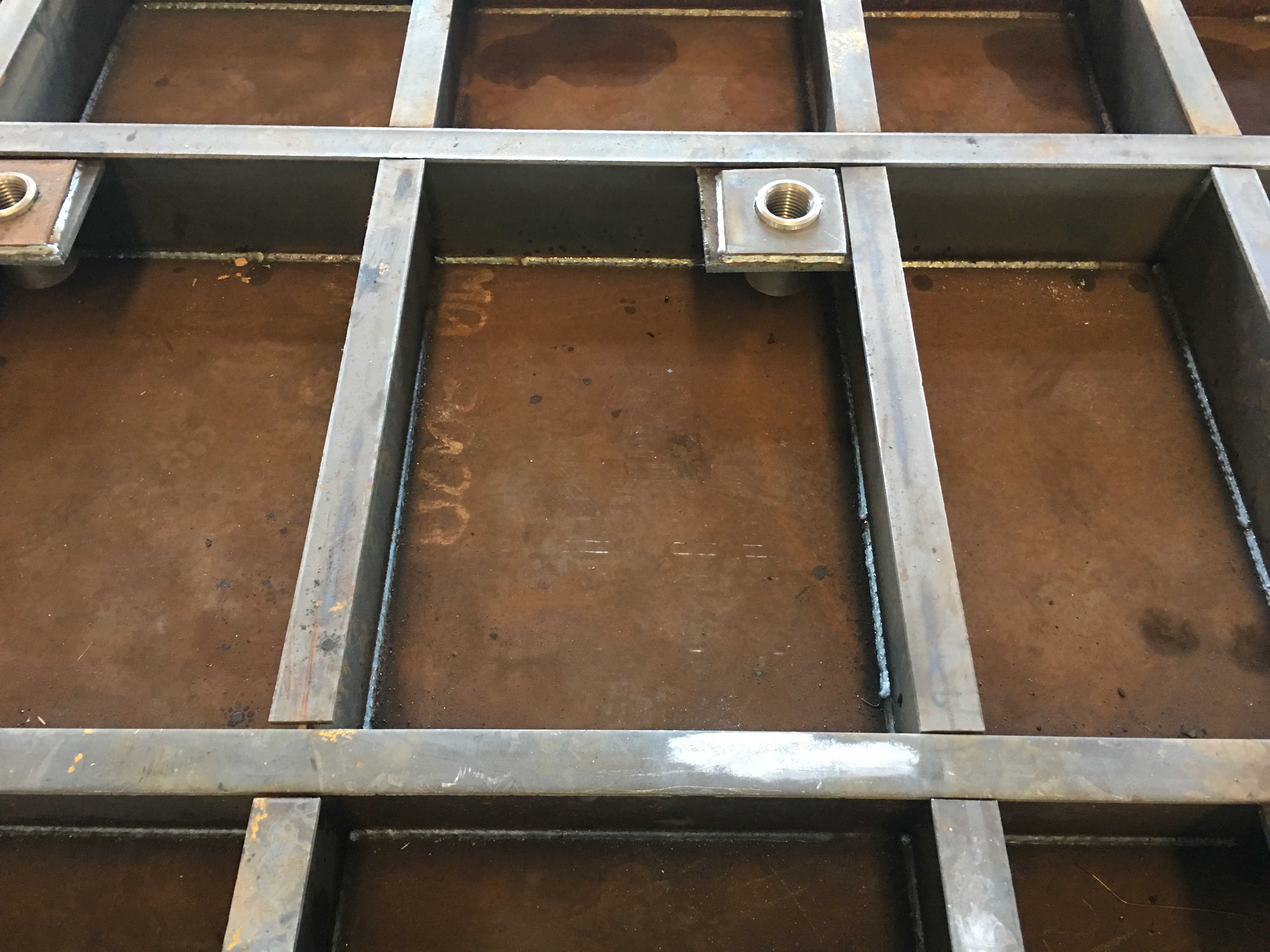

An open type panel features a frame-like structure. It is built with strong horizontal and/or vertical steel members (often I-beams, channels, or thick plates) with significant open spaces between them. The design prioritizes a rigid frame over a solid surface.

Key Visual Identifier:Clearly visible gaps or openings between the structural members.



Comparative Analysis: Advantages & Disadvantages

Feature	Open Type Frontal Steel Panel	Closed Type Frontal Steel Panel
Design & Weight	Lighter weight due to less steel used. Frame-based structure.	Heavier, as it uses more steel plates to create the solid face.
Hydrodynamics & Debris	Superior.Water, marine debris, and ice flow freely through the openings, minimizing drag and preventing buildup.	Can trap water and debris against the ship's hull, potentially increasing drag and causing hull abrasion from trapped objects.
Load Distribution	Excellent load transfer via the strong frame directly to the fender and substructure.	Distributes impact load across the entire solid plate, which then transfers it to the supporting frame and fender.
Durability & Maintenance	Lower risk of corrosion from trapped moisture. Easier to inspect for damage. Visible structure simplifies maintenance.	Prone to internal corrosion if the sealed compartment is breached. Dents or punctures can compromise the sealed integrity.
Cost	Generally lower initial cost due to reduced material and fabrication complexity.	Higher material and fabrication cost (more welding, more steel).
Vessel Hull Contact	Contact is made on the steel frame members. This can lead to higher localized pressure on the ship's hull if not properly designed.	Provides full-face contact, spreading the load over a larger hull area, which is gentler on ship paint and coatings.
Aesthetics	Industrial, functional appearance.	Cleaner, more finished appearance.



Detailed Advantages Breakdown

1,Advantages of Open Type Marine Fender Panels

①Reduced Hydrodynamic Drag:This is their primary advantage. By allowing water to pass through, they significantly reduce the suction force and drag on the vessel during berthing and especially during un-berthing. This leads to safer, easier departures and less strain on mooring lines.

②Self-Cleaning & Debris Prevention:Ice, floating logs, and other debris cannot accumulate between the fender and the ship. This prevents potential hull damage and eliminates the need for frequent clearing.

③Lower Weight & Cost:The efficient use of steel makes them lighter, easing handling, transportation, and installation logistics. The simpler fabrication often translates to a more cost-effective fender system.

④Enhanced Durability in Icy Conditions:Ideal for arctic port operations or cold climates where ice buildup is a major concern for closed type panels.

2，Advantages of Closed Type Marine Fender Panels

①Full Surface Protection:The smooth, solid plate provides complete protection for the rubber fender body behind it from sun exposure, abrasion, and mechanical damage from tugs or barges.

②Gentler on Vessel Hulls: The continuous surface distributes pressure evenly, minimizing the risk of marking or damaging sensitive hull coatings, which is crucial for cruise ships, naval vessels, or LNG carriers.

③Robustness:The box structure can be very robust against direct impacts from sharp corners or protruding ship fittings (bilge keels, anchors).

④Aesthetic and Safety Consideration: The solid face is often preferred for public-facing areas like cruise terminals for a cleaner look and to prevent objects from passing through.



How to Choose: Application-Based Guidance

1,Choose an OPEN TYPE Frontal Panel if:

①Your port is in a location with high currents, tidal ranges, or frequent ice.

②Debris in the water (logs, floating objects) is a common issue.

③Your priority is minimizing lifetime maintenance and maximizing hydrodynamic efficiency.

④You are working with a constrained budget for marine infrastructure.

2,Choose a CLOSED TYPE Frontal Panel if:

①You are berthing high-value vessels where hull paint protection is paramount (e.g., cruise ship terminals, naval bases).

②The fenders are in a location with high risk of impact from sharp objects.

③Aesthetic appearance at the waterfront is a significant concern.

④The fender system is exposed to constant wave splash or requires maximum protection of the rubber element.



Conclusion

There is no universally "best" option. The decision between an open type and closed type marine fender frontal steel panel hinges on your specific operational environment, vessel types, and economic considerations.

For high-traffic commercial ports and challenging environmental conditions, the open type panel often provides superior long-term performance and value. For specialized terminals requiring maximum hull protection and a clean finish, the closed type panel remains the trusted choice.
