Introduction

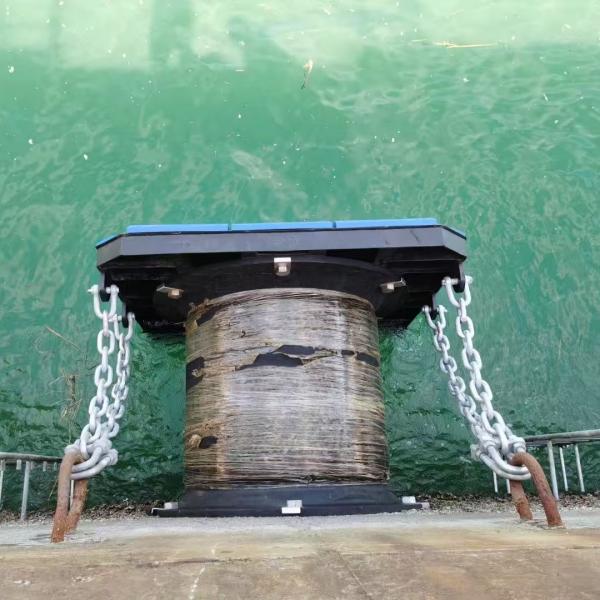

In the demanding world of maritime infrastructure, marine fenders equipped with steel panels represent a critical evolution in port protection technology. These systems are essential for absorbing berthing energy, protecting both vessels and port structures from costly damage. This comprehensive guide explores why steel panel marine fenders are superior, how their steel components function, and what constitutes optimal design—information vital for port operators, marine engineers, and procurement specialists seeking durable, high-performance solutions.

Why Marine Fenders with Steel Panels Are Essential

Marine fender systems serve as the primary interface between vessels and port structures. While traditional fenders rely solely on rubber elements, modern systems integrate steel panels to address critical limitations. Steel panels provide:

Distributed Load Transfer: Steel panels evenly distribute impact forces across the entire fender face, preventing localized stress concentrations that can damage both the fender and the vessel hull.

Enhanced Durability:The abrasion-resistant surface protects the underlying rubber from cuts, tears, and environmental degradation caused by continuous contact with ship hulls.

Structural Integrity:Steel panels maintain the fender’s shape under compression, ensuring consistent performance over thousands of berthing cycles.

Low Maintenance:Compared to bare rubber surfaces, steel-faced fenders require less inspection and repair, reducing lifecycle costs.



Primary Functions of Steel Panels in Marine Fender Systems

1. Force Distribution and Protection

Steel panels act as a rigid interface that spreads berthing impact over a larger area of the rubber fender. This prevents puncture damage from protruding ship features and maximizes the energy absorption capacity of the elastomeric element.

2. Abrasion and Wear Resistance

The hardened steel surface withstands repeated friction from vessel contact, especially in challenging environments with high tidal ranges or frequent vessel traffic. This significantly extends the service life of the fender system.

3. Environmental Defense

Steel panels shield vulnerable rubber compounds from UV radiation, ozone exposure, and marine organisms that can accelerate degradation in harsh marine environments.

4. Installation and Replacement Efficiency

Modular steel panel designs allow for easier installation and replacement of individual components without dismantling entire fender systems, minimizing port downtime.



Designing Effective Steel Panels for Marine Fenders

Material Selection

Optimal steel panel design begins with material specification:

Grade Selection:ASTM A572 Grade 50 or equivalent high-yield strength steel provides optimal strength-to-weight ratio

Corrosion Protection:Hot-dip galvanizing (minimum 600g/m²) or specialized marine-grade coatings (epoxy/polyurethane) for saltwater environments

Surface Treatment:Abrasion-resistant coatings or rubber lining on contact surfaces to prevent hull damage



Structural Engineering Considerations

Proper steel panel design incorporates:

Thickness Optimization:Typically 8-20mm, balanced between durability and weight considerations

Stiffening Configuration:Strategically placed ribs (usually 75-150mm depth) to prevent buckling under maximum deflection

Mounting System: Allowance for thermal expansion and misalignment with slotted bolt holes or articulated connections

Rubber Attachment:Secure mechanical bonding using vulcanization or specialized adhesive systems rated for marine environments



Load Analysis and Performance

Effective steel panel design requires:

Finite Element Analysis (FEA) to simulate stress distribution under maximum berthing conditions

Impact testingto validate energy absorption and force-deflection characteristics

Fatigue analysis ensuring performance over thousands of loading cycles



Industry Applications and Case Studies

Commercial Ports

Major container terminals utilize steel-paneled fenders to handle vessels exceeding 20,000 TEU, where berthing energies can surpass 5,000 kJ. The consistent performance reduces maintenance downtime by up to 40% compared to traditional systems.

LNG Terminals

Specialized cryogenic fender systems incorporate stainless steel panels to withstand extreme temperature variations while maintaining structural integrity during delicate transfer operations.

Floating Structures

For floating docks and pontoon systems, lightweight aluminum-steel composite panels provide corrosion resistance while reducing overall structural loads.

Maximizing ROI with Proper Steel Panel Specification

Port operators can optimize their investment by:

Lifecycle Cost Analysis:Considering not just initial cost but maintenance, replacement, and downtime expenses

Performance Certification:Ensuring compliance with international standards (PIANC, ISO, OCIMF)

Supplier Evaluation: Selecting manufacturers with documented testing and proven marine applications

Customization Options:Tailoring panel size, mounting systems, and surface treatments to specific operational requirements



Conclusion

Marine fenders with properly engineered steel panels represent the gold standard in port protection technology. Their superior durability, performance consistency, and lifecycle value make them essential for modern maritime operations. By understanding the critical functions of steel panels and the principles of effective design, port operators and marine engineers can specify systems that maximize protection while minimizing total cost of ownership.

For port authorities, terminal operators, and marine contractors seeking to enhance their berthing infrastructure, investing in high-quality steel-paneled fender systems delivers measurable returns through reduced vessel damage, lower maintenance costs, and increased operational reliability.
