Step-by-Step Guide to Installing Cylindrical Rubber Fenders (2026 Professional Standard)
Meta Description: Avoid costly installation errors. Nanjing Taidun Marine Equipment Engineering Co.,Ltd definitive 2026 step-by-step guide covers everything from site prep to final torque checks for cylindrical rubber fender installation)
Introduction: Why Proper Installation is Non-Negotiable

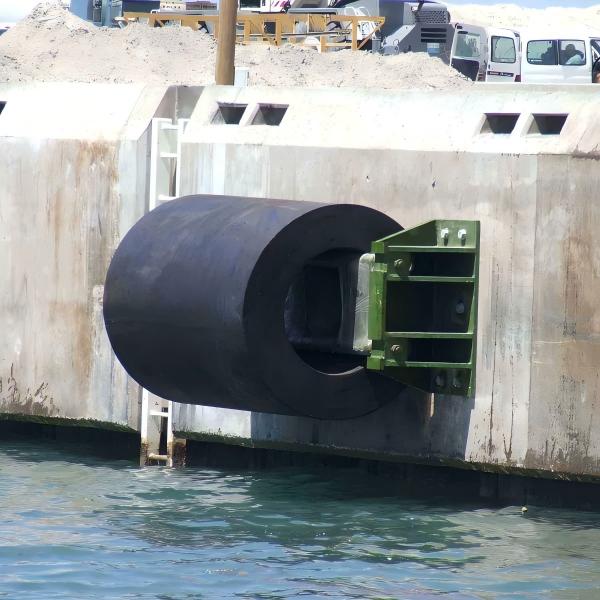

A cylindrical rubber fender is an engineered asset designed to absorb massive kinetic energy. However, its performance and lifespan are directly compromised by improper installation—a leading cause of premature failure, dock damage, and wasted capital. This guide transcends basic instructions. It is the 2026 professional standard for project supervisors, port engineers, and marina managers, detailing the precise methodology to ensure your fender system delivers its full rated performance for decades. Follow these steps to protect your investment and infrastructure.
Phase 1: Pre-Installation Planning & Site Audit (The Most Critical Phase)
Step 1.1: Verify Documentation & Materials
Cross-Check: Match the delivered fender(s) with the purchase order and manufacturer's specification sheet (check serial/model number, dimensions, rubber compound).
Inspect Hardware Kit:Verify all components are present and correct: mounting bolts (typically high-tensile, hot-dip galvanized or 316 stainless steel), oversized washers, backing plates, nuts (preferably nylon-insert locknuts), and any splicing plates for long fenders.
Fender Inspection:Visually inspect the fender for any transit damage like deep cuts or cracks. Check for the manufacturer's alignment marks.
Step 2.2: Conduct a Comprehensive Site Audit
Dock Face Condition:The mounting surface must be structurally sound, flat, and clean. Repair any concrete spalling or significant corrosion on steel piles before proceeding.
Alignment & Leveling: Use a laser level or string line to mark the exact horizontal installation line. Ensure it is level and aligns with the vessel's hull contact point.
Clearance Check: Confirm there are no obstructions (pipes, electrical conduits, other hardware) along the entire fender length and its swing path.
Access & Safety:Plan for safe access of personnel and equipment (crane, forklift). Ensure all site safety protocols (PPE, work-over-water permits) are in place.
Phase 2: Professional Installation Step-by-Step
Step 2.1: Prepare the Mounting Surface
Clean:Remove all dirt, marine growth, and rust from the mounting area.
Mark & Drill Template:
Use the manufacturer's drilling template. If unavailable, hold the fender's backing plate against the dock to mark hole centers.
Critical:Drill holes perpendicular to the dock face. Hole diameter should be 1-2mm larger than the bolt diameter to allow for minor adjustment and prevent stress.
For concrete, use a hammer drill and appropriate anchor system (e.g., chemical anchors for highest load).
Step 2.2: Position and Secure the Fender
Lifting:Always lift the fender using soft, rated slings. Never lift by the bolts or internal suspension ropes. Use a spreader bar to prevent slings from crushing the fender.
Temporary Positioning: Hang the fender loosely in front of the pre-drilled holes. Insert a few bolts to hold it in place.
Final Alignment:Ensure the fender is horizontal. On long fenders requiring multiple sections, align splicing plates carefully to ensure a continuous, straight face.
Step 2.3: Bolt Tightening Sequence & Torque Specification
Sequence is Key:To ensure even pressure and prevent distortion, follow a star pattern tightening sequence (similar to tightening a car wheel).
Two-Stage Tightening:
Stage 1 (Snug): Hand-tighten all nuts until the washer is snug against the backing plate.
Stage 2 (Final Torque):Using a calibrated torque wrench, tighten to the manufacturer's specified torque value (typically provided in Nm or ft-lbs). Overtightening can cause internal stress and deformation.
Step 2.4: Install Protective Wear Pads (If Applicable)
For high-abrasion areas or to protect sensitive hulls, attach polyethylene or rubber wear pads to the fender face using the specified adhesive and/or bolts.
Phase 3: Post-Installation Commissioning & QA/QC
Step 3.1: 24-Hour Re-Torque Check
Rubber compresses over time. Crucially, re-check the torque on all bolts 24 hours after initial installation and again after the first significant vessel berthing.
Step 3.2: Functional Clearance Test
Manually push/pull the fender along its length. It should move freely without binding against the dock structure at any point.
Step 3.3: Documentation & Handover
As-Built Records: Update dock drawings with the exact fender locations and serial numbers.
Installation Log: Create a log entry noting installation date, torque values used, crew, and any observations. This is vital for future maintenance.
Professional Tips & Common Pitfalls to Avoid
Do's | Don'ts |
✅ Use only marine-grade corrosion-resistant hardware. | ❌ Mix and match bolt grades or use ungraded hardware. |
✅ Apply a marine anti-seize compound to bolt threads. | ❌ Weld directly onto or near the fender body. |
✅ Ensure a smooth, flat bearing surface for washers. | ❌ Allow washers to dig into the rubber or wooden dock face. |
✅ For floating docks, allow for tidal/fluctuation movement. | ❌ Install fenders under tension or compression at rest. |
Conclusion: When to Call a Professional Installer
While this guide empowers you with knowledge, complex installations demand expertise. Consider professional installation services if:
The fenders are exceptionally large or heavy (>5 meters, >5 tons).
The dock structure is complex (e.g., seismic joints, sloping faces).
You lack access to specialized lifting or drilling equipment.
Your project requires certification or warranty validation.
A professionally installed fender system is not an expense; it is a guarantee of performance, safety, and long-term value.
