The Marine Fender Frontal Panels for Port Safety

Marine Fender Frontal Panels for the Port Safety

Every day, colossal cargo ships, nimble tugboats, and luxury cruise liners navigate the world's ports. The delicate dance of bringing a multi-ton vessel safely to rest against a concrete dock is a high-stakes operation. One wrong move, one miscalculated current, and the consequences can be catastrophic.

At the heart of this operation lies a critical component that often goes unnoticed: the Marine Fender Frontal Panel.

While the fender system's rubber unit absorbs the kinetic energy, the frontal panel is the direct interface between the ship's hull and the dock. It is the first and most crucial point of contact. In this article, we dive deep into why this component is essential for modern maritime infrastructure, how it works, and what you need to know to protect your assets.



What is a Marine Fender Frontal Panel?

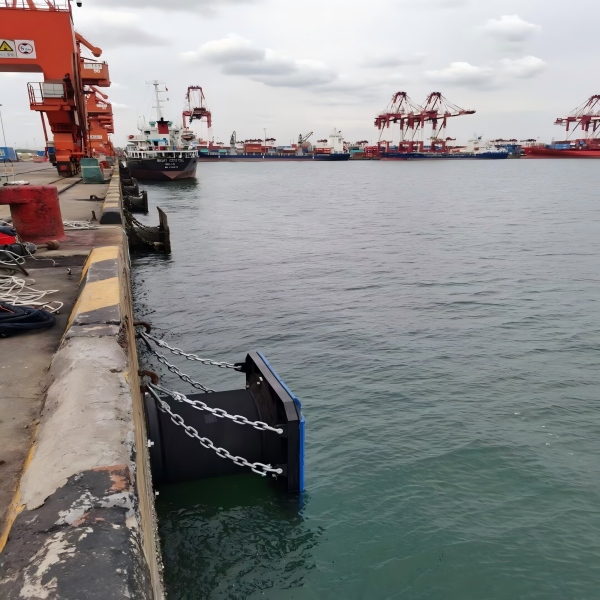

Think of a marine fender system as a sophisticated shock absorber. The rubber fender (like a Cone, Cell, or Arch type) compresses to absorb the impact. The Frontal Panel is the tough, durable faceplate that is bolted directly to the front of that rubber fender.

Its primary functions are:

1.Distribute Pressure:It spreads the massive, concentrated load from the ship's hull over the entire face of the rubber fender, preventing point-load failure.

2.Protect the Hull:It provides a smooth, low-friction surface that glides along the ship's plating, preventing scraping, gouging, and costly damage to the vessel.

3.Extend Fender Life:By shielding the relatively soft rubber fender from direct abrasion, UV rays, and marine growth, the panel drastically increases the service life of the entire system.

Without a robust frontal panel, even the best rubber fender can be destroyed in a single, poorly executed berthing.



Why Your Choice of Frontal Panel Material Matters More Than You Think

The marine environment is one of the most corrosive and abrasive on Earth. Saltwater, temperature extremes, and constant physical impact demand a material that is both incredibly strong and resilient.

The most common and effective material for modern marine fender frontal panels is Ultra-High-Molecular-Weight Polyethylene (UHMW-PE).

Here’s why UHMW-PE is the industry's gold standard:

Extremely Low Friction:It has a coefficient of friction lower than that of ice. This allows ships to slide against the dock during tidal changes or wind shifts without hanging up on the fender, reducing shear stress on both the vessel and the structure.

Superior Abrasion Resistance:UHMW-PE is up to 10 times more abrasion-resistant than carbon steel. It can withstand years of scraping against rough hulls without significant wear.

High Impact Strength:It won't crack or shatter under the immense pressure of a berthing vessel, even in freezing temperatures.

Corrosion Proof:Unlike steel, it is completely impervious to rust and corrosion from saltwater, eliminating a major maintenance headache.

Lightweight: Despite its incredible strength, UHMW-PE is much lighter than steel, making installation and handling far easier and safer.

Other materials like timber or steel are sometimes used, but they come with significant drawbacks. Timber rots, swells, and provides inconsistent friction. Steel, while strong, is prone to rapid corrosion, requires constant maintenance, and has a high coefficient of friction that can damage vessel hulls.



Key Design Considerations for Optimal Performance

Choosing the right frontal panel isn't just about picking a material. The design and engineering are critical to ensure it performs as intended.

Size and Shape:The panel must be large enough to cover the fender's contact area and match the curvature of the vessel's hull. This ensures the load is properly distributed.

Mounting System:The method of attaching the panel to the fender (and the fender to the dock) is crucial. It must allow for the panel to articulate and self-align with the ship, while also being secure enough to withstand impact forces.

Load Capacity:The panel and its mounting hardware must be rated for the maximum reaction force (R) and energy absorption (E) of the fender system. Engineering calculations are non-negotiable here.



The Cost of Neglect: Why a Quality Frontal Panel is a Smart Investment

Skipping on quality or specifying the wrong frontal panel is a false economy. The potential costs of failure are astronomical:

Vessel Damage:A damaged hull can lead to dry-docking, repairs, and lost revenue for the ship owner, resulting in massive liability claims against the terminal operator.

Fender System Failure:A failed panel can expose the rubber fender, leading to its rapid deterioration and a complete system breakdown. Replacing an entire fender system is exponentially more expensive than installing a quality panel upfront.

Downtime:A berth that is out of service for repairs means ships can't be unloaded, halting the supply chain and costing thousands of dollars per hour.



Conclusion: Don't Gamble with Your Berth's Safety

The marine fender frontal panel may seem like a simple piece of plastic or steel, but its role is vital. It is the critical interface that ensures the safety of multi-million dollar vessels and the integrity of your port infrastructure.

By choosing a panel made from high-performance materials like UHMW-PE and ensuring it is engineered to match your specific fender system, you are not just buying a component—you are investing in the safety, efficiency, and longevity of your entire operation.

Protect your assets. Specify the right frontal panel from the start.
