Closed-Box vs. Open Steel Panels for Marine Rubber Fender Systems: A Comprehensive Technical Comparison

Closed-Box vs. Open Steel Panels for Marine Rubber Fender Systems: A Comprehensive Technical Comparison



Article Overview

This article provides a detailed technical comparison between closed-box and open steel panels used in marine rubber fender systems. By examining structural characteristics, load distribution capabilities, corrosion resistance, maintenance requirements, and installation considerations, we help port engineers, terminal operators, and procurement professionals make informed decisions based on specific application requirements. The analysis draws on engineering principles and practical experiences from container terminals, bulk handling facilities, and specialized berths worldwide.



Introduction

When designing or upgrading a marine rubber fender system, one of the most critical decisions involves the selection of the steel panel configuration. The steel panel serves as the interface between the rubber fender unit and the vessel, playing a vital role in load distribution, energy transfer, and overall system durability. Two primary configurations dominate the industry: closed-box steel panels and open steel panels.

Each configuration offers distinct advantages and limitations. Understanding the differences between closed-box and open panels is essential for optimizing system performance, minimizing lifecycle costs, and ensuring long-term reliability. This article provides a comprehensive comparison of these two steel panel types, helping you select the right solution for your specific berthing conditions, vessel types, and operational requirements.



What Are Steel Panels in Marine Fender Systems?

Steel panels, also known as fender facing panels or steel facing plates, are rigid structures mounted between the rubber fender unit and the vessel. They serve several critical functions:

1. Load Distribution: Steel panels spread the concentrated reaction force from the rubber unit across a wider area of the vessel’s hull, preventing localized stress that could exceed allowable hull pressure limits.

2. Low-Friction Interface: When equipped with UHMW-PE (ultra-high molecular weight polyethylene) sliding pads, steel panels allow vessels to move vertically with tides and horizontally during mooring without damaging the rubber or the panel.

3. Structural Integrity: Steel panels provide a rigid mounting surface that ensures the fender system maintains its intended geometry during impact events.

4. Protection: Panels protect the rubber units from direct abrasion and impact damage from vessel hulls, particularly from sharp features like bow thrusters or bilge keels.

The choice between closed-box and open configurations fundamentally affects how these functions are achieved.

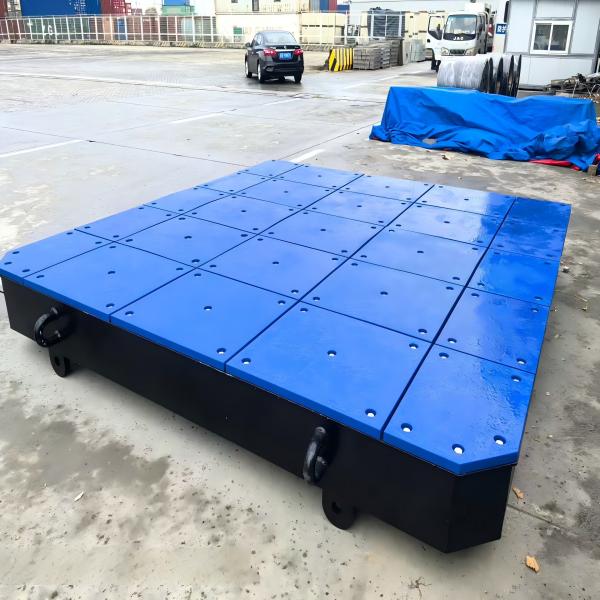

Closed-Box Steel Panels: Design and Characteristics

Closed-box steel panels are fabricated as hollow, fully enclosed structures with continuous perimeter welds and internal stiffeners. The design resembles a rectangular box with closed sides, top, and bottom, creating a torsionally rigid unit.

①Structural Characteristics

- Fully welded perimeter: All four sides are continuously welded, creating a sealed enclosure.

- Internal stiffening: Ribs or diaphragms inside the box provide additional structural support.

- High torsional rigidity: The closed section resists twisting and bending under eccentric loads.

- Uniform load transfer: Forces are distributed evenly across the mounting points.

②Advantages

1. Superior Structural Integrity: The closed-box design provides exceptional resistance to bending and torsion, making it ideal for high-energy applications where vessels may contact the panel at angles or at the edges.

2. Enhanced Load Distribution: The rigid structure ensures that impact forces are transmitted efficiently to all mounting points, reducing stress concentrations on individual anchor bolts and the substructure.

3. Corrosion Protection: The sealed interior prevents water and corrosive elements from reaching internal surfaces. When properly fabricated with continuous welds, the interior remains dry, significantly extending service life in marine environments.

4. Resistance to Edge Loading: Closed-box panels perform exceptionally well when vessels contact the panel near the edges or corners, a common scenario with large vessels or angular berthings.

5. Longer Service Life: The combination of structural rigidity and corrosion resistance typically results in extended service life, often exceeding 25 years in properly maintained applications.

③Limitations

1. Higher Initial Cost: Closed-box panels require more steel and more complex fabrication, resulting in higher upfront costs compared to open panels.

2. Greater Weight: The fully enclosed design adds significant weight, which may be a consideration for structures with limited load capacity or for projects with difficult installation logistics.

3. Fabrication Complexity: Continuous welds and internal stiffeners require skilled fabrication and quality control to ensure proper sealing and structural integrity.



Open Steel Panels: Design and Characteristics

Open steel panels, also known as open-frame panels or skeletal panels, consist of a steel frame structure without fully enclosed sides. The design typically includes perimeter beams, cross members, and mounting plates, with open spaces between structural elements.

①Structural Characteristics

- Open frame construction: Structural members are arranged in a grid pattern with open spaces between them.

- Exposed internal surfaces: All structural elements are accessible for inspection and maintenance.

- Reduced steel volume: Less steel is used compared to closed-box designs of equivalent dimensions.

- Torsional flexibility: The open structure allows some degree of twisting under eccentric loads.

②Advantages

1. Lower Initial Cost: Reduced steel volume and simpler fabrication result in lower material and manufacturing costs.

2. Reduced Weight: Open panels are significantly lighter than closed-box panels of the same dimensions, making them suitable for structures with load limitations or for installations with lifting constraints.

3. Simplified Inspection: All structural elements are visible and accessible, allowing for easy visual inspection of welds, corrosion, and structural condition.

4. Easier Modifications: The open design allows for field modifications, such as adding reinforcement or modifying mounting points, with relative ease.

5. Faster Fabrication: Simpler construction typically results in shorter fabrication lead times.

③Limitations

1. Lower Torsional Rigidity: Open panels are more susceptible to twisting under eccentric loads, which can occur when vessels contact the panel at angles or near the edges. This can lead to uneven load distribution and accelerated wear.

2. Increased Corrosion Exposure: All surfaces are exposed to the marine environment, requiring more frequent coating maintenance. Internal surfaces may be difficult to access for coating application and repair.

3. Vulnerability to Edge Loading: Open panels perform less effectively when vessels contact the panel near the edges, as the structure has reduced stiffness in these areas.

4. Potential for Debris Accumulation: Open spaces can trap debris, which may abrade the panel or create corrosion-prone areas.

5. Shorter Service Life in Aggressive Environments: In highly corrosive environments, open panels typically require more frequent maintenance and may have shorter service lives compared to sealed closed-box designs.



Comparative Analysis: Closed-Box vs. Open Steel Panels

The following comparison highlights the key differences between the two configurations across critical performance criteria.

1,Structural Performance

Criterion	Closed-Box	Open
Torsional Rigidity	Excellent– resists twisting under eccentric loads	Moderate – some flexibility under eccentric loads
Edge Load Resistance	Superior – maintains structural integrity at edges	Reduced – less stiffness at panel edges
Load Distribution	Uniform across all mounting points	Concentrated at structural nodes
Deflection Under Load	Minimal	Moderate

2,Durability and Maintenance

Criterion	Closed-Box	Open
Corrosion Protection	Interior surfaces protected by sealing	All surfaces exposed- requires coating
Inspection Requirements	Limited to exterior surfaces	Full access to all structural elements
Maintenance Frequency	Lower- sealed interior reduces corrosion risk	Higher-coating maintenance required on all surfaces
Expected Service Life	25+ years with proper coating	15-20 years with regular maintenance

3,Cost Considerations

Criterion	Closed-Box	Open
Material Cost	Higher-more steel required	Lower-reduced steel volume
Fabrication Cost	Higher-complex welding and sealing	Lower-simpler construction
Installation Cost	Higher-greater weight requires heavier equipment	Lower-lighter weight simplifies handling
Lifecycle Cost	Lower-reduced maintenance and longer life	Higher-more frequent maintenance and replacement

 4,Weight and Logistics

Criterion	Closed-Box	Open
Weight	Heavy-requires robust lifting equipment	Light-easier to handle and transport
Shipping Cost	Higher-based on weight	Lower-reduced shipping weight
Installation Requirements	Heavy crane or floating equipment	Standard lifting equipment



Application-Specific Recommendations

The choice between closed-box and open steel panels should be guided by the specific conditions of your berth and operational requirements.



When to Choose Closed-Box Steel Panels

Closed-box panels are the preferred choice for:

1. High-Energy Berthing Applications: Container terminals, bulk carriers, and LNG terminals where vessels generate significant berthing energy and require superior load distribution.

2. Large Vessel Traffic: Ports handling vessels with deep drafts and high freeboards, where angular berthings and edge contacts are common.

3. Exposed Locations with Tidal Variations: Berths with significant tidal ranges where vessels may contact the panel at varying heights, requiring uniform structural integrity across the entire panel face.

4. Aggressive Corrosion Environments: Locations with high salinity, industrial pollutants, or splash zone exposure where sealing provides critical protection.

5. Long-Term Infrastructure Investments: Projects where minimizing lifecycle costs and maximizing service life are primary objectives.



When to Choose Open Steel Panels

Open panels are suitable for:

1. Low-Energy Berthing Applications: Small vessel berths, marina facilities, or terminals handling barges and small craft where berthing energies are modest.

2. Structures with Load Limitations: Berths with existing substructures that cannot support the weight of closed-box panels, or projects with crane capacity constraints.

3. Budget-Constrained Projects: Applications where initial capital expenditure is the primary consideration and maintenance can be accommodated within operational budgets.

4. Easy Inspection Access: Situations where frequent visual inspection of structural elements is desired, such as facilities with dedicated maintenance personnel.

5. Temporary or Interim Installations: Projects where the fender system may be replaced or reconfigured within a relatively short timeframe.



Integration with Rubber Fender Units

Both closed-box and open steel panels can be integrated with all common rubber fender types, including:

- Cone Fenders: High-energy applications benefit from closed-box panels for superior load distribution.

- Cell Fenders: Large cell fender systems typically use closed-box panels due to the high forces involved.

- Arch Fenders: Open panels may be suitable for arch fender installations in low-energy applications.

- Cylindrical Fenders: Both configurations are used depending on the specific berth conditions.

The mounting interface between the rubber unit and the steel panel must be carefully designed to ensure proper load transfer regardless of panel configuration.



UHMW-PE Pad Considerations

Both closed-box and open steel panels can be fitted with UHMW-PE sliding pads. Key considerations include:

- Pad Thickness: Thicker pads (70-100 mm) provide longer wear life and accommodate greater vessel movement.

- Fastening Systems: Capnuts and recessed fasteners prevent hardware damage from vessel contact.

- Replaceability: Modular pad systems allow for field replacement without welding or heavy equipment.

- Coverage Area: Closed-box panels typically provide a larger continuous surface for pad installation, while open panels may require pads installed on structural members.



Fabrication and Quality Considerations

Regardless of configuration, proper fabrication is essential for long-term performance:

1,Closed-Box Panel Fabrication

- Continuous perimeter welds must achieve full penetration to ensure sealing.

- Internal stiffeners should be properly aligned to prevent stress concentrations.

- Drain holes (if specified) must be properly located and fitted with plugs.

- Coating application must address interior surfaces before sealing when specified.

2,Open Panel Fabrication

- Weld quality at structural joints must meet design specifications.

- Coating application must reach all surfaces, including between structural members.

- Alignment of mounting plates must be precise to ensure proper load transfer.



Installation Best Practices

Proper installation is critical for both configurations:

1. Foundation Preparation: Ensure the mounting surface is flat, level, and capable of supporting the reaction forces. Use epoxy grout or leveling plates to achieve proper alignment.

2. Anchor Bolt Torque: Follow manufacturer specifications for anchor bolt torque values. Under-torquing can lead to movement and premature wear; over-torquing can damage components.

3. Alignment Verification: Verify that steel panels are aligned vertically and horizontally before final tightening. Misalignment creates uneven loading and reduces system performance.

4. UHMW-PE Pad Installation: Ensure pads are securely fastened with appropriate hardware. Recessed fasteners prevent damage from vessel contact.

5. For Closed-Box Panels: Verify that all seals are intact and that no water ingress paths exist.

Maintenance and Inspection Guidelines

1,Closed-Box Panel Maintenance

- Inspect exterior coatings annually and repair damage promptly.

- Check welds for cracking, particularly at corners and mounting points.

- Verify that the panel remains sealed; any breaches should be repaired.

- Monitor UHMW-PE pad wear and replace as needed.

2,Open Panel Maintenance

- Inspect all structural elements annually for corrosion and coating damage.

- Pay particular attention to areas between structural members where coating may be compromised.

- Check for debris accumulation and clean as necessary.

- Monitor structural alignment and inspect welds for cracking.



Lifecycle Cost Analysis

When evaluating closed-box vs. open panels, consider the total lifecycle cost rather than initial purchase price alone:

Criterion	Closed-Box	Open
Initial Procurement	Higher	Lower
Installation	Higher	Lower
Annual Maintenance	Lower	Higher
Major Refurbishment	Less frequent	More frequent
Replacement Interval	25+ years	15-20 years
Total Lifecycle Cost (20 years)	Lower	Higher

For high-energy applications with long design lives, closed-box panels typically offer superior lifecycle economics despite higher initial costs.



Conclusion

The selection between closed-box and open steel panels for marine rubber fender systems depends on a careful evaluation of your specific application requirements. Closed-box panels offer superior structural integrity, corrosion protection, and load distribution, making them the preferred choice for high-energy berthing, large vessel traffic, and aggressive environments. Open panels provide advantages in initial cost, weight, and inspection accessibility, making them suitable for low-energy applications, budget-constrained projects, and structures with load limitations.

By understanding the distinct characteristics of each configuration and aligning your selection with your operational conditions, vessel types, and long-term objectives, you can optimize the performance, safety, and lifecycle cost of your fender system.

For assistance in selecting the right steel panel configuration for your specific berth conditions, consult with experienced fender system engineers who can evaluate your requirements and provide tailored recommendations.
