● Why Foundation Load Calculation Is the Most Critical Factor in Bollard Installation
● Determining Mooring Loads – The Starting Point
>> The Critical Research Finding on Load Distribution
● Ultimate Strength Design (USD) vs. Allowable Stress Design (ASD)
>> Allowable Stress Design (ASD) – The Traditional Approach
>> Ultimate Strength Design (USD) – The Modern Approach
● Bollard Types and Foundation Configurations
>> DIN vs. JIS Bollard Standards
>> Foundation Arrangement Types
● Step-by-Step Foundation Load Calculation Process
>> Step 1 – Determine the Ultimate Load
>> Step 2 – Assess Concrete Foundation Capacity
>> Step 3 – Calculate Lateral Load Resistance
>> Step 4 – Determine Pullout Resistance
>> Step 5 – Verify Overturning Stability
● Installation Best Practices for Foundation Integrity
>> Pre-Installation Verification
>> Cast-In Anchor Installation Procedure
>> Critical Warning on Anchor Bolts
● Common Foundation Failure Modes to Avoid
● Standards and Guidelines Reference
● User Feedback – Real-World Perspectives
● How Nanjing Taidun Supports Your Bollard Foundation Needs
● Frequently Asked Questions (FAQ)

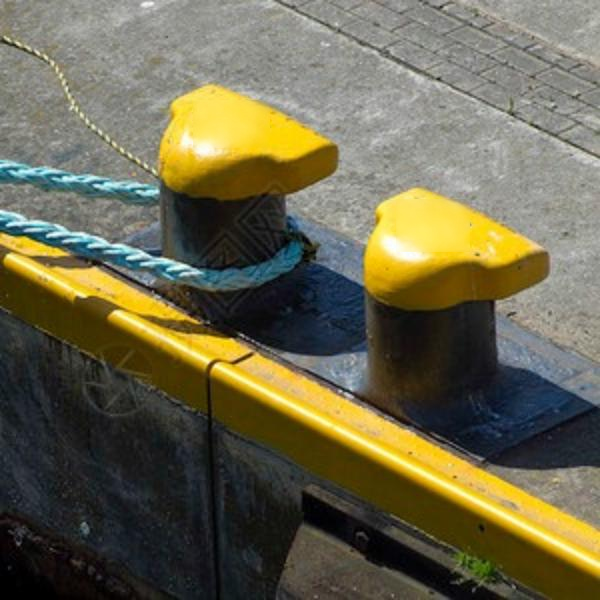

A 50,000 DWT bulk carrier is securely moored at your terminal. Suddenly, a strong squall hits the harbor. The vessel strains against its mooring lines. Then—a sharp crack echoes across the dock. One of the mooring bollards tears free from its foundation, concrete chunks flying into the water. The vessel drifts, lines snap, and within minutes, chaos ensues .
This is not a hypothetical scenario. Mooring bollard failures occur more frequently than many port operators care to admit. And the root cause? Almost always, it traces back to one critical issue: inadequate foundation load calculation and matching technical schemes .
I have spent two decades manufacturing OEM mooring bollards and rubber fender systems for global brands, wholesalers, and production facilities. In this guide, I will provide a complete engineering framework for foundation load calculation matching technical schemes for mooring bollard installation—backed by academic research, classification society requirements, and real-world installation best practices.
The most catastrophic bollard failures—those involving complete pull-out from the dock—almost always trace back to foundation issues . A mooring bollard is only as strong as what it is anchored to. Yet, foundation design is often treated as an afterthought.
The Core Principle:
The foundation must be designed to withstand ultimate loads with appropriate safety factors, typically 2.5x to 3.0x the Safe Working Load (SWL) . This is not optional—it is mandated by international standards including ISO 13795 and GB/T 36665.
| Design Factor | Requirement |
|---|---|
| Pullout resistance | Must exceed ultimate load (typically 2.5x to 3.0x SWL) |
| Concrete strength | Minimum C30/37 for bollard foundations |
| Embedment depth | Minimum 12x bolt diameter into structural concrete |
| Reinforcement | Anchor bolts must be tied into primary rebar grid |
| Bolt material | High-tensile steel (grade 8.8 or higher), hot-dipped galvanized |
Understanding foundation load calculation matching technical schemes for mooring bollard installation requires expertise in structural engineering, geotechnical analysis, and mooring system design.
Before any foundation can be designed, the mooring loads must be determined. According to industry guidelines, the design process should consider the following factors :
Key Factors in Mooring Load Determination:
- Mooring pattern(s)
- Changes in draft due to loading and discharge
- Wind and current forces
- Swell, wave, and tidal forces
- Mooring line types, sizes, and angles
- Ice forces (where relevant)
The Mooring Force Calculation:
Mooring force is initially determined from the Equipment Number provided by classification rules. The technical background of the Equipment Number is garnered from hydrodynamic calculations for environmental loads .
A landmark study published in *Ocean Engineering* (2010) by researchers from four major Korean shipbuilders (DSME, HHI, HHIC, and SHI) made a crucial discovery about mooring bollard foundations :
> *"Local hull stresses are higher than stresses of the fitting itself for most mooring fittings, and therefore SWL is dependent on hull strength rather than the strength of fittings."*
This means: The foundation—not the bollard—is often the weakest link. Any foundation load calculation must account for the supporting structure's capacity, not just the bollard's rated SWL.
There are two primary design approaches for mooring bollard foundations. Understanding the difference is essential for proper engineering.
ASD uses a safety factor applied to material yield strength. The foundation is designed so that stresses remain below allowable limits under service loads.
Characteristics:
- Widely understood and practiced
- Conservative by nature
- May lead to over-designed (and over-cost) structures
USD, also called Ultimate Limit State Design (ULSD), considers the actual failure point of the structure. This approach is now required by IACS Common Structural Rules (CSRs) for hull girders and stiffened panels .
Key Research Finding:
A 2006 study on ultimate strength assessment of bollards and their foundations reached a counter-intuitive conclusion :
> *"Structural reinforcements based on allowable stress analyses may noticeably increase production costs, but do not remarkably raise the ultimate capacities."*
In other words: Adding more reinforcement in the wrong places increases cost without improving safety. This is why proper foundation load calculation matching is essential—not just adding steel arbitrarily .
There are two primary bollard types used globally :
| Standard | Characteristics | Current Preference |
|---|---|---|
| JIS-F2001 | Traditional Japanese standard; heavier construction | Historically dominant |
| DIN-82607 | Simpler, lighter design for same SWL capacity | Currently preferred |
> *"Because the DIN-82607 type bollard is simpler and lighter than JIS-F2001 type bollard for the same SWL capacities, the DIN-82607 type bollard is currently preferred."*
Bollards can be arranged in two primary directions relative to hull structure :
| Arrangement Type | Description |
|---|---|
| LS Type | Arranged along longitudinal stiffeners |
| TS Type | Arranged along transverse stiffeners |
Critical Requirement from OCIMF:
> *"Bollards require deck strengthening members in line with all four sides of the bollard base. The members below deck should be of the same thickness as the base, and their welding to the deck should be equal to the weld size between bollard base and deck."*
This means the foundation reinforcement must extend in all four directions from the bollard base—not just two sides.
The foundation must be designed for the ultimate load, not just the SWL.
Formula:
> Ultimate Load = SWL × Safety Factor
| Safety Factor | Application |
|---|---|
| 2.5x | Standard commercial terminals |
| 3.0x | High-risk operations, exposed locations |
| 5.0x | Lifting lug applications (by comparison) |
Industry Perspective on Safety Factors:
> *"Typical working loads at 1/5th of wire rope capacity is similar to lifting lugs which are designed for 5 times the specified lifting capacity. Since docking ships is not done under tight controls, there is a far higher risk of the mooring receiving an accidental full capacity load."*

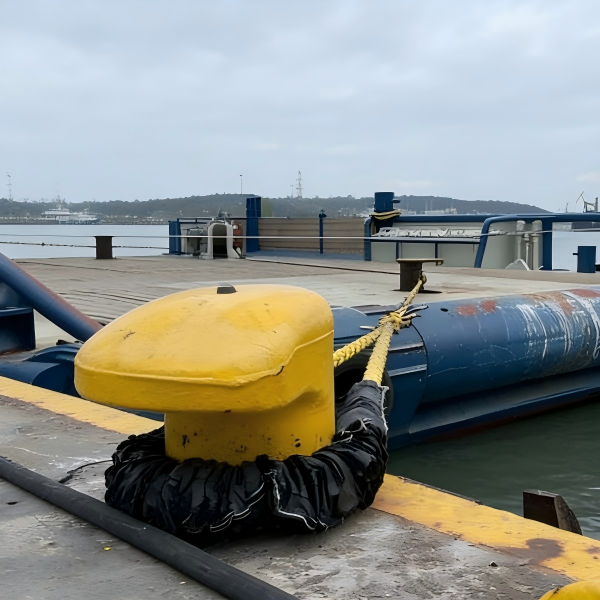

For a mooring bollard installed on a concrete quay or pier, the foundation must resist:
- Pullout forces (vertical uplift)
- Shear forces (horizontal mooring line tension)
- Overturning moments (combined forces at an angle)
Minimum Requirements:
- Concrete strength: C30/37 minimum
- Embedment depth: 12x bolt diameter into structural concrete
- Reinforcement: Anchor bolts must be tied into primary rebar grid
For bollards subjected to large lateral loads (the primary loading condition), the foundation must be designed for passive earth pressure or pile resistance.
Key Considerations from Geotechnical Engineering:
A 300 kip lateral load requires substantial foundation mass. For a shallow foundation, the required pad size becomes impractically large :
| Foundation Type | Approximate Size for 300 kip Load |
|---|---|
| Shallow pad (5 ft thick) | 46 ft × 46 ft |
| Deep block (20.5 ft thick) | 20 ft × 20 ft × 20.5 ft |
| Battered piles | Most cost-effective solution |
For marine environments, vertical pile groups with a stiff pile cap or battered piles are frequently used for large lateral loads .
The pullout resistance of anchor bolts depends on:
- Bolt embedment depth
- Concrete strength
- Reinforcement configuration
- Edge distance
Standard Requirement:
> *"Pullout resistance must exceed ultimate load (typically 2.5x to 3.0x SWL)."*
For bollards subjected to mooring lines at an angle (typical condition), overturning must be checked.
The Critical Load Point:
Research defines ultimate load as: *"The corresponding load point when the deformation slope of the bollard column reaches the critical slip angle."*
Before any installation begins:
| Action | Purpose |
|---|---|
| Conduct concrete core test | Verify existing foundation strength |
| Study site plans | Mark intended location of each bollard |
| Check for hazards | Water pipes, gas lines, underground wiring |
| Verify permit requirements | May need permit for certain dig depths |
Based on industry best practices for cast-in anchor installation :
Step 1 – Anchor Preparation:
- Mark embedment length on all anchors
- Align anchors using provided anchor templates
- Restrain top template to avoid movement
Step 2 – Reinforcement:
- Reinforce anchors with steel bars
- Reinforcement design by qualified engineer
- Minimum excavation depth: 440 mm for surface mount, 500 mm for recessed mount
Step 3 – Concrete Pour:
- Pour concrete per site supervisor instructions
- Provide sufficient curing time
- Do not touch anchors until curing complete
Step 4 – Grouting:
- Roughen concrete surface
- Clean bollard base of grease, dirt, rust
- Use non-shrink grout (minimum 60 MPa strength)
- Allow grout to cure completely
Step 5 – Torquing:
- Use calibrated torque wrench
- Typical torque: 240 N-m for M24 nuts
- Document torque values
> *"Use anchors supplied by the manufacturer. Have a site engineer confirm that the strength class of the concrete used is appropriate for this bollard."*
Never substitute unspecified anchor bolts. The foundation load calculation matching technical scheme must account for the specific bolt properties provided with the bollard.
Based on field experience and academic research, here are the most common foundation failures :
| Failure Mode | Cause | Prevention |
|---|---|---|
| Pullout failure | Insufficient embedment depth | Minimum 12x bolt diameter |
| Concrete breakout | Low-strength concrete, inadequate rebar | C30/37 minimum, tied reinforcement |
| Overturning | Insufficient foundation mass | Proper mass calculation, battered piles |
| Bolt fatigue | Improper torque, no locking mechanism | Torque wrench, documented values |
| Corrosion failure | Non-marine grade materials | Hot-dipped galvanized or stainless steel |
We asked our global OEM clients about their experience with bollard foundations:
> *"We had a bollard pullout incident five years ago—concrete chunks everywhere. The investigation found that the anchor bolts were only embedded 4 inches into the quay wall. Now we require core tests before any installation, and we verify every embedment depth personally."*
> — *Port Engineer, Southeast Asia*
> *"The research finding that local hull stresses exceed fitting stresses was confirmed on one of our projects. The bollard itself was fine, but the deck underneath was flexing visibly under load. We had to add stiffeners below deck after the fact—very expensive."*
> — *Technical Manager, European Terminal*
> *"We switched from ASD to USD design for all new bollard foundations. The initial engineering cost is higher, but we're using less steel and concrete while maintaining safety. The lifecycle savings are substantial."*
> — *Engineering Director, Middle East Port Authority*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture mooring bollards and provide full foundation load calculation matching technical schemes for OEM clients worldwide.
Our bollard capabilities include:
| Service | Description |
|---|---|
| Bollard types | T-head, pillar, cross, and custom designs per ISO/DIN/JIS standards |
| SWL range | 5T to 150T+ |
| Materials | High-tensile steel, hot-dipped galvanized, stainless steel |
| Foundation documentation | Anchor bolt patterns, embedment specifications, torque requirements |
| Third-party certification | ABS, BV, DNV, LR, CCS available |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get complete technical documentation—not just a bollard.
Foundation load calculation matching technical schemes for mooring bollard installation is not optional—it is a safety-critical engineering requirement. The foundation is often the weakest link, and reinforcements that don't address ultimate load capacities waste money without improving safety.
Proper foundation design requires:
- Accurate mooring load determination
- USD-based ultimate strength assessment
- Proper embedment depth (12× bolt diameter minimum)
- Tied reinforcement in all four directions
- Documented installation and torquing
[Contact the Nanjing Taidun Engineering Team] for a free bollard foundation consultation. Send us your SWL requirements and site conditions, and we will provide anchor bolt patterns, embedment specifications, and torque requirements for your project.
Q1: What is the minimum safety factor for mooring bollard foundations?
A: The foundation must resist ultimate loads with safety factors typically 2.5x to 3.0x Safe Working Load (SWL) per ISO 13795 and GB/T 36665 requirements .
Q2: What is the difference between ASD and USD for bollard foundations?
A: ASD (Allowable Stress Design) uses safety factors on yield strength. USD (Ultimate Strength Design) considers actual failure points. Research shows ASD-based reinforcements increase cost without substantially raising ultimate capacities .
Q3: How deep should anchor bolts be embedded?
A: Minimum 12 times the bolt diameter into structural concrete. For a 25mm diameter bolt, this means 300mm minimum embedment depth .
Q4: What concrete strength is required for bollard foundations?
A: Minimum C30/37 (or equivalent) for bollard foundations. Lower-strength concrete risks concrete breakout failure under load .
Q5: Why are local hull stresses higher than bollard stresses?
A: Research by four major Korean shipbuilders found that SWL is dependent on hull strength rather than the strength of fittings themselves. The foundation—not the bollard—is often the weakest link .
