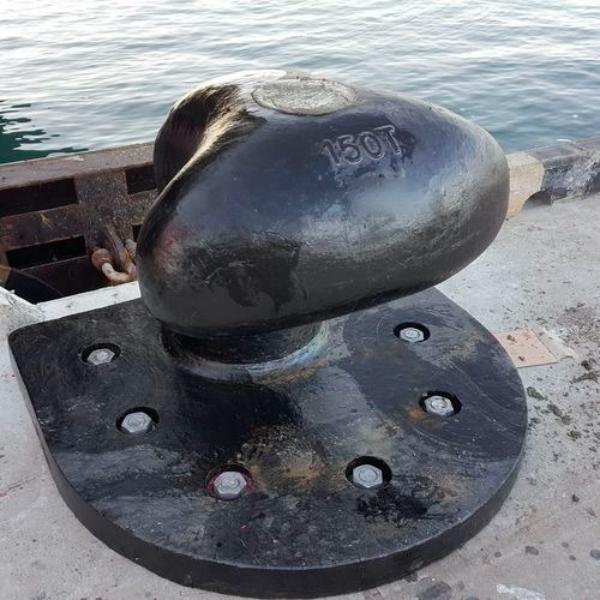

● Surface-Mounted vs. Recessed Bollard Installation
>> Comparison of Mounting Types
● Site Preparation and Safety Considerations
● Post-Installation Inspection and Maintenance
>> Initial Inspection Checklist
>> Ongoing Maintenance Requirements
● Case Study – Proper Bollard Installation at a European Container Terminal
● Common Installation Mistakes to Avoid
● How Nanjing Taidun Supports Your Bollard Installation
● Frequently Asked Questions (FAQ)

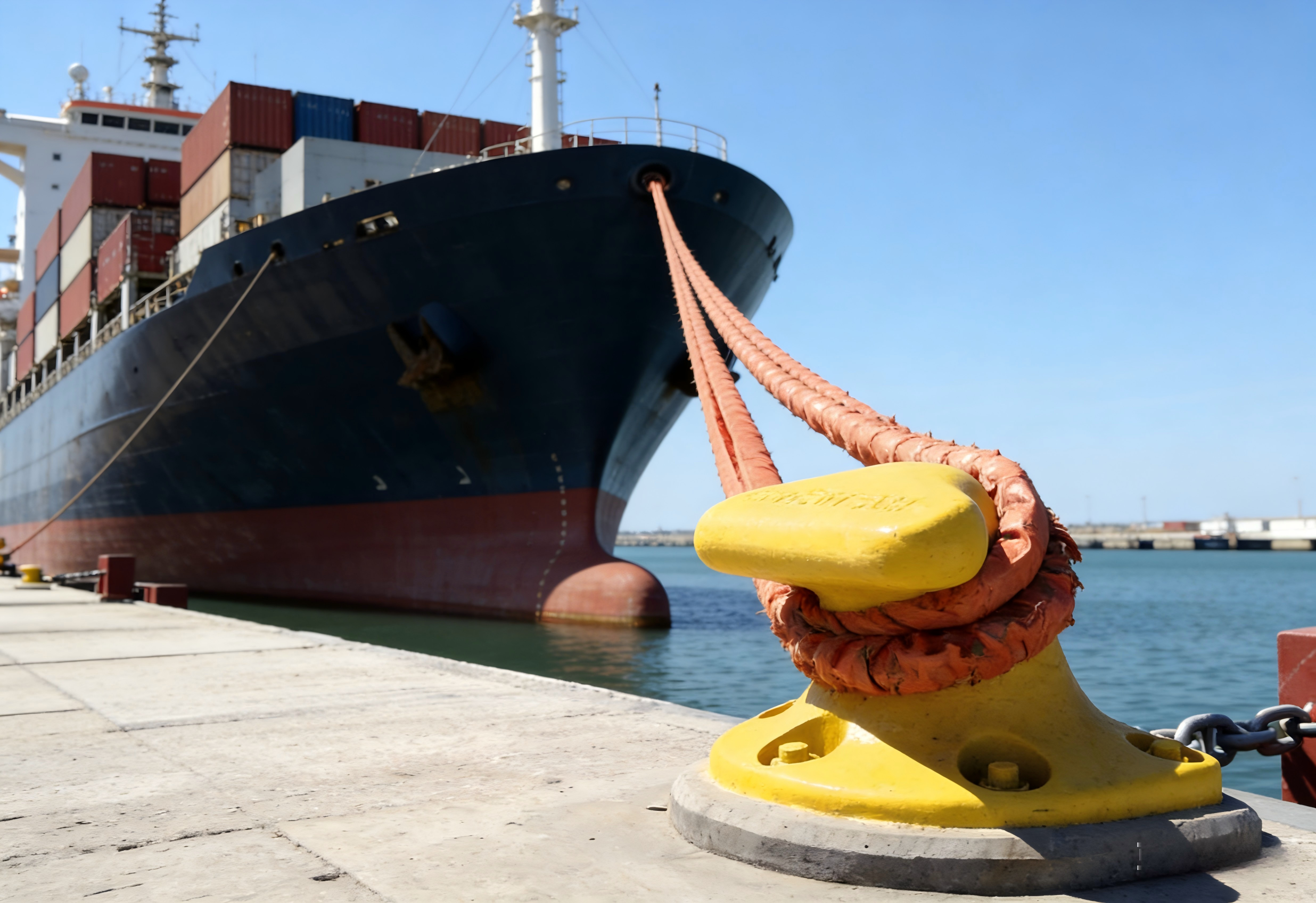

A mooring bollard is a safety-critical component. When a 200,000-ton tanker is tied up at your terminal, those bollards are the only thing preventing that vessel from drifting away. The consequences of a failed bollard installation are not theoretical—they are catastrophic.
Yet, I have seen too many projects where the bollard itself was high-quality, but the installation was rushed. The anchor bolts were misaligned. The grout was the wrong strength. The concrete didn't cure properly.
The result? Bollards that loosen under load. Bases that crack. Anchors that pull out.
I have spent two decades manufacturing OEM marine equipment—including mooring bollards and rubber fender systems—for global brands. In this bollard installation best practices – anchor bolt embedment and grouting specifications guide, I will walk you through everything you need to know to ensure your bollards perform safely for decades.
Before diving into the technical specifications, let's understand the stakes.
Mooring bollards are subject to extreme forces. The mooring loads from large vessels can exceed 200 tons (2000 kN) depending on vessel size and environmental conditions .
What happens when installation fails:
| Failure Mode | Consequence |
|---|---|
| Anchor bolt pull-out | Bollard detaches from foundation; vessel drifts |
| Grout cracking | Bollard becomes loose; uneven load distribution |
| Misalignment | Rope angles exceed design limits; premature wear |
| Corrosion | Structural weakening; eventual failure under load |
> *"Bollards are safety-critical components, and manufacturers strive to provide bollards with superior service life and resistance to physical and corrosive environments."*
Marine bollards must be designed and installed in accordance with international standards :
| Standard | Focus |
|---|---|
| BS 6349 pt 4 | British Standard for maritime structures |
| PIANC Guidelines | International navigation association recommendations |
| Local port authority requirements | Site-specific regulations |
> *"Bollards should be designed and laid out according to local standards. Design codes recommend that bollards are frequently placed at 15–30m intervals, often at the same spacing as fenders."*
Understanding the two main installation methods is the foundation of any bollard installation best practices – anchor bolt embedment and grouting specifications guide.
This is the gold standard for permanent marine bollard installations. The anchor bolts are set into the concrete before it is poured, creating a monolithic bond between the bollard and the foundation .
How it works:
1. Anchor bolts are positioned using a template
2. Steel reinforcement is added around the bolts
3. Concrete is poured around the assembly
4. Bollard is mounted after concrete cures
Best for: New wharf construction, major retrofits, high-load applications, permanent installations
The one-time embedding method: When pouring concrete, the anchor bolts are buried directly into the foundation. This creates the strongest possible bond .
This method is used when installing bollards on existing concrete structures where cast-in placement is not possible .
How it works:
1. Holes are drilled into existing concrete
2. Holes are cleaned thoroughly
3. Resin adhesive or epoxy grout is injected
4. Anchor bolts are inserted
5. Bollard is mounted after adhesive cures
Best for: Existing docks, retrofits, upgrades, areas where excavation is impractical
The reserved hole method: The equipment is positioned in place, the hole is cleaned, anchor bolts are inserted, and then non-shrink fine stone concrete (one grade higher than the original foundation) is used for filling and tamping .
The anchor bolt embedment is the most critical element of any bollard installation. If the embedment is wrong, nothing else matters.
> *"For a surface mounted installation, dig to a minimum depth of 440 mm [17.32″]. For a recessed mount installation, dig to a minimum depth of 500 mm [19.69″]."*
Proper spacing ensures even load distribution and prevents concrete failure.
> *"The distance from the center of the anchor bolt to the edge of the foundation shall not be less than 4d (d is the diameter of the anchor bolt), and shall not be less than 150mm."*
Anchor bolts cannot stand alone. They must be reinforced with steel bars to transfer loads into the concrete mass .
Reinforcement guidelines:
- Steel reinforcement must be provided to the anchors
- The reinforcement design should be carried out by a jetty designer or site engineer
- Reinforcement should tie the anchor bolts into the overall foundation structure
> *"Steel reinforcements must be provided to the anchors. The reinforcement design can be carried out by a jetty designer or site engineer."*
Precision alignment is impossible without a proper template.
Template best practices:
- Use the two provided anchor templates (one at the head, one at embedment length)
- Restrain the top template to avoid any movement during concrete pour
- Nanjing Taidun notes that anchors should be accurately installed with a template of the bolting pattern, which manufacturers can supply on request
> *"Align the anchors using the two provided anchor templates. Place one template on the head of the anchor and fix the other anchor at the embedment length. Restrain the top template to avoid any movement."*
The concrete and grout used in bollard installation must meet specific strength requirements to handle the extreme loads.
| Parameter | Specification |
|---|---|
| Minimum compressive strength | C40/45 (or per manufacturer‘s drawing) |
| Cure time before loading | 48–72 hours minimum |
| Full strength cure | 28 days typical |
> *"Typically C40/45 (or per manufacturer's drawing) with cure to the specified strength before loading/actuation."*
Grout fills the gap between the bollard base and the concrete foundation, ensuring even load distribution.
| Parameter | Specification |
|---|---|
| Minimum compressive strength | 60 MPa |
| Gap thickness | Approximately 15 mm [0.6″] around base edge |
| Cover over base flange | At least 5 mm [0.2″] above bottom of base flange |
> *"Non-shrink grout with a minimum strength of 60 MPa. Grout should be sturdy and caulked approximately 15 mm [0.6″] around the edge of the base of the bollard. Place the grout at least 5 mm [0.2″] above the bottom of the base flange."*
Proper surface preparation is essential for grout adhesion .
Preparation steps:
1. Roughen the surface of the concrete
2. Remove all debris from the surface
3. Clean the base of the bollard of all grease, dirt, loose rust, and scale
4. Use boundary forms to isolate the area for grouting
5. Follow grout manufacturer's procedure for mixing and application
> *"Roughen the surface of the concrete and remove all debris from the surface. Clean the base of the bollard of all grease, dirt, loose rust and scale. Use boundary forms to isolate the area for grouting."*
Once the grout has cured, the anchor bolts must be torqued to the correct specification.
| Bolt Size | Typical Torque | Application |
|---|---|---|
| M24 | 240 N-m | Standard marine bollards |
| M30 | Per engineer‘s calculation | Higher capacity bollards |
| M36–M56 | Per engineer‘s calculation | Heavy-duty applications |
> *"Once grout has cured, place provided washers and nuts and torque to 240 N-m."*
1. Use a calibrated torque wrench—never an impact gun without torque control
2. Tighten in a crisscross pattern to ensure even pressure distribution
3. Apply thread-locking compound to prevent loosening from vibration
4. Document torque values for each bolt for quality records
> *"A thread loosening compound is frequently applied to allow future removal for replacement."*
> *"Recess mounting is generally recognized as superior, as recessing the base prevents the bolts from working loose. Where possible, recessing the bollard in the concrete is more beneficial than surface mounting."*
| Parameter | Specification |
|---|---|
| Gap between bollard and concrete | 20 mm [0.8″] on every side |
| Recess depth | 60 mm [2.36″] after pour |
> *"For a recessed mount, the recess must be 60 mm [2.36″] deep after this pour. Use a cover boundary to prevent the concrete being poured into the required recess."*
Before any excavation, conduct a thorough site assessment :
- Utility survey: EML/GPR and trial pits before design freeze; mark and protect all live services
- Concrete inspection: Check thickness, strength, and condition of existing slab
- Water table assessment: Plan dewatering for high water tables
> *"Utility survey: EML/GPR and trial pits before design freeze; mark and protect all live services."*
- Check local building codes and accessibility standards
- Obtain necessary permits for excavation depth
- Coordinate authority approvals and landlord constraints early
> *"You may need a permit to dig to certain depths or in certain locations."*
Once installation is complete, verify :
- [ ] Bollard is plumb (vertical) in both directions
- [ ] No signs of surface damage (abrasions should be covered to prevent rust)
- [ ] Grout is fully cured with no cracks
- [ ] Torque values meet specifications
- [ ] Alignment matches design drawings
> *"From a distance, examine the plane of view. Ensure the bollard is plumb. Check the bollard for any signs of surface damage. Abrasions should be covered as soon as possible to prevent rust and ensure the proper life of the bollard."*
> *"Clean the mooring bollards regularly to remove shells and microorganisms. Check the tightness regularly to ensure stability."*
A recent project at a major European container terminal illustrates the importance of following proper bollard installation best practices – anchor bolt embedment and grouting specifications.
The Challenge: The terminal was upgrading its mooring system to handle new generation ultra-large container ships with capacities exceeding 20,000 TEU. Bollard capacity requirements increased from 100 tons to 200 tons .
The Solution:
- Cast-in-place installation using M56 anchor bolts with 200-ton capacity
- Concrete mix specified at C45 with 28-day cure verification
- Non-shrink grout at 60 MPa strength
- Recessed mounting for additional security
- Third-party inspection of torque values and alignment
The Result: The installation has performed flawlessly for over three years, handling daily vessel calls with no signs of loosening or concrete cracking.
User Feedback:
> *"The key to success was the anchor template. We've had projects where bolts were misaligned by 10-15 mm, and the bollard wouldn't fit. This time, we used the manufacturer's template, and every bolt was exactly where it needed to be."*
> — Port Engineer, Northern Europe
> *"We learned the hard way that you can't rush grout curing. On an earlier project, we torqued bolts after 48 hours instead of waiting for full cure. Six months later, the grout had cracked and the bollard was loose. Now we wait the full 28 days for concrete and follow grout manufacturer specs exactly."*
> — Maintenance Manager, Southeast Asian Terminal
Based on field experience, here are the most common bollard installation errors :
| Mistake | Consequence | Prevention |
|---|---|---|
| Ignoring subsurface utilities | Damage to pipes/cables; costly repairs | Always perform utility scan before digging |
| Under-specifying foundations | Premature failure; bollard loosening | Match foundation design to expected loads |
| Skipping the anchor template | Misaligned bolts; bollard won‘t fit | Always use manufacturer‘s template |
| Rushing grout cure | Cracked grout; loose bollard | Allow full cure time per specifications |
| Using wrong bolt grade | Corrosion; bolt shear failure | Use marine-grade 316 stainless steel |
| No torque wrench calibration | Under/over-tightened bolts | Use calibrated torque wrench; document values |
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that proper bollard installation best practices – anchor bolt embedment and grouting specifications are the difference between a 5-year headache and a 25-year asset.
Our bollard installation support includes:
| Service | Description |
|---|---|
| Anchor templates | Precision templates for accurate bolt positioning |
| Complete hardware kits | 316 stainless steel bolts, washers, nuts |
| Installation drawings | Detailed embedment and reinforcement specifications |
| Grout specifications | Recommended non-shrink grout types and suppliers |
| Torque specifications | Bolt-specific torque values for every bollard size |
| Technical support | On-site consultation available for large projects |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get factory-direct pricing, custom engineering, and full installation documentation.
Proper bollard installation is not optional—it is essential. The bollard installation best practices – anchor bolt embedment and grouting specifications outlined in this guide will help you achieve a safe, durable, code-compliant installation.
Remember the critical success factors:
- Use cast-in-place embedment for new construction
- Provide steel reinforcement around anchor bolts
- Use anchor templates for precise alignment
- Specify C40/45 minimum concrete with proper curing
- Use 60 MPa non-shrink grout
- Torque bolts to specification with calibrated tools
- Perform post-installation inspection and ongoing maintenance
[Contact the Nanjing Taidun Engineering Team] for a free bollard installation consultation, custom anchor templates, or technical support for your next marine project.
Q1: What is the minimum embedment depth for a marine bollard anchor bolt?
A: For surface mount cast-in installation, minimum depth is 440 mm [17.32″]. For recessed mount, minimum depth is 500 mm [19.69″]. High-security applications may require 0.9–1.7 m depth .
Q2: What grout strength is required for marine bollard installation?
A: Non-shrink grout with a minimum compressive strength of 60 MPa is required. The grout should be applied approximately 15 mm thick around the base edge .
Q3: What is the torque specification for M24 anchor bolts on marine bollards?
A: M24 anchor bolts should be torqued to 240 N-m after the grout has fully cured. Always use a calibrated torque wrench .
Q4: Should bollards be surface-mounted or recessed?
A: Recessed mounting is superior because it prevents bolts from working loose and protects the hardware from impact damage. Where possible, recessing the bollard in concrete is more beneficial than surface mounting .
Q5: What concrete strength is required for bollard foundations?
A: Minimum C40/45 concrete strength is typically required, with cure to specified strength before loading. Full cure typically takes 28 days .
