Overview

This article provides a comprehensive guide to cylindrical rubber fenders, one of the most widely used and versatile marine fender systems in the global maritime industry. Covering design characteristics, performance specifications, application scenarios, installation methods, and maintenance practices, this content helps port operators, terminal engineers, and marine contractors understand how cylindrical rubber fenders deliver reliable berthing protection across diverse vessel types and operational conditions. The article also explores recent innovations in cylindrical fender technology, including advanced rubber compounds, improved mounting systems, and integration with steel panels for enhanced performance.



Introduction

In the world of marine berthing protection, few products have achieved the widespread adoption and proven reliability of the cylindrical rubber fender. Simple in design yet sophisticated in performance, cylindrical rubber fenders have been protecting vessels and port infrastructure for decades across every type of maritime facility—from small fishing harbors to major commercial ports.

The cylindrical rubber fender’s enduring popularity stems from its versatility, durability, and cost-effectiveness. Its simple geometric shape allows for predictable energy absorption characteristics, while its mounting flexibility enables adaptation to a wide range of berthing conditions. Whether used as a standalone solution or integrated into complex fender systems with steel panels, cylindrical rubber fenders continue to play an essential role in global port infrastructure.

This article explores the technical aspects, applications, and selection criteria for cylindrical rubber fenders, providing practical guidance for professionals involved in port design, construction, and maintenance.



What Is a Cylindrical Rubber Fender?

A cylindrical rubber fender is a hollow, cylindrical-shaped marine fender manufactured from high-quality natural or synthetic rubber compounds. The cylindrical design creates a structure that compresses under impact, absorbing kinetic energy and converting it into potential energy stored in the deformed rubber. Upon completion of the impact, the rubber returns to its original shape, ready for the next berthing event.



Key Design Features

- Hollow Cylindrical Core: The hollow center allows for progressive compression characteristics, with energy absorption increasing as the cylinder deforms.

- Uniform Cross-Section: Consistent geometry along the length ensures predictable performance regardless of where vessel contact occurs.

- Multiple Mounting Options: Cylindrical fenders can be mounted horizontally, vertically, or at angles, providing flexibility for different berth configurations.

- Variety of Sizes: Available in diameters ranging from 300 mm to 2,000 mm or larger, with corresponding lengths to suit specific applications.

- Material Options: Manufactured from natural rubber for high resilience or synthetic rubber blends for enhanced resistance to oil, ozone, and UV exposure.



How Cylindrical Rubber Fenders Work

The performance of a cylindrical rubber fender is defined by its load-deflection and energy absorption characteristics. When a vessel contacts the fender, the cylindrical shape compresses, with the rubber material resisting deformation. The relationship between applied force and compression is nonlinear, providing progressive resistance:

1. Initial Compression: During initial contact, the fender compresses easily, providing a soft response that cushions the vessel’s approach.

2. Progressive Compression: As compression increases, the rubber’s resistance rises, absorbing increasing amounts of energy.

3. Full Compression: At maximum rated compression, the fender achieves its rated energy absorption capacity while maintaining hull pressures within acceptable limits.

4. Recovery: Upon vessel departure, the rubber returns to its original shape, with no permanent deformation under normal operating conditions.

This progressive response characteristic makes cylindrical rubber fenders particularly well-suited for applications where vessels of varying sizes and approach velocities use the same berth.



Performance Characteristics

1,Energy Absorption

Cylindrical rubber fenders offer predictable energy absorption based on their diameter, length, and rubber compound. Typical energy absorption values range from:

- Small diameters (300-500 mm): 10-50 kNm per meter of length

- Medium diameters (600-1000 mm): 50-200 kNm per meter of length

- Large diameters (1200-2000 mm): 200-500+ kNm per meter of length

2,Reaction Force

Reaction force, the force transmitted to the vessel and substructure during compression, is a critical design parameter.Cylindrical rubber fenders generally exhibit a favorable energy-to-reaction ratio, meaning they absorb significant energy without generating excessively high reaction forces.

3,Hull Pressure

When properly sized and installed, cylindrical rubber fenders maintain hull pressures within acceptable limits for most vessel types. The cylindrical shape distributes contact forces across a curved surface, reducing pressure concentrations compared to some other fender types.

4,Shear Resistance

Cylindrical rubber fenders have limited resistance to shear loads, which is why proper mounting alignment and consideration of angular berthing conditions are important in system design.



Application Scenarios

Cylindrical rubber fenders are used across a wide range of maritime applications, each with specific considerations.

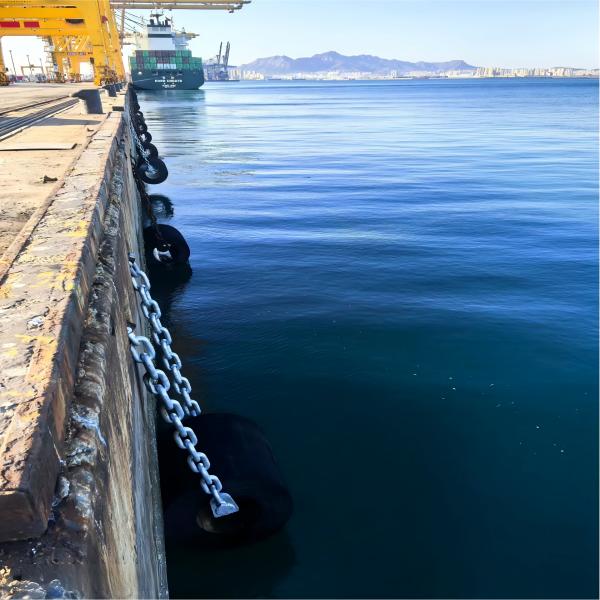

1. Container Terminals

In container terminals, cylindrical rubber fenders are often used as secondary fenders or in combination with larger fender systems. Their uniform geometry makes them suitable for berths serving a range of container vessel sizes. When integrated with steel panels, cylindrical fenders can be part of a complete berthing face system that distributes loads effectively across the terminal structure.

2. Bulk Cargo Terminals

Bulk carriers have distinctive hull forms with pronounced bow and stern shapes. Cylindrical rubber fenders are well-suited for these terminals because their shape accommodates the curved hull profiles common in bulk carriers. They are frequently used along quay walls where vessels of varying beam dimensions call regularly.

3. Ro-Ro and Ferry Terminals

Ro-Ro vessels and ferries present unique berthing challenges due to their flat sides, stern ramps, and frequent docking cycles. Cylindrical rubber fenders are commonly used in these facilities, often arranged in vertical orientations to accommodate varying water levels and vessel freeboards. Their durability under repeated impacts makes them particularly suitable for high-frequency operations.

4. Fishing Harbors and Small Craft Berths

In smaller facilities, cylindrical rubber fenders provide cost-effective berthing protection for fishing vessels, workboats, and recreational craft. Their forgiving response characteristics make them ideal for facilities where operators may have varying levels of berthing experience.

5. Lock Chambers and Canals

Cylindrical rubber fenders are extensively used in lock chambers and canal systems where vessels must navigate confined spaces. The fenders protect both the vessels and the lock structures during entry, exit, and waiting operations.



Mounting Configurations

One of the key advantages of cylindrical rubber fenders is their mounting flexibility.

1, Horizontal Mounting

Horizontal mounting is the most common configuration, with fenders positioned parallel to the waterline. This arrangement provides a continuous berthing face along the quay wall and is suitable for most commercial terminal applications.

2,Vertical Mounting

Vertical mounting involves positioning fenders perpendicular to the waterline. This configuration is often used in areas with significant tidal ranges, as it ensures vessel contact at all tide levels. Vertical mounting is also common in lock chambers and at Ro-Ro terminals.

3,Angled Mounting

Angled mounting allows fenders to be positioned to accommodate specific vessel approach angles or berth geometries. This configuration can be particularly useful at corners or in facilities where vessels berth at non-perpendicular angles.

4,Integration with Steel Panels

Cylindrical rubber fenders can be effectively integrated with steel panels to enhance system performance. When combined with steel panels, the cylindrical fenders provide the energy absorption while the steel panel distributes loads and provides a low-friction sliding surface through UHMW-PE pads.

Benefits of Steel Panel Integration

- Improved Load Distribution: Steel panels spread the concentrated load from cylindrical fenders across a wider vessel hull area, reducing hull pressures.

- Enhanced Abrasion Protection: UHMW-PE pads on steel panels provide a low-friction interface that accommodates vessel movement without damaging the rubber fenders.

- Accommodation of Angular Berthings: Steel panels with chamfers allow vessels to approach at angles without subjecting cylindrical fenders to excessive shear forces.

- Simplified Maintenance: Steel panels protect cylindrical fenders from direct vessel contact, extending their service life.



Material Selection

The performance and longevity of cylindrical rubber fenders depend significantly on material selection.

1,Natural Rubber

Natural rubber offers excellent resilience, high energy absorption capacity, and superior recovery characteristics. It is the preferred material for most marine fender applications due to its outstanding mechanical properties. Natural rubber performs best in applications where exposure to oil and ozone is limited.

2,Synthetic Rubber Compounds

For environments with exposure to oil, fuel, ozone, or aggressive chemicals, synthetic rubber compounds provide enhanced resistance. Common synthetic options include:

- SBR (Styrene-Butadiene Rubber): Good abrasion resistance and durability

- EPDM (Ethylene Propylene Diene Monomer): Excellent ozone and weather resistance

- Neoprene (Chloroprene): Good oil and chemical resistance

Selection Criteria

Consider the following when selecting rubber compounds:

- Environmental Conditions: Temperature extremes, UV exposure, chemical presence

- Operational Factors: Frequency of berthing, vessel types, potential for oil or fuel spills

- Service Life Requirements: Expected operational life and maintenance intervals



Sizing and Selection Guide

Selecting the appropriate cylindrical rubber fender requires consideration of several factors.

Step 1: Determine Berthing Energy

Calculate the berthing energy based on vessel displacement, berthing velocity, and approach angle:

E = (1/2) × m × v² × Cc × Ce × Cs

Where:

- E = Berthing energy (kNm)

- m = Vessel displacement (tons)

- v = Berthing velocity (m/s)

- Cc = Configuration coefficient

- Ce = Eccentricity coefficient

- Cs = Softness coefficient

Step 2: Select Fender Diameter and Length

Based on the calculated berthing energy, select fender dimensions that provide adequate energy absorption capacity while maintaining acceptable reaction forces and hull pressures.

Step 3: Determine Mounting Configuration

Select horizontal, vertical, or angled mounting based on berth geometry, tidal range, and vessel characteristics.

Step 4: Consider Steel Panel Integration

Evaluate whether steel panel integration is beneficial based on vessel types, hull pressure considerations, and operational conditions.

Step 5: Verify Substructure Capacity

Ensure the berth structure can accommodate the reaction forces generated by the selected fender system.



Installation Best Practices

Proper installation is essential for achieving optimal performance and service life.

1,Mounting Surface Preparation

- Ensure the mounting surface is flat, level, and structurally sound.

- Use epoxy grout or leveling plates to correct any surface irregularities.

- Verify anchor bolt locations and embedment depths.

2,Alignment

- Align fenders precisely to ensure uniform load distribution.

- For horizontal mounting, maintain consistent elevations along the berth.

- For vertical mounting, ensure plumb alignment.

3,Fastening

- Use corrosion-resistant anchor bolts appropriate for the application.

- Follow manufacturer torque specifications.

- Consider using lock nuts or other vibration-resistant fasteners.

4,Spacing

- Determine appropriate spacing based on vessel size and berth configuration.

- Closer spacing provides more continuous protection but increases cost.

- Wider spacing may be acceptable for smaller vessels or lower-energy applications.



Maintenance and Inspection

Regular maintenance extends the service life of cylindrical rubber fenders and ensures continued reliable performance.

1,Visual Inspection (Annual)

- Check for surface cracking, cuts, or abrasion damage.

- Inspect mounting hardware for corrosion or loosening.

- Verify that fenders remain properly aligned.

2,Performance Testing (Periodic)

- Monitor compression characteristics during berthing events.

- Document any changes in fender behavior that may indicate degradation.

3,Hardware Maintenance

- Tighten loose fasteners as needed.

- Replace corroded or damaged hardware.

- Apply anti-seize compounds to threaded connections where appropriate.

4,Replacement Criteria

Consider replacement when:

- Deep cracking or significant surface deterioration is present

- Fenders have lost resilience or do not fully recover after compression

- Mounting hardware is compromised

- Fenders have exceeded their expected service life (typically 15-25 years)



Recent Innovations

Cylindrical rubber fender technology continues to evolve with several recent innovations:

1,Advanced Rubber Compounds

New rubber formulations offer improved resistance to ozone, UV, and temperature extremes, extending service life in challenging environments.

2,Integrated Steel Panel Systems

Pre-engineered systems combining cylindrical fenders with steel panels and UHMW-PE pads provide turnkey solutions that simplify installation and optimize performance.

3,Smart Fender Monitoring

Embedded sensors and monitoring systems allow real-time tracking of fender compression, enabling predictive maintenance and operational insights.

4,Recyclable Materials

Development of recyclable rubber compounds supports sustainability initiatives and end-of-life disposal considerations.



Cost Considerations

1,Initial Cost

Cylindrical rubber fenders offer one of the most cost-effective solutions among marine fender types. The simple design and established manufacturing processes result in competitive pricing.

2,Installation Cost

Installation costs vary based on mounting configuration, accessibility, and whether steel panel integration is employed. Horizontal mounting on existing quay walls typically involves lower installation costs than vertical mounting or complex configurations.

3,Lifecycle Cost

The long service life of cylindrical rubber fenders, combined with relatively low maintenance requirements, results in favorable lifecycle costs. When properly selected and maintained, cylindrical fenders often provide 20+ years of reliable service.



Conclusion

Cylindrical rubber fenders represent one of the most versatile and reliable solutions for marine berthing protection. Their simple yet effective design, combined with flexible mounting options and proven durability, makes them suitable for applications ranging from small fishing harbors to major commercial terminals. When integrated with steel panels and UHMW-PE pads, cylindrical fenders can meet the demanding requirements of modern ports while maintaining cost-effectiveness.

For port operators and terminal engineers, cylindrical rubber fenders offer a proven solution that balances performance, durability, and value. By understanding the technical characteristics, selection criteria, and installation best practices outlined in this article, you can make informed decisions that ensure safe, reliable, and cost-effective berthing operations for years to come.

For assistance with cylindrical rubber fender selection, sizing, or system design, consult with experienced marine fender specialists who can evaluate your specific berth conditions and operational requirements.
