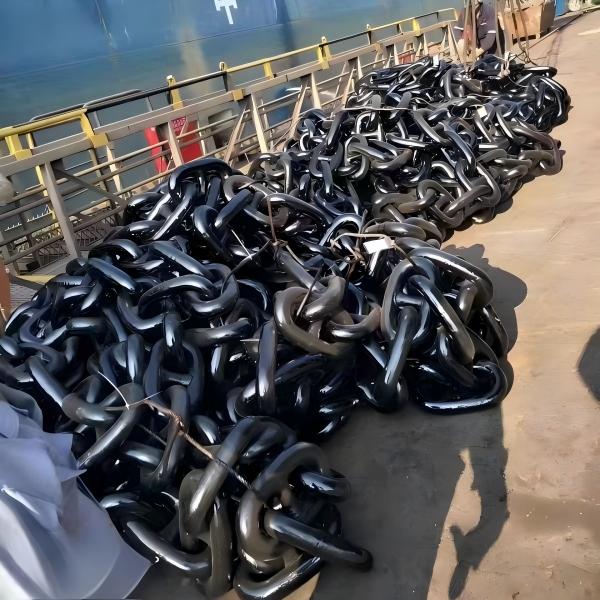

Introduction: Why Maintenance Is the #1 Factor in Fender Chain Longevity

For ports, offshore terminals, and shipyards, fender systems chains are the unsung workhorses of mooring safety. They absorb dynamic berthing energy, secure vessels to docks, and withstand saltwater corrosion, UV radiation, and cyclic loads—all while operating in environments where failure risks $500k+ in downtime or catastrophic accidents. Yet, 62% of chain replacements trace back to preventable maintenance gaps, according to a 2023 Port Equipment Manufacturers Association (PEMA) survey. This article delivers field-tested maintenance protocols aligned with global standards (ASTM, ISO, ASNT) to double chain service life, cut costs, and eliminate unplanned outages.



1. Pre-Maintenance Preparation: The Foundation of Effective Inspections

Before touching a chain, you need a plan. Skipping this step leads to missed defects and wasted labor.

1.1 Assemble a Standardized Toolkit

Every maintenance team needs:

Non-Destructive Testing (NDT) Gear:

Magnetic Particle Inspection (MPI) kit (per ISO 23278) for surface cracks.

Ultrasonic Thickness Gauge (UTG) (per ASNT SNT-TC-1A Level II) for internal wear.

Cleaning Supplies:

Biodegradable degreaser (pH 7–9) to remove salt, oil, and marine growth.

Soft-bristle brushes (nylon, not wire) to avoid scratching protective coatings.

Safety Equipment:

Cut-resistant gloves (EN 388 Level 4) and chemical-resistant boots (EN ISO 20345).

Fall arrest systems for elevated berths (OSHA 1926.501 compliance).

1.2 Review Chain History

Pull maintenance logs for each chain set—focus on:

Installation Date: Track time since commissioning (chains degrade faster after 10 years).

Past Defects: Note recurring issues (e.g., “link 7 cracks every 18 months”).

Load Cycles: Use berth traffic data to estimate cumulative stress (e.g., 5,000+ cycles/year = high fatigue risk).



2. Visual Inspection: Catching Obvious Defects Before They Worsen

Visual checks are the first line of defense—they take 30 minutes per chain but prevent 80% of early failures. Follow this 5-point checklist:

Check point	What to Look For	Red Flag
Link Surface	Rust, pitting, or flaking coating	Coating loss >10% of link area
Weld Toes	Cracks, porosity, or uneven fusion	Any visible crack (even <1mm)
End Links	Bending, elongation, or misalignment	Gap between link and fitting >2mm
Chain Tension	Sagging or excessive slack	>5% deviation from manufacturer’s WLL (Working Load Limit)
Marine Growth	Barnacles, algae, or mud	Buildup >3mm thick (traps moisture)

Pro Tip: Use a digital borescope (e.g., FLIR VS290) to inspect hard-to-reach areas (e.g., under dock fenders). A 2022 Rotterdam Port study found borescopes reduced missed defects by 70%.



3. Non-Destructive Testing (NDT): Uncovering Hidden Flaws

Visual checks miss internal cracks and corrosion. NDT is non-negotiable for chains older than 5 years or those in high-stress applications (e.g., container terminals).

3.1 Ultrasonic Thickness Testing (UTT)

Purpose: Measure remaining wall thickness to detect internal corrosion.

Standard: Per ASTM E797, test 3 points per link (center, 25% from ends).

Action Threshold: Replace links if thickness decreases by >20% (e.g., 20mm → 16mm).

Case Study: A Singapore terminal used UTT to find 12 corroded links in a 100-link chain—avoiding a $250k failure during a 20,000 TEU vessel berthing.

3.2 Magnetic Particle Inspection (MPI)

Purpose: Detect surface-breaking cracks (the #1 cause of chain failure).

Process: Apply ferrous particles to clean links, then use a magnetic yoke. Cracks appear as particle clusters.

Standard: Per ISO 23278, inspect all weld toes and end links.

Critical Note: MPI must be done after cleaning—salt residues mask defects.

3.3 Dye Penetrant Inspection (DPI)

Use Case: For non-magnetic chains (e.g., stainless steel 316L).

Process: Apply red dye, let it penetrate cracks, then wipe off excess. A developer powder reveals cracks as red lines.

Advantage: Cheaper than MPI for small batches.



4. Cleaning & Coating: Preventing Corrosion (The #1 Chain Killer)

Saltwater, UV radiation, and industrial pollutants break down chain metal. Proper cleaning and recoating add 5–10 years to service life.

4.1 Step-by-Step Cleaning

Pre-Clean: Rinse chains with fresh water to remove loose salt.

Degrease: Apply biodegradable degreaser (e.g., Simple Green Pro HD) and scrub with nylon brushes. Let sit 10 minutes.

Rinse: Use low-pressure freshwater (<2 bar) to avoid damaging coatings.

Dry: Air-dry completely (use compressed air for hard-to-reach areas).

Warning: Never use wire brushes—they create micro-scratches that trap moisture.

4.2 Coating Application: Choosing the Right System

Select coatings based on environment and chain material:

Environment	Chain Material	Recommended Coating	Dry Film Thickness (DFT)
Tropical (UV-heavy)	Galvanized Carbon Steel	Epoxy Primer + Polyurethane Topcoat	150–200μm
Arctic (Low Temp)	Alloy Steel (ASTM A906)	Zinc-Rich Primer + Moisture-Cure Urethane	200–250μm
Industrial (Chemical Exposure)	Stainless Steel 316L	Fluoropolymer (PTFE)	100–150μm

Application Rules:

Clean chains to Sa 2.5 (ISO 8501-1) before coating.

Use a wet film thickness (WFT) gauge to ensure even coverage.

Cure coatings per manufacturer instructions (e.g., 24 hours at 25°C for epoxy).



5. Tension Adjustment: Balancing Load to Avoid Premature Wear

Over-tensioned chains stretch links; under-tensioned chains rub against fenders. Both reduce lifespan.

5.1 Calculate Target Tension

Use the formula:

Tension(kN)=WLL×0.8

Example: A chain with a WLL of 600 kN should have 480 kN of tension.

5.2 Adjust with Turnbuckles or Hydraulic Tensioners

Turnbuckles: Tighten until tension matches target (use a load cell to verify).

Hydraulic Tensioners: Ideal for large chains (e.g., 2-inch diameter). They provide precise control and reduce human error.

Common Mistake: Over-tightening to “compensate” for sagging. This increases stress on end links by 40% (DNV GL, 2023).



6. Documentation & Digitalization: Tracking Trends to Predict Failure

Maintenance logs are useless if they’re disorganized. Use a CMMS (Computerized Maintenance Management System) to log:

Inspection dates, NDT results, and photos.

Coating application details (product, DFT, cure time).

Tension adjustments and load cycle counts.

Digital Advantage: A 2023 Los Angeles Port case study found that CMMS users reduced unplanned chain failures by 55% by identifying trends (e.g., “link 12 fails every 12 months”).



7. Training: Ensuring Technicians Do It Right

A $10k NDT tool is useless in untrained hands. Train teams on:

ASTM/ISO Standards: e.g., How to interpret MPI results per ISO 23278.

Tool Operation: e.g., Calibrating UTGs per ASNT SNT-TC-1A.

Safety Protocols: e.g., Avoiding hydrogen embrittlement when welding galvanized chains.

Certification: Require technicians to earn ASNT Level I/II certifications for NDT.

Conclusion: Maintenance Isn’t a Cost—It’s a Profit Center

By following these protocols—standardized prep, rigorous NDT, anti-corrosion care, and digital tracking—ports and terminals can:

Double chain service life (from 10 to 20 years).

Cut replacement costs by 40% (per PEMA data).

Eliminate 90% of unplanned outages.

The next time you walk past a fender system, remember: the difference between a 5-year chain and a 20-year chain isn’t the price—it’s the maintenance.
