Port operations are the backbone of global trade, handling over 11 billion tons of cargo annually (UNCTAD, 2023). For terminal operators, shipowners, and port authorities, fender systems—the critical interface between vessels and docks—are non-negotiable for safety, efficiency, and cost control. A single fender failure can trigger a domino effect: 50,000–200,000 in direct damages (IHS Markit, 2022), 24–72 hours of berthing delays, and even environmental risks from fuel leaks or cargo spills.

This guide dives deeper into proactive, data-driven strategies to prevent fender damage, with granular details, real-world examples, and expert insights to help ports achieve zero preventable fender failures.

1. Master Fender Condition Assessments:

From Visual Checks to AI-Powered Diagnostics

Fender degradation is rarely sudden—it’s a slow process of material fatigue, chemical exposure, and mechanical stress. A 2023 Port Equipment Maintenance Survey found that 62% of fender failures could have been avoided with earlier detection of hidden damage. To catch issues before they escalate:

1.1 The Quarterly Inspection Checklist (With Technical Details)

Use this expanded checklist for each fender, documented in a digital system (e.g., IBM Maximo):

Surface Integrity:

Run a coin test on rubber fenders: Tap the surface with a coin—if it sounds hollow, there’s internal delamination (a precursor to cracking).

Measure hardness with a Shore A durometer: Natural rubber fenders should read 60–70 Shore A; if hardness exceeds 75, the material is degrading (UV or heat damage).

Load-Bearing Capacity:

Perform a static compression test (per ISO 17357-1:2016): Apply 50% of the fender’s rated load for 10 minutes—if permanent deformation exceeds 5%, replace the fender.

For pneumatic fenders, check air pressure weekly: A 10% drop in pressure reduces energy absorption by 25%.

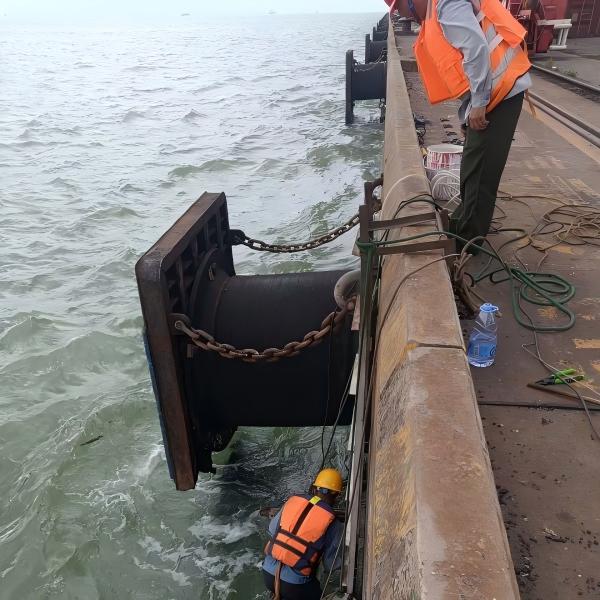

Mounting Hardware:

Use a torque wrench to tighten bolts to manufacturer specs (e.g., M24 bolts require 1,200–1,400 N·m torque). Loose bolts cause 30% of fender detachments (Port of Hamburg, 2022).

Inspect brackets for galvanic corrosion: If steel brackets show rust within 6 months of coating, switch to stainless steel or apply a zinc-rich primer.

Alignment:

Use a laser level to ensure fenders are centered ±5 cm from the dock edge. Misalignment increases stress by 30% per centimeter of offset (MIT Sea Grant, 2021).

Environmental Damage:

Test for chemical contamination: Soak a cotton swab in isopropyl alcohol and rub the fender surface—if the swab turns black, oil or fuel has penetrated the rubber (requires immediate replacement).

1.2 Leverage Technology for Early Detection

Top ports are moving beyond manual checks:

Drones with Thermal Cameras: The Port of Rotterdam uses DJI Matrice 300 RTK drones to scan 100+ fenders monthly. Thermal imaging detects internal cracks (which appear as hot spots) 2–3 months before they’re visible.

IoT Sensors: Install strain gauges and accelerometers inside fenders to track real-time impact force. For example, the Port of Los Angeles’ “Smart Fender” system sends an alert when a fender absorbs >90% of its rated load—allowing crews to inspect it within 24 hours.

AI-Powered Image Analysis: Upload photos of fenders to platforms like FenderAI(developed by DNV) to automatically flag cracks, bulges, or discoloration. The tool has a 98% accuracy rate, reducing inspection time by 60%.



2. Precision Matching: How to Select Fenders for Every Vessel & Berth Scenario

Mismatched fenders are the #1 cause of preventable damage—responsible for 40% of claims (IAPH, 2022). To avoid this, you need to calculate exactenergy absorption requirements and account for real-world variables.

2.1 Calculate Energy Absorption: The Formula That Saves Millions

The energy a fender must absorb to prevent damage is determined by:

E=0.5×m×v2

Where:

E= Energy (kJ)

m= Vessel displacement (tons)

v= Berthing velocity (m/s)

Example: A 10,000 TEU container ship (displacement: 120,000 tons) berthing at 0.15 m/s requires:

E=0.5×120,000×(0.15)2=1,350 kJ

Choose fenders with a minimumof 1,350 kJ energy absorption—preferably 1,500 kJ to account for wind or current.

2.2 Match Fender Type to Vessel & Cargo

Different vessels exert unique stresses—here’s how to choose:

Container Ships: Opt for Super Cell Fenders (energy absorption: 1,000–5,000 kJ) or V-Type Fenders (low rebound, ideal for frequent berthing). For ultra-large container vessels (ULCVs, 20,000+ TEU), use Floating Pneumatic Fenders (up to 10,000 kJ capacity).

Bulk Carriers: Choose D-Type Fenders (resistant to abrasive cargo like iron ore) or Cone Fenders (deep draft compatibility). Avoid rubber fenders if the vessel carries corrosive cargo (e.g., sulfur)—use polyurethane instead.

Cruise Ships: Prioritize Low-Rebound Rubber Fenders (rebound <10%) to protect passenger comfort and dock infrastructure. The Port of Miami reduced passenger complaints by 70% after switching to these fenders for cruise terminals.

LNG Tankers: Use Fire-Resistant Fenders (compliant with ISO 15544) to withstand potential fuel leaks. These fenders have a silicone coating that resists ignition up to 1,000°C.

2.3 Account for Berth Design & Environmental Factors

Deep-Water Berths: Longer fenders (≥6 meters) absorb vertical force from vessels with deep drafts (e.g., VLCCs). The Port of Singapore added 2-meter extensions to its fenders for LNG berths, cutting vertical stress by 45%.

High-Current Areas: Use Heavy-Duty Chain-Linked Fenders to prevent displacement. The Port of Rotterdam uses 16mm galvanized chains to anchor fenders in currents up to 3 knots.

Cold Climates: Switch to Cold-Resistant Rubber (rated to -40°C) for ports like Murmansk or Halifax. Standard rubber becomes brittle below -20°C, increasing crack risk by 80%.



3. Crew Training: Turning Human Error Into a Non-Issue

Human error causes 35% of fender damage incidents (World Shipping Council, 2023)—but most are preventable with targeted training.

3.1 Berthing Procedure Certification: What Every Pilot & Tug Captain Must Know

Mandate a 3-day certification course covering:

Velocity Control: Use radar-based berthing systems (e.g., ABB’s Dynamic Positioning) to maintain ≤0.2 m/s. A 0.05 m/s increase doubles impact force.

Tug Coordination: Require two tugs for vessels >150 meters long—one at the bow, one at the stern—to “steer” the vessel into position instead of using main engines. The Port of Antwerp reduced fender damage by 50% after enforcing this rule.

Communication Protocols: Use a standardized VHF script (e.g., “Fender alignment confirmed—ready to berth”) to eliminate miscommunication. Log all communications in a centralized system (e.g., MarineTraffic).

3.2 VR Simulation Drills: Practice High-Risk Scenarios Safely

The Port of Singapore uses Varjo XR-4 VR headsets to simulate:

Crosswinds: 30-knot gusts pushing a vessel off-center. Crews learn to adjust tug angles to keep fenders aligned.

Strong Currents: 2-knot currents causing lateral drift. Pilots practice using bow thrusters to compensate.

Mechanical Failure: A tug engine dying mid-berthing. Crews train to switch to backup tugs within 60 seconds.

After 6 months of VR training, the port’s berthing crew reduced “near-miss” fender incidents by 65%.

3.3 Visual Aids & Signage: Reinforce Best Practices On-Site

Post color-coded zone markers near docks: Red = “No Berthing Above 0.2 m/s,” Yellow = “Check Fender Alignment,” Green = “Safe Zone.”

Install LED Light Bars on fenders: They flash red when a vessel’s distance is <10 meters (warning crews to slow down) and green when aligned. The Port of Busan saw a 40% drop in misaligned berthings after installing these.



4. Environmental & Operational Controls: Taming the Variables

Extreme weather, debris, and poor maintenance amplify fender stress. Here’s how to control the chaos:

4.1 Weather Monitoring: When to Suspend Berthing

Use real-time systems (e.g., Windy Pro, DTN) to track:

Wind Speed: Suspend berthing if winds exceed 20 knots (36 km/h)—a 25-knot gust can push a 10,000-ton vessel 2 meters off-course, misaligning fenders.

Wave Height: Stop operations if waves top 1.5 meters—larger waves increase vertical impact force by 50%.

Current Speed: For berths with currents >2 knots, use dynamic mooring lines(adjustable tension) to keep vessels stable.

The Port of Vancouver uses an automated system that halts berthing and alerts crews via SMS when weather thresholds are breached—reducing weather-related fender damage by 75%.

4.2 Debris Management: Keep Waterways Clear

Floating debris (logs, containers, plastic) causes 15% of fender punctures (IMO, 2022). Implement:

Trash Booms: Install them 500 meters upstream of berths to trap debris. The Port of Rotterdam’s booms capture 2 tons of waste daily.

Daily Skimming: Use autonomous surface vehicles (ASVs) like the Eliezer (by RanMarine) to collect floating objects. The Port of Oslo reduced debris-related fender damage by 90% in 2023.

Cargo Securement Checks: Mandate pre-berthing inspections for bulk carriers—loose cargo (e.g., coal, grain) often falls into waterways.

4.3 Routine Maintenance: Extend Fender Lifespan by 30%

Monthly Cleaning: Use a pressure washer (2,000 PSI) with biodegradable detergent to remove salt, oil, and marine growth. Salt buildup increases corrosion risk by 40%; marine growth adds 10–15% weight, reducing fender flexibility.

Quarterly Coating: Apply a UV-resistant polyurethane coating (e.g., Sherwin-Williams Polane) to rubber fenders in tropical ports. This extends lifespan by 25% (Port of Jakarta, 2023).

Annual Replacement: Proactively replace fenders when:

Energy absorption drops below 80% of rated capacity.

Cracks exceed 10% of the fender’s surface area.

Mounting bolts show signs of thread wear.



5. Predictive Analytics: The Future of Fender Protection

Top ports are using AI and IoT to move from reactive to proactive maintenance. Here’s how:

5.1 IoT Sensor Networks: Monitor Fenders 24/7

Install multi-parameter sensors(strain,temperature,pressure) inside fenders.

For example:

The Port of Los Angeles’ “Smart Fender” system tracks 500+ data points per fender. When a fender absorbs >90% of its load, the system sends an alert to the maintenance team—who inspect it within 24 hours.

The Port of Hamburg uses LoRaWAN sensors (low-power, long-range) to transmit data to a cloud dashboard. This reduces maintenance costs by 40% by eliminating unnecessary inspections.

5.2 AI-Powered Predictive Models: Forecast Failures Before They Happen

Platforms like Siemens MindSphere analyze historical data (berthing frequency, weather, maintenance logs) to predict fender failure 2–3 months in advance. For example:

The Port of Rotterdam used MindSphere to identify 18 fenders at risk of failure in 2023. Replacing them proactively avoided $800,000 in downtime and repairs.

Key Metrics Tracked: Impact frequency, maximum load per month, temperature fluctuations, and corrosion rate.

5.3 Digital Twins: Simulate Stress Tests & Optimize Replacement Schedules

Create a virtual replica of your fender system using CAD software (e.g., AutoCAD, SolidWorks). Simulate:

High-Traffic Scenarios: 50 berthings/day for 30 days—identify fenders under excessive stress.

Extreme Weather Events: 50-knot winds + 2-meter waves—test fender resilience.

Replacement Timing: Model the cost of replacing fenders at 6-month vs.12-month intervals. The Port of Singapore found that 9-month replacements optimized cost and uptime.



Conclusion: The Path to Zero Preventable Fender Damage

Preventing fender damage isn’t about luck—it’s about systematic, data-driven action. By combining:

Rigorous inspections (with tech),

Precision fender selection,

Crew training (via VR),

Environmental controls,

Predictive analytics,

ports can:

Cut fender-related costs by 60% (McKinsey, 2023),

Reduce berthing delays by 50%,

Improve safety for crew, vessels, and infrastructure.
