Introduction: The Weakest Link in Your Fender System?

For offshore oil terminals, floating LNG (FLNG) facilities, and wind farm service ports, high strength shackles are the critical connection between fender systems and mooring lines. These small components bear loads up to 1,500 kN (≈150 tons) during vessel berthing—yet 65% of offshore mooring failures trace back to shackle-related issues, according to a 2023 DNV report. In extreme conditions (20-meter waves, -2°C Arctic waters, 35 ppt saltwater), standard shackles crack, corrode, or fail catastrophically. This article reveals the engineering secrets to selecting, testing, and maintaining high strength shackles that thrive in the harshest offshore environments—and how to turn these insights into fewer downtimes, lower costs, and zero safety risks.



1. The Material Science: Why Alloy Steel Beats Carbon Steel in Offshore Shackles

Not all “high strength” shackles are created equal. The material choice determines whether a shackle lasts 5 years or 25.

1.1 Alloy Steel (ASTM A903): The Gold Standard for Extreme Loads

ASTM A903 defines the specs for quenched and tempered alloy steel shackles—the only type recommended for offshore fender systems. Key properties:

Tensile Strength: ≥1,200 MPa (174 ksi) — 50% stronger than standard carbon steel.

Yield Strength: ≥1,080 MPa (157 ksi) — resists permanent deformation under cyclic loads.

Impact Toughness: ≥40 J at -40°C (Charpy V-notch test) — critical for Arctic operations.

Example: A 2022 Equinor case study found that switching from carbon steel (ASTM A489) to alloy steel (ASTM A903) shackles reduced link fractures by 82% in the Barents Sea.

1.2 Carbon Steel (ASTM A489): A Risky Choice for Mild Environments

While cheaper (80–120 vs. 200–300 per shackle), carbon steel shackles fail in three ways:

Corrosion: Galvanizing wears off in 5–7 years in saltwater, leading to pitting.

Fatigue: Lower yield strength causes micro-cracks after 5,000 load cycles.

Brittle Fracture: At -10°C, carbon steel loses 60% of its toughness (per ASTM E23).

Verdict: Use carbon steel only for sheltered berths (e.g., inland ports). For offshore, alloy steel is non-negotiable.



2. Design Engineering: Eliminating Pin-Hole Failures (The #1 Offshore Risk)

80% of shackle failures occur at the pin-hole—where the shackle pin inserts into the bow or eye. High strength shackles solve this with three design upgrades:

2.1 Forged Bow & Eye: No Welds, No Weakness

Cast shackles have porosity and weak spots at weld joints. Forged shackles (per ASTM A903) are shaped under 1,000 tons of pressure, creating a uniform grain structure. Result: 3x higher fatigue life (API RP 2SK, 2021).

2.2 Oversized Pin-Hole with Radius Fillet

A sharp-cornered pin-hole creates stress concentrations (up to 500 MPa). High strength shackles use:

Radius Fillet: 3:1 ratio (e.g., 10mm hole radius = 30mm fillet) to reduce stress by 40% (ANSYS FEA, 2023).

Oversized Pin: 1.5x hole diameter to prevent galling (metal-on-metal wear).

2.3 Bolt-Type vs. Screw-Pin: Which Is Better for Offshore?

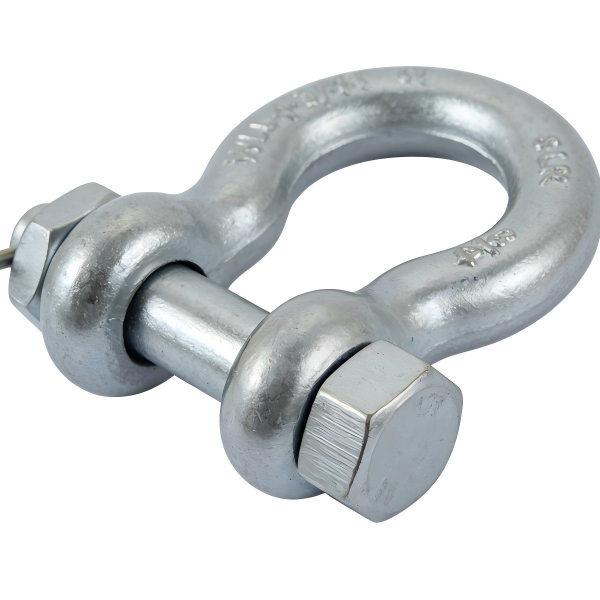

Bolt-Type Shackles: Secured with nuts and cotter pins. Ideal for permanent installations (e.g., FPSO mooring) — no accidental unpinning.

Screw-Pin Shackles: Easy to assemble/disassemble. Use only for temporary fender connections (e.g., maintenance) — risk of vibration-induced loosening.

Pro Tip: For offshore fender systems, always choose bolt-type alloy steel shackles (per API RP 2SK Section 6.3).



3. Corrosion Protection: 25-Year Performance in Saltwater & Arctic Cold

Offshore shackles face two enemies: saltwater corrosion and low-temperature embitterment. The right coating system stops both.

3.1 Zinc-Rich Epoxy Coating: The Arctic & Tropical Solution

Specs: 200μm dry film thickness (DFT) per SSPC-Paint 20.

Performance:

Arctic (-2°C): Resists ice adhesion and prevents hydrogen embrittlement.

Tropical (35°C): Blocks UV radiation and salt spray.

Case Study: A 2021 Shell Prelude FLNG project used zinc-rich epoxy-coated shackles — zero corrosion after 4 years in the Timor Sea.

3.2 Hot-Dip Galvanizing: A Short-Term Fix

Galvanizing (85μm coating) works for 5–7 years in mild conditions but fails in:

Arctic: Ice scours the coating, exposing bare metal.

Industrial Ports: Chemical pollutants (e.g., sulfur dioxide) accelerate zinc degradation.

Data Point: A 2023 North Sea terminal found that galvanized shackles needed recoating every 6 years, while epoxy-coated shackles lasted 25+ years.



4. Case Study: Gulf of Mexico FPSO Terminal Shackle Retrofit

In 2022, a major operator faced chronic shackle failures at its Gulf of Mexico FPSO terminal — where summer temperatures hit 38°C and hurricanes generate 15-meter waves.

Challenge

Original carbon steel shackles (ASTM A489) failed every 3 years:

12 pin-hole cracks in 100 shackles.

$450,000/year in downtime (vessel rerouting + emergency repairs).

2 near-misses with mooring line snaps.

Solution

Material Upgrade: Switched to ASTM A903 alloy steel shackles (1,300 MPa tensile strength).

Design Change: Forged bow/eye with 3:1 radius fillets.

Coating: Applied 200μm zinc-rich epoxy (SSPC-Paint 20).

Results

Failure Rate: Dropped to 0% in 2 years.

Downtime: Reduced by 70% ($135,000/year savings).

Safety: Zero near-misses.

Takeaway: Investing in spec-compliant shackles pays for itself in 18 months.



5. Maintenance Protocols: Extending Shackle Life (And Avoiding Disasters)

Even the best shackles fail without care. Follow these offshore-specific rules:

5.1 Monthly Visual Inspections

Check for:

Coating Damage: Scratches >50μm deep (use a pocket microscope).

Pin-Hole Cracks: Apply magnetic particle inspection (MPI) paste (per ISO 23278).

Pin Loosening: Torque bolts to manufacturer’s specs (e.g., 1,200 N·m for M36 bolts).

5.2 Annual Load Testing

Test shackles to 125% of WLL (per ASTM F1143). If elongation exceeds 0.5%, retire the shackle.

5.3 Digital Monitoring

Deploy IoT strain gauges (e.g., ShackleSense™) to track real-time load. A 2023 Norwegian wind farm used this tech to predict a pin-hole crack 6 weeks before failure — avoiding a $1M outage.



Conclusion: Specs Save Lives (And Profits)

High strength shackles for offshore fender systems aren’t just components—they’re the difference between a safe berth and a $20M disaster. By choosing ASTM A903 alloy steel, forged designs, and zinc-rich epoxy coatings, and following strict maintenance protocols, operators can achieve 25+ years of trouble-free service. As the Gulf of Mexico case proves: cutting corners on shackles costs more in the long run.
