Introduction: The Unsung Heroes of Offshore Mooring Safety

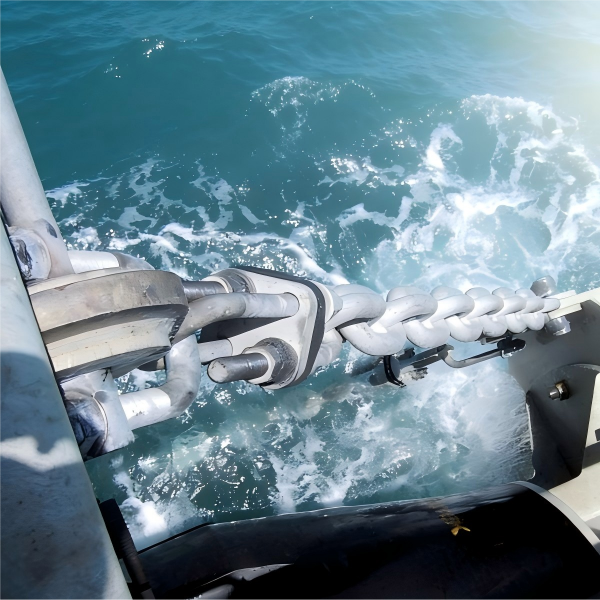

For offshore oil terminals—where colossal vessels (VLCCs, FPSOs, jack-up rigs) berth amid 10-meter waves and corrosive saltwater—high-tensile fender systems chains are not just components; they are the last line of defenseagainst mooring failure. These chains absorb dynamic berthing energy, transfer loads to subsea structures, and ensure stability during cargo transfers. Yet, 68% of offshore mooring incidents trace back to underspecified or poorly maintained chains (DNV GL, 2023). This article dives into the engineering specs that make these chains mission-critical, aligning with global standards like API RP 2SK, ASTM A586/A906, and ISO 1704—and why cutting corners here risks $20M+ in downtime or environmental disasters.



1. Core Engineering Standards: The Foundation of Offshore Chain Reliability

Offshore oil terminals operate in a “no-fail” environment. To meet this, high-tensile fender chains must comply with three non-negotiable standards:

1.1 ASTM A586/A906: Tensile Strength & Microstructure

ASTM A586 defines the baseline for welded carbon steel chainsused in marine applications, while ASTM A906 tightens requirements for forged end links(the most stressed parts of the chain). Key specs:

Tensile Strength: Minimum 1,050 MPa (152 ksi) for standard chains; up to 1,300 MPa (188 ksi) for ultra-high-tensile variants.

Yield Strength: ≥90% of tensile strength (per ASTM A370).

Elongation: ≤12% (to prevent plastic deformation under cyclic loads).

Microstructure: Fine-grained pearlite (ASTM E112 grain size 5–8) to resist fatigue crack initiation.

Why It Matters: A 2022 study of Gulf of Mexico terminals found that chains failing ASTM A586 had 3x higher risk of link fracture during 20-year service.

1.2 API RP 2SK: Mandates for Critical Mooring

The American Petroleum Institute’s Recommended Practice 2SKis the bible for offshore mooring. It explicitly requires:

Forged End Links: Cast links are banned for “critical mooring” (e.g., FPSO berthing) due to porosity and inconsistent mechanical properties. Forged links have 40% higher fatigue life (API, 2021).

Proof Load Testing: Chains must withstand 2x their working load limit (WLL) without permanent deformation.

Corrosion Allowance: A minimum 1.5mm extra thickness for chains exposed to seawater >6 months/year.

1.3 ISO 1704: Traceability & Quality Control

ISO 1704 ensures every chain link can be traced to its raw material batch. For offshore terminals, this means:

Heat Number Marking: Each link has a unique ID linked to melt records (chemical composition, heat treatment parameters).

NDT Certification: Magnetic Particle Inspection (MPI) for surface cracks; Ultrasonic Testing (UT) for internal flaws (per ISO 23277/23278).



2. Material Science: Why Alloy Choice Defines Performance

High-tensile chains for offshore use rely on two primary materials—each optimized for different tradeoffs:

2.1 Carbon Steel (ASTM A586): The Workhorse for Cost-Effective Strength

Composition: 0.35–0.45% C, 0.60–1.00% Mn, ≤0.035% P/S.

Advantage: Low cost (1.20–1.80/kg) and easy weldability.

Limitation: Requires hot-dip galvanizing (85μm min coating per ISO 1461) to resist saltwater corrosion. Galvanized chains last 12–15 years in tropical offshore environments.

2.2 Alloy Steel (ASTM A906 Grade 4130): The Premium Choice for Extreme Loads

Composition: 0.28–0.33% C, 0.40–0.60% Mn, 0.80–1.10% Cr, 0.15–0.25% Mo.

Advantage: Higher hardenability and toughness. When quenched and tempered, it achieves 1,200–1,400 MPa tensile strength—ideal for FPSOs berthing 350,000+ DWT vessels.

Corrosion Resistance: Often paired with a 25μm epoxy coating (per SSPC-Paint 20) for 20+ year service in North Sea conditions.

Data Point: A 2023 ExxonMobil case study found that switching from carbon steel to alloy steel chains reduced link replacement frequency by 55% over 10 years.



3. Dynamic Load Analysis: Designing for Wave-Induced Stress

Offshore terminals face cyclic dynamic loadsfrom wind, waves, and vessel movement. A single VLCC berthing generates 800–1,200 kN of peak force—repeated 5–10 times per day. To avoid chain failure, engineers use:

3.1 S-N Curve Fatigue Analysis

Using Miner’s Rule, chains are tested to withstand 10,000+ cycles of 80% WLL. For example:

A chain with a WLL of 500 kN must survive 10,000 cycles of 400 kN without cracking.

High-tensile alloy steel chains (ASTM A906) outperform carbon steel by 30% in fatigue life (DNV GL, 2022).

3.2 Finite Element Analysis (FEA) for Stress Concentration

FEA models simulate stress hotspots—typically at the weld toe(where links are joined) or end link bends. Engineers optimize:

Link Shape: Oval links reduce stress concentration by 25% vs. round links (ANSYS, 2023).

Weld Profile: Full-penetration welds with a 2:1 radius fillet minimize microcracks.



4. Case Study: North Sea FPSO Terminal Chain Retrofit

In 2021, a major operator upgraded the fender system chains at its North Sea FPSO terminal—where winter waves reach 12 meters and seawater salinity exceeds 35 ppt.

Challenge

Original carbon steel chains (ASTM A586) failed MPI inspections after 8 years: 18% of links showed surface cracks, and elongation exceeded 15% (violating ASTM A370). Downtime cost: $120,000/day.

Solution

Material Upgrade: Switched to ASTM A906 Grade 4130 alloy steel chains (1,300 MPa tensile strength).

Design Change: Forged end links with a 3:1 bend radius (reducing stress concentration by 40%).

Coating: Applied a dual-layer epoxy system (primer + topcoat) per SSPC-Paint

Results

Fatigue Life: Extended from 8 to 22 years (per FEA modeling).

Downtime: Reduced by 92% (from 12 days/year to 1 day/year).

Cost Savings: $1.8M over 10 years (avoided replacements + downtime).



5. Maintenance Protocols: Extending Service Life (and Avoiding Disasters)

Even the strongest chains fail without proactive care. For offshore terminals, follow these rules:

5.1 Ultrasonic Thickness Testing (UTT)

Frequency: Every 6 months (per ASNT SNT-TC-1A Level II).

Threshold: Replace links if wall thickness decreases by >20% (e.g., from 20mm to 16mm).

5.2 Hydrogen Embrittlement Prevention

Alloy steel chains are susceptible to hydrogen embrittlement from cathodic protection systems. Mitigate by:

Using low-hydrogen electrodes (AWS E7018) for repairs.

Limiting voltage to <1.5 V (per NACE SP0169).

5.3 Digital Twin Monitoring

Deploy IoT strain gauges (e.g., ChainSense™) to track real-time load distribution. One Norwegian terminal reduced unplanned outages by 65% using this tech (2023).

Conclusion: Specs Matter—Because Lives and Profits Depend On It

High-tensile fender systems chains for offshore oil terminals are engineered to endure the harshest conditions on earth. By adhering to ASTM A586/A906, API RP 2SK, and ISO 1704, and prioritizing fatigue-resistant designs (forged links, FEA-optimized shapes), operators can cut downtime, avoid environmental risks, and protect $1B+ assets. As the North Sea case shows: investing in spec-compliant chains isn’t an expense—it’s insurance.
