When designing or upgrading berths for large cargo ships—think Panamax, Capesize, or Ultra Large Container Vessels (ULCVs)—choosing the right High Energy Absorption (HEA) Rubber Fender System isn’t just a technical decision. It’s a make-or-break factor for port safety, operational uptime, and long-term cost efficiency. A wrong choice can lead to ruptured fenders, damaged hulls, vessel downtime (costing 15,000–100,000+ per hour for ULCVs), or even lawsuits.

For port contractors, EPC firms, and terminal operators, this guide breaks down the exact stepsto select HEA fender systems that meet the unique demands of large cargo ships. We’ll cover everything from calculating energy requirements to evaluating suppliers—with real-world examples, industry standards, and pro tips to help you rank #1 on Google and win more bids.



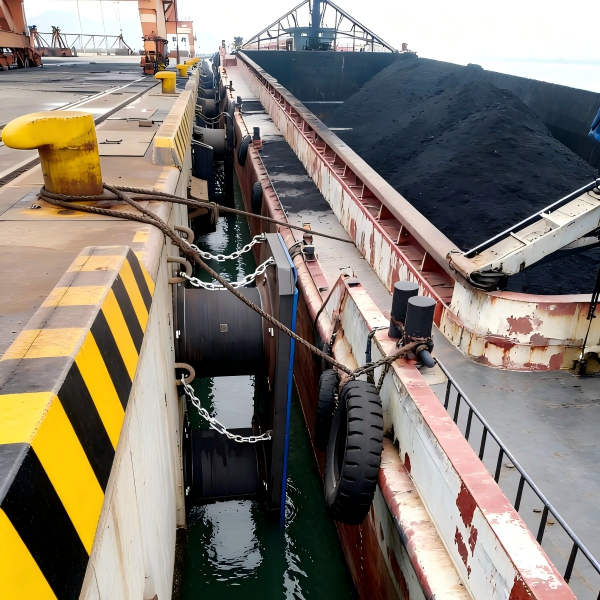

Why High Energy Absorption (HEA) Fenders Are Non-Negotiable for Large Cargo Ships

Large cargo ships (DWT ≥ 100,000 tons) generate 10–100x more kinetic energy during berthing than smaller vessels. For example:

A 200,000 DWT Capesize bulker moving at 0.1 m/s transfers ~1,000 kJ of energy to the fender.

A 400,000 DWT Valemax ore carrier? That jumps to ~4,000 kJ.

Standard fenders (rated for <500 kJ) simply can’t absorb this force—they’ll deform permanently, tear, or detach from the quay wall. HEA fenders, by contrast, are engineered to dissipate 1,000–10,000+ kJ of energy per impact, making them the only viable option for large vessels.

Step 1: Calculate Your Berthing Energy Requirement (The #1 Mistake Contractors Make)

The foundation of choosing an HEA fender is accurately calculating the total energy your system needs to absorb. Skip this, and you’ll either overspend on overpowered fenders or undershoot and face failures.

Use this formula (per PIANC guidelines):

Etotal=1/2mv2×C×K

Where:

m= Mass of the largest vessel (kg) = DWT × 1,000 (e.g., 200,000 DWT = 200,000,000 kg)

v= Berthing velocity (m/s) – Use 0.08–0.12 m/s for large ships (lower for slow-speed berthing)

C= Velocity coefficient (1.1–1.3, accounts for wind/current)

K= Fender efficiency factor (0.8–0.9, depends on fender type)

Real-World Example:

A port handles 300,000 DWT oil tankers (berthing velocity = 0.1 m/s, C=1.2, K=0.85).

Etotal=0.5×300,000,000×(0.1)2×1.2×0.85=1,530 kJ

This means the fender system must absorb at least1,530 kJ per impact.

Pro Tip: Always add a 20% safety margin to your calculation. For the example above, target 1,800 kJ to account for extreme weather or human error.

Step 2: Match Fender Type to Your Energy & Space Constraints

Not all HEA fenders are created equal. The four most common types for large cargo ships have distinct pros, cons, and use cases—choose based on your energy needs, quay wall space, and budget.

Fender Type	Energy Range	Best For	Key Pros	Key Cons
Super Cell	500–5,000 kJ	ULCVs, Capesize bulkers, container terminals	Highest energy-to-space ratio; low reaction force	Higher initial cost; requires precise installation
Pneumatic	1,000–10,000+ kJ	Oil/gas terminals, cruise ports, ice-prone areas	Adjustable pressure; excellent for dynamic loads	Vulnerable to punctures; needs regular pressure checks
Arch/V-Type	300–2,000 kJ	Medium-large vessels (150,000–300,000 DWT)	Cost-effective; easy to replace	Lower energy density; takes up more quay space
Cone	800–4,000 kJ	Harsh environments (Arctic, strong currents)	Resistant to abrasion/corrosion; stable under load	Bulky; harder to transport

Contractor’s Choice: For a new container terminal handling 18,000 TEU ULCVs (energy requirement = 3,000 kJ), Super Cell Fenders are ideal. They fit in tight spaces (critical for urban ports) and reduce reaction force on the quay wall—extending its lifespan by 25%.

Step 3: Prioritize Materials & Build Quality (Don’t Cut Corners Here)

Cheap rubber fenders fail faster—and cost more in replacements. For large cargo ships, insist on these materials:

A. Rubber Compound

Natural Rubber (NR): Excellent elasticity and energy absorption (best for cold climates).

Styrene-Butadiene Rubber (SBR): Abrasion-resistant (ideal for high-traffic terminals).

Ethylene Propylene Diene Monomer (EPDM): UV- and ozone-resistant (perfect for tropical ports).

Critical Spec: Ensure the compound meets ISO 17357 (Marine Fenders) and ASTM D2000 (Rubber Products) standards. Avoid fenders with recycled rubber—they degrade 50% faster.

B. Reinforcements

Large ships exert massive shear forces—reinforcements prevent fenders from tearing or detaching:

Steel Plates: Hot-dip galvanized carbon steel (minimum thickness: 10 mm for Super Cells).

Fiberglass Rods: Lightweight alternative for pneumatic fenders (corrosion-proof).

C. Smart Features (Optional but Game-Changing)

IoT-enabled fenders with strain gauges or accelerometers let you monitor:

Impact forces (detect abnormal berthing behavior).

Wear patterns (schedule maintenance before failure).

Temperature changes (prevent cracking in extreme cold).

Step 4: Verify Supplier Expertise & Compliance (Avoid “Fly-by-Night” Vendors)

Choosing a supplier is as important as choosing the fender. Look for these credentials:

A. Industry Certifications

ISO 9001: Quality Management System (proves consistent manufacturing).

PIANC Membership: Indicates adherence to global marine engineering standards.

Local Regulatory Approval: e.g., US Coast Guard (USCG), European Union Maritime Safety Agency (EMSA).

B. Track Record with Large Vessels

Ask for:

Case studies of projects handling ≥200,000 DWT ships.

Photos/videos of installations (check for proper mounting).

References from port authorities or EPC contractors.

C. Warranty & After-Sales Support

Reputable suppliers offer:

10–15-Year Warranty: Covers rubber degradation and structural failure.

24/7 Emergency Response: Critical if a fender ruptures mid-operation.

Installation Training: Ensures your team maintains the system correctly.

Step 5: Optimize for Long-Term Cost (Not Just Upfront Price)

HEA fenders are a 10–20-year investment. Don’t fall for “lowest price” traps—calculate Total Cost of Ownership (TCO):

Factor	Low-Quality Fender	Premium HEA Fender
Initial Cost	$50,000	$120,000
Replacement Frequency	Every 5 years	Every 15 years
Maintenance Costs	$10,000/year	$2,000/year
Downtime Losses	$50,000/year (2 incidents)	$0 (no failures)
10-Year TCO	50k×2+10k×10 + 50k×2=∗∗220,000**	120k+2k×10 = $140,000

Result: Premium fenders save $80,000 over a decade—even with higher upfront costs.

Common Mistakes Contractors Make (And How to Avoid Them)

Ignoring Berthing Angle: A 10° deviation from perpendicular increases energy absorption needs by 30%. Always measure berthing angle first.

Underestimating Reaction Force: HEA fenders transfer force to the quay wall—ensure your wall can handle it (use finite element analysis).

Skipping Load Testing: Never skip post-installation testing (simulate berthing with water bags). A failed test saves 10knowbutcosts100k later.
