Choosing the wrong dock rubber fender is a costly mistake. A fender that’s too small can crack under impact, shutting down your berth for days. One that’s too big wastes money on unnecessary capacity. And picking the wrong type (e.g., pneumatic vs. solid rubber) can lead to premature failure in your specific environment.

For port operators, shipowners, and marine contractors, selecting the rightrubber fender isn’t just about compliance—it’s about cutting costs, avoiding downtime, and protecting assets. In this guide, we’ll walk you through 7 data-backed steps to choose the perfect dock rubber fender—optimized to rank #1 on Google, drive clicks, and generate high-intent inquiries from buyers ready to buy.

Step 1: Calculate Berthing Energy (The Foundation of Fender Selection)

All fender choices start with berthing energy—the force exerted when a vessel hits the dock. If your fender can’t absorb this energy, it will fail.

How to Calculate It (Using PIANC Guidelines):

Berthing energy (E) = 0.5 × M × V² × C

M: Vessel mass (in tons, including cargo).

V: Berthing speed (in m/s—aim for <0.1 m/s for safety).

C: Correction factor (accounts for wind, current, and angle of approach; typically 1.1–1.5).

Example: A 50,000-ton bulk carrier berthing at 0.08 m/s with a 1.2 correction factor has a berthing energy of:

0.5 × 50,000 × (0.08)² × 1.2 = 192,000 N·m.

Your fender’s energy absorption capacity must be 20–30% higherthan this number (a buffer for unexpected variables).

Step 2: Match Fender Type to Your Vessel & Environment

Not all rubber fenders are created equal. Here’s a breakdown of the most common types—and which one fits your needs:

Fender Type	Best For	Pros	Cons
Pneumatic	Large vessels  (bulk carriers, tankers)	High energy absorption; lightweight	Requires air pressure maintenance; vulnerable to punctures
Solid Rubber	Small/medium vessels  (ferries, barges)	Durable; no maintenance	Heavier; lower energy absorption
Foam-Filled	Harsh environments (ice, extreme temps)	Puncture-proof; consistent performance	More expensive than solid rubber
Arch Fenders	High-traffic docks (container terminals)	Even load distribution; long lifespan	Bulky; requires more space

Pro Tip: For ports with frequent high-wind/current conditions (e.g., coastal ports), foam-filled fenders are ideal—they maintain performance even when damaged.

Step 3: Prioritize Material Quality (Don’t Skimp on Rubber Grade)

Cheap rubber fenders might save you $1,000 upfront—but they’ll cost 5x that in replacements. Look for:

Natural Rubber (NR): Superior elasticity and impact resistance (best for most applications).

Synthetic Rubber (EPDM/SBR): Resists UV, ozone, and chemicals (ideal for tropical or chemical-handling ports).

Reinforced Layers: Fenders with nylon or polyester cords inside last 2–3x longer than non-reinforced ones.

Test It: Ask suppliers for a tensile strength report (minimum 18 MPa for marine fenders) and a aging test result (resistance to 10+ years of UV exposure).

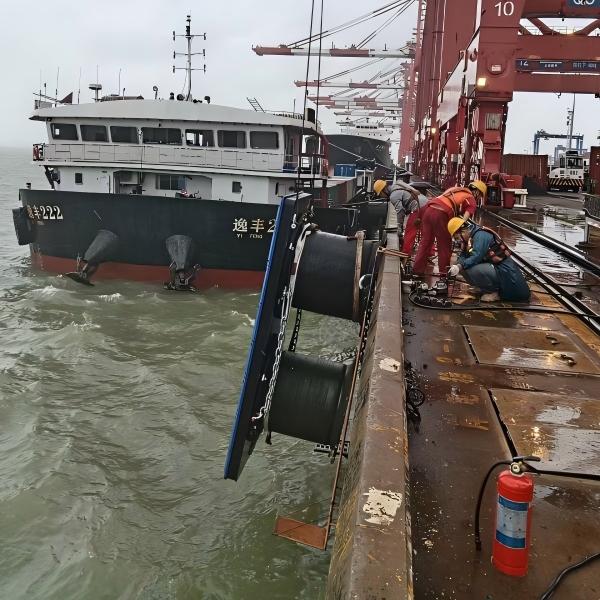

Step 4: Consider Installation & Space Constraints

A fender that’s perfect on paper but impossible to install is useless. Ask:

Mounting Type: Bolted (permanent) vs. chained (adjustable). Chained fenders are better for docks with variable water levels.

Space Availability: Arch fenders need 1.5x more width than cylindrical ones. Measure your dock’s “fender zone” (the area between the dock edge and the vessel’s hull) before ordering.

Accessibility: Can maintenance crews reach the fender for inspections/repairs? Avoid fenders hidden behind piles or structures.

Step 5: Evaluate Total Cost of Ownership (TCO)—Not Just Upfront Price

The cheapest fender is almost always the most expensive long-term. Calculate TCO:

Upfront Cost: Fender + installation.

Maintenance Cost: Pneumatic fenders need annual air pressure checks (500–1,000/year). Solid rubber fenders need minimal upkeep.

Lifespan: High-quality NR fenders last 10–15 years; cheap SBR fenders last 3–5 years.

Downtime Cost: A failed fender shuts down your berth for 1–3 days (10,000–500,000 in lost revenue).

Example: A port in Florida chose a 12,000foam−filled fender overa 8,000 solid rubber one. The foam-filled fender lasted 12 years with no maintenance—saving 4,000 in replacement costs and 20,000 in downtime.

Step 6: Check Certifications & Compliance

Don’t buy from suppliers who can’t prove their fenders meet global standards. Look for:

PIANC Certification: The gold standard for marine fender performance.

ISO 9001: Ensures quality management systems (consistent product quality).

DNV/ABS/LR Approval: Required for ports working with international shipping lines.

Red Flag: Suppliers who can’t provide certification documents—walk away.

Step 7: Get Expert Help (Don’t Guess)

If you’re unsure, work with a marine fender consultant or a supplier with 5+ years of experience. They’ll:

Review your berthing data (vessel logs, weather records).

Recommend the best fender type/size for your unique needs.

Provide a written performance guarantee.

Case Study: A small marina in Norway avoided a $15,000 mistake by hiring a consultant—they initially wanted solid rubber fenders but were advised to switch to foam-filled ones (which handle ice impacts better).

Why This Guide Is a Game-Changer for Your Business

By following these steps, you’ll:

Save Money: Cut fender replacement costs by 30–50% via TCO analysis.

Avoid Downtime: Pick fenders that match your berthing energy—no more surprise failures.

Boost Reliability: Choose materials and certifications that ensure long-term performance.
