How to Conduct a Performance Assessment of Installed Marine Fenders: A Step-by-Step Guide for Port Operators

How to Conduct a Performance Assessment of Installed Marine Fenders: A Step-by-Step Guide for Port Operators



Introduction

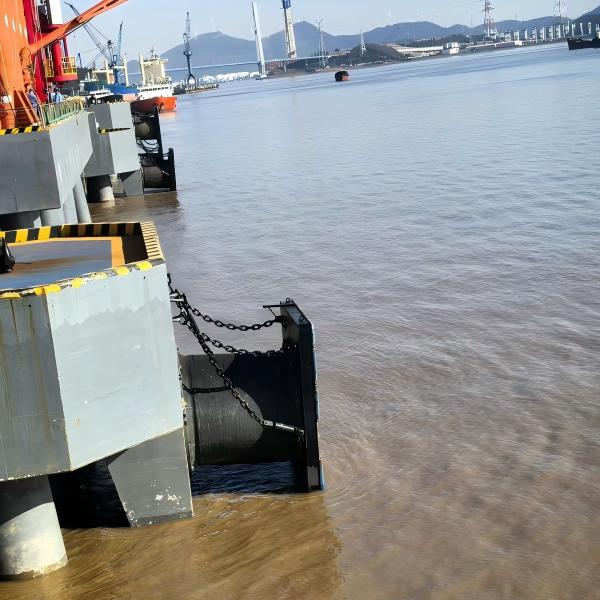

Marine fenders are the unsung heroes of any port operation. Installed between vessel and berth, they absorb kinetic energy and protect both the ship and the quay structure from damage. They operate in one of the harshest environments imaginable: constant exposure to saltwater, UV radiation, tidal movement, temperature fluctuations, and repeated impact loads from vessels of varying sizes.

However, like all engineered components, marine fenders do not last forever. They degrade over time. A fender that appears visually acceptable may have lost a significant percentage of its energy absorption capacity. A compromised fender system does not fail gradually—it fails catastrophically, often during a routine berthing event with a standard vessel.

This guide provides a systematic, four-step methodology for assessing the performance of your installed marine fenders, helping you identify risks, plan maintenance, and avoid costly unplanned downtime.



Step 1: Visual Inspection-The First Line of Defense

A thorough visual inspection is the foundation of any fender assessment. It requires no specialized equipment and can be performed by trained personnel during routine port operations. Document everything with high-resolution photographs, noting the date and location of each fender.

Key Areas to Examine:

Component	What to Look For	Significance
Rubber Body	Surface cracks, cuts, abrasions, delamination, swelling,or deformation	Cracks deeper than 3-5mm or those exposing reinforcement layers indicate significant degradation
Front Frame (Fender Panel)	Corrosion, bending, cracks in welds, missing or loose bolts	A compromised panel can detach under load, creating a projectile hazard
Anchorage System	Corrosion at the anchor bolts, concrete spalling around the anchorage, rust stains	Bolt corrosion reduces holding capacity. Concrete spalling indicates structural stress transfer issues
Chains and Accessories	Rust, elongation of chain links, worn or seized shackles, missing rubber bushings	Chains are the backup safety system. Their failure can result in fender loss.

Red Flags:

①Any visible steel reinforcement (e.g., steel cord or fabric plies) through cracks

②Complete separation of the rubber body from the front frame

③Anchor bolts with >20% section loss due to corrosion

④Fender that appears permanently compressed or "set" (no longer returns to original shape)



Step 2: Dimensional Measurement-Quantifying Degradation

Visual inspection identifies visible damage, but dimensional measurements reveal the hidden extent of material degradation. Rubber fenders rely on their geometric shape to achieve their designed energy absorption and reaction force characteristics. When dimensions change, performance changes.

Critical Measurements:

1.Free Height:Measure the fender's height at its center when unloaded (vessel not berthed). Compare this to the original manufactured height. A reduction of more than 10-15% indicates permanent compression set, meaning the fender has lost its elastic recovery capability and its energy absorption capacity is significantly reduced.

2.Body Width/Thickness:Measure the fender's width and thickness at multiple points along its length. Localized bulging or thinning can indicate internal structural failure.

3.Reaction Force Testing (Advanced):For critical applications, specialized hydraulic test equipment can be used to compress the fender to a defined deflection and measure the actual reaction force. This is the most accurate method but requires specialist contractors and vessel access scheduling.

What the Numbers Tell You:

1,Normal:Dimensions within 5% of original specifications.

2,Moderate Degradation:5-15% reduction in free height. Performance is reduced, but the fender may still be serviceable with increased monitoring frequency.

3,Severe Degradation: >15% reduction in free height, or visible shape distortion. The fender no longer meets its original performance specifications and should be prioritized for replacement.



Step 3: Material Condition Assessment-Understanding the Rubber

Rubber is a polymer that degrades over time through several mechanisms. Understanding the material condition helps predict remaining service life.

Key Degradation Mechanisms:

Mechanism	Cause	Visual Indicators
Ozone Cracking	Reaction between stressed rubber and atmospheric ozone	Fine, parallel cracks perpendicular to the direction of stress, typically on the surface
UV Degradation	Prolonged sunlight exposure	Surface hardening, chalking (white powdery residue), fine crazing
Oil/Swell	Contact with petroleum products or chemicals	Softening, swelling, sticky surface texture
Heat Aging	Prolonged exposure to high temperatures	Hardening, loss of elasticity, deep cracking

Simple Field Tests:

1,Hardness Test:Use a portable Shore A durometer to measure surface hardness. Compare readings to original specifications. An increase of 10-15 points indicates significant aging.

2,Visual- Tactile Assessment:A healthy rubber fender should have a uniform, resilient feel. If the surface is brittle, cracked like dried mud, or feels "dead" (no springiness), the material has degraded.



Step 4: Operational Observation-Real-World Performance

The ultimate test of a fender system is how it performs during actual vessel berthing. Engage with your pilots, mooring crews, and terminal operators—they observe the system daily.

Questions to Ask:

1,Do vessels bottom out (make contact with the quay wall) during berthing, even at normal approach speeds?

2,Is there excessive vibration or noise during vessel contact?

3,Does the fender system return to its original position quickly after vessel departure, or does it remain compressed?

4,Are there visible marks on the fender panel indicating that vessels are contacting at unusual angles?

Documented Incidents:

If your facility has experienced any near-miss incidents, unexpected vessel damage, or visible quay wall stress, these are strong indicators that the fender system may be under performing.

Assessment Outcome: Action Categories

Based on your findings, classify each fender into one of three categories:

Category	Condition	Recommended Action
Category 1: Good	No visible damage, dimensions within spec, normal operation	Continue regular inspections (every 6-12 months)
Category 2: Monitor	Minor surface cracks, slight dimension reduction (<10%), moderate corrosion on accessories	Increase inspection frequency (every 3-6 months). Plan for replacement within 2-5 years.
Category 3: Urgent	Deep cracks exposing reinforcement, >15% height reduction, significant corrosion of anchor bolts, Operational issues reported	Immediate action required. Restrict berthing of larger vessels or reduce allowable berthing speed. Schedule replacement within 3-6 months.

When to Call a Specialist



While regular in-house inspections are essential, there are situations where expert assessment is necessary:

1,Critical infrastructure:Major container terminals, LNG terminals, or ports handling hazardous cargo

2,Complex damage patterns:When multiple degradation mechanisms are present

3,Insurance or regulatory requirements:When documentation is needed for compliance

4,Post-incident assessment:After a major vessel impact or unusual event

A specialist can provide:

1,Non-destructive testing (NDT):Ultrasonic or radiographic inspection of embedded components

2,Finite Element Analysis (FEA):Modeling of degraded fenders to predict remaining capacity

3,Certified reporting:Documentation acceptable for insurance, regulatory, or investment planning purposes



Conclusion: Proactive Assessment Prevents Reactive Crises



Marine fenders do not fail overnight. They send warning signs—cracks, compression set, corrosion, operational anomalies—for months or even years before a catastrophic failure. A systematic assessment program allows you to:

1,Plan replacement budget predictably rather than reacting to emergency failures

2,Prioritize investments by identifying the most critical fenders first

3,Maintain operational safety by ensuring the fender system performs as designed

4,Extend service life through targeted maintenance where appropriate

Your fender system is the interface between vessel and shore. Its performance directly impacts safety, operational efficiency, and asset protection.
