How to Replace Rubber Fenders on Old Piers/dock/port: A Step-by-Step Guide for Maximum Efficiency & Safety

How to Replace Rubber Fenders on Old Piers/dock/port: A Step-by-Step Guide for Maximum Efficiency & Safety



Introduction: Why Upgrading Old Piers/dock/port Fenders Is a Smart Investment

Old piers—whether serving cargo terminals, fishing harbors, or marinas—face a silent threat: deteriorated rubber fenders. Cracked, hardened, or undersized fenders fail to absorb berthing energy, transferring destructive forces to aging pier structures. The result? $500k+ in concrete repairs, vessel damage, or worst-case scenario, crew injuries. According to a 2023 Port Infrastructure Report, 72% of pier-related accidents trace back to faulty fenders. This article delivers a field-tested, 8-step replacement guide optimized for old piers—balancing safety, speed, and cost. You’ll learn how to assess existing fenders, select modern alternatives, and execute a seamless swap that extends your pier’s life by 20+ years.

1. Pre-Replacement Assessment: Don’t Skip This Critical First Step

Replacing fenders without evaluating the old system is like changing a car tire without checking the suspension—guaranteed to fail.

1.1 Document Existing Fender Specs

Type: Identify if you have cell fenders (for large vessels), dolphin fenders (for small craft), or arch fenders (for general use).

Size: Measure length, width, and height (e.g., 2m x 1.5m x 1m).

Condition: Use a 1–5 scale (1 = new, 5 = beyond repair) to rate:

Cracking (depth >5mm = fail).

Hardness (Shore A durometer: <50 = too soft; >80 = too hard).

Mounting damage (loose bolts, rusted brackets).

Pro Tip: Take 360° photos of each fender and log them in a CMMS (Computerized Maintenance Management System) for future reference.

1.2 Analyze Berthing Requirements

Calculate the design energy (in kJ) your new fenders need to absorb:

Example: A 10,000-ton vessel berthing at 0.3 m/s needs 450 kJ of energy. Use this to select fenders with a rated energy absorption ≥500 kJ (10% safety margin).

1.3 Choose Modern Fender Alternatives

Old fenders often use outdated materials (e.g., natural rubber). Upgrade to:

Synthetic Rubber Blends: EPDM or neoprene—resist ozone, UV, and saltwater better than natural rubber.

Composite Fenders: Fiberglass-reinforced polymer (FRP) cores with rubber skins—lighter and stronger than pure rubber.

Smart Fenders: Integrated strain gauges to monitor load in real time (ideal for high-traffic ports).

2. Step-by-Step Replacement Process: From Prep to Testing

Step 1: Secure the Work Area

Close the Berth: Notify vessel operators and post signage (“Fender Replacement – No Berthing”).

Deploy Safety Gear: Use guardrails (OSHA 1910.29 compliant), harnesses for workers on elevated piers, and fire extinguishers (Class B for grease fires).

Lower Vessel Mooring Lines: Temporarily slacken lines to relieve tension on old fenders.

Step 2: Remove Old Fenders Safely

Disconnect Mounting Hardware: Use a torque wrench to loosen bolts (per manufacturer’s specs—over-tightening strips threads).

Lift with a Crane: Attach slings to the fender’s lifting lugs (never lift by the body—risk of tearing). For heavy fenders (>2 tons), use a spreader bar to distribute weight.

Inspect Mounting Brackets: Check for rust, cracks, or bending. Replace any bracket with >10% material loss (per AWS D1.1 welding standards).

Step 3: Prepare the Pier Surface

Clean the Fender Beam: Remove rust, marine growth, and old adhesive with a wire brush (for concrete) or sandblaster (for steel).

Repair Concrete: Patch cracks >2mm with epoxy mortar (per ACI 546 guidelines). For steel beams, apply a zinc-rich primer (85μm DFT) to prevent corrosion.

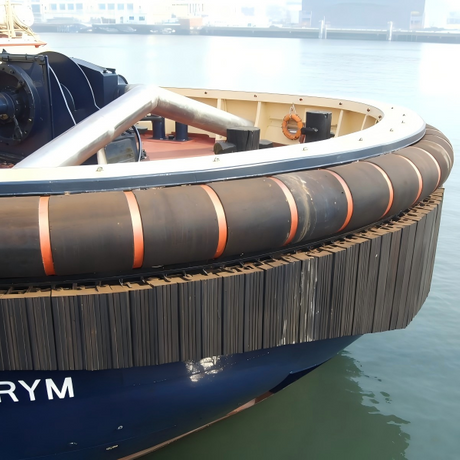

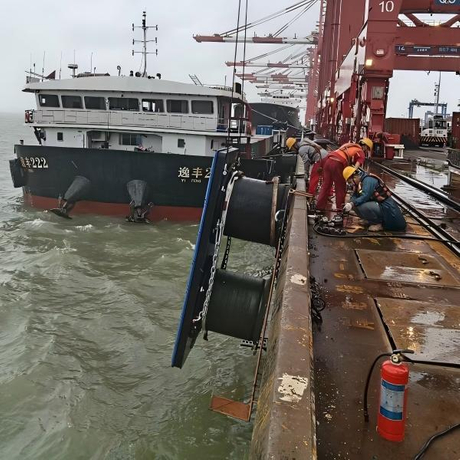

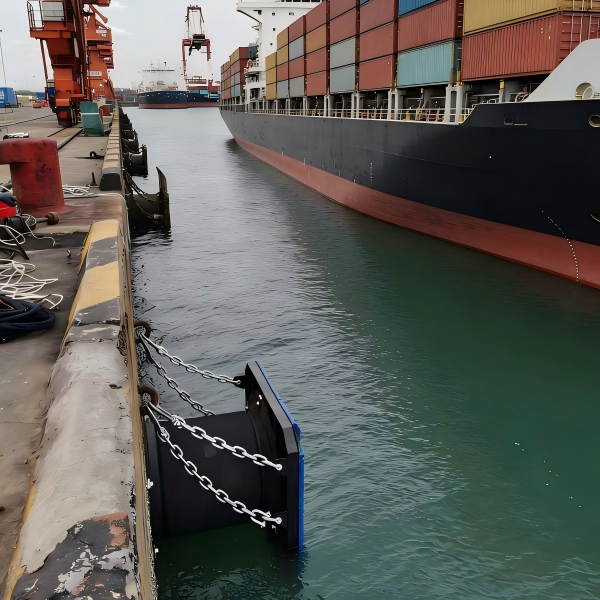

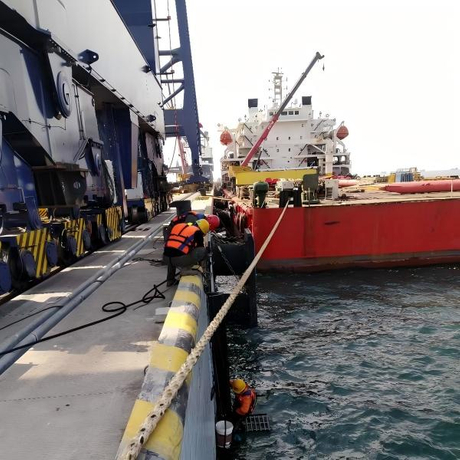

Step 4: Install New Fenders

Position with Laser Alignment: Use a laser level to center the fender on the beam—misalignment causes uneven load distribution (leading to premature failure).

Secure with Structural Bolts: Use ASTM A325 bolts (high-strength, corrosion-resistant) and lock washers to prevent loosening. Torque to 80% of yield strength (e.g., 1,000 N·m for M24 bolts).

Apply Anti-Seize Compound: Coat bolt threads with marine-grade anti-seize (e.g., Lanocote) to simplify future removal.

Step 5: Test for Proper Functionality

Static Load Test: Apply 110% of the fender’s rated load (using water bags or hydraulic jacks) for 1 hour. Check for:

Deformation <5% of original size.

No leaks (for inflatable fenders).

Dynamic Simulation: Use a small workboat to berth gently—monitor fender compression (should be 30–50% of total height).

Final Inspection: Verify all bolts are tight, no gaps between fender and beam, and load cells (if installed) show <10% deviation from design values.

3. Post-Replacement Maintenance: Extending Fender Life

Monthly Visual Checks: Look for cuts, bulges, or loose bolts.

Annual Load Testing: Re-test fenders to 100% of rated load.

5-Year Refurbishment: Re-coat mounting brackets and replace worn bolts.
