At Waigaoqiao, we believe every serious OEM decision should start with the operating environment—not with a product catalogue. Established in 2003, Waigaoqiao is a China-based OEM manufacturer known for wire shelving, garment racks, display hooks, and custom metal fixtures. That background has taught us to listen carefully to specifications, coordinate complex production requirements, and deliver consistently. For submarine berth projects, however, final fender selection must be verified by qualified marine and naval engineers. This guide offers a practical sourcing framework for comparing a hydro-pneumatic fender vs Super Cell fender for military submarine mooring, without pretending that one solution fits every berth.
A submarine is not simply a smaller ship. Its low freeboard, deep draft, curved hull, underwater contact zone, and potentially sensitive acoustic treatment can make conventional quay fendering unsuitable. The fender must protect both the vessel and the berth while accommodating tidal movement, approach conditions, mooring loads, and maintenance access.
The key question is not "Which fender absorbs more energy?" It is: Which fender delivers the required energy absorption and reaction force at the correct elevation, with acceptable hull pressure and reliable long-term behavior? That distinction is central to safe submarine berth design.
A fender system also includes more than the rubber or pneumatic body. Front panels, UHMW-PE facing pads, chains, anchors, brackets, ballast, air valves, supporting steelwork, and the quay structure all influence performance. A technically excellent fender can fail as a system if the panel geometry or anchorage is wrong.

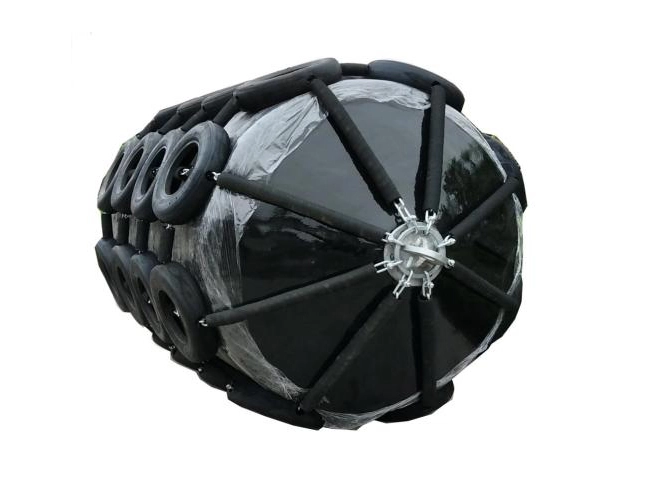

A hydro-pneumatic fender is a reinforced pneumatic fender adapted for sub-surface contact. It is usually partially filled with water, pressurized with air, and fitted with ballast so it remains vertical at a designed draft. Adjusting the air-to-water ratio and inflation pressure changes the fender's draft and performance characteristics.
This arrangement gives the fender a contact face where a conventional floating pneumatic fender may not reach. For a submarine, that can mean a larger, more controlled contact area against the hull rather than a concentrated load near the waterline.
- Variable draft: The working elevation can be matched to the submarine's hull geometry and tidal range.
- Low hull pressure: A broad contact area helps distribute load, subject to the final panel and facing-pad design.
- Underwater protection: The system is purpose-built for contact below the waterline.
- Acoustic-tile awareness: Where acoustic coatings or tiles are present, low local pressure and controlled contact are important design objectives.
- Flexible deployment: A vertical fender can be installed at a berth, dolphin, or other engineered support arrangement, depending on the project.
The trade-off is that a hydro-pneumatic fender is not a set-and-forget product. Its ballast, water level, inflation pressure, valves, towing or restraint arrangement, and vertical position require documented inspection. The project team must also confirm how divers, lifting equipment, and maintenance personnel will access the system safely.
A Super Cell Fender is a large, hollow cylindrical rubber fender used as a shore-mounted, buckling-type energy absorber. It normally works with a steel frontal panel and a low-friction UHMW-PE facing pad. When the submarine or support vessel contacts the panel, the rubber cell compresses and buckles, absorbing energy and transmitting reaction force into the berth structure.
Its circular mounting base gives the unit high stability, while its robust rubber construction makes it attractive for heavy-duty berths, dolphins, quay walls, and naval support facilities. Super Cell systems are widely understood as general marine fender systems; they are not inherently submarine-specific.
- Robust fixed installation: A good fit where the contact elevation and berth geometry are predictable.
- High energy absorption per unit: Actual performance depends on size, rubber grade, deflection, temperature, velocity, angle, and manufacturer data.
- Strong shear resistance: Useful where vessel movement creates sliding or angular contact.
- Straightforward modular layout: Large cells can be combined with panels and chains for broad contact coverage.
- Familiar maintenance model: Operators can visually inspect the rubber body, panel, facing pads, chains, bolts, and anchors.
The main limitation for submarines is contact geometry. A fixed Super Cell may be positioned too high, too low, or too rigidly for a deep-draft hull unless the panel, support, and elevation are carefully engineered. A high energy rating alone does not solve a low-freeboard or underwater-contact problem.
| Design factor | Hydro-pneumatic fender | Super Cell fender |
|---|---|---|
| Primary operating zone | Below-waterline or variable-draft contact | Fixed shore or dolphin contact zone |
| Typical orientation | Vertical, water-filled, air-pressurized, and ballasted | Fixed rubber cell, usually installed with a frontal panel |
| Best strategic fit | Submarines, low-freeboard vessels, and special underwater contact | Heavy-duty berths with known geometry and substantial structural support |
| Hull protection priority | Broad underwater contact and low hull pressure | Broad panel contact; final pressure depends on panel size and facing material |
| Adjustability | Draft and response can be tuned through water-air ratio and pressure | Selected through size, rubber grade, deflection, layout, and panel design |
| Main engineering risk | Incorrect ballast, pressure, draft, restraint, or inspection regime | Incorrect elevation, panel design, anchor loads, shear, or structural reaction |
| Maintenance focus | Pressure, valves, ballast, water ingress, restraints, and body condition | Rubber cracks, flange condition, panel, chains, facing pads, bolts, and anchors |
This table is a screening tool, not a final design. Manufacturer performance curves must be corrected for the project's actual conditions.
Start with vessel and berth data, not a preferred fender type. Record the submarine's displacement, length, beam, draft range, hull curvature, contact zones, mooring arrangement, allowable hull pressure, and any no-contact areas. Add tidal levels, water depth, currents, waves, wind, approach velocity, berthing angle, tug or thruster assistance, operating frequency, and expected service life.
For a military facility, the owner may also need controlled handling of drawings and operational information. Share only the data required for engineering, and align the project with applicable national security, export-control, environmental, and port regulations.
Initial contact and long-term mooring are different load cases. Berthing energy is influenced by displacement, approach velocity, added mass, eccentricity, angle, and safety or partial factors. Once moored, wind, waves, current, passing vessels, line pretension, and vessel motion can create repeated lean-on loads.
For exposed sites, cyclic loading deserves special attention. A Super Cell may experience repeated compression and shear; a hydro-pneumatic unit may experience pressure and draft changes over time. Ask the supplier for fatigue, creep, temperature, and recovery data that match the intended duty cycle. Do not select a fender from a single catalogue energy number.
For submarines, hull pressure and contact location can matter more than headline energy efficiency. Model the panel and facing pad against the real hull shape. Check edge contact, local pressure, friction, sliding, angular compression, and the possibility of a panel catching a protrusion or damaging a coating.
My practical rule is simple: if the contact elevation is uncertain, a variable-draft hydro-pneumatic concept deserves early evaluation; if the contact elevation is stable and the berth can carry the reactions, a Super Cell system may be more economical and easier to maintain. The final decision still requires a project-specific analysis.
Specify the rubber body and its accessories together. Verify:
- Steel panel strength for bending, shear, local buckling, and crushing.
- UHMW-PE pad thickness, friction coefficient, wear allowance, and attachment.
- Weight, tension, shear, and restraint chains.
- Anchor diameter, grade, embedment, edge distance, corrosion protection, and concrete capacity.
- Structural reaction forces at normal, abnormal, and moored conditions.
- Safe lifting, installation, inspection, repair, and replacement procedures.
Recent PIANC guidance places greater emphasis on the whole fender system, site-specific information, moored-vessel response, testing, maintenance, and lifecycle considerations. That is a meaningful improvement over choosing a rubber unit in isolation.
Waigaoqiao's strength is disciplined OEM coordination: turning a client's requirements into controlled drawings, materials, production steps, inspection points, packaging, and delivery. Our published customer feedback emphasizes long-term cooperation, efficient end-to-end service, competitive value, and consistent quality in shelving and shopfitting projects.
Those comments are evidence of our manufacturing and service approach—not evidence of submarine-fender performance—and we keep that distinction clear.
For buyers evaluating marine protection equipment, our recommended process is:
1. Send a controlled project brief: vessel particulars, berth drawings, environmental data, duty cycle, hull-pressure limits, and required standards.
2. Request two concept options: a hydro-pneumatic arrangement and a Super Cell arrangement where both are technically plausible.
3. Require comparable data: energy absorption, reaction force, hull pressure, deflection, angular factors, temperature assumptions, tolerances, and test method.
4. Review the accessories: panel, pad, chains, anchors, ballast, valves, restraints, and spare parts—not only the primary body.
5. Approve a verification package: calculations, drawings, material certificates, inspection and test plan, installation manual, maintenance schedule, and warranty terms.
Waigaoqiao should not replace a qualified marine fender designer, naval architect, classification body, or facility authority. Our value is helping international buyers organize requirements and manage OEM communication with clarity. For a defense-related berth, that honesty is part of quality assurance.
For most purpose-built military submarine berths, hydro-pneumatic fenders should be the first concept evaluated because their variable draft and sub-surface contact directly address submarine geometry. Super Cell fenders remain credible where the berth provides a stable contact elevation, a properly sized frontal panel, adequate structural capacity, and a maintenance-friendly fixed system.
The correct answer is therefore not "hydro-pneumatic always wins." It is tailored mooring: match fender behavior to hull pressure, contact elevation, berthing energy, repeated mooring loads, structural limits, security requirements, and lifecycle support.
Contact Waigaoqiao for a structured OEM sourcing discussion, then have the final marine design independently reviewed and approved by the project's qualified engineering authority.
No. It is usually the more natural starting point when contact must occur below the waterline or the draft changes significantly. A Super Cell can work when the fixed panel elevation and hull contact zone are proven suitable.
It may be possible, but the answer depends on hull pressure, panel geometry, facing-pad behavior, friction, approach angle, and the coating manufacturer's limits. Never assume that a standard cell-fender arrangement is safe for acoustic treatment.
Provide vessel displacement and dimensions, draft range, hull contact zones, allowable pressure, berth drawings, water depth, tidal range, wind, waves, current, approach velocity, berthing angle, mooring arrangement, operating frequency, and required standards.
They can be, but the system must be checked for sustained and cyclic compression, shear, creep, fatigue, panel alignment, and structural reaction. A berthing-only calculation is not enough for an exposed or frequently used berth.
The interval should follow the manufacturer's instructions, owner's maintenance plan, operating environment, and consequence of failure. Establish a documented baseline inspection after installation and inspect the body, fittings, chains, panel, anchors, pressure or ballast system, and surrounding structure.
No. PIANC guidance supports a design process; it does not replace project-specific engineering judgment. Confirm the applicable edition, test basis, third-party documentation, local codes, and compatibility with the vessel and berth.
Waigaoqiao's public business is OEM manufacturing of wire shelving, garment racks, display hooks, and metal fixtures. We can help organize sourcing and production communication, but a qualified marine fender specialist must complete and approve the submarine berth design.
