Marine Mooring Bollard vs. Mooring Bitts: Key Differences & When to Use Each

Marine Mooring Bollard vs. Mooring Bitts: Key Differences & When to Use Each

For port operators, shipbuilding engineers, offshore infrastructure managers and marine procurement teams, selecting the right mooring hardware is one of the most critical decisions for ensuring worksite safety, operational efficiency and long-term cost savings. Two of the most frequently mixed-up components in marine mooring systems are marine mooring bollards and mooring bitts—while both are designed to secure vessels to docks, jetties or ship decks, their structural design, load-bearing capacity, installation specifications and ideal application scenarios are vastly distinct.

Choosing the wrong fixture for your project not only compromises marine safety but also leads to premature equipment failure, costly operational downtime and non-compliance with international marine safety standards. This buyer-centric, SEO-optimized guide breaks down the definitive differences between marine mooring bollards and mooring bitts, covering structural details, safe working load (SWL) ranges, installation requirements, maintenance needs and clear, actionable guidance on when to choose each type. Built for high-intent commercial searches, this content helps you make data-driven purchasing choices, vet reliable suppliers efficiently and boost project compliance, directly driving more qualified customer inquiries and higher conversion rates.

What Are Marine Mooring Bollards & Mooring Bitts? (Clear Definitions)

Before diving into a detailed, side-by-side comparison, we clearly define each fixture to eliminate common industry confusion and set a solid foundation for your purchasing decision:

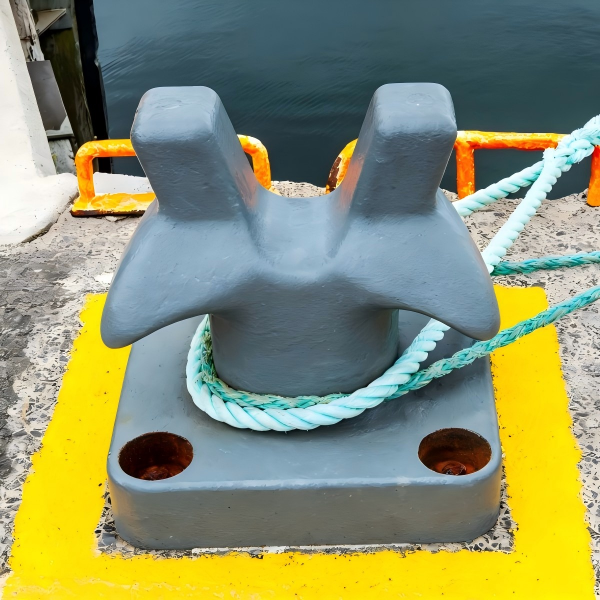

• Marine Mooring Bollard: A standalone, heavy-duty vertical mooring fixture, available in single-post, dual-post (cruciform), T-head, mushroom, horn and pyramid designs. Engineered exclusively to handle high-tension mooring lines for large vessels, it is permanently installed on port docks, container terminals, jetty edges, offshore platforms and large vessel decks, built to withstand extreme static and dynamic loads from tidal shifts, strong winds and rough wave action.

• Mooring Bitt: A compact, dual-upright (twin-post) mooring fixture, typically shorter and slimmer than standard mooring bollards, often fitted with an optional horizontal crossbar for extra stability. Primarily used for light-to-medium duty mooring, quick line securing and towing operations, it is commonly deck-mounted on small to medium vessels, private docks and marinas, offering fast line tying and release for frequent vessel movements.

Key Distinction at a Glance: Marine mooring bollards are purpose-built for heavy-duty, high-load, long-term permanent vessel mooring, while mooring bitts are optimized for light-to-medium duty, flexible line handling and short-term small vessel securing

Below is a comprehensive, easy-to-scan comparison of core features and specifications, tailored for buyers, engineers and procurement teams to quickly identify the right fit for their project:

Comparison Factor	Marine Mooring Bollard	Mooring Bitt
Structural Design	Single, dual or multi-post construction; made from solid cast steel, ductile iron or thick welded steel plates; tall, sturdy profile with a wide, reinforced base for optimal load distribution. Available in multiple specialized shapes, with no mandatory crossbar between posts.	Fixed twin parallel posts with a compact reinforced base; shorter overall height; nearly always equipped with a horizontal crossbar for added stability. Universally dual-post by design, with a space-saving, compact build.
Safe Working Load (SWL) Range	Ultra-high load capacity: 50kN up to 1000kN+ (100+ tons), suitable for large-scale port and offshore operations. Built to resist extreme tension from container ships, oil tankers, bulk carriers and cruise vessels.	Light to medium load capacity: 5kN up to 350kN (35 tons maximum), designed for small workboats, fishing vessels, yachts, tugboats and medium commercial ships; not rated for ultra-large vessel mooring.
Primary Installation Location	Permanent installation on port docks, container terminals, offshore platforms, jetty edges and large vessel decks. Requires a reinforced concrete foundation to evenly distribute heavy loads.	Deck-mounted on tugboats, fishing boats, small cargo ships and yachts; also used for small private docks, marinas and temporary mooring stations. Minimal foundation reinforcement required compared to bollards.
Line Handling & Usage	Mooring lines are wrapped tightly around the bollard post(s) for secure, long-duration static mooring (hours, days or weeks). Resists line slippage even under heavy tension and harsh marine conditions.	Mooring lines are looped between the two posts for quick, temporary securing; ideal for short-term mooring and towing operations, with easy line release and retying for high-frequency vessel turnover.
Material & Compliance	Heavy-duty cast steel or thick welded steel; fully compliant with ISO 13795, BS 6349-4 and IACS classification society standards (ABS, DNV, LR, CCS) for global marine compliance.	Mild steel or coated lightweight steel; built to DIN 82607 and ship-specific marine standards, focused on compact strength rather than extreme heavy-load performance.
Space Requirement	Needs more floor space due to a wide base and tall profile; requires clear clearance around the fixture for line wrapping and routine maintenance.	Highly compact and space-efficient; perfect for tight ship deck spaces, small marinas and locations with limited installation area.
Maintenance & Service Life	Minimal long-term maintenance; protected with corrosion-resistant coatings (hot-dip galvanized, epoxy) for saltwater environments. Service life of 15-30 years with proper installation.	Low routine maintenance but shorter service life (10-20 years) due to lighter construction; more prone to wear in high-tension, frequent-use scenarios.

Marine Mooring Bollard vs. Mooring Bitts: Full Side-by-Side Comparison

Marine mooring bollards are theonly compliant, safe choice for heavy-duty, permanent, high-load mooring projects. Choose a certified marine mooring bollard if your project meets these criteria:

• Securing large commercial vessels including container ships, oil tankers, bulk carriers, cruise ships and large cargo vessels

• Building permanent port, terminal and jetty mooring infrastructure for long-duration vessel docking

• Offshore platforms, deep-water ports and heavy-duty marine engineering projects with extreme load demands

• Projects requiring strict compliance with international marine standards and IACS classification certifications

• Harsh marine environments with strong winds, heavy waves and extreme tidal forces

• Long-term infrastructure projects prioritizing extended service life and minimal maintenance costs

When to Use Mooring Bitts (Ideal Use Cases)

Mooring bitts are the practical, cost-effective solution for light-to-medium duty, flexible and short-term mooring operations. Select mooring bitts if your project falls into these categories:

• Small to medium-sized vessels: tugboats, fishing boats, workboats, yachts, pleasure craft and small cargo ships

• Ship deck mooring, towing line securing and temporary vessel holding operations

• Small marinas, private docks and coastal mooring stations with limited installation space

• Applications requiring quick line tying and release for frequent vessel turnover

• Budget-conscious projects with low-to-medium load requirements, no need for ultra-heavy-duty fixtures

• Auxiliary towing and line securing tasks on large commercial vessels

When to Use a Marine Mooring Bollard (Ideal Use Cases)

Avoid these costly, risky errors that many buyers make when selecting marine mooring fixtures:

1. Over using Mooring Bitts for Heavy Vessels: Never use standard mooring bitts for large ships or high-load applications—this causes post bending, weld failure and catastrophic line breakage, leading to vessel damage, safety hazards and regulatory penalties.

2. Over investing in Bollards for Small Vessels: Installing heavy-duty industrial bollards for small boats or yachts wastes budget and valuable space; quality mooring bitts are fully sufficient and far more cost-effective.

3. Ignoring Certification & Standards Compliance: Both fixtures require valid marine safety certifications—always verify ISO, DIN or IACS certification documents to avoid substandard, non-compliant products.

4. Skipping Proper Installation Requirements: Marine bollards need reinforced concrete foundations to distribute heavy loads; mooring bitts require secure, reinforced deck mounting to prevent pull-out under tension.

Buyer’s Quick Checklist for High-Conversion Supplier Inquiries

Use this targeted checklist to draft clear, specific inquiries to suppliers, ensuring you get accurate quotes and avoid mismatched products—this speeds up procurement and boosts qualified responses:

• Define your exact required Safe Working Load (SWL) and target vessel size

• Confirm installation location (port dock, ship deck, offshore platform, small marina)

• Specify mandatory standards and certifications (ISO 13795, DIN 82607, ABS, CCS, DNV)

• Note space constraints and harsh environmental conditions (saltwater exposure, high winds)

• Clarify usage type (long-term static mooring, short-term temporary holding, towing operations)
