Protecting marine infrastructure requires more than just a rubber buffer; it demands an engineered solution capable of withstanding extreme shear forces, UV degradation, and constant berthing energy. As a leading manufacturer at Nanjing Taidun Marine Equipment Engineering Co., Ltd, we have spent decades refining the Arch Rubber Fender (also known as the V-type fender) to meet the rigorous demands of modern ports.
In this comprehensive guide, we bridge the gap between technical engineering and practical procurement, helping port authorities and international wholesalers identify high-performance solutions that align with PIANC guidelines and long-term ROI.

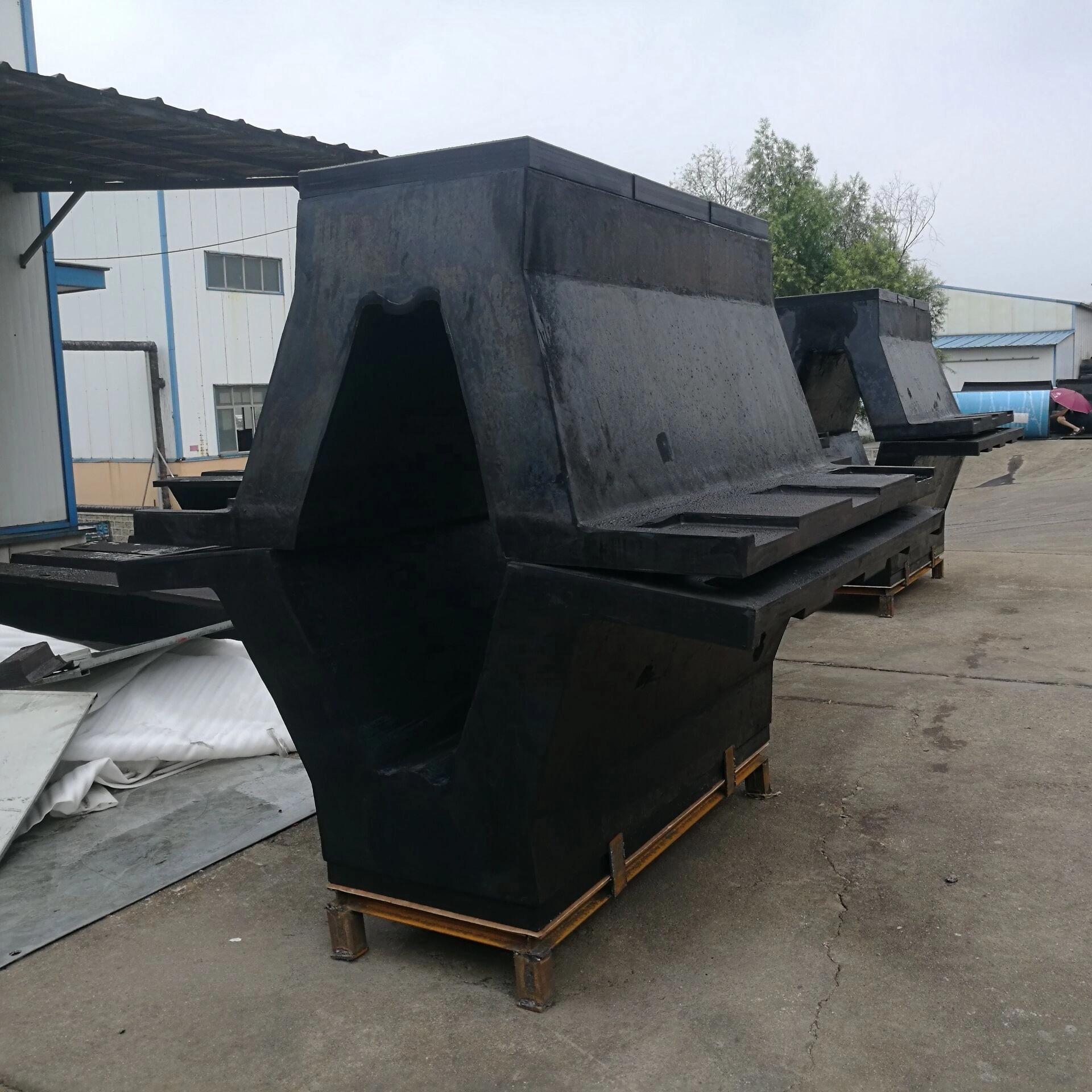

The Arch Rubber Fender is perhaps the most iconic and widely utilized fender system globally. Its "V" shape design is not accidental; it is a calculated geometric choice to provide a high energy-to-reaction ratio. Unlike cell fenders which often require complex frontal frames, arch fenders can be used as standalone units or integrated into larger systems.
When evaluating an arch fender, two primary metrics dictate its success: Energy Absorption (EA) and Reaction Force (RF). The goal is to maximize EA while keeping RF low enough to prevent damage to the ship's hull or the quay wall.
* Material Composition: Typically high-grade natural rubber or SBR (Styrene-Butadiene Rubber) blends.
* Reinforcement: Fully embedded steel mounting plates to prevent bolt pull-through.
* UHMW-PE Facing: Many modern arch fenders (the SAN-series) feature a Low-Friction Ultra-High-Molecular-Weight Polyethylene face to reduce shear stress.
Historically, arch fenders were simple rubber blocks. Today, the engineering has evolved. At Nanjing Taidun, we categorize these into two main types based on industry demand:
1. Standard Arch Fenders (SA Type): The traditional "rubber-only" face. Best for smaller vessels where friction is less of a concern.
2. Enhanced Arch Fenders (SAN Type): These include a bolted or bonded UHMW-PE pad. This is critical for high-frequency berths to prevent "skinning" of the rubber during vessel movement.
| Feature | Arch Fender (V-Type) | Cone Fender |
| Installation Complexity | Low (Direct Bolt-on) | High (Requires Frontal Frame) |
| Shear Resistance | Excellent | Moderate |
| Cost-Efficiency | High (Budget-friendly) | Premium |
| Angular Performance | Good up to 10-15° | Superior |
As an OEM factory, we see procurement trends globally. The Arch Rubber Fender remains the top choice for Multi-purpose Terminals, Ro-Ro Berths, and General Cargo Quays.
Most buyers focus on the price per unit. However, a "cheap" arch fender often fails due to premature ozone cracking or delamination of the steel plate.
> Expert Tip: Always request a CV (Compression Verification) Test Report. A fender that meets the theoretical energy absorption in a lab but fails after 100 compressions in the field is a liability, not an asset.
Marine environments are brutal. Saltwater, constant UV exposure, and oil spills can degrade low-quality rubber within 3–5 years. High-performance arch fenders must incorporate anti-ozonants and antioxidants in the rubber compound to ensure a service life of 15–20 years.
In many substandard products, the internal steel plates are merely "sandwiched" in the rubber. In our Nanjing facility, we utilize a vulcanized bonding process. This ensures the steel and rubber become a single homogenous unit, preventing water ingress that leads to internal corrosion and sudden fender detachment.

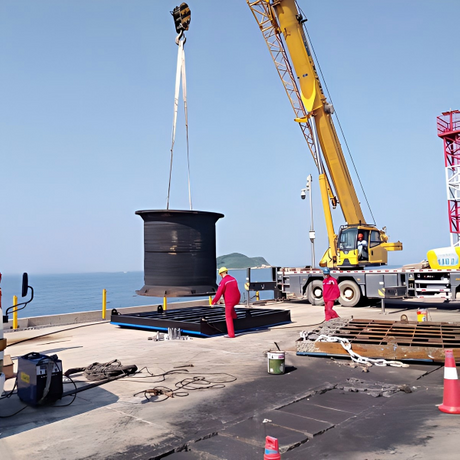

Proper installation is as important as the fender quality itself. Even the best arch rubber fender will fail if the bolt tensioning is incorrect.
1. Pre-Installation Inspection: Check the concrete quay for flatness. Uneven surfaces create stress concentrations.
2. Template Alignment: Use a steel template to mark bolt holes. Misaligned bolts are the \#1 cause of installation delays.
3. Chemical Anchoring: We recommend high-strength chemical anchors for retrofitting old quays, as they provide better vibration resistance than mechanical anchors.
4. Torque Control: Tighten bolts in a "star pattern" to ensure even pressure across the base plates.
5. Final UHMW-PE Check: If using SAN-type fenders, ensure the PE pads are flush and the stainless steel bolts are recessed.
In 2025, a major wholesaler approached Nanjing Taidun regarding a terminal experiencing frequent fender failures. The existing fenders were cracking under the high shear force of frequent ferry berthings.
* The Solution: We replaced the standard SA-type fenders with custom-engineered SAN-series Arch Fenders featuring a 30mm UHMW-PE low-friction face.
* The Result: Friction coefficient was reduced by 60%, and the energy absorption capacity was increased by 15% through a proprietary rubber compound adjustment.
* Expert Insight: This case highlights why OEM flexibility is vital. We didn't just sell a product; we adjusted the rubber shore hardness to meet the specific "soft berthing" needs of the client.
For global brand owners, sourcing from China requires trust in E-E-A-T principles. As a professional manufacturer, we adhere to:
* PIANC 2002 Guidelines: The gold standard for fender design and testing.
* ISO 17357-1:2014: While specific to pneumatics, we apply similar rigorous quality management across our arch fender production lines.
* Traceability: Every fender produced at our Nanjing facility comes with a batch number linked to the raw material supplier and the specific vulcanization press operator.
The marine industry is moving toward "Green Ports." We are currently researching the integration of bio-based rubber polymers and embedded sensors.
* Smart Monitoring: Future arch fenders will include sensors to alert port authorities when a vessel exceeds the design berthing velocity, allowing for proactive maintenance.
* Recyclability: Developing methods to reclaim rubber from decommissioned fenders without losing structural integrity.
Q1: How do I choose between a 300H and 500H Arch Fender?
The "H" refers to height in millimeters. The choice depends on the tidal range of your port and the freeboard height of the smallest and largest vessels calling at the berth. A higher fender offers more deflection and higher energy absorption.
Q2: Can Arch Fenders be installed horizontally and vertically?

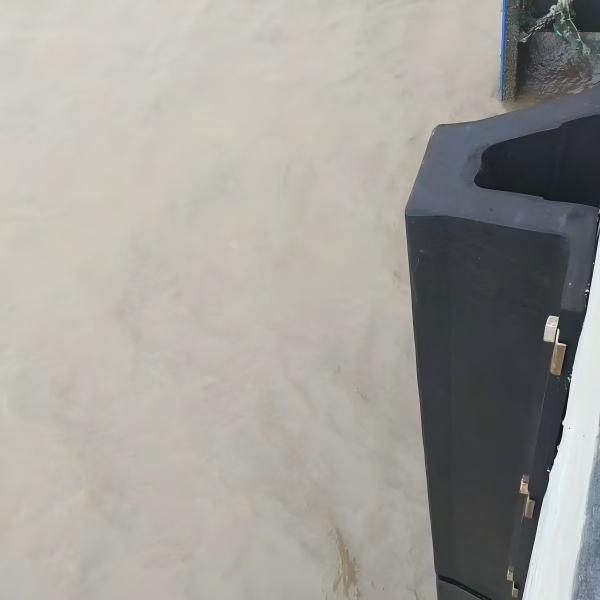

Yes. Vertical installation is standard for general berthing. Horizontal installation is often used for corners or where vertical space on the quay is limited.
Q3: What is the lead time for an OEM order of 100 units?
Typically, for a professional factory like Nanjing Taidun, the production cycle is 3–4 weeks, depending on the curing time required for the specific fender size.
Q4: Do you provide Third-Party Inspection (TPI)?
Absolutely. We regularly work with SGS, BV, and ABS to provide independent verification of energy absorption and material properties.
Q5: What is the typical lifespan of a V-type rubber fender?
With proper installation and high-quality UV-resistant compounds, you should expect a service life of 15 to 20 years in standard marine environments.
The Arch Rubber Fender remains a cornerstone of marine safety. By choosing an OEM partner that prioritizes engineering expertise over mere "rubber volume," you ensure the safety of vessels, the longevity of your quay, and the efficiency of your port operations.
Ready to upgrade your port infrastructure?
As a specialist manufacturer, Nanjing Taidun Marine Equipment Engineering Co., Ltd provides customized OEM solutions for global distributors. Contact our engineering team today for technical drawings and competitive B2B quotes.
> Call to Action: [Contact our SEO Content Specialist for a Technical Datasheet] | [Request a Factory Tour of our Nanjing Facility]
1. PIANC (2002): *Guidelines for the Design of Fendering Systems.* [https://www.pianc.org/publications/marcom/guidelines-design-fendering-systems](https://www.google.com/search?q=https://www.pianc.org/publications/marcom/guidelines-design-fendering-systems)
2. ISO 17357: *High pressure Floating pneumatic rubber fenders.* (Standards for material testing). [https://www.iso.org/standard/62118.html](https://www.iso.org/standard/62118.html)
3. British Standards (BS 6349): *Maritime Works – Code of practice for design of fendering and mooring systems.* [https://knowledge.bsigroup.com/](https://knowledge.bsigroup.com/)
4. Taidun Marine Internal Data (2026): *Case Study on Shear Stress in Ro-Ro Berths.*
5. ASTM D412: *Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension.* [https://www.astm.org/d0412-16.html](https://www.astm.org/d0412-16.html)
