Introduction: The Critical Link in Marine Safety

When it comes to protecting valuable vessels and port infrastructure, rubber fenders are the first line of defense. But even the highest-performance fender is only as strong as the system holding it in place. Enter mooring chains for rubber fenders—the unsung heroes that ensure your fendering system functions correctly under immense force. Selecting the wrong chain can lead to premature failure, costly damage, and serious safety risks. This comprehensive guide will explain everything you need to know about rubber fender chains and provide a clear, step-by-step process for how to choose the right mooring chain for your specific application.



What Are Rubber Fender Mooring Chains?

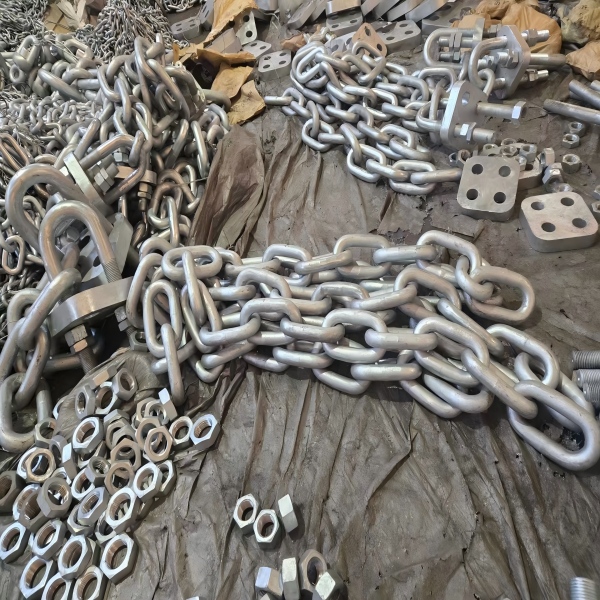

Fender mooring chains are heavy-duty, galvanized steel chains that securely attach a rubber fender to a dock, wharf, or quay wall. They form a flexible connection that allows the fender to pivot and absorb the kinetic energy of a berthing vessel, while maintaining its position. These marine chains are engineered for extreme environments, resisting corrosion, fatigue, and high-tension loads.



Why Chain Selection is Non-Negotiable

A chain is the weakest link in your fender system. An undersized or low-grade chain can stretch, deform, or snap, rendering the fender useless. Proper selection of mooring chains directly impacts:

①Operational Safety:Prevents fender displacement and vessel damage.

②System Longevity:Matched components wear evenly, extending service life.

③Cost-Efficiency:Avoids unplanned downtime and expensive emergency repairs.



How to Choose the Right Mooring Chain for Rubber Fenders: 7 Key Factors

Follow this expert checklist to ensure optimal performance and safety for your marine fender system.

1. Calculate the Loads & Apply a Safety Factor

This is the most critical step. You must determine the maximum tension the chain will experience.

Key Inputs:Consider the fender reaction force (provided by the fender manufacturer based on berthing energy), angle of pull, and environmental forces (currents, waves).

Safety First:Marine applications require a high safety factor. A minimum safety factor of 4:1 (Breaking Strength / Working Load) is standard, often going up to 5:1 or 6:1 for critical installations.

2. Select the Correct Chain Grade & Material

Chain grade indicates its tensile strength. Higher grade means stronger steel.

Grade 30/High Test:Common for light-duty applications.

Grade 70/Transport Chain: Stronger, used in many standard marine applications.

Grade 80/Alloy Steel:The industry-preferred choice for rubber fender mooring. It offers an excellent strength-to-weight ratio and better wear resistance.

Material & Finish:Hot-dip galvanized steel is essential for corrosion resistance. For highly aggressive environments, consider stainless steel chains (e.g., 316-grade), though at a higher cost.

3. Determine the Correct Chain Diameter (Size)

Chain diameter directly correlates to its working load limit (WLL) and breaking strength.

Use your calculated load (with safety factor) to select a chain whose WLL exceeds that value.

Consult manufacturer charts that list WLL and breaking strength for each chain size and grade.

Ensure the chain links are compatible with your shackles, fender eyes, and pad eyes.

4. Consider Configuration & Hardware Compatibility

Link Type:Short link chain is typical. Stud link chain can offer slightly higher fatigue resistance.

End Fittings:The mooring chain must correctly connect to both the fender and the structure. Use certified shackles(e.g., anchor shackles) and connecting links of the same grade and load rating as the chain. Mismatched hardware is a common point of failure.

5. Account for Your Specific Environment

Saltwater Exposure:Mandates high-quality galvanization.

Abrasion: Will the chain contact the seafloor or rough surfaces? Consider wear sleeves or higher-grade material.

Temperature Extremes: Ensure steel grade is suitable for the climate.

6. Insist on Certification & Traceability

Never compromise on quality. Always specify chains that are certified to international standards.

Look for: ISO 1704, ABS (American Bureau of Shipping), DNV, or Lloyd’s Register certification.

Traceability:Certified chains come with mill test reports, guaranteeing their chemical composition and mechanical properties.

7. Plan for Installation and Long-Term Maintenance

Ease of Installation: Can it be installed with available equipment?

Inspection Access: Design the system so chains can be easily inspected for wear, corrosion, and deformation.

Maintenance Schedule:Integrate chain inspection into your port's routine mooring system maintenance.



Conclusion: Invest in the Link That Holds Everything Together

Choosing the right mooring chain for your rubber fenders is a technical but vital decision that safeguards your assets. By systematically evaluating load requirements, material grade, environmental conditions, and certification, you can build a reliable and durable marine fender system.

Ready to select the perfect chain? Always collaborate with reputable fender manufacturers or marine engineering specialists.They can provide precise load calculations and recommend certified mooring chain products that ensure your port operates safely and efficiently for years to come.
