Selecting the right marine equipment isn't just a procurement checkbox—it's a critical safety decision that protects multi-million dollar vessels and ensures operational continuity. As a leading OEM manufacturer at Nanjing Taidun Marine Equipment Engineering Co., Ltd, we have spent decades refining the casting and forging processes for the world's most demanding maritime brands.
In this comprehensive expert guide, we will analyze the various types of anchors, their mechanical holding principles, and how to select the optimal design based on seabed morphology and vessel displacement.
Before diving into specific designs, it is vital to understand that an anchor's effectiveness is a product of two factors: Weight and Geometry. Modern seafaring has shifted from relying solely on heavy "dead weight" to high-efficiency designs that use the seabed's shear strength.
The shank is the long stem of the anchor, while the flukes are the pointed blades that dig into the bottom. The angle at which the fluke hits the seabed determines whether the anchor will "trip" and set properly or simply drag across the surface.
Naval architects and procurement managers generally categorize anchors into three functional groups: Hooking, Burying, and Deadweight.
The Fluke anchor is perhaps the most recognizable design in the industry. It features two large, flat, triangular flukes attached to a stock that allows the flukes to pivot toward the seabed.
* Best For: Sand and mud.
* Pros: Incredible holding-power-to-weight ratio; folds flat for easy storage.
* Cons: Struggles in rock or heavy kelp where the flukes cannot penetrate.
* Industry Insight: For B2B applications, ensure your OEM provider uses high-tensile steel to prevent the flukes from bending under extreme loads.
Designed similarly to a farmer's plow, these anchors are engineered to "reset" themselves if the wind or tide shifts the vessel's position.
* CQR (Coastal Quick Release): Features a hinged shank that improves the anchor's ability to stay buried during direction changes.
* Delta: A wing-shaped, non-hinged version that offers more consistent setting performance.
* Best For: Grass, weeds, and moderate rock.
Consisting of several tines (claws) radiating from a central shank, these are the "hookers" of the marine world.
* Application: Small boats, dinghies, or for retrieving lost gear from the bottom.
* Limitation: Very low holding power in soft bottoms; they rely entirely on hooking onto a solid object.
Most commercial ships and large vessels utilize stockless anchors (such as the Hall or Spek types). At Nanjing Taidun, these are our most requested OEM products for large-scale marine engineering projects.
* Advantage: The absence of a stock allows the anchor to be pulled directly into the hawse pipe for secure storage.
* Holding Principle: They rely on sheer mass and the ability of the heavy flukes to trip and dig in.
| Anchor Type | Sand | Mud | Rock | Kelp/Grass | Holding Power |
| Danforth (Fluke) | Excellent | Excellent | Poor | Poor | High |
| Plow (CQR/Delta) | Good | Good | Fair | Good | Medium-High |
| Stockless | Good | Good | Fair | Poor | Reliable/Heavy |
| Grapnel | Poor | Poor | Excellent | Good | Low |
| Mushroom | Poor | Excellent | Poor | Poor | Low (Weight-based) |
As a specialist manufacturer, we see common "Information Gaps" in standard SEO content. To provide true E-E-A-T value, we must discuss Material Science and Testing Standards.
Corrosion is the silent killer of marine hardware. High-quality anchors must undergo Hot-Dip Galvanization (ASTM A123 standard). This isn't just for aesthetics; a zinc coating that is too thin will peel under the abrasion of sand and rock, leading to structural failure within months.
When sourcing anchors for commercial use, look for certifications from members of the International Association of Classification Societies (IACS), such as:
* ABS (American Bureau of Shipping)
* DNV (Det Norske Veritas)
* LR (Lloyd's Register)
1. Calculate Vessel Displacement: The weight and "windage" (surface area exposed to wind) dictate the required holding power.
2. Analyze the Cruising Grounds: Will you be anchoring in the soft silt of the Yangtze River or the rocky floors of the Mediterranean?
3. Check Storage Constraints: Ensure the anchor dimensions (specifically the shank length) fit your vessel's bow roller or hawse pipe.
4. Verify Material Grade: For professional use, Q345B steel or Stainless Steel 316L are the industry benchmarks for durability.
We analyzed feedback from global wholesalers and marine engineers. Here is the consensus:
> *"The primary failure point we see in generic OEM anchors isn't the design—it's the weld quality at the crown. If the fluke-to-shank connection isn't reinforced, the anchor fails exactly when you need it most during a storm."* — Senior Procurement Manager, European Marine Supply.
At Nanjing Taidun, we address this by using robotic CO2 shielded welding and ultrasonic flaw detection on every batch.
The industry is moving toward SHHP (Super High Holding Power) anchors. These designs use advanced computer modeling to ensure that the anchor penetrates deeper and faster. For offshore wind farm installations and massive container ships, SHHP anchors allow for a reduction in total weight (saving fuel) without sacrificing safety.
Choosing the correct type of anchor is a blend of environmental science and mechanical engineering. Whether you are a brand owner looking to expand your catalog or a production manager sourcing for a new fleet, the quality of your hardware defines your reputation.

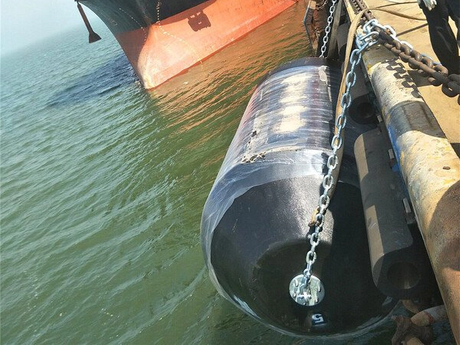

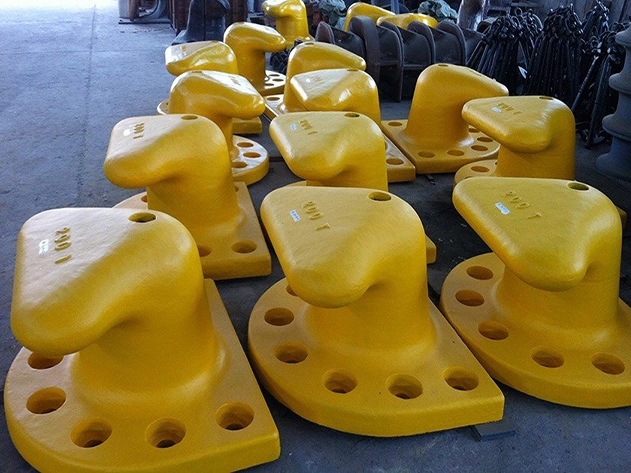

Nanjing Taidun Marine Equipment Engineering Co., Ltd is your premier partner for high-quality, IACS-compliant marine anchors, rubber fenders, and mooring bollards. We provide:
* Full OEM/ODM Support: Custom molds and branding.
* Rigorous Testing: Load tests and material analysis reports.
* Global Logistics: Seamless shipping for wholesalers and shipyards.
[Contact Our Engineering Team Today] for a custom quote or to request our latest technical catalog. Let's secure the future of your maritime operations together.
* International Association of Classification Societies (IACS): [Requirements for Anchoring Equipment](https://www.iacs.org.uk/)
* American Bureau of Shipping (ABS): [Guide for Marine Health, Safety, and Quality](https://ww2.eagle.org/)
* West Marine: [Choosing the Right Anchor Guide](https://www.google.com/search?q=https://www.westmarine.com/WestAdvisor/Selecting-The-Right-Anchor.html)
* The Nautical Institute: [Best Practices for Anchoring Large Vessels](https://ww
w.nautinst.org/)
Q1: What is the difference between a "Stock" and "Stockless" anchor?
A: A "Stock" is a crossbar that forces the flukes to tilt into the ground. While effective, they are bulky. "Stockless" anchors are more common in commercial shipping because they can be stored inside the ship's hull (hawse pipe).
Q2: How much anchor chain (scope) do I need?
A: For standard conditions, a ratio of 5:1 or 7:1 (length of rope/chain to depth of water) is recommended. In heavy weather, this should be increased to 10:1.
Q3: Can I use a Danforth anchor for rocky bottoms?
A: It is not recommended. The flat flukes are designed to slide into soft surfaces. On rock, they will simply skip across the surface without grabbing. A Grapnel or a heavy Plow anchor is better suited for rock.
Q4: Why does my anchor keep "breaking out" during tide changes?
A: This usually happens if the anchor doesn't have a pivoting shank or if the scope is too short. Upgrading to a CQR or a modern "New Generation" anchor like a Rocna can help with 360-degree resetting.
Q5: What is "Hot-Dip Galvanizing" and why is it mandatory?
A: It involves submerging the steel anchor into molten zinc. This creates a metallurgical bond that protects the steel from the highly corrosive saltwater environment.
