Introduction: The Hidden Cost of Bollard Failure

Imagine this scenario: A 50,000 DWT bulk carrier is securely moored at your terminal. Suddenly, a strong squall hits the harbor. The vessel strains against its mooring lines. Then—a sharp crack echoes across the dock. One of the mooring bollards tears free from its foundation, concrete chunks flying. The vessel drifts, lines snap, and within minutes, chaos ensues.

This is not a hypothetical scenario. Mooring bollard failures occur more frequently than many port operators care to admit. And when they happen, the consequences extend far beyond the cost of replacing a single bollard:

①Safety risks:Injury or fatality to dock workers and crew

②Vessel damage:Hull scarring, fender compression, or collision with adjacent structures

③Operational downtime:Terminal closures during investigation and repair

④Financial losses:Demurrage claims, repair costs, and potential litigation

⑤Reputational damage:Loss of client confidence in terminal safety

The good news? Most bollard failures are preventable.This guide examines the five most common installation and maintenance mistakes that lead to bollard failure. By understanding these pitfalls, you can ensure your mooring system remains safe, reliable, and compliant for decades to come.



Mistake #1: Inadequate Foundation Design and Installation

1,The Problem

The most catastrophic bollard failures—those involving complete pull-out from the dock—almost always trace back to foundation issues. A mooring bollard is only as strong as what it's anchored to. Yet, foundation design is often treated as an afterthought.

2,Common foundation failures include:

①Undersized concrete mass:The concrete block or quay wall section lacks sufficient mass to resist pullout forces

②Incorrect anchor bolt embedment:Bolts not embedded deep enough into the structural concrete

③Poor concrete quality:Low-strength concrete, inadequate curing, or honeycombing around bolt pockets

④Missing reinforcement:Lack of proper rebar tying anchor bolts to the main structure

⑤Improper bolt tensioning:Anchor bolts not torqued to specification, leading to fatigue loosening

3,The Solution

Proper foundation design must account for:

Design Factor	Requirement
Pullout resistance	Must exceed ultimate load (typically 2.5x to 3.0x SWL)
Concrete strength	Minimum C30/37 (or equivalent) for bollard foundations
Embedment depth	Minimum 12x bolt diameter into structural concrete
Reinforcement	Anchor bolts must be tied into primary rebar grid
Bolt material	High-tensile steel (grade 8.8 or higher), hot-dipped galvanized or stainless steel

 4,Installation best practices:

①Conduct a concrete core test before installation to verify existing foundation strength

②Use epoxy grout for bolt pockets to ensure full load transfer

③Verify bolt tension with calibrated torque wrenches

④Document installation with photos, torque records, and concrete test reports

Key Standard Reference: ISO 13795 and GB/T 36665 both require that foundations be designed to withstand ultimate loads with appropriate safety factors.



Mistake #2: Material Selection Errors

1,The Problem

Selecting the wrong material for a mooring bollard can lead to premature failure through corrosion, brittle fracture, or inadequate strength. Each material type has its own limitations, and matching material to application is critical.

Material-related failures include:

①Cast iron brittle fracture:Cast iron has limited ductility and can fracture suddenly under impact loads

②Galvanic corrosion:Mixed metals (e.g., stainless bolts with cast steel bollard) creating electrolytic cells

③Hydrogen embrittlement:High-strength steels becoming brittle after galvanizing without proper baking

④Inadequate corrosion protection:Thin coatings failing in harsh marine environments

2,Material Comparison

Material	Advantages	Disadvantages	Best Application
Cast Steel	High strength, good ductility, excellent fatigue resistance	Higher cost, requires NDT inspection	High-load terminals, ISO 13795 projects
Cast Iron	Lower cost, good corrosion resistance	Brittle, can fracture under impact	Smaller vessels, light-duty applications
Fabricated Steel	Design flexibility, weldable	Weld integrity critical, corrosion vulnerable	Custom sizes, retrofit projects
Stainless Steel	Excellent corrosion resistance	Very high cost, limited size availability	High-corrosion environments, premium projects

3,The Solution

Material selection guidelines:

①For high-load, high-impact applications (container terminals, bulk carriers): Choose cast steel with documented NDT

②For cost-sensitive projects with smaller vessels: Cast iron may be acceptable if properly designed

③For harsh marine environments: Consider 2mm corrosion allowance as specified in GB/T 36665

④For galvanized bollards: Ensure baking (hydrogen relief) is performed within 4-8 hours of galvanizing

⑤Always match bolt materials to bollard material to prevent galvanic corrosion

Key Insight: The 2mm corrosion allowance in GB/T 36665 is a practical feature that significantly extends service life in aggressive marine environments.



Mistake #3: Incorrect Safe Working Load (SWL) Specification

1,The Problem

Perhaps the most common oversight is specifying a bollard with inadequate Safe Working Load (SWL) for the vessels that will use it. This mistake often occurs when:

①Vessel sizes increase over time but bollards remain original

②Mooring line forces are underestimated during design

③Safety factors are ignored or incorrectly applied

Consequences of undersized SWL:

①Plastic deformation:Bollard bends permanently under repeated loads

②Fatigue cracking:Cumulative damage from cyclic loading

③Sudden fracture:Catastrophic failure when ultimate load is exceeded

How to Calculate Required SWL

The required SWL for a mooring bollard should be based on:

1. Maximum vessel DWT (Deadweight Tonnage) calling at the berth

2. Mooring line forces calculated per OCIMF (Oil Companies International Marine Forum) or equivalent guidelines

3. Environmental factors–Wind, current, and wave conditions at the site

4. Safety factor–Typically 2.5x to 3.0x for ultimate load capacity

Example SWL Guidelines:

Vessel Size (DWT)	Typical Mooring Line Force	Recommended Bollard SWL
< 5,000 DWT	50-100 kN	100-150 kN
5,000 - 20,000 DWT	100-200 kN	150-300 kN
20,000 - 50,000 DWT	200-400 kN	300-600 kN
50,000 - 100,000 DWT	400-600 kN	600-1,000 kN
> 100,000 DWT	600-1,000 kN	1,000-2,000 kN

The Solution

SWL specification best practices:

1. Conduct a mooring analysis for the berth considering the largest expected vessel

2. Apply appropriate safety factors per applicable standards (ISO 13795 or GB/T 36665)

3. Consider future growth:If vessel sizes are expected to increase, specify higher SWL now

4. Verify SWL markings:Ensure each bollard is clearly marked with its SWL

5. Implement vessel restrictions: if existing bollards have insufficient capacity

> Key Standard Reference:ISO 13795 requires that SWL be clearly marked on each bollard, and ultimate load must be at least 2.5x SWL.



Mistake #4: Poor Pull Testing Practices

1,The Problem

Pull testing is the only way to verify that a bollard and its foundation can actually withstand the forces they are designed for. Yet, pull testing is often:

①Skipped entirely:"It's new, so it must be fine"

②Performed incorrectly:Wrong angles, insufficient force, or improper measurement

③Documented poor:No records, no photos, no traceability

Consequences of inadequate pull testing:

①Undetected installation defects remain hidden

②No baseline data for future comparison

③Liability exposure when failures occur

④Insurance claims denied due to lack of proof

Proper Pull Testing Methods

Four recognized pull testing methods are commonly used:

Method	Description	Best For
Test Frame Method	Pulling against a dedicated steel test frame	New installations, high accuracy
Crane/Hoist Method	Using shore-based lifting equipment with load cell	Existing terminals, moderate loads
Ship-to-Shore Method	Pulling between two bollards (one tested, one anchor)	Paired bollards, high loads
Hydraulic Jack Method	Using calibrated hydraulic equipment	Confined spaces, precise control

Testing specifications:

①Test force:Typically 1.5x SWL for proof load testing

②Hold time: Maintain test force for 2-5 minutes minimum

③Acceptance criteria: No visible deformation, no cracking, no movement at foundation

④Load cell calibration:Must be current and documented

⑤Force application angle:Should simulate actual mooring line angles (horizontal and vertical components)

The Solution

Pull testing best practices:

1. Test every bollard after installation, not just a sample

2. Use calibrated load cells with traceable certification

3. Apply force at realistic angles :typically 0-15 degrees vertical and 45-90 degrees horizontal

4. Document thoroughly:Photos, videos, load cell readings, deflection measurements

5. Retain records for the life of the terminal (critical for insurance and liability)

> Key Insight: Pull test records are your primary defense in case of failure investigation or insurance claim. Without them, you cannot prove the installation was compliant.



Mistake #5: Neglecting Regular Inspection and Maintenance

1,The Problem

Even the best-designed and properly installed bollard will fail without regular inspection and maintenance. Many terminals operate on a "fit and forget" philosophy—installing bollards and never looking at them again until something breaks.

2,Common maintenance failures include:

①Corrosion unchecked:Coatings fail, rust progresses, section loss occurs

②Loose anchor bolts:Vibration and cyclic loading cause nuts to loosen over time

③Hidden cracks:Fatigue cracks develop unnoticed until sudden failure

④Wear and abrasion:Mooring lines groove the bollard neck, reducing strength

⑤Impact damage:Vessel impacts cause deformation or hidden cracking

Inspection Frequency Guidelines

Inspection Type	Frequency	Scope
Visual Inspection	Monthly	General condition, obvious damage, corrosion, loose bolts
Detailed Inspection	Quarterly	Close inspection of all surfaces, bolt torque verification
Engineering Inspection	Annually	NDT, corrosion measurement, foundation assessment
Full Pull Test	Every 5-10 years	Verify capacity, especially after major incidents or vessel upgrades

What to Look For During Inspection

Component	What to Check
Bollard Body	Cracks (especially at weld seams or casting junctions), deformation, wear grooves
Coating	Rust spots, blistering, peeling, areas requiring touch-up
Anchor Bolts	Torque, corrosion, thread condition, visible movement
Base Plate	Even contact with foundation, grout condition, signs of movement
Foundation	Cracking, spalling, settlement around bollard
Markings	SWL still legible, standard reference visible

3,The Solution

Establish a preventive maintenance program:

1. Create an asset register:Document each bollard's location, SWL, installation date, and test records

2. Schedule regular inspections:Use the frequency table above as a starting point

3. Develop a repair protocol:Define thresholds for when to repair vs. replace

4. Maintain coating systems:Schedule recoating before corrosion advances

5. Train dock personnel:Encourage reporting of any visible damage or unusual conditions

> Key Standard Reference:Both ISO 13795 and GB/T 36665 emphasize the importance of maintaining corrosion protection and periodic verification of capacity.



Case Study: How Proper Maintenance Prevented a Catastrophic Failure

Scenario:A Southeast Asian container terminal had bollards installed 15 years prior. During a routine annual inspection, engineers noticed:

①Slight rust staining around anchor bolt pockets

②Minor settlement cracks in the concrete foundation

③A 3mm wear groove on one bollard's neck

Action taken:

①Anchor bolts were torque-checked; three were found slightly loose and re-tightened

②Coating was touched up after rust removal

③The worn bollard was replaced rather than risk failure

④Foundation cracks were epoxy-injected to prevent water ingress

Outcome:One month later, a 90,000 DWT vessel was caught in an unexpected typhoon. All bollards held. Had the worn bollard remained in service, it might have failed under the extreme loads, potentially causing a runaway vessel and millions in damages.



Conclusion: Prevention is Always Cheaper Than Cure

Mooring bollard failures are almost always preventable. The five mistakes outlined in this guide—inadequate foundations, wrong materials, undersized SWL, poor pull testing, and neglected maintenance—account for the vast majority of failures in the field.

By addressing these areas, you can:

①Ensure safety for personnel, vessels, and cargo

②Protect your investment with extended asset life

③Maintain operational continuity without unplanned downtime

④Reduce liability with documented compliance

⑤Build reputation as a reliable, safety-focused terminal

Your Next Step: Bollard Condition Assessment

Unsure about the condition of your existing mooring bollards? Concerned about whether your installations meet ISO 13795 or GB/T 36665 requirements?

We can help.

Our engineering team offers:

①On-site bollard inspection:Visual, dimensional, and NDT assessment

②Foundation evaluation:Concrete strength testing, pullout capacity verification

③Pull testing services:Certified load cells, documented results

④Maintenance program development:Customized to your terminal's needs

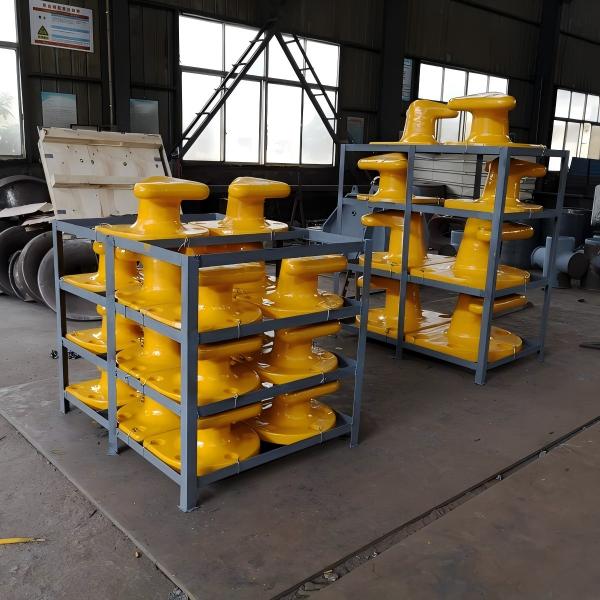

⑤Replacement bollard supply:ISO 13795 or GB/T 36665 compliant
