Introduction: Why Component-Level Thinking Fails Ports
I have reviewed fender specifications from ports on four continents. The pattern is depressingly consistent: a port orders rubber fender units from one supplier, steel panels from another, and chains from a third. On paper, the costs look competitive. In operation, the failures emerge—panels that do not match fender deflection curves, chains sized for the wrong reaction forces, and a warranty chain where every supplier blames the other.

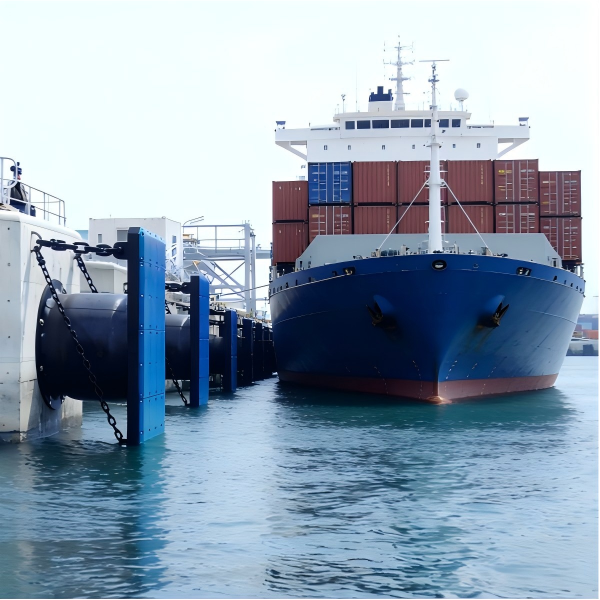

The industry has a name for the solution: a whole system approach to fender performance. It is not a marketing slogan. It is an engineering philosophy that treats the fender as an integrated system—from application engineering through detailed design, production quality control, and installation and maintenance—rather than a collection of interchangeable parts.
At NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we manufacture fender systems for OEM partners in 80+ countries. This article explains what the whole system approach demands—and what OEM partners should require from every supplier they work with.
Taidun, which popularized the framework, defines four interconnected stages that determine whether a fender system performs as specified or fails in service.
Application engineering is where berthing energy calculation meets site reality. It is not simply running a formula. It requires:
- Site-specific berthing data—velocities, angles, and approach patterns from actual vessel traffic
- Correction factors—angular, temperature, and velocity adjustments applied to base fender performance
- Vessel mix analysis—from laden bulkers to ballasted feeders, each with different freeboard and hull geometry
PIANC WG211 (2024) reinforces this: characteristic berthing energy must be derived from site-specific data where available, not generic tables. A fender selected without correction factors is a fender selected for conditions that do not exist.
Once energy demand is established, every component must be engineered to work together.

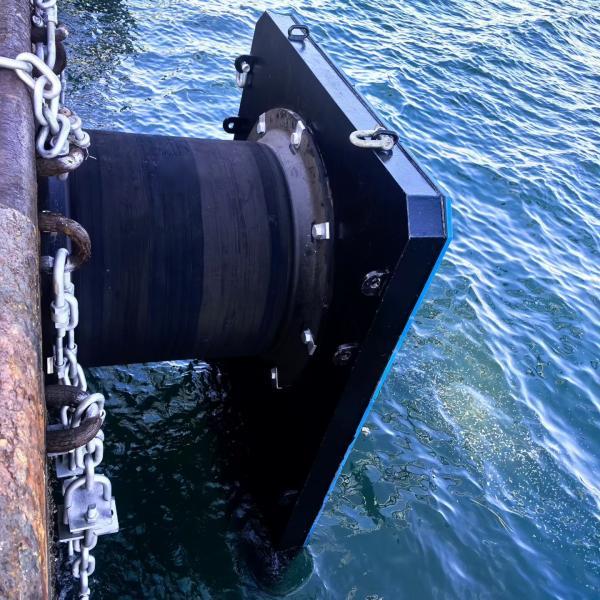

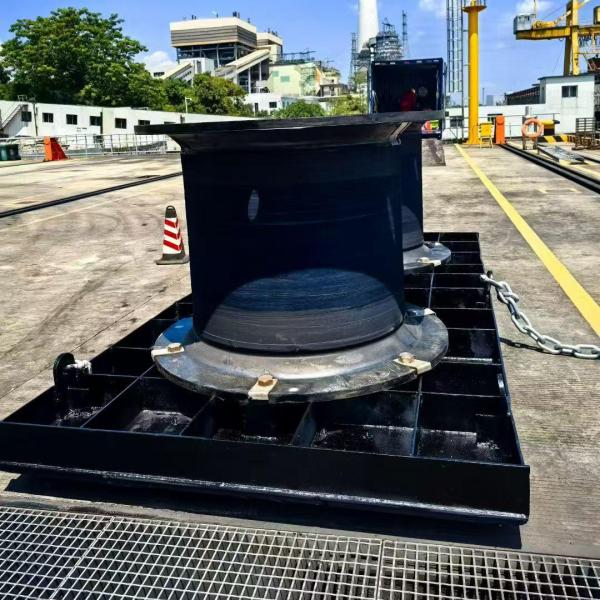

The frontal panel is not a steel plate bolted to a rubber unit. It distributes reaction forces across the vessel hull, houses the UHMW-PE facing that controls friction, and provides mounting points for chains and accessories.
Chain systems manage shear forces and restrain panel movement. Their safe working load must account for reaction force, friction coefficient, and chain geometry—not simply the fender's rated capacity.
The critical failure point: When these components are sourced separately, interface compatibility is assumed rather than engineered. The result is premature wear, unexpected failures, and warranty disputes.
A well-designed system means nothing if production deviates from design intent.
PIANC WG211 sets full compliance by May 1, 2026 for updated fender guidelines. Key changes include:
| Requirement | PIANC 2002 (WG33) | PIANC 2024 (WG211) |
|---|---|---|
| Testing focus | Component-level | System-level |
| Berthing physics | Higher angles, single contact | Lower angles, multiple contacts |
| Design data | Generic tables acceptable | Site-specific strongly preferred |
| Safety responsibility | Structure absorbs margin | Fender system absorbs margin |
For OEM partners, this means supplier catalogs must be updated and test protocols revised to reflect the new standard.
A fender that performs perfectly in the factory can fail within months if installation is flawed or maintenance is neglected.
Design for maintenance access begins at the engineering stage. If panels cannot be accessed for UHMW-PE replacement, or chains cannot be adjusted, the system's service life is determined by its least accessible component.
Proactive inspection converts reactive repairs into planned maintenance. Key indicators include rubber cracking, panel coating breakdown, chain link wear, and anchor bolt corrosion.
For OEM brand owners and wholesalers, the whole system approach translates into specific procurement requirements. Your reputation depends on product quality—and quality depends on documentation.
1. System-level performance data—not just rubber unit ratings, but complete assembly performance with panels and chains
2. Correction factor documentation—published data on angular, temperature, and velocity factors
3. Component traceability—material certificates for rubber compound, steel panels, and chain steel
4. Batch-specific test reports—compression tests, material tests, coating thickness measurements
5. Third-party certification—BV, SGS, ABS, LR, or equivalent witnessing
6. Installation and maintenance manuals—handling procedures, inspection intervals, replacement guidance
The May 1, 2026 compliance date for PIANC WG211 is not a suggestion. Ports and consultants are already updating specifications to reference the new guidelines. OEM partners whose suppliers have not updated catalogs and test protocols will find themselves unable to bid on projects that require compliance.
The value of integrated design becomes clearest when examining actual project outcomes.
Port of Lumut, Malaysia (LMT2) : The original tender specified a leg fender system at 6.5-meter spacing. The fender supplier's engineering team reviewed the design and proposed an alternative: cone fender systems at 12.5-meter spacing. The revised arrangement provided improved energy absorption to reaction force balance, reducing loads transferred to the berth structure while maintaining performance. The chain assemblies received duplex coating for enhanced corrosion protection.
Key insight: The optimization was possible because the supplier controlled both fender and panel design—not because they offered the lowest price on rubber units alone.
The whole system approach is not complicated. It is simply the recognition that a fender system performs as an integrated whole—or fails at its weakest interface.
For OEM partners sourcing fender systems for their markets, the implication is clear:
- Procure systems, not components
- Demand correction factor data, not just catalog ratings
- Verify batch traceability, not just factory certificates
- Require PIANC 2024 compliance documentation, not legacy 2002 references
At NANJING TAIDUN, we manufacture fender systems—rubber units, steel panels, UHMW-PE facings, chains, and accessories—with full documentation and third-party certification. Our OEM partners receive system-level engineering support, not just product shipments.
[CTA]
Ready to source fender systems with full PIANC 2024 documentation?
NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD
- Email: service@taidunmarine.com
- Website: www.taidunmarine.com
- OEM Services: System design, custom rubber compounding, third-party testing coordination, complete documentation packages
1. Riviera Maritime Media. "New global fender standards come into force in May." [https://www.rivieramm.com/lead-stories-brand/new-global-fender-standards-come-into-force-88507]
2. Pile Buck Magazine. "Optimizing the Fender Design for LMT2 at Port of Lumut, Malaysia." [https://pilebuck.com/optimizing-the-fender-design-for-lmt2/]
3. TU Delft Research Portal. "Fender System Selection in PIANC WG211." [https://research.tudelft.nl/en/publications/fender-system-selection-in-pianc-wg211/]
A component is an individual element—a rubber unit, a steel panel, or a chain. A system is the complete engineered assembly of components designed to work together, including application engineering, detailed design, production quality control, and installation/maintenance planning. Component-level procurement often leads to interface incompatibilities and undefined accountability when failures occur.
PIANC WG211 released updated guidelines in 2024, with full compliance required by May 1, 2026. Key changes include revised berthing physics (lower angles, multiple contacts), stronger system-level testing requirements, and greater emphasis on site-specific design data. Ports and consultants are already updating specifications to reference the new guidelines.
A complete documentation package should include: product certificate of conformity, batch-specific compression test reports, material certificates for rubber and steel, coating thickness measurements, third-party inspection reports (BV, SGS, ABS, or equivalent), and installation and maintenance manuals. Traceability from raw material to finished product is essential for quality assurance and liability protection.
By ensuring components are engineered to work together, the system approach reduces premature wear, unexpected failures, and warranty disputes. Integrated design also enables optimization—such as the Port of Lumut project, where revised fender spacing lowered structural loads while maintaining performance. Longer service life and reduced downtime translate directly to lower lifecycle costs.
Three primary factors reduce published fender performance in actual operations: angular factor (energy loss at berthing angles), temperature factor (rubber stiffens in cold, softens in heat), and velocity factor (higher berthing speeds demand greater capacity). PIANC WG211 also introduces a multiple fender contact factor for cases where several fenders share the impact. OEM partners should demand documentation of these factors from their suppliers.
