| Availability: | |
|---|---|
Features
High Performance
Can support large panels
Wide range sizes
Easy and quick installation
Applications
General cargo berths
Oil and LNG facilities
Container terminals
Ro-Ro and cruise terminals
Bulk terminals

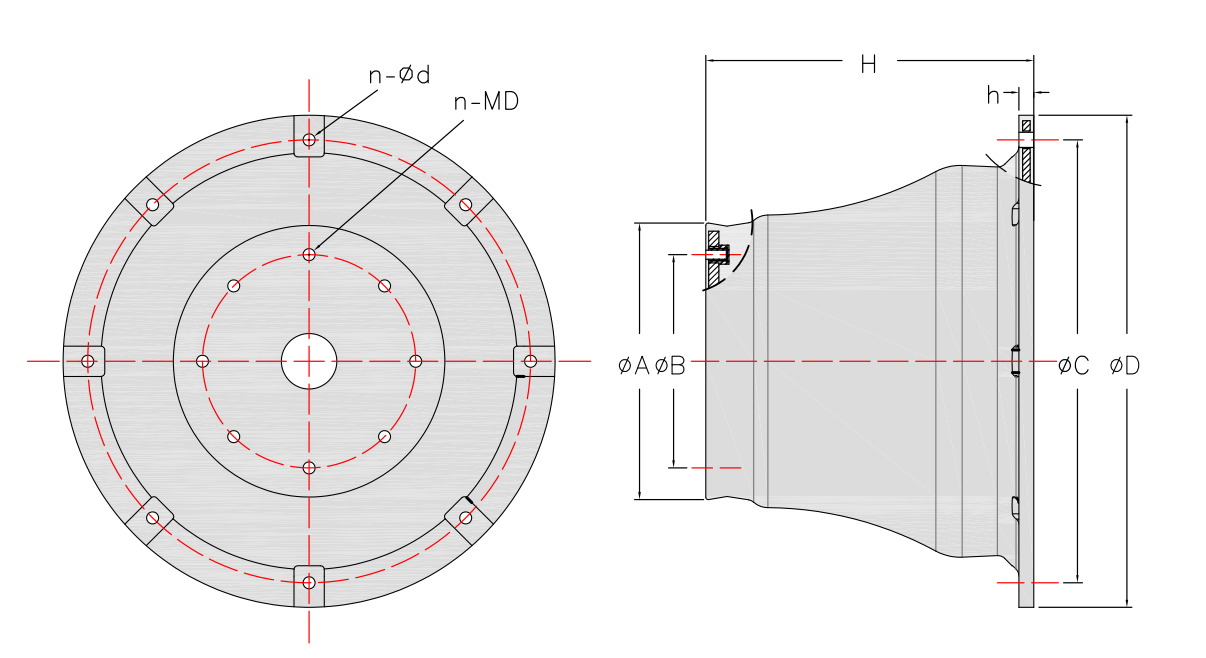

Specifications

Specifications | H | h | ØA | ØB | ØC | ØD | n | Ød | MD |
CT600H | 600 | 27 | 510 | 390 | 810 | 900 | 6 | 30 | M24 |
CT700H | 700 | 32 | 595 | 455 | 945 | 1050 | 6 | 38 | M30 |
CT800H | 800 | 36 | 680 | 520 | 1080 | 1200 | 6 | 44 | M36 |
CT900H | 900 | 41 | 765 | 585 | 1215 | 1350 | 6 | 44 | M36 |
CT1000H | 1000 | 45 | 850 | 650 | 1350 | 1500 | 6 | 50 | M42 |
CT1100H | 1100 | 49.5 | 935 | 715 | 1485 | 1650 | 6 | 50 | M42 |
Ct1150H | 1150 | 52 | 998 | 750 | 1550 | 1725 | 6 | 56 | M42 |
CT1200H | 1200 | 54 | 1020 | 780 | 1620 | 1800 | 8 | 50 | M42 |
CT1300H | 1300 | 58.5 | 1105 | 845 | 1755 | 1950 | 8 | 56 | M48 |
CT1400H | 1400 | 66 | 1190 | 930 | 1890 | 2100 | 8 | 60 | M48 |

Performance
R/F:KN E/A:KN-M | 600H | 700H | 800H | 900H | 1000H | 1100H | 1150H | 1200H | 1300H | 1400H | ||
RS | 70% | R(KN) | 480 | 652 | 862 | 1078 | 1339 | 1430 | 1632 | 1746 | 2125 | 2255 |
E(KN.M) | 157 | 235 | 368 | 494 | 669 | 830 | 986 | 1103 | 1585 | 1686 | ||
72.5% | R(KN) | 542 | 691 | 930 | 1189 | 1507 | 1570 | 1850 | 1920 | 2312 | 2506 | |
E(KN.M) | 161 | 243 | 380 | 517 | 735 | 865 | 1050 | 1149 | 1640 | 1756 | ||
RH | 70% | R(KN) | 382 | 522 | 706 | 862 | 1078 | 1146 | 1310 | 1396 | 1705 | 1804 |
E(KN.M) | 127 | 181 | 294 | 399 | 541 | 650 | 785 | 882 | 1310 | 1349 | ||
72.5% | R(KN) | 429 | 568 | 833 | 957 | 1213 | 1259 | 1400 | 1536 | 1900 | 2005 | |
E(KN.M) | 129 | 192 | 316 | 431 | 588 | 681 | 835 | 919 | 1360 | 1405 | ||
RO | 70% | R(KN) | 283 | 384 | 502 | 635 | 784 | 927 | 1038 | 1106 | 1320 | 1443 |
E(KN.M) | 94 | 150 | 224 | 306 | 437 | 495 | 666 | 705 | 1043 | 1079 | ||
72.5% | R(KN) | 319 | 426 | 576 | 703 | 882 | 1019 | 1152 | 1229 | 1537 | 1604 | |
E(KN.M) | 104 | 154 | 252 | 334 | 478 | 527 | 717 | 735 | 1077 | 1124 | ||
RL | 70% | R(KN) | 225 | 308 | 402 | 508 | 628 | 800 | 830 | 890 | 1125 | 1150 |
E(KN.M) | 75 | 120 | 179 | 255 | 350 | 408 | 532 | 560 | 750 | 860 | ||
72.5% | R(KN) | 258 | 341 | 428 | 558 | 698 | 833 | 919 | 979 | 1200 | 1278 | |
E(KN.M) | 85 | 124 | 208 | 270 | 380 | 432 | 565 | 583 | 800 | 896 | ||
Note: Tolerance±10%

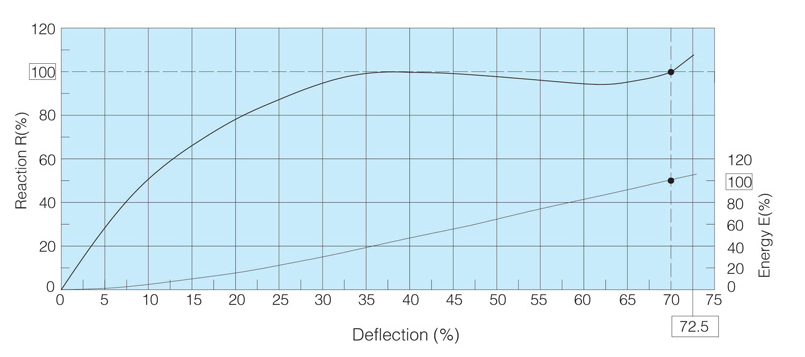

Performance Curve

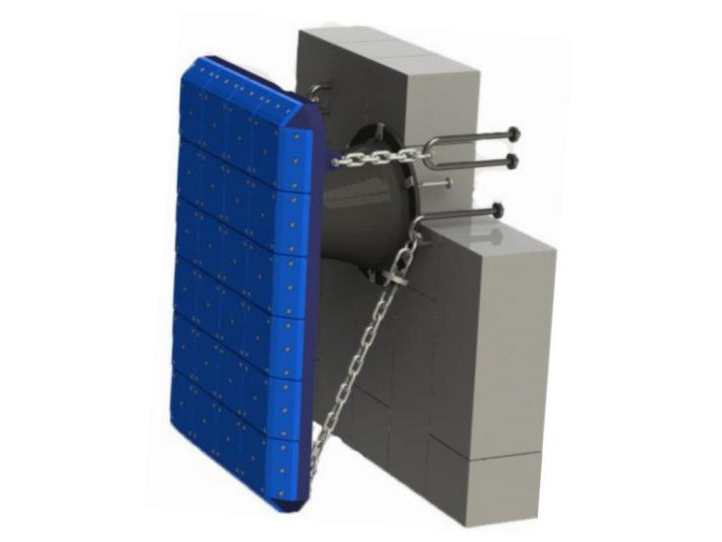

Installation
NO. | Description | Applications | Material | |
1 | Rubber Fender | Absorb ship impact energy to protect dock and vessels | Rubber, SS400 | |
2 | Frontal Panel | Distribute reaction forces to provide low hull pressures and cope with large tidal variations | SS400 in JIS G3101; Q235 in GB.T 700-2006; ASTM A36 BS4360-86 Gr. 43A; 1.0037 | |
SM490 in JIS G3106; Q345B in GB.T 3524-2005 ASTM A633 Gr.50A; 1.0045 | ||||
3 | Face Pads | Reduce friction, protect vessels | UHMW-PE | |
4 | Anchor Accessories | Anchor Nuts | Install fenders to concrete | SS400 in JIS G3101; Q235 in GB.T 700-2006; ASTM A36; BS4360-86 Gr.43A; 1.0037 |
Foot board | ||||
Foot rod | ||||
Bolts | SS400 in JIS G3101; Q235 in GB.T 700-2006; ASTM A36; BS4360-86 Gr.43A; 1.0037; | |||
Washers | ||||
SUS304/SUS316 in JIS G 4303, 4304; 06Cr19Ni10/06Cr17Ni12Mo2 in GB.T 1220-2007; AISI304/AISI316; BS970 Gr.304/316; 1.4301/1.4401 | ||||
5 | Pad Fixing accessories | Bolts | Install pads onto frontal panel | SUS304/SUS316 in JIS G 4303, 4304; 06Cr19Ni10/06Cr17Ni12Mo2 in GB.T 1220-2007; AISI304/AISI316; BS970 Gr.304/316; 1.4301/1.4401 |
Nuts | ||||
Washers | ||||
6 | Panel fixing accessories | Bolts | Assemble fender and panel | SS400 in JIS G3101; Q235 in GB.T 700-2006; ASTM A36; BS4360-86 Gr.43A; 1.0037; SUS304/SUS316 in JIS G 4303, 4304; 06Cr19Ni10/06Cr17Ni12Mo2 in GB.T 1220-2007; AISI304/AISI316; BS970 Gr.304/316; 1.4301/1.4401 |
Nuts | ||||
Washers | ||||
7 | Chains | Tensile Chain | Restrict tensions on the fenders | SBC490 in JIS G3105; CM490 GB.T18669-2002; |
Weight Chain | Support the frontal panel in avoid sagging | |||
Shear Chain | Prevent fenders system from shear deflection | |||
8 | U-Ring | Holding chains | S25C/S45C in JIS G4051; 25 in GB.T699-1999; ASTM A575 Gr.1025/Gr.1045; BS970 Gr.060A25/45 | |
SUS304/SUS316 in JIS G 4303, 4304; 06Cr19Ni10/06Cr17Ni12Mo2 in GB.T 1220-2007; AISI304/AISI316; BS970 Gr.304/316; 1.4301/1.4401 | ||||

Hot Tags: Super Cone Rubber Fender, Cone Fenders, Dock Edge Protection, Offshore Construction, Extruded Fenders, Dock Protector, Fixed Fenders, Rubber Dock Bumper, Marine Fender Products, Cone Fender With Steel Frame, China, Customized, OEM, manufacturing company, manufacturers, suppliers, factory, for sale, price, made in China
