Introduction: The Calculation That Determines Everything
Every fender system specification begins with a single number: berthing energy. Get it wrong, and you either over-engineer the fender system—wasting capital on unnecessary capacity—or under-specify it, exposing your terminal to vessel damage, structural fatigue, and costly downtime.
As an OEM manufacturer at NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we have reviewed thousands of fender specifications from port authorities, consultants, and contractors worldwide. The same gaps appear repeatedly: missing correction factors, ambiguous displacement figures, and velocity assumptions that do not reflect real-world berthing operations.
This guide provides a complete, engineering-grade breakdown of berthing energy calculation for marine fender selection. It follows the latest PIANC WG211 (2024) guidelines and includes practical worked examples that you can apply directly to your next project.
Berthing energy represents the kinetic energy a vessel carries at the moment of first contact with the fender system. This energy must be absorbed—either by the fender unit itself, by the supporting structure, or by a combination of both.
The fundamental principle is straightforward:
> Fender Design Capacity (Ef,d) ≥ Design Berthing Energy (Ek,d)
If this inequality holds, the fender will perform its intended function. If it fails, the consequences range from cosmetic damage to catastrophic structural failure.
Modern berthing energy calculation follows a two-phase approach:
| Phase | Output | Purpose |
|---|---|---|
| Characteristic Energy (Ek,c) | Site-specific berthing energy | Establishes demand without safety factors |
| Design Energy (Ek,d) | Characteristic energy × partial factors | Accounts for uncertainty and consequence |
This dual-phase approach—formalized in PIANC WG211—replaces the older single-step methodology that conflated site conditions with safety margins.
The current PIANC methodology defines berthing energy as:
Ek,c = 0.5 × Mc × Vc² × Ce,c × Cm,c
Where:
| Symbol | Parameter | Unit |
|---|---|---|
| Mc | Characteristic displacement (mass) | tonnes |
| Vc | Characteristic berthing velocity | m/s |
| Ce,c | Characteristic eccentricity factor | dimensionless |
| Cm,c | Characteristic added mass factor | dimensionless |
Ek,d = Ek,c × γE
Where γE is the partial energy factor, accounting for:
- Navigation condition severity
- Annual berthing frequency
- Contact mode (single vs. multiple fenders)
- Displacement variation during service life
Critical note: The γE factor is not a universal constant. PIANC WG211 requires it to be derived for each specific berth based on risk assessment.
Let us work through a complete calculation using a realistic design vessel.
| Parameter | Value | Source |
|---|---|---|
| Length between perpendiculars (LBP) | 190 m | Vessel particulars |
| Beam (B) | 32 m | Vessel particulars |
| Draught (T) | 12 m | Governing berthing condition |
| Block coefficient (Cb) | 0.8 | Vessel particulars |
| Water density (ρ) | 1.025 t/m³ | Seawater |
Displacement calculation:
M = LBP × B × T × Cb × ρ
M = 190 × 32 × 12 × 0.8 × 1.025 = 59,800 tonnes
Berthing velocity should be obtained from site-specific berthing records where available. PIANC WG211 recommends selecting a velocity with a 0.02% probability of exceedance.
When site data is unavailable, guideline tables apply. For a vessel of this size under moderate navigation conditions:
Vc = 0.15 m/s (placeholder for this example)
Important: Velocities below 0.10 m/s are not recommended unless demonstrated by site-specific data or berthing aid systems.
The eccentricity factor accounts for energy dissipated through vessel rotation when berthing is not perfectly parallel.
Inputs:
- Radius of gyration (K): approximately 0.25 × LBP for most vessels
- Distance from center of mass to impact point (rF): varies with first fender contact
For a quarter-point berthing contact:
Ce,c = 0.5
Added mass accounts for the water entrained by the vessel during berthing. It depends primarily on under-keel clearance ratio (Uc/D).
Input:
- Water depth at berth: 14.4 m
- Vessel draught: 12 m
- Under-keel clearance: 2.4 m
- Uc/D = 2.4 / 12 = 0.2
Reading from PIANC added mass charts for Uc/D = 0.2:
Cm,c = 1.8
Ek,c = 0.5 × Mc × Vc² × Ce,c × Cm,c
Ek,c = 0.5 × 59,800 × 0.15² × 0.5 × 1.8
Ek,c = 0.5 × 59,800 × 0.0225 × 0.5 × 1.8
Ek,c = 605 kNm
The partial energy factor accounts for the specific navigation condition, berthing frequency, and consequence class of the berth.
For this example, a placeholder value of γE = 1.6 is applied:
Ek,d = 605 × 1.6 = 968 kNm
Critical caveat: This γE value is illustrative only. The actual factor must be derived from the berth-specific risk assessment per PIANC WG211.
Calculating design berthing energy is only half the process. The fender must be selected based on its corrected design capacity (Ef,d).
| Step | Action | Output |
|---|---|---|
| 1 | Start with catalogue energy (base performance) | Ecatalogue |
| 2 | Apply velocity correction factor | Evelocity |
| 3 | Apply temperature correction factor | Etemperature |
| 4 | Apply berthing angle correction factor | Eangle |
| 5 | Apply multiple fender contact factor | Emultiple |
| 6 | Apply partial resistance factors | Ef,d |
The critical error: Comparing catalogue fender performance directly against design berthing energy. Catalogue values represent laboratory conditions—not site conditions.

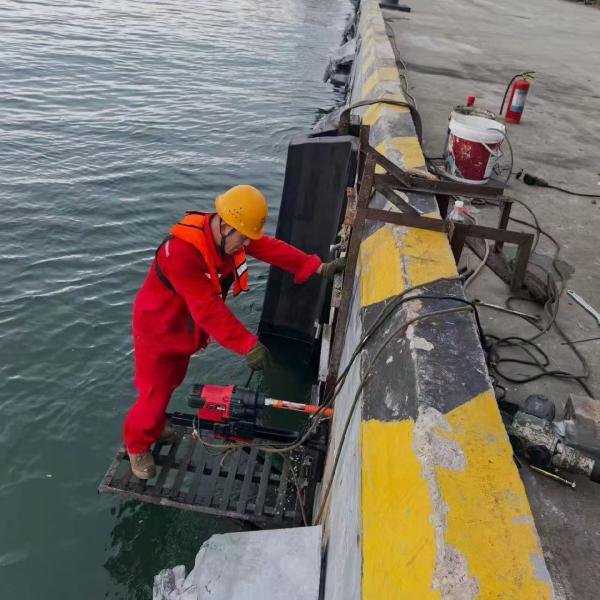

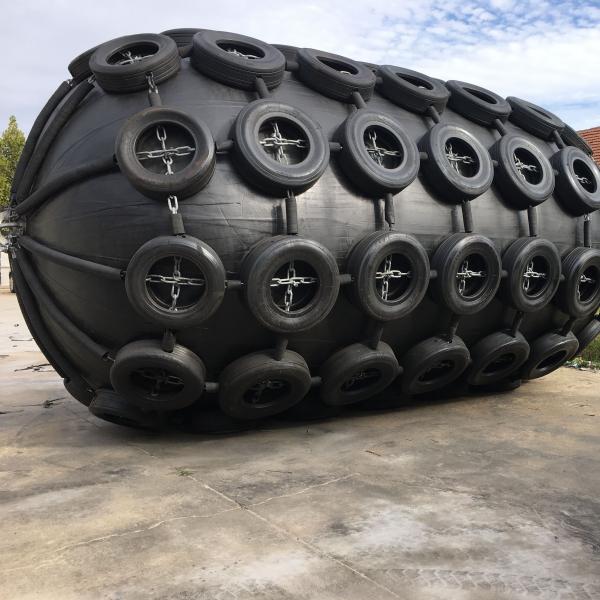

For pneumatic rubber fenders, ISO 17357-1:2014 specifies performance against 50 kPa and 80 kPa initial internal pressure classes.
A guaranteed energy absorption (GEA) value quoted without its pressure class is incomplete and unusable for specification purposes.
| Term | Definition | Use in Calculation |
|---|---|---|
| DWT | Cargo + stores + fuel capacity | Never use directly |
| Displacement | Actual mass of vessel + contents | Use operational displacement |
Common error: Converting DWT to displacement using a fixed ratio. PIANC requires operational displacement for the governing berthing condition.
kJ and kNm are dimensionally equivalent (1 kJ = 1 kNm). Convert only when documents use tonne-force meters (tf·m).
The eccentricity factor changes dramatically depending on whether one fender or multiple fenders share the impact. PIANC WG211 addresses this distinction explicitly.
Consider a terminal where catalogue fender performance appears sufficient:
| Parameter | Catalogue Value | Site-Corrected Value |
|---|---|---|
| Energy absorption | 1,000 kNm | 850 kNm |
| Correction: velocity | — | × 0.95 |
| Correction: temperature | — | × 0.92 |
| Correction: angle (10°) | — | × 0.97 |
| Corrected capacity | — | 796 kNm |
If design berthing energy is 800 kNm, the fender that appeared adequate is actually under-specified by 4 kNm—a margin that disappears entirely under less favorable conditions.
1. Displacement: Use operational displacement, not DWT
2. Velocity: Obtain from site records or PIANC tables; document source
3. Eccentricity: Define impact point; use appropriate Ce value
4. Added mass: Calculate Uc/D; read from PIANC charts
5. Partial factor: Derive from berth-specific risk assessment
6. Fender correction: Apply all correction factors to catalogue values
7. Pressure class: For pneumatic fenders, specify 50 kPa or 80 kPa
- Catalogue performance curves with test conditions stated
- Correction factor documentation for velocity, temperature, and angle
- Batch-specific compression test reports
- Material certificates for rubber and steel components
- Third-party inspection reports (BV, SGS, ABS, LR, DNV)
Berthing energy calculation is not an academic exercise. It is the engineering foundation upon which fender system reliability, port safety, and capital efficiency depend.
The PIANC WG211 methodology—with its characteristic/design energy framework and explicit correction factors—provides the rigor that modern port infrastructure demands. Skipping steps, using ambiguous inputs, or comparing uncorrected values introduces risk that may not manifest for years.
At NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we support OEM partners with fender systems manufactured to specification, documented to international standards, and tested to verify performance. Our engineering team can assist with berthing energy review and fender selection verification.
Need fender systems manufactured to your berthing energy specification?
Contact NANJING TAIDUN:
- Email: service@taidunmarine.com
- Website: www.taidunmarine.com
- Services: OEM manufacturing, custom rubber compounding, third-party testing coordination, documentation packages
1. Floating-Fender. "Berthing Energy Calculation: Which Formula Applies Now, and What the Result Must Match." [https://www.floating-fender.com/berthing-energy-calculation/]
2. PIANC MarCom WG 211. "PIANC Fender Guidelines 2024." [https://www.kscoe.or.kr/!/download/?path=/media/51/board/2025/01/31/7._PIANC_MarCom_WG_211.pdf]
3. Japan International Cooperation Agency (JICA). "Berthing Energy Calculation – Port Facility Design." [https://openjicareport.jica.go.jp/pdf/10611598.pdf]
4. China Classification Society (CCS). "Ship-to-Ship Berthing Energy Guidelines." [https://www.ccs.org.cn/ccswz/file/download?fileid=202608211031263753]
5. ScienceDirect. "Overlaid energy-on-force contour maps method for safe, efficient, and economic design of dual-elastic ship berthing dolphins." [https://www.sciencedirect.com/science/article/abs/pii/S0951833925001819]
6. PIANC. "Comparison of fender dimensions PIANC WG211 and PIANC WG33." [https://pure.tudelft.nl/ws/portalfiles/portal/221659942/Comparison_of_fender_dimensions_PIANC_WG211_and_PIANC_WG33.pdf]
7. Port and Airport Research Institute (Japan). "Fender Design Test Guideline." [http://www.cdit.or.jp/en/FenderDesignTestGuideline.pdf]
Characteristic berthing energy (Ek,c) represents the site-specific energy demand calculated from vessel displacement, velocity, eccentricity, and added mass—without safety factors. Design berthing energy (Ek,d) applies a partial energy factor (γE) to account for navigation conditions, berthing frequency, and consequence class. PIANC WG211 requires both values to be calculated separately.
Catalogue fender energy represents base performance under standard laboratory conditions (standard velocity, temperature, and compression). Real-world performance is lower due to velocity effects, temperature extremes, and berthing angles. PIANC requires applying correction factors to convert catalogue values to site-specific design capacity (Ef,d) before comparison.
The added mass factor (Cm) accounts for the mass of water that moves with the vessel during berthing. It depends primarily on the under-keel clearance ratio (Uc/D). Shallow water (low Uc/D) increases added mass significantly—a vessel in shallow water has higher effective mass and therefore higher berthing energy. PIANC provides charts for reading Cm based on Uc/D.
Site-specific berthing records are the preferred source, with the characteristic velocity selected at a 0.02% probability of exceedance. When records are unavailable, PIANC guideline tables provide conservative velocities based on vessel size and navigation condition (calm, moderate, rough). Velocities below 0.10 m/s require site-specific justification.
The partial energy factor converts characteristic energy to design energy, accounting for uncertainties in navigation condition, berthing frequency, contact mode, and displacement variation. Unlike a fixed safety factor, γE is berth-specific and must be derived from a risk assessment per PIANC WG211. Using a generic value (e.g., 1.5 or 1.6) without site-specific justification is not compliant with current guidelines.
Yes. Research on flexible high-pile wharf structures shows that elastic deformation of the pile system can absorb approximately 30% of berthing energy under certain conditions. However, this requires coupled structure-fender analysis and is not captured by standard component-level fender selection. For rigid quay walls, this contribution is negligible.
