When constructing an oil and gas jetty, the margin for error is zero. A single failure in your fendering or mooring system can mean catastrophic hull damage, environmental disaster, and millions in liability. This is why major oil terminals and LNG facilities worldwide demand BV-classified super cell fenders and ductile iron bollards that meet strict safety standards.
I have spent two decades manufacturing OEM rubber fender systems for global brands. In this guide, I will explain why Bureau Veritas (BV) classification matters, how super cell fenders and ductile iron bollards work together as an integrated system, and what you need to specify for your oil & gas jetty construction project.
Bureau Veritas is one of the world's leading classification societies, with over 130 Rules, Rule Notes, and Guidance Notes governing marine equipment certification . For oil and gas jetties, BV classification provides:
- Third-party verification of fender and bollard performance
- Compliance with PIANC 2002 guidelines for marine fendering
- Documented traceability from raw materials to finished products
- Risk mitigation for owners, operators, and insurers
> *"All rubber fenders produced by NANJING TAIDUN are approved by Bureau Veritas to PIANC 2002."*
When you specify BV-classified super cell fenders, you are not just buying rubber—you are buying certified performance data, verified materials, and documented compliance with international standards.

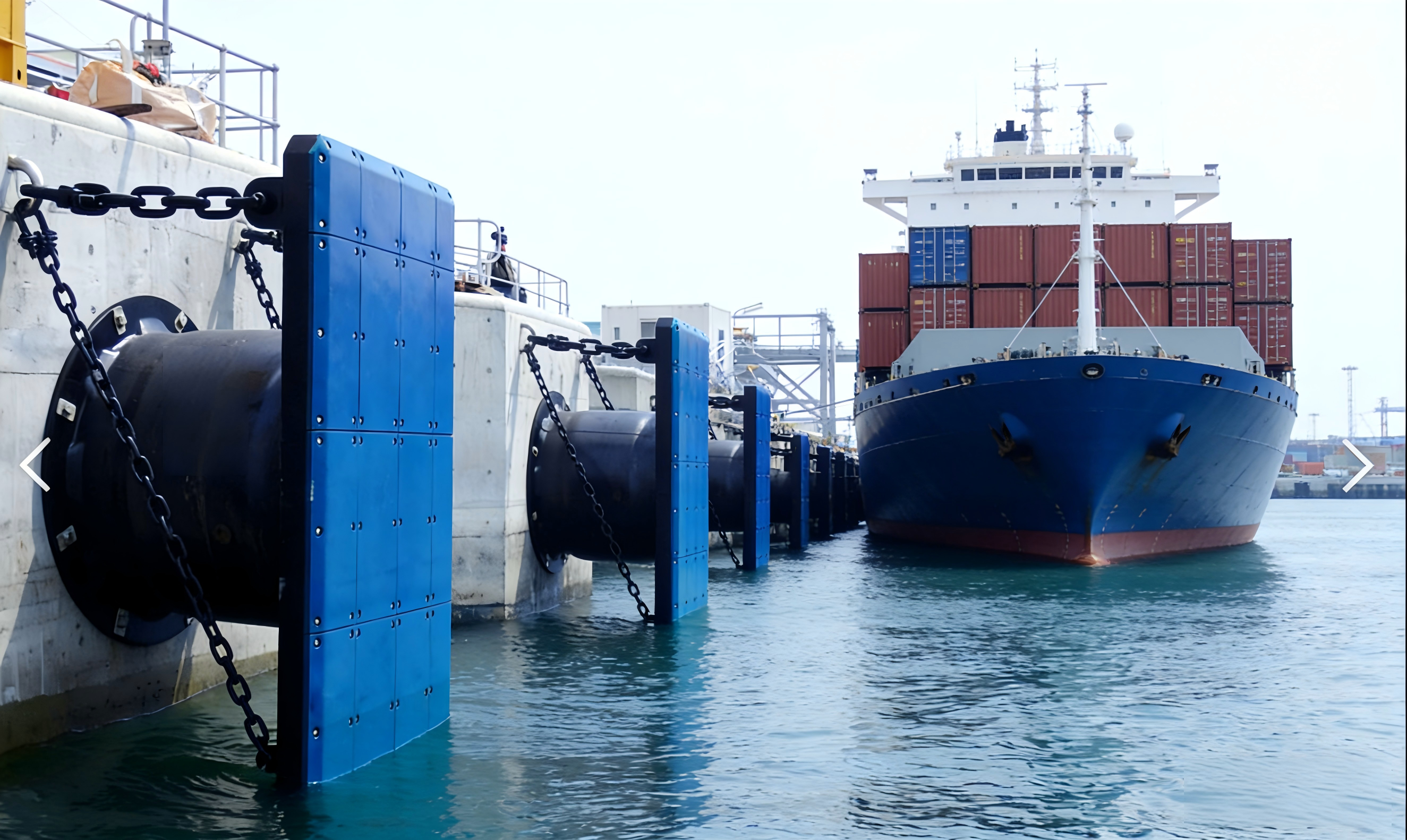

Super cell fenders are among the most widely used fender types in the world today. Their unique design features a hollow cylindrical rubber body with fully rubber-embedded mounting flanges.
Key design advantages:
| Feature | Benefit |
|---|---|
| Hollow cylindrical body | Progressive energy absorption |
| Rubber-embedded flanges | Simplified installation, reduced stress concentration |
| Optimized leg edge shape | Wider stress dispersion, reduced buckling point stress |
| Multiple hardness grades (P01–P3) | Precise matching to vessel requirements |
Super cell fenders offer several critical performance advantages for oil and gas jetties:
- Highest energy absorption among large fender types
- Smallest compression deformation – maintains standoff distance
- Strong stability – resists rolling and twisting
- High load capacity – suitable for VLCC and ULCC vessels
> *"Super cell fender is one of the most widely used fender types in the world at present. It has reasonable structure, reducing the compression stress and improving stability. Therefore, it has the characteristics of strong stability, high energy absorption and high load, and has the smallest compression deformation among all types of large fenders."*
For oil and gas jetty applications, BV-classified super cell fenders must meet:
- PIANC 2002 guidelines for performance testing
- Rated Performance Data (RPD) verification
- Material certification for rubber compounds and reinforcement layers
- Dimensional tolerance verification (±3% for diameter and length)
Ductile iron (also known as nodular cast iron) is the preferred material for marine bollards because of its unique combination of properties:
| Property | Ductile Iron | Cast Iron | Steel |
|---|---|---|---|
| Tensile strength | 420–900 MPa | 150–250 MPa | 400–550 MPa |
| Elongation | 5–18% | <1% | 15–25% |
| Corrosion resistance | Good | Poor | Moderate (requires coating) |
| Castability | Excellent | Excellent | Poor |
| Impact resistance | High | Low | High |
Ductile iron's combination of strength and ductility makes it ideal for withstanding the dynamic loads of vessel mooring without brittle failure.
Tee head bollards (also called T-bollards) are the standard choice for oil and gas terminals. Their distinctive T-shape allows mooring lines to be secured from multiple angles without slipping.
Typical specifications for oil & gas jetty bollards:
| Parameter | Specification |
|---|---|
| Rated capacity | 1000 kN to 2000 kN+ |
| Material | Ductile iron (EN-GJS-400-15 or equivalent) |
| Coating | ISO 12944 C5-M marine grade |
| Testing | 100% proof load testing |
| Certification | BV or other class society |
> *"Nanjing Taidun also supplied some 2000KN T head mooring bollards for the project. These bollards have passed tensile and material tests by a third-party inspection organization and have been painted to meet ISO 12944 C5-M Marine corrosion protection standard."*

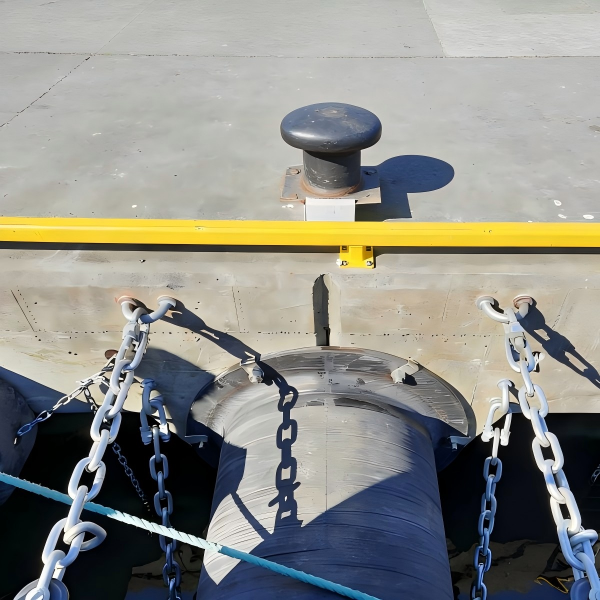

A successful oil and gas jetty requires both systems to work in harmony:
| System | Primary Function | Interaction |
|---|---|---|
| Super Cell Fenders | Absorb berthing energy, protect hull and quay | Determine vessel standoff distance |
| Tee Head Bollards | Secure mooring lines, hold vessel in position | Must be positioned relative to fenders |
Critical design considerations:
1. Fender reaction force must not exceed bollard capacity during combined berthing/mooring loads
2. Bollard placement must allow mooring lines to clear fender panels
3. Standoff distance from fenders affects mooring line geometry
A recent 200,000-ton terminal project at Riga Port demonstrates successful integration of BV-classified super cell fenders and ductile iron bollards .
Project scale:
- Two 100,000-ton general berths
- One 200,000-ton general berth (hydraulic structure reserved for 200,000-ton)
- Designed capacity: 12.22 million t/a
- Annual throughput: 8.5 million tons
Equipment supplied:
| Equipment | Model/Size | Quantity (Implied) |
|---|---|---|
| Super cell fender | SUC2000H | Multiple units |
| Super cell fender | SUC2250H | Multiple units |
| D-type fender | D300H | Multiple units |
| Super arch fender | SA800H | Multiple units |
| Tee head bollards | 2000KN | Multiple units |
All rubber fenders were BV-approved to PIANC 2002, and bollards were coated to ISO 12944 C5-M marine corrosion protection standard.
The BV classification process for super cell fenders involves:
| Stage | Requirements |
|---|---|
| Design review | FEM analysis, stress distribution verification |
| Material certification | Rubber compound test reports, reinforcement cord specifications |
| Prototype testing | Compression testing per ASTM F2192 or PIANC guidelines |
| Production inspection | Batch sampling, dimensional verification |
| Final certification | Issuance of BV certificate with RPD documentation |
The BV classification process for bollards includes:
| Stage | Requirements |
|---|---|
| Material verification | Ductile iron grade certification, chemical analysis |
| Tensile testing | Proof load testing at 1.5x rated capacity |
| NDT inspection | Radiographic or ultrasonic testing for internal defects |
| Coating verification | ISO 12944 C5-M compliance, dry film thickness measurement |
| Final certification | BV certificate with test reports |
Marine splash zones are classified as C5-M (very high corrosion) under ISO 12944. This environment demands the highest level of coating protection.
Corrosion environment classification:
| Classification | Environment | Typical Applications |
|---|---|---|
| C3 | Medium | Covered indoor, moderate humidity |
| C4 | High | Industrial areas, chemical plants |
| C5-M | Very high (marine) | Coastal/splash zones, offshore structures |
C5-M coating requirements for bollards:
- Zinc-rich primer (80-100 μm dry film thickness)
- Epoxy intermediate coat (150-200 μm)
- Polyurethane top coat (80-100 μm)
- Total DFT: 310-400 μm minimum
> *"Bollards have been painted to meet ISO 12944 C5-M Marine corrosion protection standard. They are well adapted to the port environment and meet the port's requirements for the long-term service life of bollards."*
We asked our global OEM clients about their experience with BV-classified super cell fenders and ductile iron bollards:
> *"Specifying BV-classified fenders gave our insurance underwriters confidence. The third-party certification removed any questions about quality or performance. For an LNG terminal, that peace of mind is worth the investment."*
> — *Project Manager, Middle East LNG Terminal*
> *"We previously used non-certified bollards that failed within five years due to corrosion. Switching to ISO 12944 C5-M coated ductile iron bollards with BV certification has been a game-changer. Seven years later, they still look like new."*
> — *Maintenance Director, European Port Authority*
> *"The integration of super cell fenders and tee head bollards at our 200,000-ton berth has performed flawlessly. The fenders absorb impact smoothly, and the bollards hold mooring lines securely even in rough weather."*
> — *Terminal Operations Manager, Asian Port*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture BV-classified super cell fenders and ductile iron bollards that meet the strict safety standards required for oil and gas jetty construction.
Our capabilities include:
| Product | BV Classification | Key Features |
|---|---|---|
| Super Cell Fenders | PIANC 2002 | SUC400H to SUC3000H, 5 hardness grades |
| Tee Head Bollards | Class society approved | 1000-2000KN, ductile iron |
| Coating | ISO 12944 C5-M | 3-coat system, 350+ μm DFT |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get BV-certified products, full test documentation, and OEM flexibility.
For oil and gas jetty construction, BV-classified super cell fenders and ductile iron bollards with ISO 12944 C5-M coating provide the safety, durability, and compliance that major terminals demand.
Don't leave your project to chance. Specify BV-classified products with documented test reports and third-party verification.
[Contact the Nanjing Taidun Engineering Team] for a free consultation on your oil & gas jetty project. Send us your specifications, and we will provide BV-classified super cell fender and bollard recommendations with full certification documentation.
Q1: What is the difference between BV classification and ISO certification for marine fenders?**
A: BV classification is third-party verification by Bureau Veritas that a fender meets PIANC 2002 guidelines. ISO certification (e.g., ISO 9001) verifies quality management systems. For oil and gas jetties, BV classification is often required in addition to ISO certification.
Q2: What size super cell fenders are typically used for 200,000-ton vessel berths?**
A: For 200,000-ton vessels, super cell fenders in the SUC2000H to SUC2250H range are commonly specified, as demonstrated in the Rizhao Port project .
Q3: Why is ductile iron preferred over cast iron for marine bollards?**
A: Ductile iron offers higher tensile strength (420-900 MPa vs 150-250 MPa) and significantly better elongation (5-18% vs <1%) , meaning it will deform rather than shatter under extreme loads. This ductility is critical for safety in dynamic mooring conditions.
Q4: What is the minimum coating thickness required for ISO 12944 C5-M compliance?
A: For C5-M (marine) environments, the minimum total dry film thickness is typically 310-400 μm across a three-coat system: zinc-rich primer, epoxy intermediate, and polyurethane top coat.
Q5: Can BV-classified super cell fenders be used in both ship-to-quay and ship-to-ship applications?
A: Yes. Super cell fenders are suitable for both applications, though for dedicated STS operations, pneumatic (Yokohama-type) fenders are often preferred due to their lower reaction force and natural flotation.
