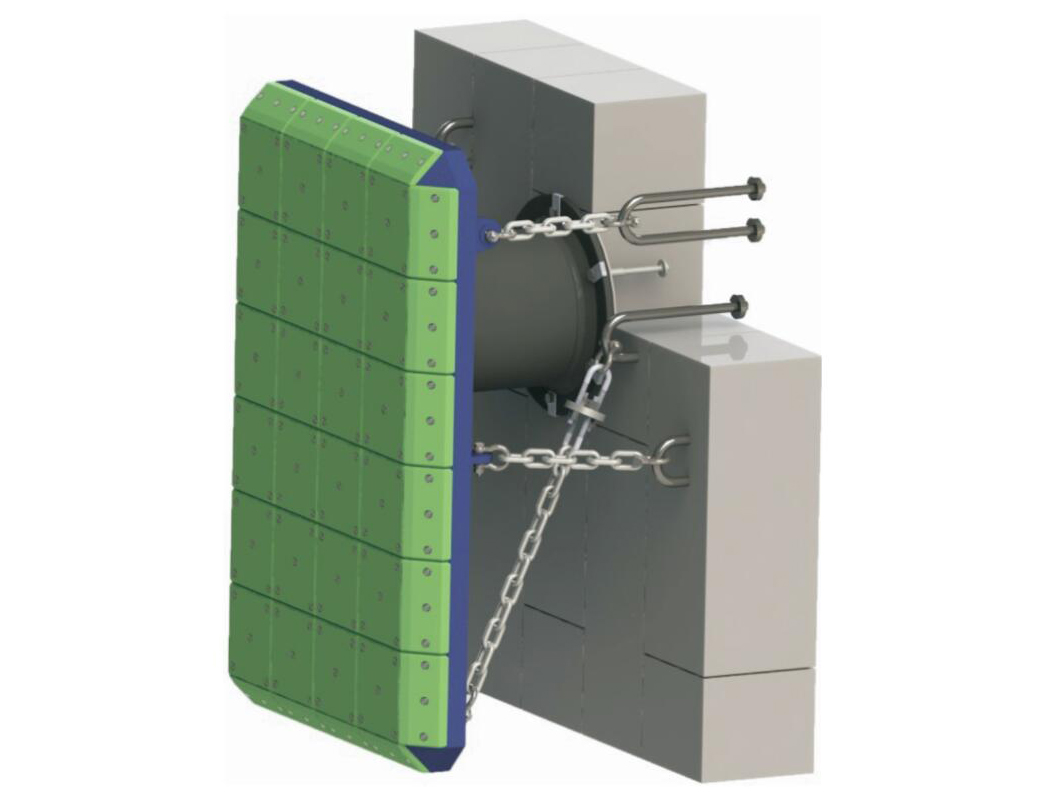

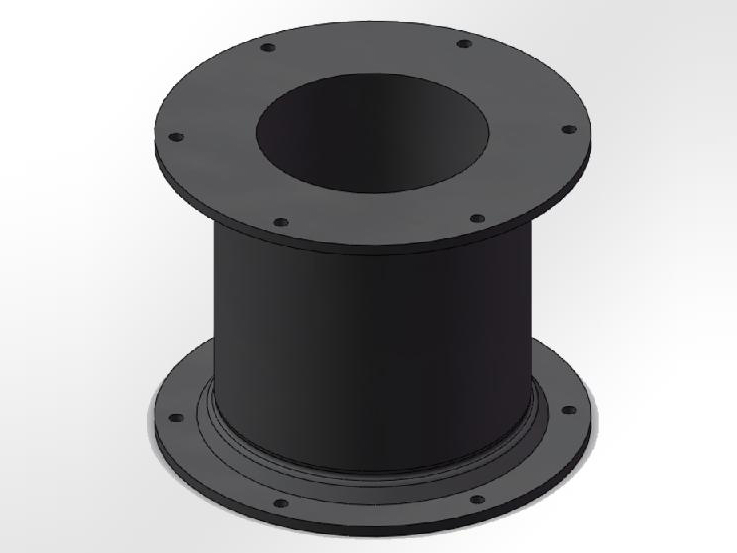

Super Cell Rubber Fender

Super Cell Fenders have a very long history and remain popular, because of their simplicity, it has high absorption energy per unit weight and low tilt compression performance change among all types of compresses fenders. In the front it is equipped with frontal panel which greatly reduce the face pressure on ship panel and the friction coefficient
Availability:

Features

High Performance, Reasonable Structure

Can support large panel

Easy installation, with long lifespan

Large range of performance

Applications

General cargo berths

Bulk terminals

Oil and LNG facilities

Container berths

Ro-ro and cruise terminals

Offshore platforms

Multi-user berths


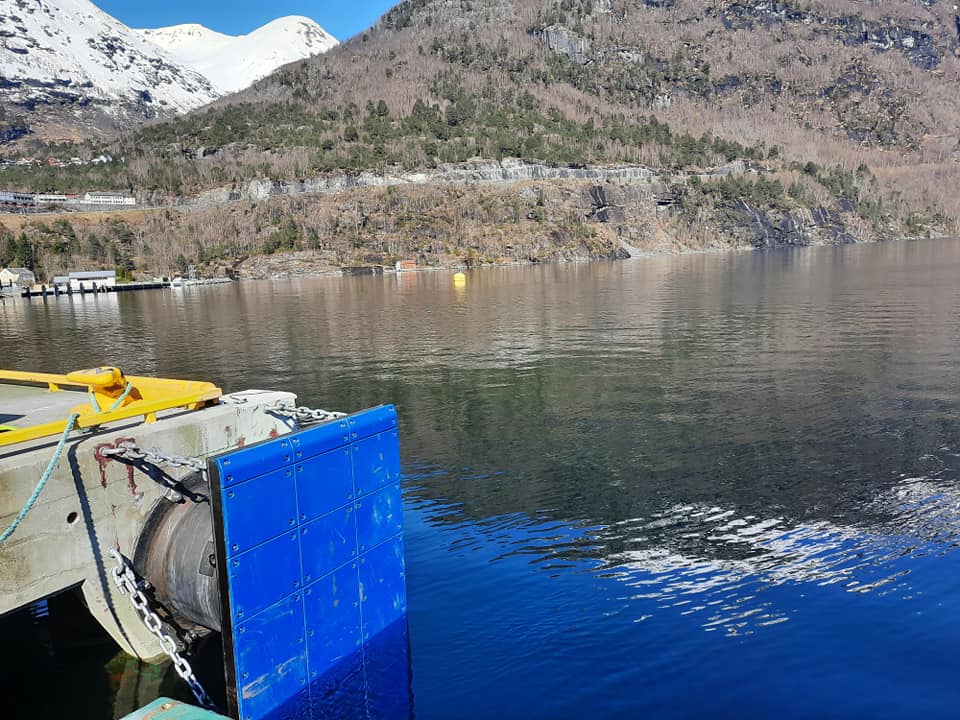

Super Cell Rubber Fender (12)

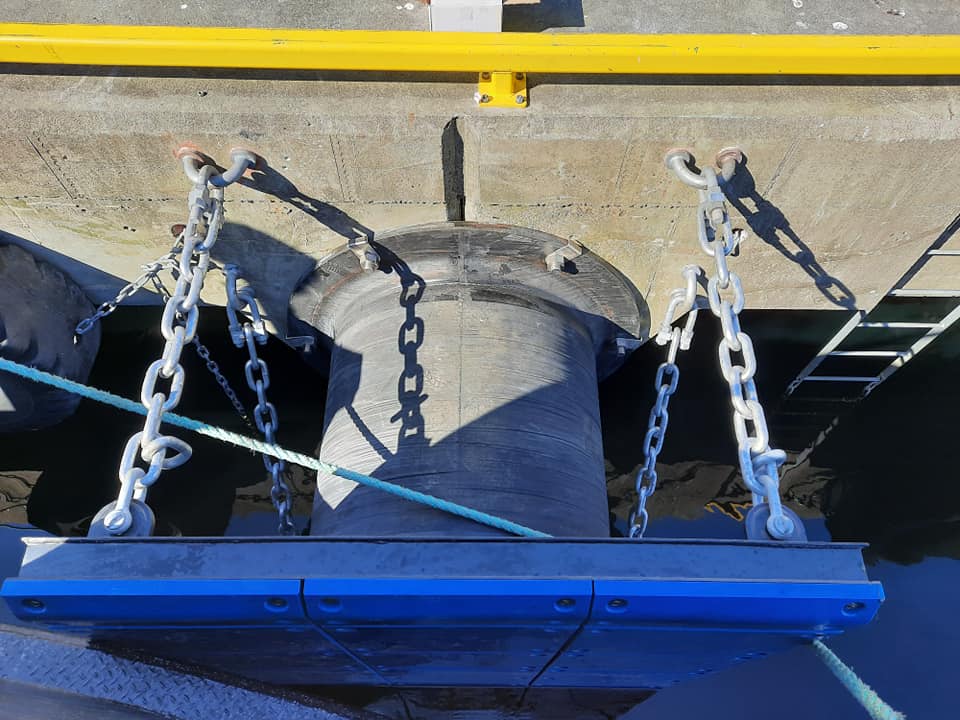

Super Cell Rubber Fender (4)

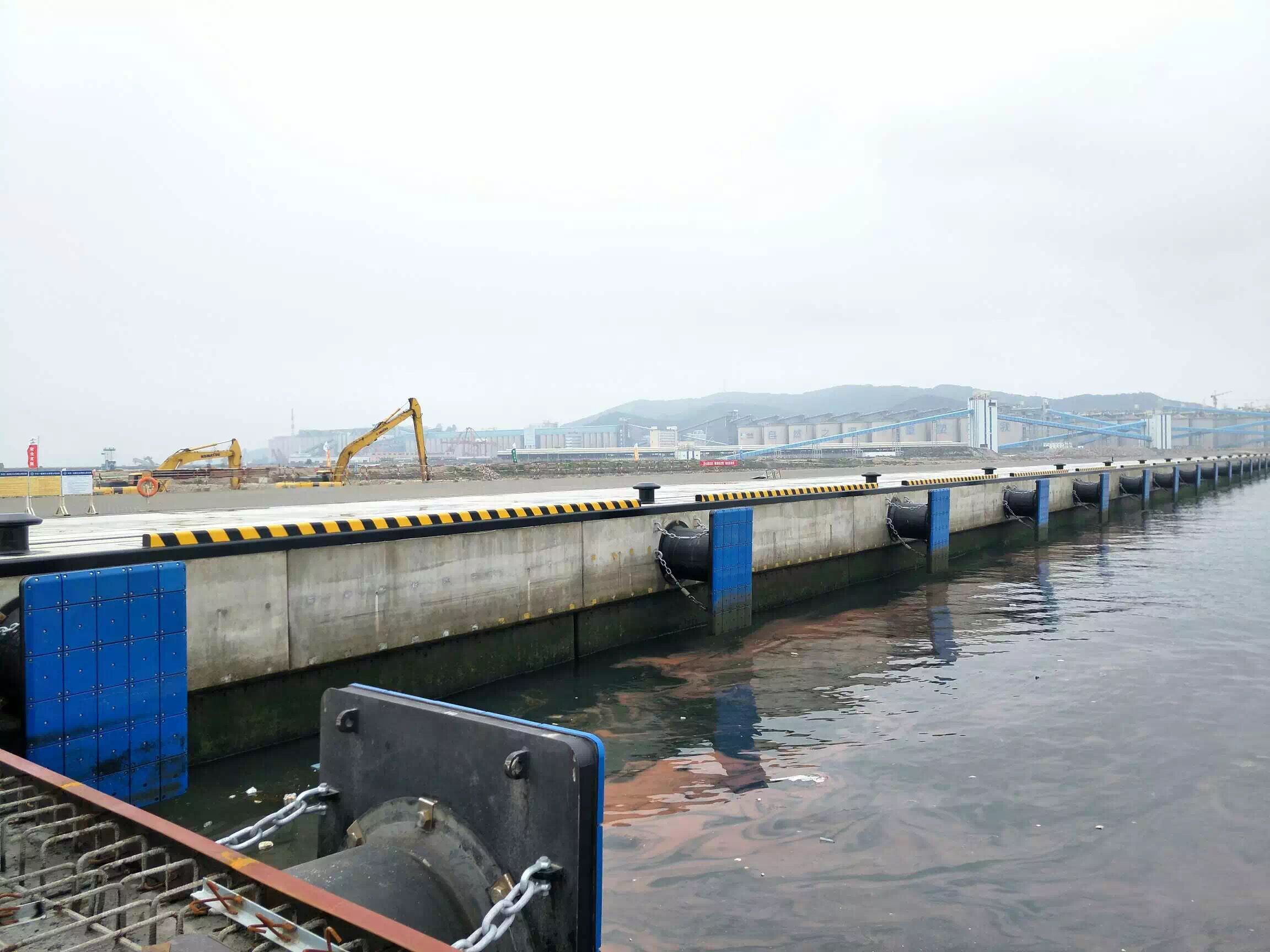

Super Cell Rubber Fender (5)

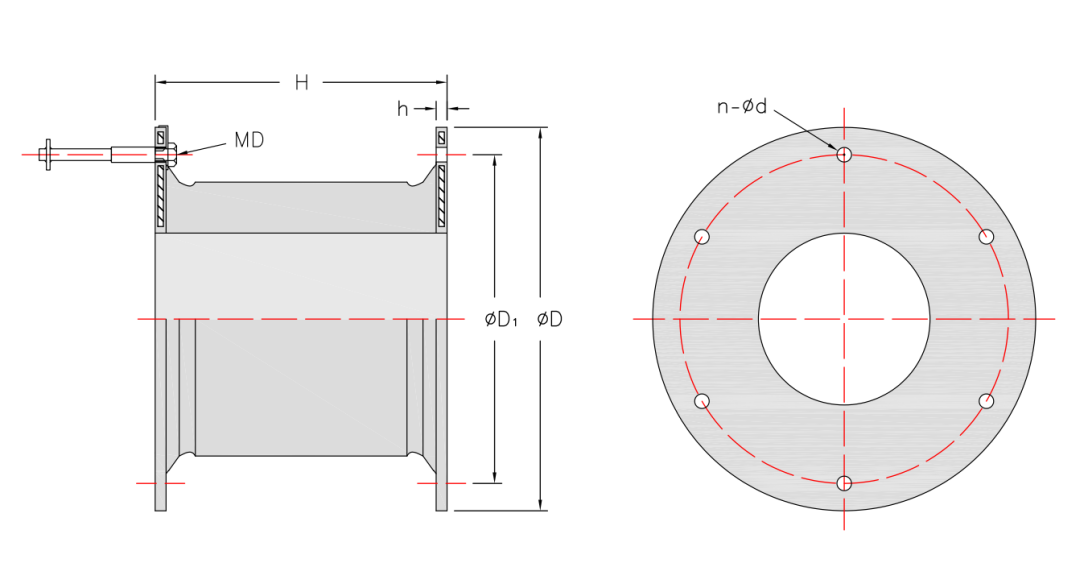

Specifications

Super Cell Rubber Fender (1)

Specifications

H

h

D1

D

n-φd

MD

Reference Weight (kg)

SC500H

500

25

550

650

4-φ32

24

111

SC630H

630

30

700

840

4-φ39

30

230

SC800

800

30

900

1050

6-φ40

32

412

SC1000

1000

35

1100

1300

6-φ47

39

825

SC1150

1150

37

1300

1500

6-φ50

42

1210

SC1250

1250

40

1450

1650

6-φ53

45

1500

SC1450

1450

42

1650

1850

6-φ61

52

2310

SC1600

1600

45

1800

2000

8-φ61

52

3030

SC1700

1700

50

1900

2100

8-φ66

56

3700

SC2000

2000

50

2000

2200

8-φ74

64

5260

SC2250

2250

57

2300

2550

10-φ74

64

7500

SC2500

2500

70

2700

2950

10-φ74

64

10750

SC3000

3000

75

3150

3350

12-φ90

76

18500


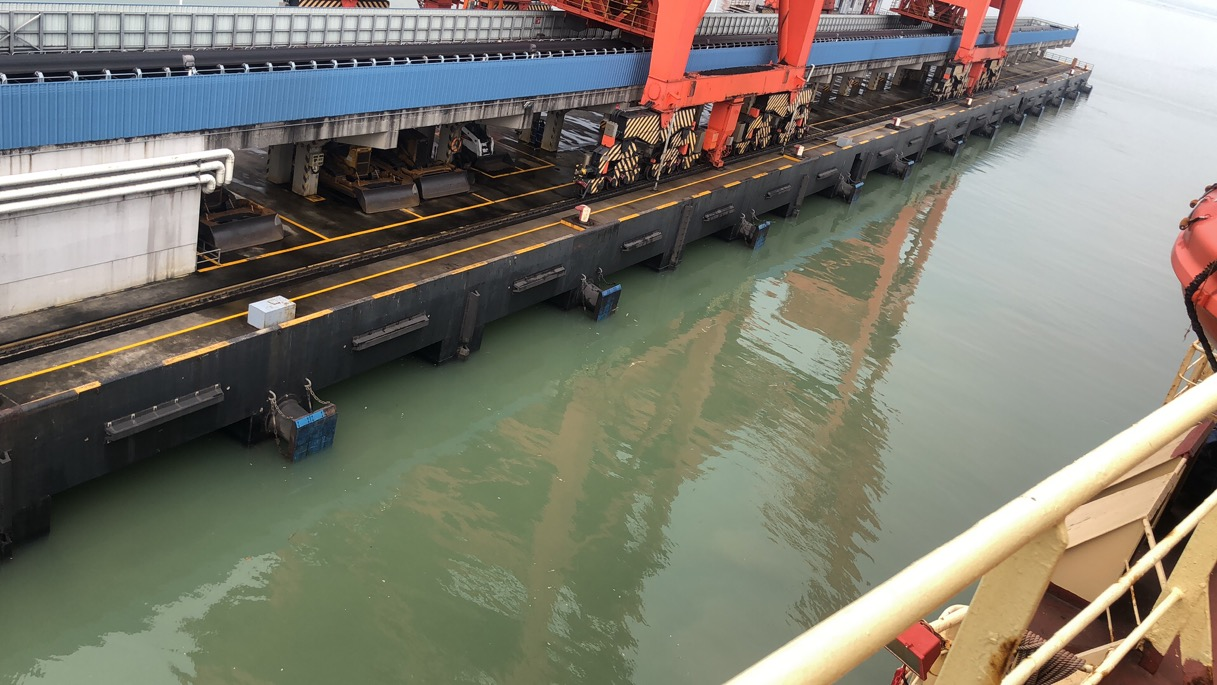

Super Cell Rubber Fender (2)


Performance

R/F:KN

E/A:KN-M

RL

RO

RH

RS

RE

52.5%

55%

52.5%

55%

52.5%

55%

52.5%

55%

52.5%

55%

SC500H

R

86

99

108

125

140

160

162

187

182

210

E

18

19

23

25

30

32

36

38

40

43

SC630H

R

138

147

172

182

224

237

258

274

290

309

E

38

40

48

50

62

67

72

76

80

85

SC800H

R

211

225

275

292

355

378

412

437

464

493

E

75

78

98

102

125

132

145

153

163

173

SC1000H

R

349

372

436

463

567

603

655

696

737

784

E

153

163

195

203

249

264

287

304

324

343

SC1150H

R

462

491

578

614

750

798

865

920

975

1037

E

233

247

297

309

379

401

437

463

492

521

SC1250H

R

546

581

682

725

886

942

1022

1087

1153

1225

E

299

316

382

396

486

516

561

594

632

669

SC1450H

R

735

781

918

976

1193

1269

1376

1464

1551

1649

E

468

495

596

619

760

804

876

928

987

1045

SC1600H

R

894

950

1117

1189

1453

1544

1676

1781

1888

2007

E

628

665

801

832

1020

1080

1177

1247

1326

1405

SC1700H

R

1009

1073

1262

1342

1640

1743

1892

2012

2131

2266

E

753

798

960

997

1224

1300

1413

1495

1591

1685

SC2000H

R

1398

1485

1746

1856

2270

2413

2619

2783

2941

3136

E

1227

1299

1564

1624

1994

2111

2300

2435

2591

2743

SC2250H

R

2085

2216

2454

2607

3188

3390

3679

3911

4145

4406

E

2060

2180

2472

2566

3150

3336

3628

3848

4095

4337

SC2500H

R

2574

2737

3028

3220

3937

4182

4543

4829

5118

5441

E

2826

2992

3391

3520

4322

4576

4987

5280

5618

5949

SC3000H

R



3750

4217

4482

5099





E



4300

4635

5160

5510





Note: Tolerance±10%

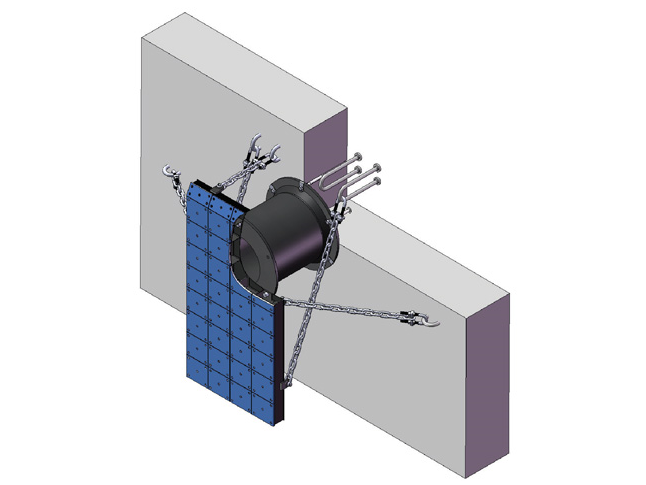

Installation
