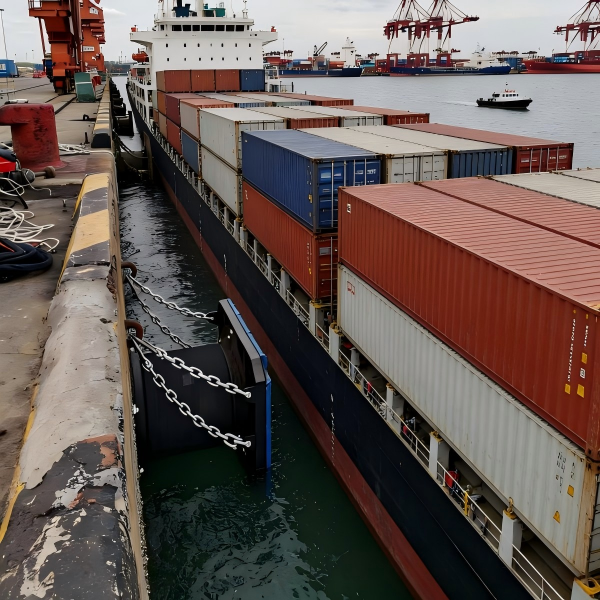

When a 200,000-ton container ship berths at your terminal, the steel frontal panel of your fender system takes the full force of that impact. It compresses. It absorbs. It protects both vessel and quay.

But there is a silent enemy working against that steel panel 24 hours a day, 365 days a year: corrosion.

I have spent two decades manufacturing OEM rubber fender systems, mooring bollards, and associated steelwork for global brands. In that time, I have seen brand-new frontal panels fail within three years because someone chose the wrong coating. And I have seen 25-year-old panels still performing at spec because the operator invested in proper corrosion protection.

In this guide, I will walk you through every corrosion protection method for steel frontal panels—from basic black paint to advanced C5M epoxy systems and zinc anode cathodic protection. You will learn how to select, apply, and maintain the right solution for your specific marine environment.

生成类似图片 (5)(1)

Why Steel Frontal Panels Need Specialized Corrosion Protection

Steel frontal panels face a uniquely punishing environment. According to industry research, few challenges in marine settings are as persistent and damaging as corrosion.

The Marine Corrosion Challenge

Environmental Stressor	Impact on Steel
Saltwater	High chloride content accelerates electrochemical reactions
Salt spray / sea air	Creates conductive film on metal surfaces
Tidal cycles	Repeated wet/dry cycles accelerate rust formation
Wave action	Physical abrasion removes protective coatings
UV radiation	Degrades certain coating types over time
Temperature fluctuations	Causes expansion/contraction that can crack coatings
Mechanical impact	Vessel contact creates scratches and coating breaches

> *"From the moment a piece of metal is exposed to salty air, water, or humidity, it begins a slow but steady process of deterioration."*

Consequences of Inadequate Protection

The stakes are high. A corroded frontal panel doesn't just look bad—it compromises the entire fender system.

Problem	Chain of Consequences
Loss of structural integrity	Panel cannot distribute reaction forces → vessel hull damage
Delamination of facing pads	Rubber-to-steel bond fails → pad detachment
Chain attachment failure	Corroded brackets release chains → fender misalignment
Increased maintenance costs	Emergency repairs cost 3-5x preventive maintenance
Premature replacement	3-5 year lifespan instead of 15-25 years

> *"A corroded frame not only increases maintenance costs but also puts vessels and port infrastructure at greater risk during berthing operations."*

The National Association of Corrosion Engineers (NACE) estimates the global cost of corrosion is in the trillions of dollars annually. For port operators, investing in proper corrosion protection is not an expense—it's a financial necessity.

The 4 Primary Corrosion Protection Methods for Steel Frontal Panels

Based on manufacturing standards and field practices, there are four main approaches to protecting steel frontal panels.

1. Black Paint Coating (Basic Protection)

Black paint is the most traditional and cost-effective basic protection method.

How it works: A simple barrier coating that blocks moisture and air from reaching the metal surface.

Aspect	Detail
Cost	Lowest
Application	Simple spray or brush
Durability	Poor in marine environments
Maintenance	Frequent recoating required

Best for: Low-budget applications, inland ports with minimal salt exposure, temporary installations.

Limitations: Less durable, especially in harsh marine environments. Requires regular maintenance and recoating.

2. Epoxy Coating Systems (Multi-Layer Protection)

Epoxy coatings form a strong, chemical-resistant barrier that prevents water and salt from reaching the metal surface.

The Multi-Layer Approach:

Layer	Function	Material
Primer	Adhesion + sacrificial protection	Zinc-rich epoxy
Intermediate	Moisture barrier	Epoxy
Topcoat	UV resistance + aesthetics	Polyurethane or polyurea

A typical system might include a zinc-rich primer for sacrificial protection, an epoxy intermediate layer for waterproofing, and a polyurethane topcoat for UV resistance.

Independent Test Validation:

A 2000-hour salt fog chamber test compared hot-dip galvanized steel against multi-layer epoxy systems:

Coating Type	Performance After 2000 Hours
Hot-Dip Galvanizing (HDG)	Vastly and significantly impacted by chambered conditions
EpoxxiShield COR Pro (zinc-rich epoxy + epoxy topcoat)	Little to no effects except at purposefully damaged area
EpoxxiShield COR Elite (zinc-rich epoxy + 2 epoxy topcoats)	No corrosion penetration under coating

> *"The epoxy coatings seem to provide the kind of protection that could last for decades."*

3. C5M Modified Epoxy Paint Systems (ISO 12944)

For the harshest marine environments, C5M class paint systems represent the gold standard.

What C5M Means:

According to ISO 12944, C5M is the highest corrosion category for marine environments—specifically for areas with very high corrosivity. This includes:

- Offshore structures

- Coastal areas with high salinity

- Marine splash zones

Nanjing Taidun's Standard:

Nanjing Taidun Marine Systems states that their fender panels use *"C5M modified epoxy paint"* as standard, with *"corrosion protection provided by high durability C5M class paint systems to ISO 12944"*.

Additional Features of Premium Panels:

Feature	Benefit
Closed box steel structure	Fully sealed and pressure tested for water tightness
Internal structural members	Increased strength without added thickness
Polyurethane topcoat	Extra UV and abrasion resistance
Corrosion allowances	Additional thickness for sacrificial protection

> *"Closed box designs are used almost exclusively – all fully sealed and pressure checked."*

4. Hot-Dip Galvanizing (HDG)

Hot-dip galvanizing forms a dense zinc protective layer by dipping steel into molten zinc.

How it works: Provides dual protection—a physical barrier and sacrificial anodes. The zinc corrodes first, protecting the underlying steel.

Aspect	Detail
Cost	Moderate to high
Protection mechanism	Barrier + sacrificial
Self-healing	Yes (small scratches)
Typical lifespan in marine	5-10 years before reapplication needed

Limitations:

While effective, HDG has drawbacks in highly corrosive environments. According to Legacy Building Solutions' research: *"HDG presented some problems in highly corrosive environments, not least of which is the fact that it doesn't really stop corrosion but merely slows it down. It is also a frame finish that is difficult to repair once damaged."*

Moreover, chains and accessories may only get 5 years from galvanizing before the loss of diameter quickly weakens the links. This makes routine chain replacement essential.

5. Zinc Anode Cathodic Protection

Zinc anode protection provides cathodic protection by connecting zinc anodes to steel frontal panels.

How it works: The zinc anode corrodes preferentially, protecting the steel panel from corrosion.

Aspect	Detail
Cost	Moderate (initial) + ongoing replacement
Protection mechanism	Galvanic / sacrificial
Requires replacement	Yes, when anodes are consumed
Best application	Supplement to coating systems

> *"This method performs well in marine environments and can extend service life of steel frontal panels by regularly replacing zinc anodes."*

Surface Preparation — The Critical First Step

No coating will perform as intended if the surface is not properly prepared. According to industry experts, improper surface preparation is one of the most common causes of premature coating failure.

Required Preparation Steps

Step	Method	Purpose
1. Remove existing coatings	Abrasive blasting (sandblasting or grit blasting)	Clean surface down to bare steel
2. Remove rust and mill scale	Blasting to Sa 2.5 standard	Eliminate corrosion initiation points
3. Degrease	Solvents or detergents	Remove oil, grease, and contaminants
4. Surface profiling	Controlled blasting	Create texture for coating adhesion
5. Round sharp edges	Grinding or grit blasting	Prevent edge corrosion (coatings naturally flow away from sharp edges)

The Edge Corrosion Problem

Corrosion often begins at vulnerable areas such as sharp edges, crevices, fasteners, welds, and corners.

> *"Sharp edges are historically difficult to protect because coatings tend to flow away from them during application and curing."*

Solutions for edge protection:

- Grinding and abrasive blast cleaning to round sharp edges

- High pigment-to-binder ratio coatings (restricts flow during curing)

- Multi-layer (stripe coating) approach—targeted coat on edges before full system

- Rheological modification—additives that prevent coating from flowing away from edges

New-Generation Technologies — Thermal Spray Coatings

For the most aggressive environments, thermal spray coatings offer superior protection.

How it works: Molten or semi-molten metal (typically aluminum or zinc) is sprayed onto the steel surface to form a protective layer.

Aspect	Detail
Adhesion	Very strong (mechanical bond)
Corrosion protection	Excellent—can function as sacrificial layer
Applications	Offshore oil terminals, harsh marine environments
Equipment required	Specialized thermal spray system

Real-World Case Study — HVTS Success:

A major Middle Eastern petrochemical facility used High Velocity Thermal Spray (HVTS) to combat severe erosion-corrosion in their ethylene quench tower—an environment as demanding as marine splash zones.

- First application: 2014, highly effective

- Second application: 2020, due to component changes, not coating failure

- Result: Continued protection after nearly a decade

- Cost savings: Estimated $1.8 million by avoiding downtime

While this case study is from a petrochemical application, the thermal spray technology is directly transferable to marine steel protection.

Corrosion Allowances — Designing for the Long Term

No coating lasts forever. According to fender system experts, 10-15 years is typical for paint systems. After that, steel will corrode and weaken unless corrosion allowances are built into the design.

PIANC Recommendations

The International Navigation Association (PIANC) recommends the following minimum thicknesses for steel in marine environments:

Exposure Condition	Minimum Thickness
Seawater exposure on both faces	12 mm
Seawater exposure on one face	10 mm
Internal sections (no corrosion exposure)	8 mm

> *"If corrosion allowances are not specified, they will invariably be ignored and the life expectancy of the panel will be drastically reduced."*

For cold water climates, a corrosion allowance of 3mm per exposed face might be suitable—much more where temperatures are higher and corrosion is greater.

Selection Guide — Which Protection Method Is Right for You?

Application Environment	Recommended Protection	Why
Inland port, low salinity	Black paint or simple epoxy	Cost-effective for mild conditions
Coastal port, moderate wave action	Epoxy system (primer + topcoat)	Good barrier protection
Deep-water terminal, high tidal range	C5M epoxy + corrosion allowance	ISO 12944 compliance
Offshore / exposed terminal	C5M epoxy + zinc anodes	Redundant protection layers
LNG terminal, high abrasion	Thermal spray + topcoat	Maximum durability
Budget-constrained project	Hot-dip galvanizing	Good value for lifespan

Remember: *"No paint lasts forever; 10-15 years being typical. After this, the steel will corrode and weaken unless corrosion allowances are added."*

Maintenance and Inspection Best Practices

Even the best coatings and treatments require regular inspection and maintenance to stay effective.

Recommended Inspection Schedule

Frequency	Action
Monthly	Visual inspection for rust spots, cracks, peeling
Quarterly	Check coating thickness with gauges
Annually	Full engineering assessment
As needed	Prompt repair of damaged areas

Repair Procedures for Damaged Coatings

Damage Type	Repair Method
Small scratches (<1mm wide)	Touch-up with matching coating material
Moderate damage (1-5mm)	Clean, sand edges, apply primer + topcoat
Large damage (>5mm)	Full recoating of affected panel section
Corrosion under coating	Remove coating to sound steel, blast, recoat

> *"Routine maintenance means chains should be easily and inexpensively replaceable, whilst permanently embedded items, like anchors, must last the life of the fender system."*

User Feedback — Real-World Perspectives

We asked our global OEM clients about their experience with different corrosion protection methods:

> *"We used black paint on our first set of frontal panels. After 18 months, we had rust bleeding through everywhere. Switched to C5M epoxy on the replacement panels. Five years later, they still look almost new."*

> — *Port Engineer, Southeast Asia*

> *"Our biggest lesson was about corrosion allowances. We didn't specify them on a project in the Middle East. After 8 years, the panels had lost 4mm of thickness. Now we always add allowances—minimum 3mm, more in tropical waters."*

> — *Engineering Consultant, Middle East*

> *"We run an LNG terminal in a very aggressive environment. We use a combination approach: C5M epoxy on the main panel, plus zinc anodes at key attachment points. The anodes are cheap insurance—they cost a few hundred dollars and protect millions in assets."*

> — *Maintenance Director, Australian LNG Terminal*

How Nanjing Taidun Ensures Superior Corrosion Protection

At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that corrosion protection methods for steel frontal panels can make or break a fender system's service life.

Our standard includes:

Feature	Specification
Coating system	C5M modified epoxy paint to ISO 12944
Panel design	Closed box steel structure, pressure tested
Corrosion allowance	3-6mm depending on environment
Edge preparation	Ground and rounded before coating
Surface preparation	Blasted to Sa 2.5 standard
Third-party inspection	BV, SGS available
Optional upgrades	Zinc anodes, thermal spray, polyurea topcoat

We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get documented quality, traceable materials, and corrosion protection built to last.

Conclusion & Call to Action

The corrosion protection methods for steel frontal panels covered in this guide range from basic black paint to advanced C5M epoxy systems. Your choice should be based on:

1. Environmental severity — Coastal vs. inland, tropical vs. temperate

2. Expected service life — 5 years vs. 25 years

3. Maintenance capability — Can you recoat every 2 years or every 10?

4. Budget constraints — Initial vs. lifecycle cost

Remember: The cost of corrosion is global and staggering—trillions of dollars annually. A small upfront investment in proper protection pays enormous dividends in avoided downtime and extended asset life.

[Contact the Nanjing Taidun Engineering Team] for a free corrosion protection consultation. Send us your terminal specifications, and we will recommend the optimal coating system, thickness, and corrosion allowance for your steel frontal panels.

H2: Frequently Asked Questions (FAQ)

Q1: What is the most effective corrosion protection method for steel frontal panels in marine environments?

A: For maximum protection, C5M modified epoxy paint systems (per ISO 12944) combined with corrosion allowances of 3-6mm provide the best results. For extreme applications, add zinc anodes for cathodic protection.

Q2: How long does hot-dip galvanizing last on marine fender panels?

A: In marine splash zones, galvanizing typically lasts 5-10 years before significant zinc depletion occurs. Unlike epoxy coatings, damaged galvanizing cannot be easily repaired on-site.

Q3: What is a corrosion allowance and why is it important?

A: A corrosion allowance is extra steel thickness built into the panel design—typically 3mm for cold climates, more for tropical waters. It ensures the panel retains structural integrity even after the coating system degrades.

Q4: Why do coatings fail at edges first?

A: Coatings naturally flow away from sharp edges during application and curing due to surface tension and rheological effects. This leaves thinner protection at the exact points where corrosion initiates most readily.

Q5: How often should I inspect my steel frontal panels?

A: Perform visual inspections monthly, detailed thickness measurements quarterly, and full engineering assessments annually. Promptly repair any coating damage—small scratches can lead to major corrosion within months.
