When a 24,000 TEU container vessel approaches a busy port like Antwerp or Rotterdam, its mooring lines exert forces exceeding 250 tonnes on a single bollard . The wind is howling. The tide is surging. And the only thing keeping that vessel safely alongside the quay is a hot dipped galvanized mooring bollard.
But here is the problem: the same marine environment that demands this strength is also relentlessly attacking the bollard itself. Salt spray, tidal immersion, UV radiation, and industrial pollution combine to create one of the most corrosive environments on Earth—classified as C5-M (very high corrosivity, marine) under ISO 12944 .
I have spent years manufacturing OEM mooring bollards for global ports, shipyards, and terminals. In this guide, I will explain why a hot dipped galvanized mooring bollard is best for marine environment applications, how the galvanization process works, and what specifications you should demand for your next project.
A hot dipped galvanized mooring bollard is not simply a steel post with a coating. It is a sophisticated corrosion protection system.
The Process:
1. The steel bollard is cleaned through abrasive blast cleaning to SA 2.5 standard
2. It is immersed in a bath of molten zinc at approximately 450°C (840°F)
3. A metallurgical bond forms between the zinc and the steel
4. The result is a uniform, thick zinc-iron alloy layer (typically 85-100 microns or more)
> *"Hot-dip galvanising bonds a uniform zinc layer to the steel substrate, creating a durable barrier against corrosion. This metallurgical bond protects the steel profile even if the outer paint is scratched."*
| Protection Mechanism | How It Works |
|---|---|
| Barrier protection | Zinc coating physically seals steel from moisture and oxygen |
| Cathodic protection | Zinc acts as a "sacrificial anode"—corrodes first to protect the steel |
| Self-healing | Scratches expose zinc, which corrodes preferentially, forming protective zinc carbonate |
| Metallurgical bond | Unlike paint, galvanization cannot peel or delaminate |
The Result: A properly hot dipped galvanized mooring bollard can achieve a service life of 15–25 years in C5-M marine environments with minimal maintenance .
The International standard ISO 12944 classifies atmospheric corrosivity into six categories . For marine mooring bollards, C5-M is the most relevant—and most demanding.
| Characteristic | C5-M Specification |
|---|---|
| Corrosivity level | Very high (C5-M) |
| Typical environments | Coastal areas with high salinity, industrial zones with pollution |
| Key threats | Salt spray, constant condensation, tidal immersion, industrial pollutants |
| Expected zinc loss | 8–12 years for hot-dip galvanized coating in this environment |
> *"The C5-M class describes very high corrosivity in marine environments where salt spray, constant condensation and heavy pollution increase the risk of rapid corrosion."*
According to industry best practices for C5-M marine environments :
| Layer | Specification | Purpose |
|---|---|---|
| 1. Substrate | High-tensile structural steel (ASTM A36, minimum yield 250 MPa) | Structural strength |
| 2. Surface preparation | Abrasive blast cleaning to SA 2.5 | Ensure coating adhesion |
| 3. Hot-dip galvanization | ≥80 microns zinc coating (minimum) | Primary corrosion protection |
| 4. Epoxy topcoat (optional) | Low-VOC, two-component marine-grade epoxy | Additional UV and chemical resistance |
For extreme applications, JIER MARINE's recent project at Dalian Hengli Heavy Industry Shipyard applied a proprietary eco-friendly epoxy topcoat over hot-dip galvanization, achieving full C5-M certification and a guaranteed service life exceeding 15 years .
Not all galvanization is equal. A critical distinction exists between hot-dip galvanized (HDG) and electro-galvanized (EG) mooring bollards.
| Environment (ISO 9223) | HDG Lifetime | EG Lifetime | HDG Advantage |
|---|---|---|---|
| C2 (Rural) | 50–75 years | 20–25 years | 2.5× |
| C4 (Industrial) | 15–20 years | 7–10 years | 2× |
| C5-M (Marine splash) | 8–12 years | 3–5 years | 2.4× |
*Based on ASTM B117 salt spray testing: HDG Z275 lasts 720+ hours vs. EG 25µm at 240 hours*
| Factor | Hot-Dip Galvanized (HDG) | Electro-Galvanized (EG) |
|---|---|---|
| Coating thickness | 80–150+ microns | 5–25 microns |
| Metallurgical bond | Yes (alloy layer) | No (surface deposition) |
| Cathodic protection | Yes | Very limited |
| Marine suitability | Excellent | Poor |
| Typical application | Port bollards, marine hardware | Indoor fasteners, light duty |
Verdict: For marine mooring bollards exposed to saltwater, hot-dip galvanized is not optional—it is mandatory. Electro-galvanized coatings will fail within 3–5 years in C5-M conditions .

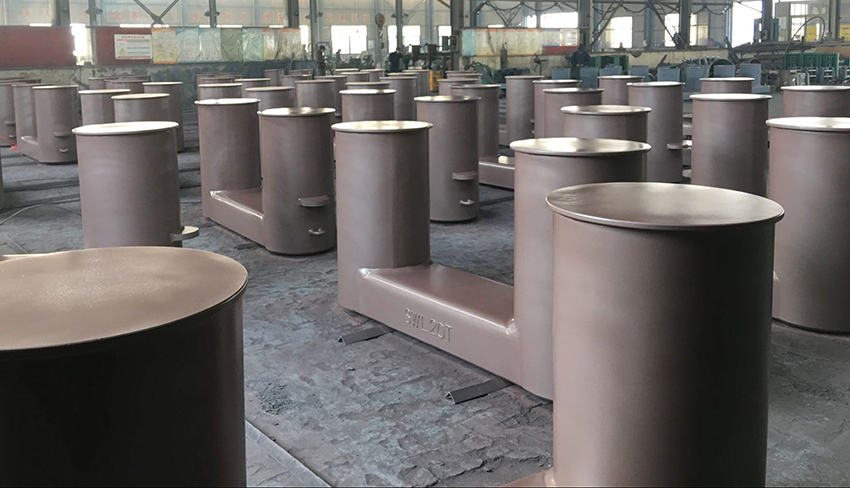

A hot dipped galvanized mooring bollard comes in several configurations, each suited to specific operational needs .
| Type | Best Application | Typical Working Load |
|---|---|---|
| T-Head (Tee) Bollard | General cargo berths, container terminals | 100–600+ kN |
| Double-Head Bollard | Cruise terminals, large vessel mooring | 250–500+ kN per head |
| Pillar (Single) Bollard | Small harbors, pleasure craft | 50–150 kN |
| Cruciform (Cross) Bollard | High-traffic commercial ports | 200–1,000+ kN |
| Quick-Release Bollard | Lifeboats, emergency response | 50–200 kN |
In 2024, the Port of Antwerp-Bruges upgraded four bollards from 150 tonnes to 250 tonnes at PSA Antwerp's Noordzee Terminal .
The Challenge: Older bollards were at risk of overloading due to increasing vessel sizes (24,000 TEU ships now calling at the terminal).
The Solution:
- Cutouts made in the quay wall at four locations
- Steel frames installed and chemically anchored
- New 250-tonne bollards mounted on frames
- 50-meter-long tensioned anchors installed into subsoil for enhanced stability
> *"Installing the new bollards represents the final step in ensuring that multiple 24,000 TEU ships can dock at the terminal most efficiently, minimizing wasted space."*
Key Takeaway: Bollard upgrades require extensive engineering analysis, including dynamic mooring analysis, finite element assessment, and independent technical review.
When specifying a hot dipped galvanized mooring bollard, the factor of safety (FS) is arguably more critical than the working load itself.
| Standard / Application | Minimum Safety Coefficient |
|---|---|
| PIANC Guidelines | 3.0 |
| ISO 3911 | 3.0 |
| Typical Port Authority | 3.0 – 4.0 |
| LNG Terminals | 4.0 – 5.0 |
*Source: Industry standards and port engineering requirements*
> *"The safety coefficient is the ratio between ultimate strength and safe working load."*
Example Calculation:
- Working load requirement: 200 kN
- Safety coefficient: 3.0
- Required ultimate strength: 200 kN × 3.0 = 600 kN
⚠️ Important Warning: Some older specifications or less stringent jurisdictions may accept FS = 2.0. However, for critical marine infrastructure, PIANC recommends FS ≥ 3.0. For LNG terminals and high-risk applications, demand FS ≥ 4.0 .
| Standard | Specification |
|---|---|
| Steel grade | ASTM A36 (minimum yield 250 MPa) or higher |
| Hot-dip galvanization | ASTM A123 / BS EN 1461 (85-100+ microns) |
| Coating for C5-M | ISO 12944-5 |
| Mooring equipment | ISO 13797:2025 (under development) |
| Bollard types | ISO/AWI 25419 (double cruciform, under development) |
Reputable manufacturers should provide third-party certification from recognized bodies :
| Certification Body | Scope |
|---|---|
| ABS | American Bureau of Shipping – vessel mooring equipment |
| BV | Bureau Veritas – marine hardware certification |
| LR | Lloyd‘s Register – global shipping approval |
| DNV | Det Norske Veritas – offshore and marine |
| CCS | China Classification Society – Asian port compliance |
| SGS | General quality and testing verification |
> *"Each bollard is checked layer by layer to ensure that a product delivered to customers meets the qualified standard, and high precision and high-strength products are supplied according to client's needs."*
A high-quality hot dipped galvanized mooring bollard is only as effective as its installation.
The Port Nelson Wharf Extension project in New Zealand included installation of TAIDUN fender units and mooring bollard hardware .
Project scope:
- Demolition of 100-year-old timber wharf
- Construction of 100m replacement wharf
- Installation of pre-cast fender support panels
- Post-tensioning of anchor bolts
- Denso Seashield corrosion protection system for support piles
- Cathodic protection for wharf deck reinforcement
> *"The new wharf caters for larger container and cruise vessels, and is also more resilient to seismic activity."*
We asked port operators and marine engineers about their experience with hot dipped galvanized mooring bollards. Here is what they shared:
> *"We used electro-galvanized bollards on a coastal project five years ago. Within three years, rust streaks were visible. After switching to hot-dip galvanized with an epoxy topcoat, we have zero visible corrosion after four years of service. The initial cost difference was minimal compared to the replacement cost."*
> — *Port Engineer, Southeast Asia*
> *"The C5-M coating system from our current supplier has been a game-changer. We operate in a high-salt, high-humidity environment with aggressive tidal cycles. Our hot-dipped galvanized bollards are still in excellent condition after 8 years. No maintenance required."*
> — *Terminal Operations Manager, Middle East*
The International Organization for Standardization is currently developing ISO/AWI 25419, which will specify :
- Types, nominal sizes, dimensions, and materials for double cruciform bollards
- Construction, manufacturing, and marking requirements
- Maximum loading for nominal sizes 70 to 500
Status: New project registered (Stage 20.00) — under development as of March 2026.
Why this matters: Once published, ISO 25419 will provide a unified global standard for double cruciform bollards. Early adopters should monitor this standard for future compliance requirements .
While hot-dip galvanized bollards require minimal maintenance, periodic inspection preserves their long-term performance.
| Frequency | Action |
|---|---|
| Monthly (visual) | Check for damage, deformation, or coating scratches |
| Quarterly | Inspect foundation for cracking or settlement |
| Annually | Test mooring capacity with calibrated equipment |
| After major storm | Full structural assessment |
> *"Apply anti-seize compound to threaded components like screw caps to prevent galling and ease future maintenance."*
If the galvanized coating is scratched:
1. Clean the exposed steel thoroughly
2. Apply a zinc-rich cold galvanizing compound
3. For C5-M environments, follow with a marine-grade epoxy topcoat
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture hot dipped galvanized mooring bollards that are best for marine environments worldwide .
Our capabilities include:
| Service | Description |
|---|---|
| Custom manufacturing | Bollards designed to your working load, size, and configuration |
| Hot-dip galvanization | ≥80 microns, ASTM A123 compliant |
| C5-M coating systems | HDG + epoxy topcoat for extreme marine environments |
| Third-party certification | ABS, BV, LR, DNV, CCS, SGS available |
| Complete mooring packages | Bollards + fenders + anchors + chocks |
| OEM service | Serving brand owners, wholesalers, and production facilities in over 80 countries |
Our recent product highlight: Mooring bollards with anti-slip design for European coastal ports — featuring ISO 13795 compliance and advanced surface finish requirements .
A hot dipped galvanized mooring bollard best for marine environment is defined by four critical factors:
1. Hot-dip (not electro) galvanization – minimum 80 microns, ASTM A123
2. C5-M compliance – ISO 12944, with optional epoxy topcoat for extreme exposure
3. Safety coefficient ≥ 3.0 – 4.0–5.0 for LNG terminals
4. Third-party certification – ABS, BV, LR, DNV, or CCS
Do not compromise on corrosion protection. In a C5-M marine environment, the wrong coating can mean catastrophic failure within 5 years.
[Contact the Nanjing Taidun Engineering Team] for a free mooring bollard consultation. Send us your working load requirements, environmental conditions, and certification needs—we will provide a C5-M compliant, hot-dipped galvanized solution engineered for your specific application.
Q1: What is the difference between hot-dip galvanized and electro-galvanized mooring bollards?
A: Hot-dip galvanized bollards have a thick (80-150+ microns) metallurgical bond with the steel, providing cathodic protection. Electro-galvanized coatings are thin (5-25 microns) surface deposits without a true alloy layer. In C5-M marine environments, HDG lasts 8–12 years; EG fails in 3–5 years .
Q2: What is C5-M corrosion classification and why does it matter for bollards?
A: C5-M is ISO 12944's highest corrosion category for marine environments—high salinity, constant condensation, and industrial pollution. Bollards specified for C5-M with proper coating systems (HDG ≥80µm + optional epoxy topcoat) achieve 15+ year service lives .
Q3: What safety coefficient should I specify for mooring bollards?
A: PIANC and ISO 3911 require a minimum safety coefficient of 3.0 (ultimate strength ÷ working load). For LNG terminals and high-risk applications, specify FS ≥ 4.0–5.0 .
Q4: What certifications should genuine marine bollards have?
A: Look for certification from ABS, BV, LR, DNV, CCS, or SGS—depending on your project's flag state and insurer requirements. These verify material quality, manufacturing standards, and performance testing .
Q5: How long do hot-dipped galvanized mooring bollards last in saltwater environments?
A: In C5-M marine splash zones, hot-dip galvanized bollards with proper coating thickness typically last 15–25 years. When combined with an epoxy topcoat, documented service life exceeds 15 years .
Q6: What emerging standards should I monitor for mooring bollards?
A: ISO/AWI 25419 (double cruciform bollards) is currently under development. Also monitor ISO 13797:2025 revisions. These will provide unified global standards for bollard types, dimensions, and maximum load ratings .
