From a Port Engineer's Perspective — with Real User Feedback
Selecting the right mooring bollard is one of the most critical safety decisions in port infrastructure. This article combines industry standards, engineering research, and real user feedback to provide a practical guide for port operators, terminal engineers, and marine contractors. Drawing from ISO standards under development, PIANC guidelines, and hands-on user experiences, we cover bollard types, material selection, safety coefficients, foundation requirements, and emerging technologies like Smart Bollards. Whether you are specifying bollards for a new container terminal or replacing worn units at a small harbor, this guide helps you make informed, safety-focused decisions.
Mooring bollards look simple. They are just cast steel or iron posts bolted to a quay — what could go wrong?
Plenty.
I have seen the aftermath of a bollard failure at a busy container terminal: a 300-meter vessel drifting uncontrolled, mooring lines snapping like rubber bands, and damage estimates exceeding €2 million in under 30 seconds. The cause? A bollard selected with an inadequate safety factor for the vessel size.
As a port engineer who has specified, installed, and inspected hundreds of bollards across three continents, I can tell you: the right bollard is invisible; the wrong one is unforgettable.
This guide reflects not just standards and textbooks, but real-world lessons — including feedback from boat owners, harbor masters, and terminal operators who use these bollards every day.
A marine mooring bollard provides a fixed point to secure mooring lines. It transfers the pull from vessel lines into the quay or deck structure. Simple in concept, critical in function.
Key terminology every specifier should know:
| Term | Definition |
|---|---|
| Safe Working Load (SWL) | Maximum load for normal operations |
| Ultimate Strength | Load causing catastrophic failure |
| Safety Coefficient | Ultimate Strength ÷ SWL (industry minimum: 3.0) |
| Proof Load | Test load applied during factory verification (typically 1.5–2.0 × SWL) |
> "Bollards are safety critical items and quality is paramount." — Industry manufacturing standard
Based on industry practice and verified user feedback, here are the most common bollard configurations.

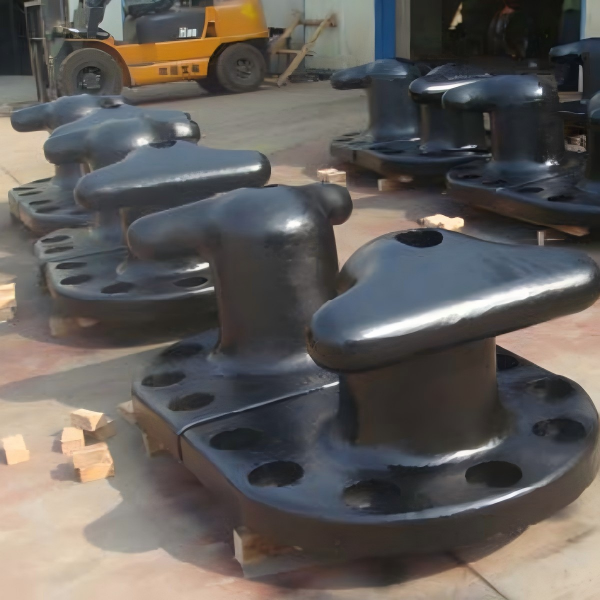

Best for: Commercial ports, container terminals, general cargo
Double-horn bollards are the industry workhorse. They accommodate multiple lines from different directions and handle steep rope angles (typically -45° to +45° vertical, 0° to 180° horizontal).

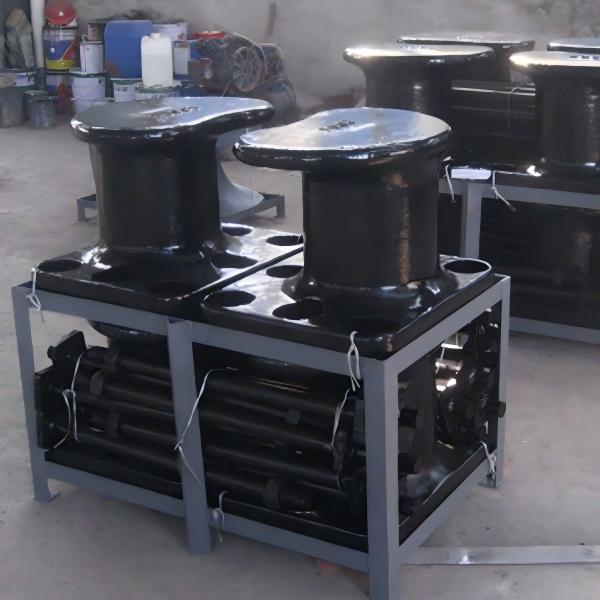

Best for: Small craft harbors, secondary positions, river terminals
Compact and cost-effective, these are common in marinas and along recreational docks.
User feedback from actual installations:
> "The grip is much better than with stainless steel bollards. Fast, trouble-free delivery of 54 pieces." — Zsolt B. , verified purchase
> "Perfect for my houseboat. Price/performance ratio is OK. I don't need a shiny stainless steel bollard on this boat." — André L. , verified purchase
Important caveat from a large-scale installer:
> "We have installed around 300 of these cross bollards on our jetty. Unfortunately, some still have a few nicks and sharp edges from the galvanization process, which can cause problems for the mooring lines. The round end buttons are also not ideal, and can easily rub through a mooring line." — Josef H. , verified purchase
Key takeaway: Even good products can have quality variations. Always inspect for sharp edges and surface defects before installation — especially when ordering large quantities.
Best for: LNG terminals, tanker berths, emergency release applications
These specialized units allow rapid line release under load, essential for emergency situations.
Best for: High-tidal-range locations, lock chambers
Tall cylindrical bollards provide multiple attachment points along the height, accommodating vertical vessel movement.
The Port of Rotterdam has pioneered Smart Bollards — sensor-embedded units that continuously measure:
- Load on mooring lines
- Line direction and angle
- Tide levels
- Weather conditions
Real-world impact: After successful piloting at the ECT Delta Terminal in 2021, Rotterdam installed 108 Smart Bollards along the new Prinses Amalia Quay. Additional installations followed at the Port of Valencia (MSC Terminal) and the Port of Antwerp.
Why this matters: Traditional bollards operate in an information vacuum. Smart Bollards provide real-time data that prevents overloading and enables predictive maintenance. Past incidents in Rotterdam and Antwerp caused damages exceeding €150 million, highlighting the urgent need for better monitoring.
> "We use it in the spring to practice new casting techniques. It stands outside on the terrace and doesn't rust. I know many ports in the Baltic Sea where people moor to bollards like this." — Marina A. , verified purchase
> "Time will tell about the durability of the galvanizing." — Frank H. , verified purchase
Expert insight: Hot-dip galvanizing remains the most reliable corrosion protection for carbon steel bollards in marine environments. However, as Frank H. notes, long-term durability depends on coating quality and thickness. For aggressive environments (high salinity, industrial pollution), specify 316 stainless steel or ductile iron with enhanced coating systems.
> "Mounted on my steel sailing yacht today. A top product! Sits, fits, wobbles and has play! " — Klaus R. , verified purchase
Critical note: Klaus's comment reveals a common issue — even quality products fail if installation is poor. "Wobbles and has play" indicates improper torque or inadequate foundation preparation. Always:
- Use torque wrenches to specified values
- Verify anchor bolt embedment
- Use epoxy grout for leveling
The safety coefficient (factor of safety) is the ratio between ultimate strength and safe working load.
Industry standards specify:
| Standard | Minimum Safety Coefficient |
|---|---|
| PIANC Guidelines | 3.0 |
| ISO 3911 | 3.0 |
| Typical Port Authority | 3.0 – 4.0 |
| LNG Terminals | 4.0 – 5.0 |
Real contract language from a port authority:
> "The bollards shall be suitable for working loads of 2,000 kN (200 tons) … designed to a minimum factor of safety of 2 (FS = 2) ."
⚠️ Warning: This FS=2 example is below PIANC recommendations. Some older specifications or less stringent jurisdictions may accept lower factors. For critical infrastructure, insist on FS ≥ 3.0.
A 2019 study on mooring bollard safety by researchers at Korea Maritime and Ocean University found:
> "The working stress according to the towing force was found to be at least 150 MPa and it was evaluated to be 60% of the limit strength (245 MPa)."
Translation: Properly specified bollards operate at 60% of their ultimate strength at rated loads — providing a healthy safety margin. The same research established that anchor bolt design and foundation integrity are often the weakest links.
| Application | Recommended Safety Coefficient | Rationale |
|---|---|---|
| Small craft harbors | 3.0 | Lower consequences of failure |
| Commercial ports | 3.0 – 3.5 | Standard operations |
| Container/Bulk terminals | 3.5 – 4.0 | Large vessels, frequent use |
| LNG terminals | 4.0 – 5.0 | Hazardous cargo, severe consequences |
| Naval facilities | 4.0 – 5.0 | Critical operations |
A bollard is only as strong as its foundation.
Critical parameters often overlooked:
- Concrete strength: Minimum 30–40 MPa for most applications
- Anchor bolt grade: Must match or exceed bollard capacity
- Edge distance: Sufficient to prevent concrete blowout
- Reinforcement: Adequate to resist tension and shear
Expert warning: Most bollard failures I have investigated traced back to foundation issues, not bollard defects. Corroded anchor bolts, inadequate edge distance, and poor grouting are the usual suspects.
Installation best practices from the field:
- Use epoxy grout or non-shrink cementitious grout beneath base plates
- Verify anchor bolt torque with calibrated tools
- Install corrosion protection on exposed threads
- Document installation with photos and torque reports
The International Organization for Standardization is currently developing ISO/AWI 25419 , which will specify:
- Types, nominal sizes, dimensions, and materials
- Construction, manufacturing, and marking requirements
- Maximum loading for nominal sizes 70 to 500
Status: New project registered (Stage 20.00) — under development.
Why this matters: Once published, ISO 25419 will provide a unified global standard for double cruciform bollards. Early adopters should monitor this standard for future compliance requirements.
| Theme | User Quote |
|---|---|
| Corrosion resistance | “Doesn’t rust” — Marina A. |
| Value for money | “Unbeatable value for money” — Anonymous |
| Performance | “Stronger than brass fittings, also suitable for towing 14 tons” — Franz D. |
| Fast delivery | “Fast, trouble-free delivery” — Zsolt B. |
| Issue | User Quote |
|---|---|
| Sharp edges | “Nicks and sharp edges from galvanization… can cause problems for mooring lines” — Josef H. |
| Installation problems | “Wobbles and has play” — Klaus R. |
| Round end buttons | “Not ideal, can easily rub through a mooring line” — Josef H. |
User feedback consistently validates three principles:
1. Corrosion protection works when properly applied (galvanizing is effective)
2. Quality control matters — inspect for sharp edges and surface defects
3. Installation is critical — even perfect bollards fail with poor mounting
Use this checklist when specifying or purchasing mooring bollards:
- [ ] Determine maximum vessel size and mooring load
- [ ] Calculate required SWL (include safety factor)
- [ ] Verify berth structure can support foundation loads
- [ ] Assess environmental conditions (salinity, temperature, exposure)
- [ ] Select type (double-horn, single, pillar, quick-release)
- [ ] Specify material (cast steel, ductile iron, stainless)
- [ ] Define coating (hot-dip galvanized, epoxy, powder-coated)
- [ ] Confirm safety coefficient (minimum 3.0)
- [ ] Request dimensional drawings and anchorage calculations
- [ ] Material test certificates (chemical analysis, tensile testing)
- [ ] Factory inspection report
- [ ] Proof load test certificate
- [ ] Coating thickness report
- [ ] Installation instructions
- [ ] Verify anchor bolt torque
- [ ] Inspect for sharp edges or defects
- [ ] Document as-built conditions
- [ ] Establish inspection schedule (visual monthly, full annually)
Even the best bollard requires regular attention.
| Inspection Type | Frequency | Focus Areas |
|---|---|---|
| Visual | Monthly | Obvious damage, corrosion, loose hardware |
| Detailed | Annually | Coating condition, weld cracks, foundation settlement |
| Proof Load Test | Every 5–10 years | Verify capacity remains above SWL × safety factor |
> "A quick visual check weekly, and a full inspection at least once a year. Look for loose bolts, cracks, or corrosion. Replace or repair right away if you see damage." — Industry best practice
Red flags requiring immediate action:
- Visible cracking or deformation
- Corrosion causing section loss >10%
- Loose anchor bolts
- Foundation cracking or movement
Mooring bollards are the unsung heroes of port operations. When selected correctly, installed properly, and maintained regularly, they provide decades of reliable service — invisible and unremarkable.
When selected poorly? The consequences range from costly downtime to catastrophic failure.
Your action items:
1. Never compromise on safety coefficient — FS=3.0 minimum
2. Inspect before installation — reject units with sharp edges or defects
3. Verify foundation capacity — the bollard is only as strong as its base
4. Document everything — test certificates, torque reports, inspection records
5. Plan for maintenance — regular inspections catch problems early
For critical applications (LNG terminals, large container ports, naval facilities), consider emerging technologies like Smart Bollards that provide real-time load monitoring and predictive alerts.
1. Law Insider. (2025). *Mooring Points (Bollards) Clause Samples*. [https://www.lawinsider.com/clause/mooring-points-bollards]
2. TT Club. (2025). *Smart Bollard by Straatman Mooring Systems*. [https://www.ttclub.com/loss-prevention/innovation-hub/article]
3. SVB GmbH. (2015–2026). *Customer Ratings — Galvanized Steel Double Bollard*. [https://www.svb24.com/rating/view-by-product/504868]
4. Yu, Y. U., Kim, S. Y., & Lee, Y. S. (2019). *A Study on the Evaluation of Safety Stiffness from Ship's Mooring Bollards*. Korea Maritime and Ocean University. [https://koreascience.kr/article/JAKO201912964892612.page]
5. ISO. (2024). *ISO/AWI 25419 — Double cruciform bollards*. [https://library.iso.ch/standard/90264.html]
6. TradeKorea. (2025). *Ship Double Bitts Mooring Bollards — Product Specifications*. [https://tradekorea.com/product/detail/P333818]
Q1: How do I determine the right bollard size for my port?
Start with the largest vessel you plan to berth. Calculate mooring loads based on vessel displacement, wind, current, and wave conditions. Use PIANC guidelines or consult a marine engineer. Select a bollard with Safe Working Load (SWL) that exceeds the calculated peak load, then apply a safety coefficient of at least 3.0.
Q2: What is the most durable bollard material for saltwater environments?
Ductile iron often performs best in marine conditions because it naturally resists corrosion better than plain cast steel. However, stainless steel (316 grade) offers superior corrosion resistance at higher cost. For most commercial applications, hot-dip galvanized cast steel provides the best balance of strength, durability, and value.
Q3: How often should bollards be inspected?
Perform a quick visual check monthly. Conduct a detailed annual inspection looking for loose bolts, cracks, corrosion, and foundation settlement. Perform proof load testing every 5–10 years, depending on application and traffic intensity. After any overload event or impact, inspect immediately.
Q4: What safety coefficient should I specify?
Industry standards (PIANC, ISO 3911) require a minimum safety coefficient of 3.0. For critical applications like LNG terminals or naval facilities, specify 4.0–5.0. Be cautious of older specifications that allow FS=2.0 — this may be inadequate for modern vessel loads.
Q5: Are Smart Bollards worth the investment?
For high-risk applications (LNG terminals, busy container ports, facilities exposed to extreme weather), yes. Real-time monitoring prevents overloading and enables predictive maintenance. The Port of Rotterdam has installed over 100 Smart Bollards after successful pilots. Past incidents causing €150M+ in damages demonstrate the value of real-time data.
